About crane anti collision systems

Types of Crane Anti-Collision Systems

A crane anti-collision system is an essential safety mechanism designed to prevent collisions between cranes and other equipment, structures, or personnel on job sites. These systems are crucial in multi-crane environments and complex construction projects where visibility might be limited or operational risks are high.

By leveraging advanced technologies, these systems provide real-time monitoring and alerts to crane operators, significantly reducing the risk of accidents, minimizing downtime, and protecting both human life and expensive machinery. Below are the most common types of crane anti-collision systems currently used in industrial and construction applications:

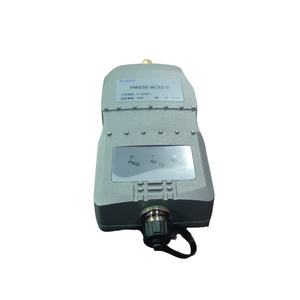

Radar Anti-Collision Systems

Radar-based systems utilize microwave signals to detect and track nearby cranes or obstacles with high precision. They continuously emit electromagnetic waves that reflect off objects within the operating area. The system calculates the distance, speed, and direction of movement based on the time delay and frequency shift of the returning signals.

Advantages
  • Effective in adverse weather conditions (rain, fog, dust)
  • Operates reliably in low-visibility environments
  • High accuracy over long distances
  • Minimal interference from noise or light sources
Limitations
  • Higher cost compared to basic proximity sensors
  • Potentially complex installation requirements
  • May require periodic recalibration

Best for: Outdoor operations, all-weather environments, large-scale infrastructure projects

Laser Anti-Collision Systems

Laser technology enables highly accurate detection by emitting focused beams of light that scan the surrounding area. When a laser beam reflects off an object, the system measures the time it takes for the beam to return, allowing precise distance calculations. Laser systems can monitor multiple points simultaneously, providing comprehensive spatial awareness.

Advantages
  • Exceptional precision and sensitivity
  • Fast response times for immediate alerts
  • Capable of detecting small objects or slight movements
  • Excellent for confined spaces with tight tolerances
Limitations
  • Sensitive to environmental conditions like heavy rain or fog
  • Requires unobstructed line-of-sight for optimal performance
  • Higher maintenance due to lens cleanliness needs

Best for: Indoor facilities, shipyards, warehouses, and precision lifting operations

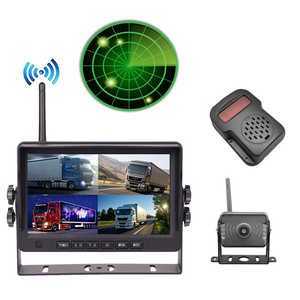

Camera-Based Anti-Collision Systems

These systems integrate high-resolution cameras with intelligent image recognition software to monitor the crane's surroundings. Equipped with wide-angle lenses and night vision capabilities, camera systems offer visual feedback to the operator while using AI algorithms to detect potential collision threats automatically.

Advantages
  • Provides live video feed for enhanced situational awareness
  • Can detect humans, vehicles, and fixed structures
  • Works well in combination with other sensor types
  • Offers post-event analysis through recording features
Limitations
  • Performance affected by extreme lighting conditions
  • Image quality may degrade in poor weather
  • Requires more processing power and storage

Best for: Urban construction sites, congested work zones, safety-critical operations

Proximity Sensor Anti-Collision Systems

Utilizing ultrasonic, radar, or LIDAR-based proximity sensors, these systems monitor the distance between cranes and nearby objects in real time. Each sensor type has unique characteristics but shares the goal of alerting the operator when safe clearance thresholds are exceeded.

Advantages
  • Cost-effective solution for many applications
  • Simple installation and integration with existing controls
  • Immediate feedback through audible/visual alarms
  • Available in various sensing ranges and configurations
Limitations
  • Less effective at long distances
  • May miss small or narrow obstacles
  • Some types susceptible to interference

Best for: Medium-sized job sites, retrofitting older cranes, budget-conscious installations

Type Accuracy Weather Resistance Installation Complexity Typical Use Case
Radar Very High Excellent Moderate Outdoor construction, port operations
Laser Extremely High Fair High Indoor manufacturing, precision lifting
Camera-Based High Good Moderate Urban construction, surveillance integration
Proximity Sensors Moderate Good Low Small-to-medium job sites, retrofits

Expert Tip: For maximum safety and redundancy, consider implementing a hybrid system that combines different technologies (e.g., radar + camera). This ensures comprehensive coverage across varying conditions and enhances overall reliability.

Specification and Maintenance of Crane Anti-Collision Systems

Essential Features of Anti-Collision Systems

Crane anti-collision systems are critical safety components designed to prevent accidents in environments where multiple cranes or obstacles are present. These systems incorporate advanced technologies and intelligent features to ensure safe crane operations under various conditions.

Sensor Technology

Modern anti-collision systems utilize a combination of radar, ultrasonic, and laser sensors to monitor the crane's surroundings with high precision. These sensors detect nearby cranes, structures, and moving objects, providing real-time positional data that allows the system to assess collision risks dynamically.

Radar excels at long-range detection, while ultrasonic sensors offer reliable short-range proximity monitoring. Laser-based systems provide highly accurate distance measurements and can map out complex spatial relationships around the crane.

Alarm Systems

Anti-collision systems integrate both visual and audible alarm mechanisms to alert operators of imminent danger. Visual alarms typically include flashing lights or on-screen indicators, while audible alerts range from beeping tones to voice warnings depending on the severity of the threat.

These alarms are tiered based on proximity and risk level—early warning stages may trigger subtle alerts, whereas imminent collision risks activate more urgent signals to prompt immediate operator action.

Control System Integration

For enhanced safety, anti-collision systems are directly integrated into the crane’s control infrastructure. This integration enables automatic intervention when dangerous situations arise, such as reducing hoist speed, limiting boom movement, or even initiating emergency stops if necessary.

Such automated responses help mitigate human error and ensure consistent adherence to safety protocols, especially during high-stress or fast-paced operations.

Zone Management

Advanced anti-collision systems feature programmable zone management capabilities. Operators can define safe operating zones, exclusion areas, and buffer zones tailored to the specific worksite layout and operational requirements.

This functionality prevents unauthorized movements into restricted zones and maintains minimum separation distances between cranes, significantly reducing the potential for collisions in multi-crane environments.

Redundancy and Reliability

High-performance anti-collision systems are built with redundancy in mind to ensure continuous operation even if one component fails. Dual sensor arrays, backup power supplies, and fail-safe logic circuits contribute to the system’s overall reliability and safety integrity level (SIL).

Components are selected for durability and resistance to environmental factors such as dust, moisture, and vibration, ensuring long-term performance in demanding industrial settings.

Feature Importance Level Operational Benefit
Real-Time Detection High Immediate awareness of nearby hazards and dynamic obstacles
Multi-Sensor Fusion High Improved accuracy and reduced false positives through combined sensor inputs
Automatic Intervention Very High Prevents collisions when manual response is insufficient or delayed
Customizable Zones Medium Enables site-specific configuration for optimal safety and efficiency
System Diagnostics High Continuous health monitoring helps identify faults before they cause failures

Maintenance Requirements for Optimal Performance

To ensure the ongoing effectiveness of crane anti-collision systems, regular maintenance and inspections must be performed according to manufacturer guidelines and industry best practices:

  • Inspection Protocol: Conduct thorough visual and functional checks of all system components including sensors, wiring, control units, and alarm devices. Look for signs of physical damage, corrosion, misalignment, or loose connections that could impair performance.
  • Cleaning Procedures: Keep sensors and external interfaces free from dirt, grease, and debris that might interfere with signal transmission or sensor accuracy. Use non-abrasive cleaning solutions and soft cloths to avoid damaging sensitive surfaces.
  • Calibration Standards: Follow recommended calibration schedules to maintain measurement accuracy. Calibration should be performed using certified reference tools and standards to ensure the system remains within specified tolerances.
  • Software Updates: Regularly update firmware and software to benefit from performance improvements, security enhancements, and new functionalities provided by the manufacturer. Ensure updates are applied by qualified personnel following proper procedures.
  • Operator Training: Provide comprehensive training to crane operators and maintenance staff regarding system operation, alarm interpretation, troubleshooting steps, and emergency procedures. Proper understanding enhances system utilization and incident response.
  • Important: Always follow the manufacturer's maintenance schedule and guidelines. Failure to properly maintain an anti-collision system can result in reduced performance, missed hazard detection, or complete system failure—potentially leading to serious accidents or equipment damage.

    How to Choose Anti-Collision Systems for Cranes

    Selecting the appropriate anti-collision system for cranes is a critical decision that significantly impacts safety, operational efficiency, and cost management on construction sites and industrial facilities. These systems are designed to prevent accidents caused by unintended contact between cranes, structures, or other equipment.

    Site Assessment

    A comprehensive site assessment is the foundation of selecting an effective anti-collision system. This involves analyzing the physical layout, identifying high-traffic zones, determining proximity to buildings or obstructions, and evaluating the number and movement patterns of cranes in operation.

    • Determine crane density and overlapping swing radii
    • Identify blind spots and areas with limited visibility
    • Assess environmental conditions like wind speed and terrain stability

    Key consideration: Use CAD mapping or drone surveys for accurate spatial planning

    Crane Type and Configuration

    The type and structural configuration of the crane play a significant role in determining the most suitable anti-collision technology. Tower cranes, mobile cranes, overhead cranes, and gantry cranes each have unique operational characteristics and collision risks.

    • Tower cranes may require synchronized systems for multiple units
    • Mobile cranes benefit from GPS-based positioning solutions
    • Overhead cranes often use laser or ultrasonic proximity sensors

    Technical tip: Verify compatibility with existing control systems and communication protocols

    Load Capacity and Speed

    Anti-collision systems must be matched to the specific load capacity and operating speeds of the crane. Faster-moving cranes or those handling heavier loads require more responsive detection and braking systems to ensure timely reaction to potential collisions.

    • High-speed cranes need real-time tracking with low latency response
    • Heavy-duty applications demand robust sensors with wide detection range
    • Systems should account for inertia and stopping distance calculations

    Performance factor: Look for systems with dynamic load compensation features

    Technology and Features

    Modern anti-collision systems incorporate various technologies such as laser rangefinders, radar, GPS tracking, and AI-based analytics. The choice depends on the required level of automation and precision for the application.

    • Laser distance measurement for millimeter-level accuracy
    • Ultrasonic sensors for close-range detection
    • GPS synchronization for multi-crane coordination
    • Visual/auditory alarms and automatic braking systems

    Innovation insight: Consider future-proof systems that support software updates and integration with IoT platforms

    Installation and Maintenance

    When choosing an anti-collision system, it's important to evaluate both the initial installation requirements and long-term maintenance needs. Some systems can be retrofitted to existing cranes while others may require specialized mounting hardware or professional calibration.

    • Modular systems simplify installation and component replacement
    • Weather-resistant designs extend lifespan in outdoor environments
    • Self-diagnostic capabilities reduce maintenance downtime

    Cost-saving note: Choose systems with accessible service networks and readily available spare parts

    Training and Operation

    Effective implementation of anti-collision systems requires proper training for all personnel involved. Operators should understand how to interpret system alerts, respond to warnings, and perform basic troubleshooting procedures.

    • Comprehensive operator manuals and training programs
    • Intuitive user interfaces with clear visual indicators
    • Emergency override protocols for critical situations

    Best practice: Schedule regular refresher training sessions and system drills

    Selection Advice: When budget allows, consider investing in systems with modular architecture that allows for future upgrades. Starting with a mid-tier system that offers expandability can provide better long-term value than cheaper entry-level models that cannot be upgraded later.

    Application Type Recommended System Type Key Features Estimated Cost Range
    Small construction site (1-2 cranes) Basic laser/ultrasonic sensors Visual/auditory alerts, manual override $2,000 - $5,000
    Medium industrial facility Integrated sensor suite with alarm system Multi-zone detection, remote monitoring capability $5,000 - $12,000
    Large port operations Advanced GPS synchronization system Real-time tracking, automated braking, data logging $15,000 - $30,000+
    High-rise construction projects Multi-crane coordination system 3D mapping, obstacle recognition, predictive analytics $20,000 - $40,000+

    DIY Guide to Replacing and Installing Crane Anti-Collision Systems

    Replacing or installing a crane anti-collision system is a critical task that enhances safety and efficiency in lifting operations. While it can be challenging, with the right knowledge and tools, this process can be successfully completed as a DIY project. This guide will walk you through the essential steps, considerations, and best practices for safely installing or replacing an anti-collision system on your crane.

    Safety Warning: Always ensure the crane is powered off and stabilized before beginning any installation work. Use proper fall protection equipment and follow all OSHA and manufacturer safety guidelines throughout the process.

    Understanding Anti-Collision Systems

    Crane anti-collision systems prevent accidents by detecting proximity between cranes or obstacles. These systems typically use technologies such as ultrasonic sensors, laser rangefinders, GPS tracking, or radio frequency identification (RFID). Understanding which type of system suits your operation is crucial before proceeding with installation.

    Step-by-Step Installation & Replacement Process

    1. Selecting the Appropriate System
      • Evaluate your operational environment—indoor vs. outdoor, number of cranes operating in proximity, and typical load weights.
      • Choose between fixed range sensors, adaptive systems, or fully integrated digital solutions based on your needs.
      • Ensure compatibility with your crane model and control system architecture.
    2. Assessing the Crane and Worksite Risks
      • Identify potential collision zones including adjacent cranes, building structures, and ground obstructions.
      • Determine the optimal sensor mounting positions to cover all critical areas without interference.
      • Consider environmental factors like dust, moisture, and temperature that may affect sensor performance.
    3. Review Manufacturer Documentation
      • Carefully read the installation manual provided by the system manufacturer.
      • Verify wiring diagrams, component placement recommendations, and calibration instructions.
      • Familiarize yourself with troubleshooting procedures for future reference.
    4. Preparing the Installation Site
      • Clear the crane bridge and surrounding area of debris, tools, and unnecessary materials.
      • Ensure adequate lighting and secure access to elevated work points using appropriate platforms or lifts.
      • Mark out the locations where sensors and warning devices will be mounted.
    5. Gathering Tools and Safety Equipment
      • Safety glasses, hard hats, gloves, harnesses, and non-conductive footwear are mandatory.
      • Installation tools include screwdrivers, wrenches, wire strippers, crimpers, and cable ties.
      • Required components: anti-collision sensors, mounting brackets, warning lights/sirens, wiring harnesses, and fuse kits.
    6. Power Down and Secure the Crane
      • Turn off the main power supply and lockout/tagout (LOTO) the circuit to prevent accidental activation.
      • Secure the crane trolley and hoist mechanisms to avoid movement during installation.
      • Double-check that all hydraulic or pneumatic systems are depressurized if applicable.
    7. Installing the System Components
      • Mount sensors at strategic points on the bridge, end trucks, and hoist according to the layout plan.
      • Install visual and audible warning devices in operator-visible and audible locations.
      • Run wiring along protected channels or conduit, ensuring no pinch points or exposed cables.
      • Connect sensors and warning devices to the central control module following the wiring diagram.
    8. Testing the Installed System
      • Restore power and perform a full system diagnostics check.
      • Test each sensor’s detection range and response time under simulated conditions.
      • Verify that alarms activate correctly when proximity thresholds are breached.
      • Conduct multiple trial runs across the crane's full range of motion to ensure reliability.
    9. Training Operators
      • Educate operators on how to interpret alarm signals and respond appropriately.
      • Explain system limitations and emphasize that the anti-collision system is a supplementary safety tool, not a replacement for safe operating practices.
      • Provide written documentation and conduct hands-on demonstrations.
    10. Scheduling Maintenance and Inspections
      • Establish a regular inspection schedule (e.g., monthly checks and annual recalibration).
      • Keep spare parts on hand for common wear items like sensor covers or wiring connectors.
      • Document all maintenance activities and update training as needed with new personnel or system upgrades.
    Phase Key Tasks Common Mistakes Essential Tools
    Planning Selecting compatible system, risk assessment Mismatched technology for environment, incomplete hazard analysis Crane specs manual, site map, selection checklist
    Preparation Clearing site, gathering tools, LOTO procedure Rushing setup, missing safety gear Lockout kit, cleaning supplies, ladders/platforms
    Installation Mounting sensors, running wires, connecting modules Poor sensor positioning, loose connections Drill, zip ties, electrical tape, multimeter
    Testing System diagnostics, alarm verification, motion testing Incomplete testing, misinterpreting sensor readings Voltmeter, test targets, communication headset
    Maintenance Inspection, cleaning, recalibration Neglecting routine checks, delaying repairs Cleaning cloth, lubricant, spare sensors

    Expert Tip: Consider installing redundant sensors or dual-system setups in high-risk environments for added safety. Also, always label wires and keep detailed installation records for easier troubleshooting and future maintenance.

    Conclusion

    Successfully installing or replacing a crane anti-collision system requires careful planning, attention to detail, and strict adherence to safety protocols. By following this comprehensive guide, you’ll enhance both the safety and productivity of your crane operations while complying with industry regulations. Remember, a well-maintained anti-collision system is one of the most effective investments in workplace safety and equipment longevity.

    Crane Anti-Collision Systems: Frequently Asked Questions

    Q1: How frequently should anti-collision systems be maintained?

    Anti-collision systems require regular maintenance to ensure they function reliably and safely at all times. While specific intervals may vary by manufacturer, a general maintenance schedule includes:

    • Daily checks: Visual inspections for physical damage or obstructions in sensors.
    • Monthly tests: Functional testing of system alerts and response mechanisms.
    • Quarterly servicing: Calibration of sensors and software diagnostics.
    • Annual comprehensive inspection: In-depth evaluation by certified technicians, including firmware updates and hardware integrity assessments.

    Adhering to the manufacturer’s recommended service plan is crucial for maintaining system performance and compliance with safety regulations.

    Q2: Can anti-collision systems be retrofitted to older cranes?

    Yes, many modern anti-collision systems are designed to be retrofitted onto older crane models, allowing legacy equipment to benefit from advanced safety features. However, successful retrofitting depends on several factors:

    • Compatibility: The existing crane structure and control systems must support integration with the new technology.
    • Customization: Some systems may require custom mounting brackets or wiring harnesses.
    • Regulatory compliance: Retrofitted systems must meet current safety standards and local regulations.
    • Professional installation: It's highly recommended to have systems installed by authorized technicians to ensure proper operation and maintain warranty coverage.

    Consulting with the crane manufacturer or a qualified system supplier will help determine feasibility and optimal solutions.

    Q3: What is the lifespan of crane anti-collision systems?

    The operational lifespan of crane anti-collision systems typically ranges between 7 to 15 years, depending on various factors such as:

    • Environmental conditions: Exposure to dust, moisture, extreme temperatures, and corrosive elements can impact longevity.
    • Usage intensity: Cranes operating in high-demand environments may experience faster wear on electronic components.
    • Maintenance history: Regular servicing significantly extends system life and ensures consistent performance.
    • Technology lifecycle: Electronic systems may become obsolete due to advancements in sensor and communication technologies.

    Most manufacturers offer replacement parts and software upgrades to extend usability beyond initial expectations.

    Q4: Are there any training requirements for operators using anti-collision systems?

    Yes, effective use of anti-collision systems requires comprehensive operator training. Key training components include:

    • System familiarity: Understanding interface displays, alarm signals, and override protocols.
    • Response procedures: Knowing how to react when warnings or automatic shutdowns occur.
    • Limits of technology: Recognizing that while these systems enhance safety, they do not replace situational awareness and safe operating practices.
    • Emergency drills: Practicing scenarios where manual intervention may be necessary despite system protections.

    Training should be conducted by certified instructors and periodically refreshed to ensure continued competence and compliance.

    Q5: Can anti-collision systems be integrated with other safety systems?

    Absolutely. Modern anti-collision systems are designed to work seamlessly within a broader safety ecosystem on construction sites and industrial facilities. Common integrations include:

    Integrated System Functionality Benefit
    Emergency Stop Systems Automatically trigger emergency stop in critical situations Enhanced reaction speed during imminent collision risks
    Load Moment Indicators (LMI) Monitors lifting capacity and stability Prevents overloading while avoiding collisions
    GPS Tracking & Telematics Tracks crane position and movement patterns Improves coordination between multiple machines
    Operator Display Panels Centralized dashboard showing all safety alerts Reduces cognitive load and improves situational awareness
    Remote Monitoring Systems Allows supervisors to monitor operations off-site Enables proactive risk management and incident review

    This integration creates a layered safety approach that significantly reduces accident risk and enhances overall worksite efficiency.
