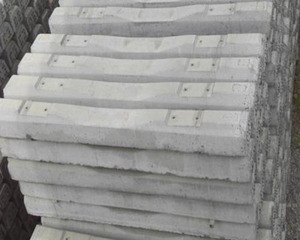

Types of Concrete Railway Sleepers
Concrete railway sleepers, also known as railroad ties or crossties, are essential components in modern rail infrastructure. They serve to support the rails, maintain gauge spacing, and distribute train loads across the ballast beneath them. Depending on the application and load requirements, different types of concrete sleepers are available, each offering unique benefits and performance characteristics.

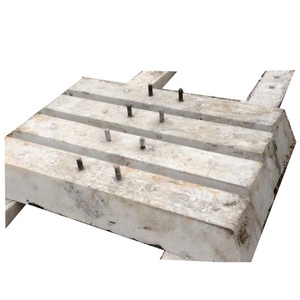

Pre-tensioned Railway Sleepers
Manufactured using a pre-tensioning process where high-strength steel strands are tensioned before the concrete is poured and cured. This results in superior compressive strength and crack resistance.
Advantages
- High structural integrity
- Excellent resistance to bending forces
- Long service life under heavy loads
- Ideal for dynamic environments like high-speed railways
Limitations
- More complex manufacturing process
- Higher initial cost compared to plain concrete
- Less flexibility in design modifications post-production
Best for: High-speed rail systems, heavy freight lines, long-term infrastructure projects
Post-tensioned Railway Sleepers
These sleepers are created by placing steel tendons in ducts within the concrete structure after it has hardened. The tendons are then tensioned and grouted to provide controlled reinforcement.
Advantages
- Greater design flexibility
- Controlled stress distribution
- Better adaptability to site-specific conditions
- Effective crack management
Limitations
- Requires skilled labor for installation
- Potential for corrosion if not properly sealed
- More maintenance-sensitive than pre-tensioned types
Best for: Custom-designed rail layouts, bridges, tunnels, and curved track sections
Reinforced Concrete Railway Sleepers
Incorporate steel rebars within the concrete matrix to improve tensile strength and overall durability. These sleepers offer a reliable balance between strength and economy.
Advantages
- Good tensile and compressive strength
- Cost-effective for general use
- Widely available and easy to produce
- Suitable for moderate loading conditions
Limitations
- Prone to rebar corrosion over time
- Heavier than some alternatives
- Limited fatigue resistance under extreme conditions
Best for: Mainline railways, suburban transit systems, industrial tracks
Plain Concrete Railway Sleepers
Simple concrete blocks without any internal reinforcement or tensioning. These are typically used in low-load applications where cost efficiency is prioritized over advanced mechanical properties.
Advantages
- Lowest production cost
- Easy to manufacture and install
- Good for short-term or temporary tracks
Limitations
- Low tensile strength
- Prone to cracking under repeated stress
- Shorter lifespan compared to reinforced or tensioned types
Best for: Light-duty sidings, industrial yards, temporary railway setups
Steel-Fiber-Reinforced Concrete Sleepers
These innovative sleepers incorporate randomly distributed steel fibers throughout the concrete mix, enhancing toughness, impact resistance, and fatigue performance.
Advantages
- Improved resistance to dynamic loads
- Reduced risk of micro-cracking
- Enhanced durability under harsh conditions
- Lighter weight compared to traditional reinforced sleepers
Limitations
- Higher material cost due to fiber inclusion
- Specialized mixing and casting required
- Still relatively new technology in some markets
Best for: High-speed rail corridors, heavy-haul networks, seismic-prone regions
| Type | Strength | Durability | Cost | Recommended Use |
|---|---|---|---|---|
| Pre-tensioned | Excellent | Excellent | High | High-speed rail, major freight lines |
| Post-tensioned | Very Good | Very Good | Moderate to High | Custom designs, bridges, curves |
| Reinforced Concrete | Good | Good | Moderate | Mainlines, urban railways |
| Plain Concrete | Fair | Fair | Low | Light-duty tracks, temporary setups |
| Steel-Fiber-Reinforced | Excellent | Excellent | High | Heavy haul, seismic zones, high-speed lines |
Expert Tip: When selecting concrete railway sleepers, always consider environmental conditions such as temperature variations, moisture exposure, and potential chemical corrosion. Proper drainage and maintenance can significantly extend the life of any sleeper type.
Specifications and Maintenance of Concrete Railway Sleepers
The specifications for concrete railway sleepers are meticulously engineered to meet the operational demands of modern rail systems. These standards ensure long-term performance, safety, and compatibility with various track configurations. Understanding these specifications and implementing proper maintenance practices is essential for ensuring reliable railway infrastructure.
Key Specifications to Consider
Design Standards
Concrete railway sleepers must conform to internationally recognized design standards such as those established by AREMA (American Railway Engineering and Maintenance-of-Way Association) and EN (European Norms). These standards dictate parameters like load-bearing capacity, structural integrity, and safety under dynamic loading conditions.
These guidelines ensure that sleepers can withstand repeated stress from train wheels, maintain alignment under thermal expansion, and resist degradation over time. Compliance with these standards is crucial for interoperability across different railway networks and regulatory approvals.
Dimensions
Concrete railway sleepers come in standardized dimensions tailored to specific track gauges and project requirements. Typically, they range between 2.4m to 2.6m in length, 0.25m to 0.30m in width, and 0.2m to 0.23m in height. Each sleeper weighs between 250kg and 350kg, providing the necessary mass for stability and vibration damping.
Precise dimensional control during manufacturing ensures uniform spacing, accurate fastening point placement, and consistent track geometry, which are critical for high-speed rail applications and heavy-haul freight lines alike.
Strength and Durability
To endure the immense forces exerted by trains, concrete railway sleepers are constructed using high-strength concrete mixtures with compressive strengths ranging from 40MPa to 60MPa. This ensures resistance to cracking, fatigue, and wear over decades of service life.
In addition to mechanical strength, modern sleepers incorporate additives and surface treatments to enhance corrosion resistance, especially in coastal or industrial environments where chemical exposure is a concern. Wear-resistant surfaces also help maintain fastener integrity and reduce maintenance frequency.
Sound and Vibration Absorption
Concrete sleepers are designed with acoustic performance in mind. They often include specialized admixtures or embedded layers that absorb vibrations and dampen noise transmission. This improves passenger comfort and minimizes environmental disturbances in urban and residential areas adjacent to railway lines.
Advanced designs may integrate rubber pads or composite materials beneath the rails to further isolate vibrations without compromising structural rigidity or track alignment precision.
| Specification | Performance Impact | Typical Values/Recommendations |
|---|---|---|
| Compressive Strength | High | 40–60 MPa |
| Modulus of Elasticity | Medium | 25–35 GPa |
| Freeze-Thaw Resistance | Medium | Air-entrained concrete recommended in cold climates |
| Track Fastening Compatibility | High | Designed for clip, bolt, or spring fastening systems |
Maintenance Requirements and Best Practices
Proper maintenance of concrete railway sleepers is vital for sustaining track safety, reliability, and operational efficiency. Regular inspection and timely intervention can significantly extend service life and prevent costly disruptions.
Important: Always replace damaged sleepers with units that match the original specifications in terms of material composition, dimensions, and fastening system compatibility. Mixing different types or grades of sleepers within the same section can compromise track stability and increase maintenance complexity.
How to Choose Concrete Railway Sleepers
Selecting the right concrete railway sleepers is a critical decision that affects the safety, performance, and longevity of rail infrastructure. Whether you're constructing a new railway or upgrading an existing line, choosing the appropriate type involves evaluating multiple technical and environmental factors.
Railway Type and Train Speed
The nature of the railway operation plays a major role in determining which concrete sleeper design will perform best under expected conditions. High-speed railways, heavy-haul freight lines, and urban metro systems each have unique structural demands.
- High-speed railways: Require precision-engineered sleepers with aerodynamic profiles and high torsional rigidity for stability at elevated speeds.
- Heavy-haul freight: Benefit from reinforced designs that can withstand continuous loading and dynamic forces from heavy cargo trains.
- Suburban/metropolitan networks: Often prioritize noise reduction and vibration control due to proximity to residential areas.
Key consideration: Always align sleeper specifications with the operational speed and load requirements of the railway system.

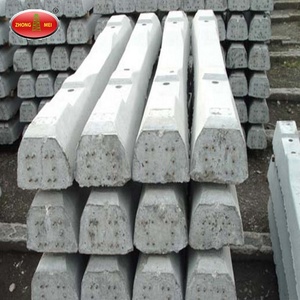

Sleeper Design and Cross-Sectional Features
Concrete railway sleepers come in various cross-sectional designs, primarily differentiated by their base and shoulder configurations. The choice between flat-bottomed sleepers and those with ballasted shoulders significantly impacts track alignment, lateral resistance, and maintenance frequency.
- Flat-bottom sleepers: Provide a simple, cost-effective solution ideal for light-duty tracks with moderate traffic.
- Ballasted shoulder sleepers: Offer superior lateral support and are preferred for mainline and high-traffic applications.
- Wider shoulder designs: Improve track stability by distributing loads more effectively across the ballast bed.
Measurement tip: Ensure compatibility with existing track gauge and fastening systems before finalizing a design.

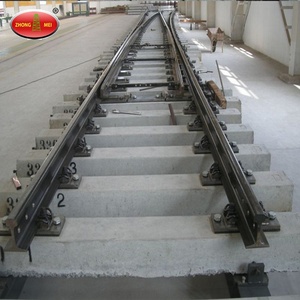

Fastening System Compatibility
The method used to secure rails to sleepers—known as the fastening system—is a crucial component of track integrity. Different fastening systems offer varying degrees of gauge retention, ease of installation, and maintenance efficiency.
- Elastic clip systems: Commonly used for high-speed rail due to excellent vibration damping and minimal maintenance needs.
- Screw spikes: Provide robust fixation but may require periodic tightening after initial installation.
- Insulated joints: Essential in electrified railway systems to prevent stray currents and ensure signaling reliability.
Performance impact: A mismatched fastening system can lead to premature wear and reduced service life of both rails and sleepers.
Environmental Conditions and Climate Resilience
The local environment where the sleepers will be installed must be thoroughly evaluated. Soil composition, moisture levels, temperature extremes, and seismic activity all influence the performance and durability of concrete sleepers.
- Extreme temperatures: Demand materials with low thermal expansion coefficients to avoid cracking or warping.
- Seismic zones: Require flexible yet durable sleeper designs that can absorb ground movement without compromising track geometry.
- Coastal or industrial areas: Call for corrosion-resistant reinforcement and protective coatings to resist chemical exposure.
Design note: In freeze-thaw climates, air-entrained concrete mixtures enhance durability and reduce spalling risks.
Compliance Tip: Always verify that the selected concrete railway sleepers meet applicable national standards (e.g., EN 13230 in Europe, AREMA standards in North America) and international specifications like ISO or UIC codes. Compliance ensures interoperability, safety, and long-term asset reliability.
| Railway Application | Recommended Sleeper Type | Key Features | Expected Service Life |
|---|---|---|---|
| High-speed passenger rail | Pre-stressed monoblock sleepers | Low weight, high rigidity, aerodynamic profile | 40–50 years |
| Heavy-haul freight | Reinforced dual-block sleepers | Enhanced load-bearing capacity, vibration damping | 45–60 years |
| Urban transit | Noise-reducing composite sleepers | Integrated damping pads, insulation features | 30–40 years |
| Mixed-use regional lines | Standard pre-stressed sleepers | Cost-effective, versatile, easy to maintain | 35–50 years |
Budget & Lifecycle Consideration: While concrete sleepers generally offer lower lifecycle costs than timber or steel alternatives, initial investment can be higher. Evaluate not only upfront costs but also projected maintenance intervals, replacement cycles, and total ownership benefits over a 30–50 year period to make a fully informed decision.
DIY and Replacement Guide for Concrete Railway Sleepers
Replacing concrete railway sleepers is a highly specialized and complex task that should generally be performed by qualified professionals or rail maintenance experts. However, understanding the basic principles of sleeper inspection and replacement can help property owners or non-professionals recognize early signs of deterioration and know when to call in the right expertise.
Safety Warning: Railway environments are high-risk zones with potential hazards including moving trains, electrical systems, and heavy machinery. Always ensure the track is fully secured and de-energized before any work begins. Never attempt sleeper replacement without proper training and authorization.
Understanding Concrete Railway Sleepers
Concrete sleepers (also known as railroad ties) offer superior durability and strength compared to traditional timber sleepers. They provide better load distribution, resist rotting and insect damage, and maintain gauge alignment more effectively over time. Despite their robustness, concrete sleepers are not immune to wear and require periodic inspections to identify structural issues.
Common Signs of Deterioration
Regular visual inspections are essential to maintaining the integrity of your railway system. Here are the most common types of surface-level defects to look out for:
- Crazing: A network of fine cracks on the surface of the concrete, often caused by shrinkage during curing or thermal stress. While usually superficial, it may indicate underlying issues.
- Scaling: The flaking or peeling of the outer layer of concrete. This can result from freeze-thaw cycles, poor finishing, or exposure to deicing chemicals.
- Spalling: Localized breaking away of concrete in small patches, often around embedded metal parts. Spalling can expose steel reinforcement, leading to corrosion and further degradation.
- Cracks: More serious than surface crazing, cracks can run deep into the sleeper and compromise its structural integrity. Cracks may result from overloading, settlement, or impact damage.
Maintenance Tip: Document the condition of each sleeper annually using photographs and notes. This helps track deterioration trends and supports planning for future replacements.
When to Consult an Expert
If any of the above defects are observed—especially spalling or deep cracking—it's critical to consult a qualified railway engineer or maintenance specialist. These professionals have the tools and knowledge to assess whether the sleeper needs repair, reinforcement, or complete replacement.
The decision to replace a sleeper depends on several factors, including the severity of the damage, the sleeper’s position in the track (e.g., curves vs. straight sections), and current train traffic demands. Engineers use diagnostic tools like ultrasonic testing and visual assessment protocols to make informed decisions.
Replacement Process Overview
While full-scale DIY replacement of concrete sleepers is not recommended due to safety concerns and technical complexity, here is a simplified overview of the professional replacement process:
- Planning and Permits: Coordinate with railway authorities to schedule downtime and obtain necessary permits. Plan logistics for equipment access and disposal of old sleepers.
- Track Preparation: Secure the section of track, disconnect power lines if electrified, and prepare the ballast bed for sleeper removal.
- Removal of Old Sleeper: Using specialized jacking equipment, the rails are lifted slightly to remove the damaged sleeper. Ballast is cleared and prepared for the new installation.
- Installation of New Sleeper: The new sleeper is positioned precisely and aligned with adjacent sleepers. Fastening components such as clips, bolts, and pads are reinstalled according to specifications.
- Reinstatement: Rails are lowered back onto the new sleeper, and the track geometry is checked and adjusted if needed. Ballast is reinstated and compacted around the sleeper.
- Testing and Inspection: After installation, the track undergoes testing for alignment, gauge, and ride quality. Any adjustments are made before resuming service.
| Stage | Description | Risks Involved | Required Equipment |
|---|---|---|---|
| Inspection | Visual and technical evaluation of sleeper condition | Misdiagnosis of structural damage | Camera, crack gauges, ultrasonic devices |
| Removal | Safe extraction of damaged sleeper | Damage to adjacent sleepers or rails | Jacking systems, lifting gear, pry bars |
| Installation | Precise placement of new sleeper | Improper alignment or fastening | Ballast tamper, torque wrench, alignment tools |
| Final Testing | Ensuring track stability and safety | Undetected misalignment or loose fasteners | Track geometry measuring device, test train |
Minimizing Disruption During Replacement
One of the primary challenges in replacing railway sleepers is minimizing disruption to train services. Professional crews typically work during scheduled maintenance windows or off-peak hours to reduce impact on operations. Efficient planning, modular sleeper designs, and pre-staging materials all contribute to faster replacements and shorter downtimes.
Note: Only trained personnel equipped with the appropriate certifications and safety gear should perform or supervise railway sleeper replacement. Always follow local regulations and industry standards to ensure compliance and worker safety.
Frequently Asked Questions About Concrete Railway Sleepers
Yes, there are multiple variations in both size and design of concrete railway sleepers, each tailored to specific track requirements and operational demands. The standard dimensions for a typical pre-stressed concrete sleeper used in mainline railways range from 2.4 to 2.6 meters in length, with widths between 250 mm to 300 mm and thicknesses around 200 mm. However, these can vary depending on:
- Railway Type: High-speed lines often use heavier, more robust sleepers designed to withstand increased dynamic loads.
- Load Capacity: Freight railroads may require larger or reinforced sleepers to support heavier axle loads.
- Climate Conditions: In areas with extreme weather (e.g., permafrost or high heat), special designs are employed to ensure stability and longevity.
- Installation Method: Embedded vs. surface-mounted systems may influence sleeper geometry and reinforcement.
Designs also differ in the type of fastening systems they accommodate, such as elastic clips or screw spikes, and whether they are cast with or without integral base plates.
The installation of concrete railway sleepers is a systematic process that requires precision and coordination to ensure optimal track performance and safety. Here's a detailed breakdown of the procedure:
- Preparation: The existing ballast bed is inspected and prepared. If replacing old sleepers, timber ones are removed carefully to avoid disturbing the subgrade.
- Lifting the Track: Using specialized jacks or cranes, the rails are lifted off the old supports to allow for sleeper replacement or new installation.
- Ballast Placement: A fresh layer of crushed stone ballast is spread and compacted to provide a stable, level base. This helps with drainage and load distribution.
- Sleeper Positioning: Concrete sleepers are then placed at predetermined intervals—typically every 60 cm for standard tracks—to ensure proper spacing and alignment.
- Rail Reinstallation: Rails are lowered onto the new sleepers, and fastening systems (like clips or bolts) are applied to secure them in place.
- Final Adjustments: The track geometry is checked using measuring tools to confirm gauge, alignment, and elevation meet specifications. Ballast is tamped around the sleepers to lock them into position.
This process may be partially or fully mechanized depending on the scale and location of the project. Precision is crucial to prevent future maintenance issues and ensure safe train operations.
While it is technically possible to replace concrete railway sleepers with wooden ones, this practice is relatively uncommon and generally discouraged unless under very specific circumstances. Wood sleepers were traditionally used in older rail networks but have largely been replaced by concrete due to several key advantages:
- Durability: Concrete sleepers last significantly longer than wooden ones, which are prone to rot, insect damage, and wear over time.
- Maintenance: Wooden sleepers require more frequent inspection and replacement, increasing long-term costs and downtime.
- Track Stability: Concrete provides superior longitudinal and lateral resistance, reducing track movement and ensuring safer operation at higher speeds.
However, there are niche applications where wood might still be preferred:
- Historical Railways: Heritage or tourist rail lines may opt for wooden sleepers to maintain authenticity and aesthetic appeal.
- Temporary Tracks: For short-term construction or industrial uses, wood can be cheaper and easier to install quickly.
- Special Geographical Conditions: In some soft soil conditions, wooden sleepers may offer better flexibility.
If replacement is necessary, it must be carried out by qualified engineers and railway professionals to ensure compliance with safety standards and minimal disruption to service. The transition also involves recalibrating fastening systems, adjusting ballast depth, and possibly modifying track geometry to accommodate the different physical properties of wood versus concrete.
