Types of Coil Pack Ignition Systems
A coil pack ignition system is a critical component in modern internal combustion engines that generates the high voltage necessary to ignite the air-fuel mixture within the engine's combustion chambers. Replacing older distributor-based systems, coil packs offer improved reliability, efficiency, and performance. This system typically includes components such as the battery, key switch, ignition control module, power transistor, coil pack itself, and spark plugs. The coil pack consists of two or more ignition coils connected together and mounted near the engine or directly on the spark plugs.
Distributor Coil Packs
Used primarily in older vehicle models with distributor-based ignition systems, these coil packs typically contain one or two ignition coils. In four-cylinder engines, a single coil works with a distributor to route high-voltage electricity to each spark plug. V6 and V8 engines often use multiple coils alongside a distributor and rotor assembly to ensure proper ignition timing.
Advantages
- Simpler design for basic applications
- Easier to diagnose ignition issues
- Cost-effective replacement parts
Limitations
- Less precise spark timing
- Higher maintenance due to moving parts
- Prone to wear over time (distributor cap, rotor)
Best for: Older vehicles with distributor-based ignition systems

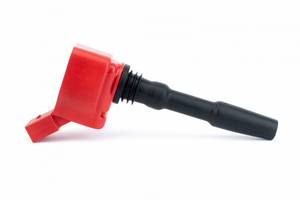

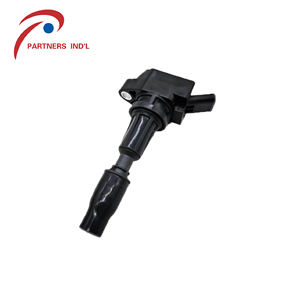

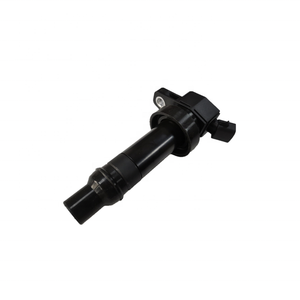

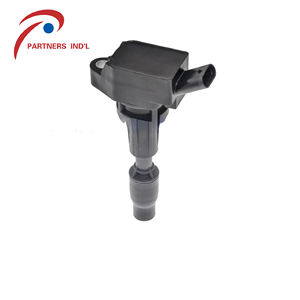

Coil-on-Plug (COP) Ignition System
The modern standard in ignition technology, the Coil-on-Plug (COP) system eliminates the need for a distributor entirely. Each cylinder has its own dedicated ignition coil mounted directly on top of the spark plug, allowing for precise electronic control via the Engine Control Unit (ECU). This direct-fire method enhances combustion efficiency and reduces energy loss.
Advantages
- Improved fuel efficiency and reduced emissions
- Better engine performance and responsiveness
- Minimal maintenance requirements
- Enhanced spark timing accuracy
Limitations
- More expensive individual coil replacements
- Requires advanced diagnostics for troubleshooting
- Coils may be harder to access on some engines
Best for: Modern vehicles seeking optimal performance and efficiency
Wasted Spark Coil Packs
This type of ignition system uses paired ignition coils to simultaneously fire two spark plugs — one during the compression stroke (useful) and one during the exhaust stroke (wasted). It’s commonly used in four, six, and eight-cylinder engines where simplicity and cost-effectiveness are prioritized without sacrificing much in terms of performance.
Advantages
- Simple and reliable design
- Reduces number of required coils
- Lower production costs
Limitations
- Less efficient than COP systems
- May contribute to slightly higher emissions
- Potential for carbon buildup on spark plugs
Best for: Mid-range vehicles balancing cost and performance
Single and Dual Coil Packs
These types refer to the number of ignition coils contained within a single unit. A single coil pack contains just one ignition coil, often used in conjunction with a distributor. A dual coil pack contains two coils, typically used in wasted spark systems or early distributor-less designs. These systems are generally found in older or entry-level vehicles.
Advantages
- Easy to install and replace
- Lower initial cost
- Compatible with various engine layouts
Limitations
- Limited performance potential
- May require additional components (like distributors)
- Not ideal for high-performance applications
Best for: Basic transportation needs and budget-conscious repairs
| Type | Ignition Precision | Maintenance Needs | Fuel Efficiency | Best Application |
|---|---|---|---|---|
| Distributor Coil Packs | Moderate | High | Moderate | Older vehicles, classic cars |
| Coil-on-Plug (COP) | Excellent | Low | Excellent | Newer vehicles, performance builds |
| Wasted Spark | Good | Moderate | Good | Mid-range sedans, economy cars |
| Single/Dual Coil Packs | Fair | Moderate | Fair | Entry-level vehicles, basic transport |
Expert Tip: When replacing a faulty coil pack, especially in COP systems, always inspect the corresponding spark plug condition. Faulty coils can cause misfires that lead to fouled plugs, requiring simultaneous replacement for optimal performance.
Maintenance of Coil Pack Ignition System
Proper maintenance of the coil pack ignition system is essential to ensure reliable engine performance and fuel efficiency. The coil pack plays a crucial role in converting the battery’s low voltage into the high voltage needed to ignite the spark plugs. Neglecting its upkeep can lead to misfires, reduced power, and even engine damage over time.
Key Maintenance Practices
The following practices are vital for maintaining optimal functionality of your vehicle's coil pack ignition system:
Regular Inspection
Periodically inspect the coil pack for visible signs of wear, such as cracks, carbon tracking (black lines on the surface), or melted areas. These are indicators of potential failure due to heat exposure or electrical overload.
Check all electrical connections and wiring harnesses for corrosion, looseness, or fraying. Secure and clean contacts are critical for uninterrupted current flow and preventing voltage drop across the system.
Check Spark Plugs
Spark plugs directly affect the workload of the coil pack. Worn, fouled, or improperly gapped spark plugs force the coil to work harder, increasing stress and reducing its lifespan.
Inspect spark plugs during every service interval. Look for excessive electrode wear, oil deposits, or discoloration that may suggest combustion issues or leaking seals.
Monitor Engine Performance
Engine symptoms like rough idling, hesitation during acceleration, decreased fuel economy, or check engine light illumination may point to coil pack problems.
Pay attention to diagnostic trouble codes (DTCs) using an OBD-II scanner. Codes like P0300 through P0308 typically indicate misfires linked to specific cylinders, which could be related to faulty coils or plugs.
Use Quality Replacement Parts
When replacing a faulty coil pack or spark plug, always opt for OEM (Original Equipment Manufacturer) or high-quality aftermarket components.
Inferior parts may save money upfront but often fail prematurely, leading to repeated replacements and potential damage to other engine systems.
Avoid Overheating
Coil packs are sensitive to extreme temperatures, especially in engines with tight engine bays or inadequate cooling systems.
Ensure the vehicle's cooling system is functioning properly and that there is adequate airflow around the engine compartment. Avoid unnecessary engine modifications that could increase operating temperatures beyond design limits.
Professional Diagnosis
If you suspect a problem with the ignition system, it's best to consult a qualified technician who has access to advanced diagnostic tools such as oscilloscopes or coil output testers.
These tools allow for precise measurement of primary and secondary ignition waveforms, helping identify whether the issue lies within the coil itself or elsewhere in the ignition system.
| Maintenance Task | Recommended Frequency | Tools Required |
|---|---|---|
| Visual inspection of coil pack and wiring | Every 15,000–30,000 miles or during routine service | Flashlight, protective gloves |
| Spark plug inspection and replacement | As per manufacturer recommendations (typically 30,000–100,000 miles) | Spark plug socket, torque wrench, gap tool |
| Electrical connection cleaning | During visual inspections or when signs of corrosion appear | Electrical contact cleaner, wire brush |
| Diagnostic scan for DTCs | At first sign of engine performance issues | OBD-II scanner, multimeter |
Important: Never attempt to replace or diagnose coil packs without disconnecting the battery first. Coils store high voltage energy and can cause serious electric shocks if mishandled.
How to Choose Coil Pack Ignition Systems
Selecting the right coil pack ignition system is crucial for ensuring reliable engine performance and long-term vehicle operation. A well-chosen coil pack can enhance fuel efficiency, reduce emissions, and improve overall drivability. Below are key factors that should guide your purchasing decision.
Vehicle Compatibility
Ensuring that the coil pack matches the make, model, and year of the vehicle is essential for proper installation and functionality. Modern vehicles often have specific ignition system designs, including variations in terminal layout, mounting style, and electronic signal requirements.
- Always cross-reference part numbers with manufacturer specifications or use OE (Original Equipment) lookup tools
- Some aftermarket coil packs offer universal compatibility but may require wiring modifications
- Retailers serving a broad customer base should consider stocking multi-fit coil packs covering popular vehicle platforms
Key consideration: Verify fitment using VIN decoding or vehicle-specific databases before finalizing purchase.
Quality and Construction
The build quality of an ignition coil pack significantly impacts its durability and performance. High-quality materials such as reinforced plastic housings, precision-wound coils, and durable insulation ensure consistent spark delivery under various operating conditions.
- OEM-grade coil packs are engineered to exact factory specifications and often feature enhanced thermal resistance
- Aftermarket options vary in quality; look for certifications like ISO 9001 or IATF 16949 to ensure manufacturing standards
- Check for corrosion-resistant terminals and moisture-proof seals, especially for under-hood applications
Performance tip: Avoid low-cost generic brands that may compromise on internal winding integrity or insulation quality.
Price vs. Value
While cost is always a factor, it's important to weigh the price against expected service life and reliability. OEM coil packs tend to be more expensive but often provide superior longevity and compatibility.
- For retail buyers, mid-tier branded aftermarket products often deliver the best balance between affordability and performance
- Bulk purchasing from reputable manufacturers can reduce unit costs without sacrificing quality
- Customizable solutions may be available for specialized or high-volume applications
Smart buying tip: Consider total ownership cost over replacement frequency rather than upfront savings alone.
Warranty and Support
A comprehensive warranty reflects the manufacturer’s confidence in product reliability and provides protection for both retailers and end-users. Warranties typically range from one year to lifetime coverage depending on brand and quality level.
- Extended warranties are often offered by premium brands and distributors
- Look for hassle-free return policies and technical support availability
- Warranty terms should clearly outline coverage for defects, premature failure, and labor reimbursement
Recommendation: Prioritize suppliers offering clear documentation and responsive customer service channels.
Pro Tip: Always test-fit coil packs before final sale when possible. This helps avoid returns due to incorrect fitment or physical interference with other engine components. Additionally, recommend customers inspect related ignition components like spark plugs and wiring harnesses during installation to prevent recurring issues.
| Purchase Focus | Recommended Type | Estimated Cost Range | Typical Warranty |
|---|---|---|---|
| OE Replacement | OEM or Premium Aftermarket | $35–$120 per unit | 1–3 years or Lifetime |
| General Retail | Mid-Range Aftermarket | $20–$60 per unit | 1 year |
| High-Volume Reseller | Wholesale Multi-Fit Brands | $15–$45 per unit | 6 months–1 year |
| Specialty Vehicles | Custom Fitments or Performance Upgrades | $50–$200 per unit | 1–2 years |
DIY Guide to Replacing a Coil Pack Ignition System
Replacing your vehicle's coil pack ignition system is a relatively straightforward DIY task that can significantly improve engine performance and fuel efficiency when done correctly. A faulty coil pack can cause misfires, rough idling, poor acceleration, and even trigger the check engine light. With basic mechanical skills, the right tools, and careful attention to detail, you can complete this job in under two hours.
Safety Warning: Always disconnect the battery before beginning work on the ignition system to avoid electrical shocks or short circuits. Ensure the engine is completely cool before starting any work near hot components.
Understanding the Coil Pack Ignition System
The coil pack ignition system replaces traditional distributor-based systems in modern vehicles. Instead of one central coil, multiple coils are used—often one per cylinder or paired together—to provide a more efficient spark delivery. This setup allows for better timing control, improved fuel economy, and reduced emissions.
Tools and Materials Required
- Socket wrench set (including metric and standard sizes)
- Spark plug gap tool (if replacing related components)
- Dielectric grease (for electrical connectors)
- Rubber gloves (to prevent oil transfer)
- Zip ties (for wire management)
- New compatible coil pack(s)
- Valet key or OBD-II scanner (optional, for resetting codes)
Step-by-Step Replacement Process
- Preparation
- Ensure the vehicle is turned off and the key is removed from the ignition.
- Disconnect the negative terminal of the car battery to eliminate any risk of electrical issues during the process.
- Locate the coil packs—they are typically found on top of the engine, either directly over the spark plugs or grouped together in a housing unit.
- Take photos or make notes of the wiring layout before removing anything to assist with reassembly.
- Accessing the Coil Packs
- If there’s a plastic engine cover, use a screwdriver or appropriate socket to remove it carefully.
- Inspect the area for dirt or debris. Clean gently with compressed air or a dry cloth to prevent contamination.
- Identify which coil pack(s) need replacement—look for signs like cracking, oil leakage, or carbon tracking.
- Removing the Old Coil Pack
- Unplug the electrical connector by pressing the release tab and pulling straight out—avoid twisting or yanking.
- Use a socket wrench to remove the mounting bolts securing the coil pack to the engine.
- Lift the old coil pack straight up and away from the spark plug or cylinder head.
- Installing the New Coil Pack
- Before installation, inspect the new coil pack for damage and ensure it matches your vehicle specifications.
- Apply a small amount of dielectric grease to the inside of the electrical connector for smoother future removal.
- Position the new coil pack over the spark plug or mounting hole and press down gently until seated.
- Secure with the original bolts and torque them according to manufacturer specifications (usually between 8–12 Nm).
- Reconnect the electrical harness securely until you hear a click.
- Cleanup and Final Steps
- Replace the engine cover if applicable and reconnect the car battery.
- Organize any loose wires using zip ties to maintain a clean and safe engine bay.
- Start the engine and listen for unusual noises or misfires.
- If equipped, use an OBD-II scanner to clear any existing diagnostic trouble codes.
| Vehicle Type | Estimated Time | Difficulty Level | Special Notes |
|---|---|---|---|
| Ford V6 & V8 Engines | 1.5–2 hours | Moderate | May require special tools for accessing rear coils; consider professional help if unsure |
| Honda / Toyota | 45 minutes–1 hour | Easy | Coils are usually easily accessible without removing other components |
| BMW / Audi | 1.5–2.5 hours | Intermediate | May require intake manifold removal; follow service manual instructions closely |
Expert Tip: If you're replacing only one coil pack, compare it with the others still installed. If they show signs of aging or wear, consider replacing all coil packs at once to maintain balanced engine performance and prevent future issues.
Post-Replacement Checks and Considerations
After completing the installation, take a few moments to double-check your work:
- Ensure all electrical connections are secure and fully engaged.
- Verify that no tools or parts were left behind in the engine bay.
- Monitor the vehicle's performance over the next few days—smooth idle, proper acceleration, and no check engine light illumination.
- If your vehicle has an onboard computer, it may automatically adapt to the new coil packs within a few driving cycles. Some models may benefit from a reset procedure outlined in the owner's manual.
Note: While most coil pack replacements don’t require a full ECU reset, certain high-performance or European vehicles may benefit from a professional scan and recalibration after installation.
Choosing the Right Coil Pack
Selecting a high-quality coil pack is crucial for long-term reliability and optimal engine performance. Look for OEM (Original Equipment Manufacturer) or premium aftermarket brands such as Bosch, Denso, or MSD. Avoid low-cost generic replacements unless they come with positive reviews and compatibility guarantees.
Always cross-reference part numbers using your vehicle’s VIN and engine type to ensure correct fitment. Online auto parts retailers often have compatibility tools that simplify this process.
Pro Tip: When ordering online, include your vehicle’s year, make, model, and engine size in the search criteria to narrow results effectively and reduce the chance of receiving incorrect parts.
Coil Pack FAQ - Understanding Ignition System Components
A1: Coil packs cannot be effectively repaired once they fail. These components contain sealed internal windings and electronic circuitry that are not serviceable by typical users or even most automotive repair shops. Attempting to repair a damaged coil pack often leads to unreliable performance and potential safety hazards. When experiencing ignition issues, it's best to replace the faulty coil pack with a new unit designed for your vehicle's specifications.
A2: Modern coil packs are engineered to last between 3 and 5 years under normal operating conditions. However, their actual lifespan can vary significantly based on several factors:
- Driving habits: Frequent short trips and aggressive driving can accelerate wear
- Environmental conditions: Extreme temperatures and excessive moisture reduce longevity
- Engine maintenance: Proper tune-ups and spark plug replacement schedules affect coil performance
- Electrical system health: Voltage spikes from a failing alternator can damage coils prematurely
Some vehicles may experience coil failures as early as 2 years, while others have reported reliable operation beyond 7 years with proper care.
A3: While a vehicle might start with a malfunctioning coil pack, it is not safe or advisable to continue driving in this condition. A defective coil pack causes:
- Difficulty starting the engine (intermittent or complete failure)
- Rough idling and noticeable engine vibration
- Reduced power output and acceleration hesitation
- Frequent misfires leading to catalytic converter damage
- Increased fuel consumption and harmful emissions
- Potential stalling during operation
Continued operation with a faulty coil pack risks damaging other critical engine components and creates unsafe driving conditions due to unpredictable engine behavior.
A4: Not necessarily. Price variations among ignition coil packs reflect several factors beyond just quality:
| Price Factor | Explanation | Considerations |
|---|---|---|
| Brand Reputation | Established brands often charge premium prices for proven reliability | Research brand-specific reliability reports before paying extra |
| Material Quality | Higher-grade copper windings and insulation materials improve durability | Look for OE-specifications and temperature resistance ratings |
| Design Complexity | Coils for modern engines with COP (Coil-On-Plug) systems cost more | Ensure compatibility with your specific engine configuration |
| Warranty Coverage | Extended warranties often justify higher prices through protection plans | Compare warranty terms when evaluating value proposition |
Smart buyers should compare technical specifications, compatibility, warranty terms, and verified user reviews rather than relying solely on price as an indicator of quality. In many cases, mid-range priced coils from reputable manufacturers offer the best balance of performance and value.
