Types of Clutch Kits for Volvo Models
A Volvo clutch kit is a crucial assembly in manual transmission vehicles that ensures smooth gear engagement and disengagement by connecting and disconnecting the engine from the transmission system. The right clutch kit enhances drivability, extends component life, and maintains performance tailored to your specific Volvo model. Choosing the correct kit based on your car’s specifications is essential for optimal function.
Each Volvo model has unique power delivery characteristics and driving demands, which means their clutch kits are engineered differently to match these requirements. Below is an in-depth breakdown of the most common Volvo models and their respective clutch kits:
Volvo S60 Clutch Kit
The S60 clutch kit is designed for compact sport sedans that balance daily commuting with spirited driving. It features high-quality components built for responsiveness and durability.
- Pressure Plate: Engineered to withstand the torque output of the S60's engine while maintaining a firm grip on the flywheel. Some versions include lightweight pressure plates for faster engine revving during performance driving.
- Friction Disk: Features durable friction linings for consistent engagement and smoother shifts. Many kits come with dual-mass flywheels (DMF) that reduce vibration and improve drivetrain comfort.
- Release Bearing & Hydraulic System: Designed for quiet operation and minimal maintenance. The hydraulic system is optimized to handle regular city driving and occasional spirited acceleration without overheating or failing prematurely.
Best for: Daily commuters, sporty driving enthusiasts, and drivers seeking balanced performance and comfort.
Volvo XC90 Clutch Kit
The XC90 clutch kit is tailored for SUVs that may be used for towing or off-road adventures. These kits offer robust construction to handle heavier loads and more demanding conditions.
- Pressure Plate: Constructed with reinforced materials to manage the higher torque output associated with larger engines and towing applications. Some kits feature upgraded pressure plates for improved clamping force.
- Friction Disk: Built to endure frequent stop-and-go driving and heavy load cycles. Depending on the model year, it can come with either a dual-mass or solid flywheel setup to suit different driving styles and preferences.
- Release Bearing & Hydraulic System: Designed to operate reliably under increased stress, ensuring consistent pedal feel and clutch action even when subjected to rugged use.
Best for: Off-roading, towing, and long-distance travel in all-terrain conditions.
Volvo V40 Clutch Kit
The V40 clutch kit is ideal for smaller hatchbacks where weight and agility play a key role in performance. These kits are designed for quick response and ease of use in urban environments.
- Pressure Plate & Friction Disk: Matched precisely to the V40's engine output and chassis dynamics. Components are engineered for lightweight efficiency and smooth modulation.
- Release Bearing & Hydraulic System: Ensures light pedal effort and responsive clutch engagement—ideal for stop-and-go city driving and spirited weekend jaunts.
Best for: Compact cars, city driving, and fuel-efficient operation.
Volvo V60 Clutch Kit
The V60 clutch kit is specially tuned for turbocharged engines and sportier driving dynamics. This makes it perfect for those who enjoy a more engaging drive experience.
- Pressure Plate, Friction Disk, and Flywheel: Engineered to withstand the higher power output of turbocharged engines. Materials are chosen for heat resistance and longevity under aggressive driving conditions.
- Release Bearing & Hydraulic System: Optimized for precise clutch control, making this kit suitable for both daily driving and occasional track use.
Best for: Enthusiast drivers, performance upgrades, and owners of turbocharged V60 models.
| Model | Clutch Type | Driving Style | Special Features | Recommended For |
|---|---|---|---|---|
| Volvo S60 | Standard or Lightweight | Daily/Performance | Dual-Mass Flywheel, Smooth Engagement | Urban Commuters, Sport Sedan Owners |
| Volvo XC90 | Heavy-Duty | Towing/Off-Road | Reinforced Pressure Plate, High-Torque Tolerance | Family SUVs, Adventure Vehicles |
| Volvo V40 | Lightweight | City/Commuter | Low Pedal Effort, Compact Design | Compact Hatchback Drivers |
| Volvo V60 | Performance-Oriented | Sport/Turbo | Heat Resistant Materials, Turbo Compatibility | Enthusiast Drivers, Track Use |
Expert Tip: Always refer to your vehicle’s service manual or consult a certified technician before replacing your clutch kit. Using OEM (Original Equipment Manufacturer) parts or high-quality aftermarket alternatives ensures proper fitment and long-term reliability.
Specifications and Maintenance of Volvo Clutch Kits
Understanding Volvo Clutch Kit Components and Specifications
Volvo clutch kits are engineered to meet precise performance standards, ensuring smooth power transfer between the engine and transmission. The specifications vary based on vehicle model, year, and engine type. Below is a detailed breakdown of each component and its typical specifications:

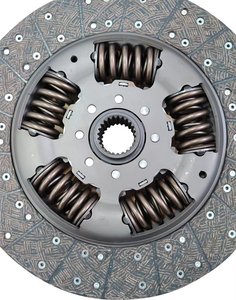

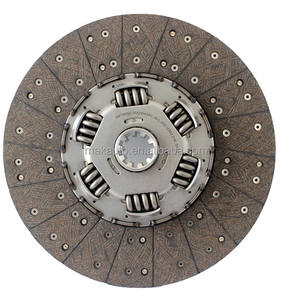

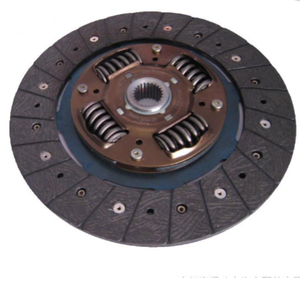

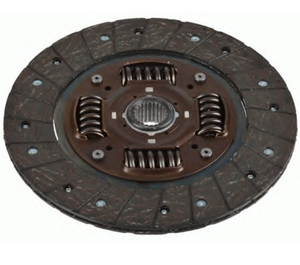

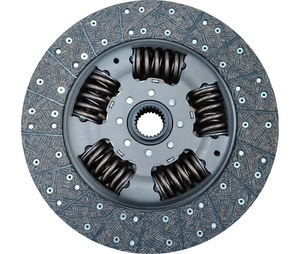

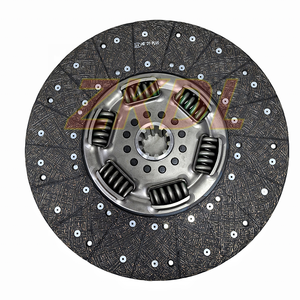

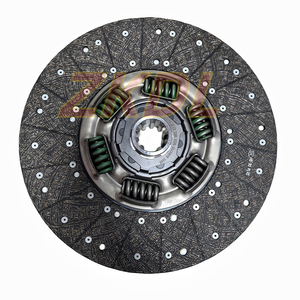

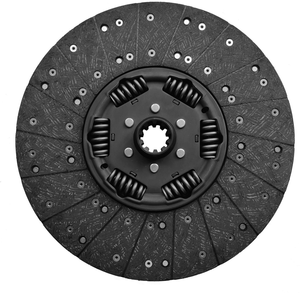

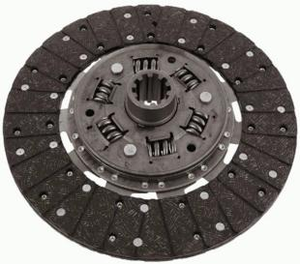

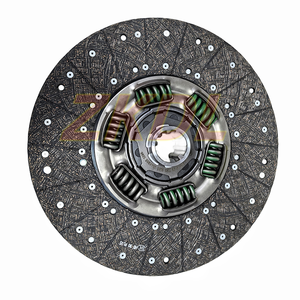

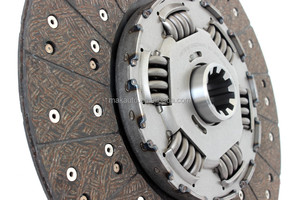

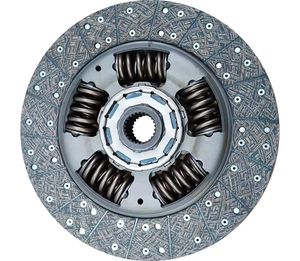

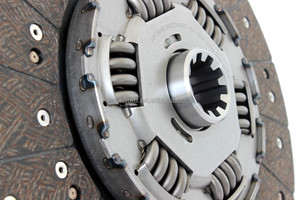

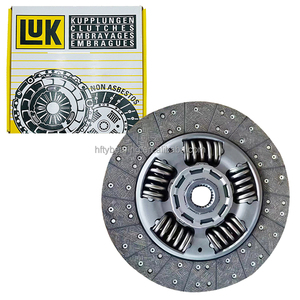

Clutch Plate
The clutch plate is responsible for engaging and disengaging the engine from the transmission. It comes in various diameters including 215 mm, 228 mm, and 240 mm, depending on the vehicle's power output and intended use.
Friction materials used include organic (softer, quieter), semi-metallic (more durable with better heat resistance), and ceramic (premium option offering longevity and smooth engagement).

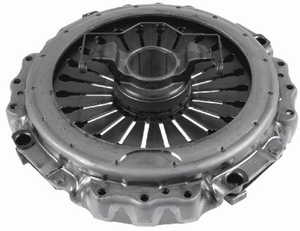

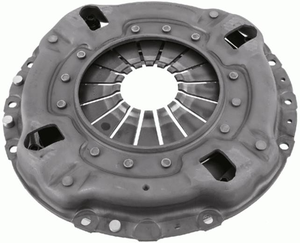

Clutch Cover (Pressure Plate)
The pressure plate clamps the clutch disc against the flywheel, maintaining consistent contact during operation. Its diameter aligns precisely with the clutch plate to ensure proper fitment.
It exerts pressure ranging from 10,000 to 15,000 Newtons, which determines how firmly the clutch engages. This pressure rating must match the engine’s torque output to prevent slippage or excessive wear.
Release Bearing
This component facilitates clutch disengagement by pressing against the pressure plate diaphragm when the pedal is depressed. Available in sizes like 40 mm, 45 mm, and 50 mm, it must correspond to the clutch assembly dimensions.
Modern release bearings are often sealed and water-resistant to protect against corrosion and contamination, extending service life.
Flywheel
The flywheel stores rotational energy and ensures smooth power delivery. It typically weighs between 1.5 kg and 8 kg, with lighter units preferred for high-performance applications and heavier ones for daily driving.
Materials include cast iron (standard durability), steel (higher strength), and aluminum (lightweight, used in sportier models). Dual-mass flywheels may be included in newer Volvos to reduce vibration and improve drivability.
Clutch Fork & Cable
The clutch fork connects the release bearing to the actuation system—either mechanical (cable) or hydraulic. Forks are made from stamped steel or cast aluminum, depending on application requirements.
Clutch cables come in varying lengths and pull strengths to accommodate different pedal setups. Proper tension is crucial to maintain clutch engagement quality and prevent premature wear.
Clutch Fluid
Used in hydraulic systems, clutch fluid transfers force from the master cylinder to the slave cylinder. Common types include DOT 3/4 (glycol-based) and mineral oil, both of which must meet manufacturer specifications for optimal performance.
Regular inspection and replacement of clutch fluid help prevent internal corrosion and maintain hydraulic efficiency.
| Component | Key Specification | Recommended Material/Type |
|---|---|---|
| Clutch Plate Diameter | 215 mm, 228 mm, 240 mm | Organic/Semi-Metallic/Ceramic |
| Pressure Plate Force | 10,000 - 15,000 N | Metal Housing with Diaphragm Spring |
| Release Bearing Size | 40 mm, 45 mm, 50 mm | Water-Resistant Sealed Bearings |
| Flywheel Weight | 1.5 - 8 kg | Cast Iron/Steel/Aluminum |
| Clutch Fluid Type | DOT 3 / DOT 4 / Mineral Oil | Vehicle-Specific Hydraulic Fluid |
Essential Clutch Kit Maintenance Practices
To maximize the lifespan and performance of your Volvo clutch kit, follow these maintenance routines tailored to each component:
Important: When replacing any part of the clutch system, especially the pressure plate or clutch plate, consider replacing the entire kit to ensure compatibility and uniform wear. Mixing old and new components can result in uneven wear, poor engagement, and reduced system lifespan.
How to Choose Clutch Kit for Volvo
Selecting the right clutch kit for your Volvo is crucial to ensuring smooth operation, long-term reliability, and optimal performance of your vehicle’s transmission system. Whether you're replacing a worn-out clutch or upgrading for enhanced driving dynamics, understanding the key factors involved will help you make an informed decision.
Know Your Vehicle Specifications
The foundation of choosing the correct clutch kit begins with identifying your vehicle's specific details. This includes the make, model, year of production, engine type (petrol or diesel), and engine displacement. These parameters determine compatibility and ensure the selected kit fits precisely without requiring modifications.
- Verify the exact model name (e.g., Volvo S60, V70, XC90)
- Check whether the engine is turbocharged or naturally aspirated
- Confirm the transmission type – manual or automatic
Pro Tip: Refer to your owner's manual or use an online parts lookup tool to cross-reference part numbers before purchasing.
Understanding Clutch Kit Components

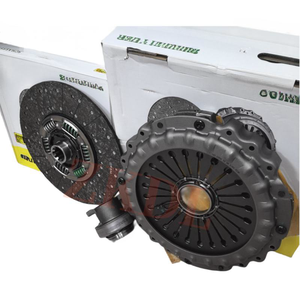

A standard Volvo clutch kit typically includes several critical components that work together to transfer power from the engine to the transmission. Familiarizing yourself with each part helps in evaluating the quality and suitability of the kit for your application.
- Pressure Plate: Provides clamping force to engage the clutch disc against the flywheel. It contains springs that adjust pressure based on pedal input. High-performance kits often feature reinforced spring designs.
- Clutch Disc: Positioned between the pressure plate and flywheel, it transmits torque through friction surfaces. Worn discs can cause slippage, vibration, or difficulty shifting gears.
- Release Bearing: Engages when the clutch pedal is pressed, allowing the pressure plate to disengage from the disc. A faulty bearing can produce grinding noises and affect engagement quality.
Note: Some premium kits may also include alignment tools or pilot bearings for easier installation.
Quality and Brand Reputation
Not all clutch kits are created equal. The materials used, manufacturing tolerances, and design specifics can vary significantly between brands. Choosing a reputable brand ensures better durability, smoother engagement, and longer service life.
- Look for OEM-level or OE-equivalent parts for reliability
- High-quality kits often use organic or ceramic friction materials
- Reinforced diaphragm springs improve wear resistance and pedal feel
Wise Investment: Spending a little more upfront on a high-quality kit can save money by avoiding premature replacement.
Driving Conditions and Usage
Your driving style and typical usage patterns play a significant role in determining the appropriate clutch kit. Whether you drive primarily in city traffic, tow heavy loads, or enjoy spirited driving, there's a clutch configuration designed for your needs.
- City drivers benefit from soft engagement for smoother starts
- Towing vehicles require heavy-duty kits with increased torque capacity
- Performance-oriented drivers may opt for sport or racing-grade clutches
Consider this: If you frequently ride the clutch or drive aggressively, choose a kit built for heat resistance and rapid engagement.
Budget Consideration: While price shouldn’t be the sole deciding factor, it’s important to balance cost with expected lifespan and performance. Budget-friendly options may suffice for basic commuter cars, but investing in a higher-end kit is recommended for frequent or demanding use.
Warranty & Support: Always check for warranty coverage and customer support availability. A solid warranty indicates the manufacturer's confidence in their product and provides peace of mind in case of defects or unexpected failures.
| Driving Profile | Recommended Clutch Type | Friction Material | Expected Lifespan |
|---|---|---|---|
| City Commuting | Standard OEM Replacement | Organic | 50,000–80,000 km |
| Daily Driving + Occasional Towing | Heavy-Duty Upgrade | Ceramic-Compound | 70,000–100,000 km |
| Track Use / Performance Driving | Sport/Competition Grade | Kevlar or Carbon-Fiber Blend | Varies (30,000–60,000 km) |
Professional Advice and Installation Tips
If you're unsure which clutch kit best suits your Volvo, consulting with a certified mechanic or automotive specialist can provide valuable insights. Professionals can recommend upgrades based on real-world experience and help avoid common pitfalls like mismatched components or improper installation.
- Ask about dual-mass flywheel compatibility if applicable
- Ensure proper lubrication of release bearing pivot points
- Use torque specs provided by the manufacturer during installation
Expert Note: Misalignment or incorrect torque settings can lead to premature failure and costly repairs.
Maintenance and Longevity Tips
Even the highest-quality clutch kit will wear out faster without proper care. Adopting good driving habits and performing regular maintenance extends the life of your clutch system and prevents unnecessary strain on other drivetrain components.
- Avoid "riding" the clutch pedal unnecessarily
- Shift smoothly without forcing gears
- Inspect the hydraulic or mechanical linkage periodically
- Monitor for unusual noises or changes in pedal feel
Maintenance Reminder: Regular inspections every 30,000 km can catch issues early and prevent complete failure.
DIY Replacement Guide for Volvo Clutch Kit
Replacing a clutch kit in your Volvo is a moderately advanced mechanical task that requires careful planning, the right tools, and a good understanding of transmission systems. This comprehensive guide will walk you through the process of replacing your Volvo's clutch kit safely and effectively.
Safety Warning: Always work on a vehicle that is properly supported with jack stands. Never rely solely on a car jack. Disconnecting the battery and working in a well-ventilated area is strongly recommended to prevent electrical shocks and exposure to harmful fumes.
Essential Tools and Materials
Before beginning the replacement process, ensure you have all the necessary tools and components ready. Having everything at hand before starting will streamline the process and help avoid unnecessary delays or mistakes.
- Car jack and sturdy jack stands
- Wheel chocks (to prevent unwanted movement)
- Lug wrench for wheel nuts
- Complete socket set (standard and metric sizes)
- Torque wrench for precise bolt tightening
- Clutch alignment tool (often included in the new kit)
- Flywheel holder tool (for securing the flywheel during installation)
- High-quality Volvo-specific clutch kit (including pressure plate, disc, and throw-out bearing)
- Gloves and safety glasses
| Phase | Key Actions | Potential Pitfalls | Recommended Tools |
|---|---|---|---|
| Preparation | Secure vehicle, disconnect battery, gather tools | Rushing setup can lead to unsafe conditions | Jacks, chocks, gloves, eye protection |
| Accessing Transmission | Removing wheels, guards, and drive shafts | Damaged threads or stripped bolts from improper removal | Lug wrench, sockets, breaker bar |
| Transmission Removal | Draining oil and lowering transmission unit | Oil spills or misaligned support brackets | Oil drain pan, transmission jack |
| Clutch Replacement | Removing old components, installing new kit | Misalignment, incorrect torque settings | Clutch alignment tool, torque wrench |
| Reassembly | Putting everything back together carefully | Missed connections or improperly seated parts | All original tools plus patience! |
Step-by-Step Replacement Process
- Vehicle Preparation
- Park the vehicle on a level surface and engage the parking brake.
- Place wheel chocks behind the rear wheels for added security.
- Disconnect the negative terminal of the battery to prevent any electrical mishaps.
- Gather all tools and equipment needed for the job within easy reach.
- Remove Wheels and Wheel Guards
- Loosen the wheel lug nuts slightly using a lug wrench while the car is still on the ground.
- Use a car jack to lift the front of the vehicle and securely place it on jack stands.
- Remove the front wheels and take off any plastic or metal guards covering the transmission area.
- Drain Transmission Oil
- Locate the transmission oil drain plug underneath the vehicle.
- Position an oil catch basin beneath the plug and carefully remove it to allow the oil to drain completely.
- Once drained, replace the plug securely to avoid leaks during reinstallation.
- Remove Drive Shafts
- Depending on your Volvo model, remove the CV axles or drive shafts connected to the transmission and wheels.
- Mark the position of each component if possible to aid in correct reassembly later.
- Set aside fasteners in a safe location to avoid losing them.
- Lower the Transmission
- Unbolt all transmission mounting bolts connecting it to the engine and chassis.
- Support the transmission with a transmission jack or sturdy support before fully removing it.
- Slowly lower the transmission to gain access to the clutch assembly.
- Remove the Old Clutch Assembly
- With the transmission removed, locate the clutch pressure plate and clutch disc mounted on the flywheel.
- Use a flywheel holder to keep the flywheel from rotating while you remove the pressure plate bolts.
- Take out the bolts one by one in a star pattern to evenly release tension and avoid warping the pressure plate.
- Remove the old clutch disc and inspect the flywheel for wear or damage.
- Install the New Clutch Kit
- Begin by cleaning the flywheel surface thoroughly to ensure proper contact with the new clutch disc.
- Position the new clutch disc over the flywheel, making sure the springs face toward the transmission side.
- Place the new pressure plate over the clutch disc and loosely install the bolts.
- Use the clutch alignment tool to center the disc before tightening the pressure plate bolts gradually and evenly in a crisscross pattern.
- If applicable, replace the throw-out bearing with a new one to ensure optimal performance and longevity.
- Reassemble Components
- Reinstall the transmission carefully, ensuring it aligns perfectly with the engine and mounting points.
- Reconnect the drive shafts and reinstall the wheels after confirming all bolts are tightened to specification.
- Refill the transmission with the appropriate type and amount of oil as specified in your vehicle’s manual.
- Reconnect the battery and test the clutch pedal operation before attempting to start the engine.
Expert Tip: Before finalizing the installation, double-check all torque specifications for bolts and ensure there are no loose or missing components. A small oversight can lead to major issues down the road.
Post-Replacement Testing and Break-In
After completing the installation, it's essential to perform some basic checks and follow a proper break-in procedure to maximize the lifespan of your new clutch kit:
- Start the engine and let it idle while checking for any unusual noises or vibrations.
- Test the clutch engagement and disengagement by shifting through gears with the vehicle stationary.
- Take the car for a short test drive at low speeds, avoiding heavy acceleration or aggressive driving for the first few hundred miles.
- Follow the manufacturer's break-in recommendations—usually involving smooth starts and stops without excessive RPMs—to seat the new clutch properly.
Volvo Clutch Maintenance and Troubleshooting FAQ
A1: The lifespan of a Volvo clutch can vary significantly depending on several key factors, typically ranging between 60,000 to 100,000 miles under normal driving conditions. However, some clutches may wear out sooner or last even longer based on:
- Driving habits: Frequent stop-and-go traffic, aggressive acceleration, and "riding the clutch" (keeping foot partially pressed on the pedal) can significantly reduce lifespan.
- Driving environment: Hilly terrain, frequent towing, or heavy load conditions increase stress on the clutch system.
- Clutch quality: Using genuine Volvo OEM parts or high-quality aftermarket kits like Sachs, Exedy, or Luk ensures better durability compared to lower-tier replacements.
- Maintenance: Regular inspections and proper hydraulic system maintenance contribute to extended clutch life.
It's important to note that early model Volvos with mechanical linkage systems may require more frequent adjustments than modern models using hydraulic systems.
A2: Premature clutch failure is commonly caused by a combination of mechanical and behavioral factors:
- Improper driving techniques:
- Riding the clutch during normal driving
- Frequent half-clutch starts in city traffic
- Using the clutch to hold the vehicle stationary on inclines
- Installation issues:
- Incorrect clutch alignment during replacement
- Inadequate clearance between pressure plate and flywheel
- Poorly torqued flywheel bolts affecting engagement surface
- Component quality:
- Low-quality friction materials in budget clutch kits
- Weak pressure plates failing to maintain proper contact
- Inferior release bearings causing uneven disengagement
- Vehicle-specific factors:
- Turbocharged models producing higher torque outputs stressing the drivetrain
- Vehicles used for towing or carrying heavy loads without proper cooling
- Climate-related corrosion affecting clutch components in coastal areas
Modern Volvo models with Start/Stop technology have specially designed clutches engineered for increased durability under frequent engagement cycles.
A3: Recognizing clutch wear symptoms early can prevent more extensive transmission damage. Common indicators include:
- Clutch slipping: Engine RPM increases without proportional vehicle speed, especially noticeable when accelerating uphill or under load.
- Gear engagement issues:
- Difficulty shifting into gear, particularly first and reverse
- Gears grinding during shifts despite full clutch depression
- Unexpected gear disengagement while driving
- Pedal anomalies:
- Increased pedal travel before engagement point
- Spongy or inconsistent pedal feel
- Complete loss of resistance indicating hydraulic system failure
- Unusual smells and noises:
- Burning smell similar to hot electronics from overheated friction material
- Whirring or chirping sounds when depressing the pedal
- Abnormal vibrations felt through the clutch pedal
- Performance degradation:
- Reduced acceleration response despite engine power
- Delayed take-off requiring more throttle input
- Visible fluid leaks near the transmission bellhousing
If any of these symptoms appear, it's recommended to schedule a diagnostic inspection at an authorized Volvo service center. Modern vehicles equipped with OBD-II systems may also trigger specific diagnostic trouble codes related to clutch wear or hydraulic pressure issues.
