Chlorine injection system

Chlorine Injection System Market Dynamics and Growth

Market Overview: The chlorine injection system market is poised for steady growth, driven by the increasing demand from industries such as chemical manufacturing and wastewater treatment. According to Research and Markets, the global chlorine compressors market, which is closely related to injection systems, grew from USD 72.57 million in 2023 to USD 76.26 million in 2024 and is expected to reach USD 105.02 million by 2030, with a robust CAGR of 5.42%. The rise in environmental regulations is pushing industries to adopt safer and more efficient chlorination methods, thereby enhancing the market for chlorine injection systems. Additionally, innovations in compressor technology that improve reliability and efficiency are paving the way for broader adoption in various applications.

Regional Insights: The Americas region shows significant demand for chlorine injection systems, particularly in water treatment facilities where safety and energy efficiency are paramount. The U.S. and Canada are leading this trend, with consumers prioritizing advanced technologies that comply with stringent environmental regulations. In Europe, the market is similarly influenced by strict regulations, emphasizing products that reduce emissions and operational costs. The Asia-Pacific region, particularly China and India, is witnessing rapid growth due to the expanding water treatment sector and public health initiatives. However, challenges such as high maintenance costs and product compatibility issues persist, necessitating ongoing innovation and strategic market positioning for suppliers in the chlorine injection system landscape.

Types of Chlorine Injection Systems

A Chlorine Injection System enhances the quality and safety of water through proper chlorine dosing. Chlorine can be applied in different ways, and several types of chlorine injection systems exist based on this fact.

• Chlorine Gas Disinfection System

  This is an auto-control injection system that uses chlorine gas as a raw material. The system comprises a vacuum regulator, a chlorinator, a gas scrubber, a pipeline system, etc. It stores the chlorine in a liquefied gas tank and vaporizes it in the vaporizer. A vacuum creates a negative pressure to inject the chlorine gas into the water through a solution pipeline. This control system precisely meters the quantity of chlorine gas. It also has an alarm for the gas leakage in the storage tank, which secures the user's safety.

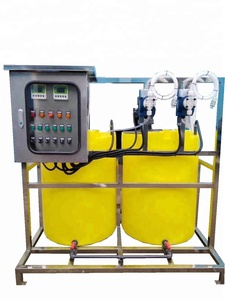

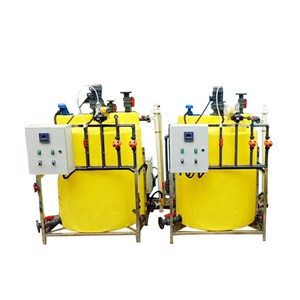

• Chlorine Dosing System

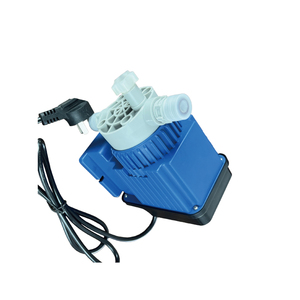

  A Chlorine Dosing System delivers chlorine in a solution form (Liquid Chlorine) or as solid Chlorine in the form of tablets or pellets. If the system uses liquid Chlorine, a storage tank, a dosing pump, and a flow meter are necessary. The flow meter measures the quantity of chlorine flowing in the pipeline. The dosing pump meters the amount of chlorine in the water. If the system uses solid Chlorine, there should be a dissolver and a tablet feeder. The tablet feeder will feed the tablets in the water, while the dissolver will help dissolve the tablets.

• Electrochlorination System

  This system produces chlorine on-site through the electrolysis of saltwater (or saline water). It has a feed unit (brine) and an electrolysis unit. The feed unit will prepare the saline solution. It will make a concentration of saline water and pump it into the electrolysis unit. The electrolysis unit will generate chlorine and other by-products. A neutralization tank or a separation unit will neutralize or separate the by-products, respectively. The main advantage of this system is that it does not have to store chlorine, which reduces the risk associated with hazardous chemical storage.

Specification and maintenance of Chlorine Injection Systems

The following specifications apply to the maintenance of chlorine systems.

• Operating Pressure

  Chlorine gas should be kept under pressure between 0.3 and 1.3 bars (30 to 130 kPa) as this pressure will ensure that it remains in a gaseous state so that accurate dosing can occur. Regular monitoring and adjustment as required of the cylinder valve and regulator must also take place to maintain this level of pressure.

• Operating temperature

  Chlorine gas should be kept at a temperature between -15 and 70 degrees Celsius as this temperature range will ensure that it remains stable. Storing chlorine cylinders in a cool, dry place away from direct sunlight, heat sources, or any other material that could react with chlorine is essential. Ideally, they should be kept at ambient temperatures but within the stipulation of -15 and 70 degrees Celsius.

• Maintenance

  Regular inspections of the chlorine gas system including the piping, valves, and fittings should be conducted to identify leaks promptly. All of the components should be integrally checked for signs of wear and tear, corrosion, loosening of the threaded fittings, and any other indication of damage that could compromise the integrity of the system. For valves, operators should be aware of any audible hissing sounds or the smell of chlorine, both of which indicate leaks. Any leaks should be identified and rectified by professionals with the required qualifications and experience. Chlorine gas systems should be used in well-ventilated facilities protected from the wind and precipitation. Chlorine gas is toxic, and inhalation can cause serious health effects. In the case of on-site exposure to chlorine, immediate medical assistance should be sought, and the individual should be evacuated from the area of exposure. In most cases, PPE for chlorine must be used by operators, which may include but not be limited to self-contained breathing apparatus (SCBA) and full face SCBA firefighting and rescue anti-chlorine gas masks. Environmental protection measures for chlorine gas involve ensuring that the gas cannot enter any water bodies to prevent chemical pollution. Spills should be promptly and carefully cleaned with the help of an expert, and the solid should be disposed of in a hazardous waste landfill.

Scenarios of Chlorine Injection Systems

Chlorine injection systems are widely used in the following industries:

• Municipal Drinking Water Treatment: Chlorine is used as a primary water disinfectant around the globe. It addresses pathogens such as bacteria, viruses, and protozoa. The Chlorine Injection System ensures safe drinking water for the community.
• Wastewater Treatment Facilities: In wastewater treatment, chlorine is used to disinfect treated wastewater before it is released into the environment or reused for non-potable purposes. The Chlorine Injection System prevents the spread of pathogens and protects public health.
• Food Processing Plants: These plants use chlorine to disinfect water used for food processing, equipment, and surfaces. It reduces the risk of foodborne illnesses and maintains product safety and quality.
• Aquaculture and Fish Ponds: In Aquaculture, chlorination ensures healthy aquatic environments. It controls pathogens that can harm fish and other aquatic organisms. Disinfection of fish ponds improves productivity and reduces disease outbreaks.
• Pools and Recreational Water: Chlorine ensures water safety in public and private swimming pools, water parks, and spas. It addresses bacteria, viruses, and other harmful microorganisms. Regular chlorination prevents the spread of waterborne diseases and protects swimmers' health.
• Industrial Cooling Towers and Circuits: Chlorine Injection Systems disinfects cooling towers and water circulation systems in industrial facilities. It controls microbial growth, including Legionella, which can pose health risks. Preventing biofouling extends equipment lifespan and improves operational efficiency.
• Ionization System for Swimming Pools: The Ionization System for Swimming Pools uses an electrical current to pass through copper and silver rods regularly placed in the pool water. The current activates the metals, which release ions that eliminate bacteria and algae. This system is more eco-friendly and reduces the need to use chlorine.
• Surface Disinfection: Chlorine is used to disinfect surfaces in various settings, including healthcare facilities, laboratories, and public spaces. The Chlorine Injection System can provide rapid disinfection of contaminated surfaces to reduce the risk of infection transmission.

How to choose chlorine injection systems

Multiple considerations need to be looked at carefully before selecting a chlorine injection system for a water treatment facility. Here are some of the most important factors to keep in mind when choosing a chlorine dosing system:

• Flow rate and demand:

  The system's capacity to deliver chlorine at the required flow rate must be ensured. This is determined by estimating the quantity of chlorine needed for the target water volume on a specific timeframe. Meeting the facility's dosing requirements is essential.

• Injection mechanism:

  Different systems use distinct injection methods, such as ejectors, diffusion tubes, and metering pumps. Each approach has benefits and drawbacks; therefore, selecting a practicable injection method for the facility is important.

• Storage options:

  Considering the water treatment facility's needs, it will be important to evaluate the available storage options, including containers for solid chlorine compounds, such as calcium hypochlorite, and gas chlorination systems for chlorine gas.

• System controls:

  The user-friendliness and accuracy of the control system must be ensured to enable proper dosage regulation, monitoring, and reporting capabilities.

• Environmental and safety considerations:

  It's crucial to pick a chlorine injection system that meets the safety and environmental standards. This is necessary to prevent any adverse situations from occurring during operation and storage.

• Maintenance and support:

  Evaluate the system's maintenance needs, support availability, and spare parts' accessibility to ensure long-term operation and reliability.

Chlorine injection system Q&A

Q1: What are the different types of chlorine injection systems?

A1: The two main types of chlorine injection systems are gas chlorination and hypochlorite solutions. In gas chlorination, a chlorinator feeds chlorine gas into a solution using a suction line. This is a common method because gaseous chlorine is 2.5 times more potent than sodium hypochlorite. Hypochlorite solutions are less effective, so larger quantities are needed to achieve the desired levels.

Q2: How big is the chlorine injection market?

A2: The global gas chlorination market was valued at more than $350 million in 2023 and is forecast to reach almost $700 million by 2030.

Q3: How does a chlorine injector work?

A3: The chlorine injector works using the venturi effect. The injector has a constricted throat which increases the water velocity and creates a drop in pressure. The drop in pressure creates a suction force that pulls the chlorine from the container or solution into the pipeline where the water is flowing.

Q4: What are the benefits of a chlorine injection system?

A4: The system prevents bacteria and viruses from growing in a water supply. It keeps the water safe for drinking, swimming, or any other use. Another benefit is that it can disinfect large amounts of water very quickly.
