China brake booster

Types of China brake booster

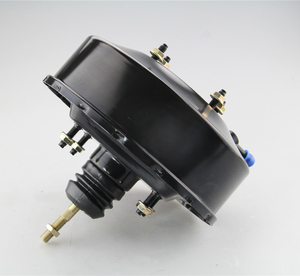

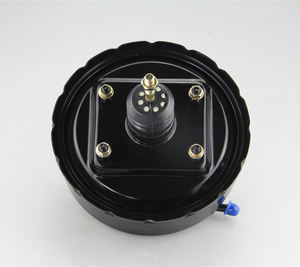

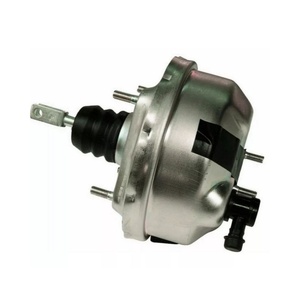

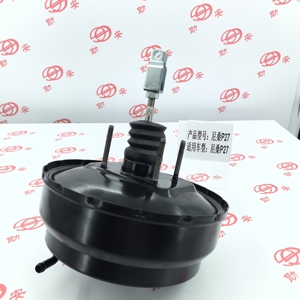

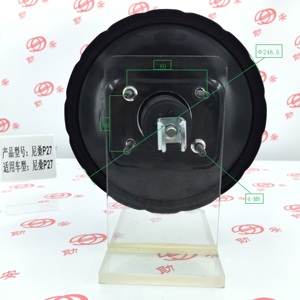

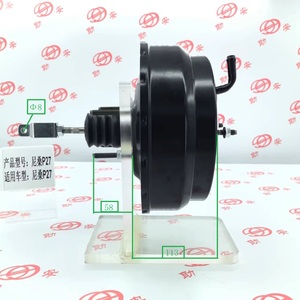

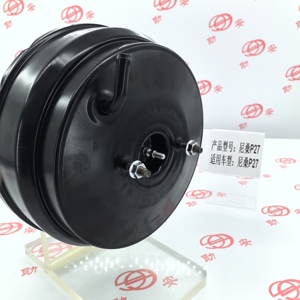

A China brake booster, also known as a brake servo, is a device that amplifies the force applied to the brake pedal, making it easier for the driver to brake. It uses vacuum pressure, often sourced from the engine's intake manifold, to assist in braking. By using the vacuum pressure, a force multiplier is created, allowing the driver to apply less force to the brake pedal while still achieving strong and effective braking. This is particularly beneficial in larger vehicles or those with heavier loads, where more braking force is required to stop the vehicle safely.

The brake booster is typically located between the brake pedal and the master cylinder. When the driver pushes the brake pedal, the booster responds to this action. It uses the vacuum pressure to increase the force exerted on the master cylinder, ensuring that the brakes apply more forcefully and evenly on the vehicle's wheels. This system allows for precise and controlled braking, enhancing safety and performance, especially in demanding driving conditions or with fully loaded vehicles. Overall, the brake booster significantly improves the braking system's efficiency and effectiveness, giving the driver more confidence and control.

There are two main types of brake boosters:

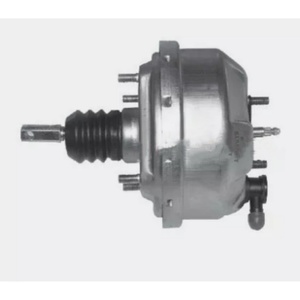

• Vacuum brake boosters: Vacuum brake boosters, also referred to as brake servos, are the most commonly utilized brake boosters in vehicles. They employ a vacuum derived from the engine's intake manifold to assist in brake pedal actuation. This vacuum creates a pressure difference within the booster, enabling smoother and more efficient brake engagement. The design of the vacuum booster typically includes two metal or plastic membranes separated by a valve. One side of the membranes connects to the intake manifold, where the vacuum is generated. When the driver presses the brake pedal, the valve closes momentarily, sealing the vacuum on one side of the membranes. This action causes a pressure difference between the two sides, pushing the brake pedal with greater force on the other side. As a result, the driver feels less resistance when applying the brakes, allowing for more precise and controlled braking. Vacuum brake boosters are available in various sizes to accommodate different vehicle types and braking requirements. Larger vehicles or those with heavier loads may require more robust boosters to provide adequate braking force. Some vacuum boosters also incorporate additional features, such as dampers or return springs, to improve pedal feel and booster responsiveness further.

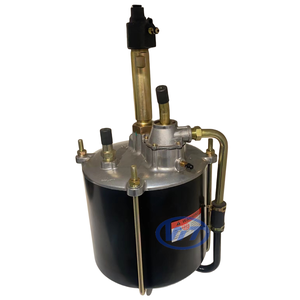

• Hydraulic brake boosters: Hydraulic brake boosters utilize the hydraulic pressure generated by the vehicle's power steering system to assist in brake pedal actuation. This type of booster is commonly found in trucks, buses, and some performance vehicles where higher braking force and precision control are required. Hydraulic boosters typically comprise a hydraulic cylinder, a brake pedal actuator, and various valves and passages to manage fluid flow. When the driver presses the brake pedal, the actuator converts this mechanical motion into hydraulic pressure changes. This pressure variation interacts with the hydraulic system, amplifying the force applied to the brake lines. The hydraulic brake booster allows for more significant and more controlled braking force, essential for larger vehicles or those carrying heavy loads. Additionally, hydraulic boosters can offer more responsive braking performance, as the booster can quickly adapt to changes in brake pedal force and vehicle dynamics.

Specifications & Maintenance of China Brake Booster

Here are some specifications of the China brake booster manufacturers to help find the right one:

• The Size of a Brake Booster

  It is available in various sizes to meet different vehicle models' needs. The sizes range from 7 inches to 11 inches or more. A larger brake booster provides more braking power.

• Brake Booster Diameter

  The diameter of a brake booster ranges from 7 inches to 15 inches. A larger diameter allows a greater surface area for assistance with more power.

• The Size of a Brake Booster Vacuum

  It is available in various sizes to meet different vehicle models' needs. The sizes range from 7 inches to 11 inches or more. A larger brake booster provides more braking power.

• Brake Booster Diameter

  The diameter of a brake booster ranges from 7 inches to 15 inches. A larger diameter allows a greater surface area for assistance with more power.

• Brake Booster Material

  This is often made of cast iron or aluminum. Both materials are durable and resistant to corrosion.

• Brake Booster Pressure

  The standard pressure of a brake booster is between 10 and 15 psi. This pressure is suitable for most vehicles. A higher pressure brake booster is used in heavy-duty trucks.

• Booster Ratio

  The brake booster ratio is the difference between the diameter of the diaphragm and the inlet. The booster ratio ranges from 2:1 to 5:1. A higher ratio provides more power to the brakes.

• Brake Booster Stroke

  The brake booster stroke is the distance the push rod moves when the brakes are applied. The brake booster stroke ranges from 0.5 inches to 1 inch. A longer stroke makes it easier to press the brake pedal.

• Brake Booster Warranty

  The warranty for a brake booster is usually between two and three years. A longer warranty shows the brake booster manufacturer’s confidence in the product.

To maintain a booster brake and ensure its longevity, regular checks are vital. Look for cracks, holes, or damage to the booster. Ensure the vacuum hose has no tears, cracks, or leaks. A leak in the vacuum hose reduces the booster’s power. Check the one-way valve to ensure it works properly. Make sure the valve allows air to flow in one direction. The valve should permit air to flow into the booster. When pressed, the valve should not allow air to flow in the opposite direction.

Also, users need to ensure the brake booster functions well. When the brake pedal is pressed, the vehicle should stop. If the vehicle does not stop, there may be a problem with the brake booster. Have a professional mechanic inspect and repair the brake booster.

How to Choose China Brake Booster

When reselling automotive brake boosters, there are several factors that should be considered to ensure customers get the best value. Here are some key points to note.

• Quality and reliability

  Prioritize the quality and reliability of the brake boosters. The brake booster is a vital part of the braking system, so it should be dependable. Look for brands that are known for making high-quality and reliable brake boosters. This ensures the customers using it in their vehicles will be safe and the brakes will work well.

• Vehicle compatibility

  Make sure the brake boosters are compatible with a wide range of vehicle types and models. Different cars and trucks have different braking systems, so the booster needs to fit and work correctly with the brakes in each vehicle. The more types of vehicles the brake booster can be used in, the more potential customers there will be.

• Ease of installation

  Consider the ease of installation of the brake boosters. If the booster is easy to install, customers will save time and money. It's especially important if the customer does the installation themselves or uses a mechanic who charges by the hour. Additionally, include clear instructions for installing the brake booster. A customer can install the booster themselves with step-by-step instructions, saving them money.

• Warranty and customer support

  Check that the manufacturers offer a good warranty and customer support. A warranty protects the buyer in case of any problems with the brake booster. Also, good customer support helps with anything related to the booster, like installation questions.

• Cost

  While quality should be prioritized, consider the cost of the brake boosters. Look for a balance between quality and affordability. This ensures a good profit margin while still providing valuable products to customers. It is also important to compare prices from different suppliers to find competitive offers.

• Reviews and reputation

  Research the reviews and reputation of the supplier and the brands of brake boosters they sell. See what other customers have to say about their experience. A reputable supplier and quality products will lead to satisfied customers and fewer problems.

How to DIY and Replace China Brake Booster

It is advisable to have a professional mechanic replace the brake booster. However, it is possible to do it by following the right steps. Here is a guide on how to replace the brake booster:

• 1. Gather the necessary tools and brake booster

  Get a new brake booster that is compatible with the vehicle's make and model. The brake booster can be purchased at auto parts stores. Also, get the necessary tools for the job. This includes socket wrenches, screwdrivers, and a torque wrench.

• 2. Disconnect the negative battery cable

  Locate the vehicle's battery, typically found under the hood. Use a wrench to loosen the nut on the negative battery cable, which is usually black and marked with a minus (-) symbol. This disconnects the negative battery cable from the battery, preventing any electrical short circuits or damage while working on the brake system.

• 3. Remove the brake pedal assembly

  Locate the brake pedal and identify the brake pedal assembly. The brake pedal is connected to a brake pedal assembly that houses the brake light switch and other related components. Use a socket wrench to remove the nuts or bolts securing the brake pedal assembly. These may be located on the underside of the dashboard or the brake pedal's pivot point. Once loose, carefully pull the brake pedal assembly away from the brake pedal and set it aside.

• 4. Disconnect the vacuum line

  Locate the brake booster vacuum line, which is a large rubber hose connected to the brake booster. This vacuum line is responsible for providing the brake booster with engine vacuum. Carefully pull the brake booster vacuum line off the brake booster. Depending on the vehicle, this may require loosening a clamp or using a flathead screwdriver to pry it loose. Be careful not to damage the vacuum line or its connections while removing it.

• 5. Disconnect the brake lines

  Locate the brake lines connected to the brake booster. Depending on the vehicle, the brake booster may have one or two brake lines. Use a wrench to loosen the fittings and carefully pull the brake lines off the brake booster. There may be some brake fluid leakage during this process, so have a rag or container ready to catch any escaping fluid. Take care not to damage the brake lines or their fittings while removing them.

• 6. Remove the brake booster mounting nuts or bolts

  Locate the nuts or bolts securing the brake booster to the firewall. These are typically accessed from the engine compartment side. Use a socket wrench to remove these fasteners, being careful not to drop them into the engine compartment. The number and location of the fasteners may vary depending on the vehicle's make and model.

• 7. Remove the brake booster push rod

  Locate the push rod connecting the brake booster to the brake master cylinder. This rod transfers the brake pedal force to the master cylinder, allowing the brake system to function. Depending on the vehicle, the push rod may be secured with nuts or bolts to the brake master cylinder. Use a wrench or socket driver to remove these fasteners and carefully pull the push rod away from the brake master cylinder. Set the push rod aside until the new brake booster is installed.

• 8. Remove the brake booster

  Carefully pull the brake booster out of the firewall and remove it from the vehicle. Depending on the brake booster design and the available space, this may require some wiggling or jiggling to free it from the fasteners and surrounding components.

• 9. Install the new brake booster

  Carefully push the new brake booster into the firewall and secure it with its mounting nuts or bolts. Tighten these fasteners snugly but do not overtighten them, as this may damage the brake booster or the firewall.

• 10. Reconnect the brake lines, vacuum, and brake pedal assemblies

  Reconnect the brake lines, ensuring they are properly fitted and free of leaks. Reconnect the brake booster vacuum line to the brake booster, ensuring a snug fit at all connections. Reinstall the brake pedal assembly and reconnect it to the brake pedal. Reconnect the brake pedal assembly to the brake pedal.

• 11. Reconnect the negative battery cable

  Reconnect the negative battery cable to the vehicle's battery. Use a wrench to tighten the nut on the negative battery cable, ensuring a secure connection. Double-check all components and systems to ensure they are correctly reinstalled and functioning before starting the vehicle and testing the brakes.

Q and A

Q: How do users know their brake boosters are working properly?

A: Users will notice a problem when they stop their vehicles. If the stopping distance gets longer or they have to push the brake pedal down harder, it could indicate a brake booster issue. They might also hear hissing sounds from the booster when using the brakes. Any of these signs means the brake booster is not working properly, and they should get it checked.

Q: Can both manual and vacuum boosters be used on any vehicle?

A: No, each vehicle is designed to work with a specific type of booster based on its engine size and braking needs. Manual boosters are used in vehicles with smaller engines. In contrast, vacuum boosters are used in vehicles with larger engines. Users should use the booster type recommended by their vehicle manufacturer.

Q: What is the difference between a brake booster and a brake amplifier?

A: A brake booster and brake amplifier are actually the same thing. It is a device that helps make braking easier by increasing the force applied by the driver on the brake pedal. So, there is no difference. Some people just use different names for the same component.

Q: Is it necessary to replace the entire brake booster if one part of it fails?

A: Yes, users will have to replace the whole booster unit. This is because the booster is a sealed system. If one part like the diaphragm or valve fails, it is very difficult to repair. To ensure all parts work together properly, mechanics recommend replacing the entire booster rather than trying to fix individual components.

Q: How often should the brake booster be checked?

A: Users should inspect and test the brake booster every 12,000 miles or at least once a year. This is important to ensure it continues to help with braking effectively. They should also get a professional mechanic to examine it whenever they notice any braking problems. Early detection can prevent more serious issues.
