Types of ceramic balls for ball mill
Suppliers provide buyers with several types of ceramic balls for ball mill in varying degrees of hardness, density, shapes, and porosity. These include the following types:

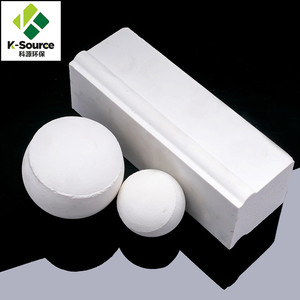

- Alumina balls: These balls are manufactured from alumina clay and can withstand significantly higher temperatures than other types of ceramic balls. They are also much harder, meaning they are highly effective at grinding materials in a ball mill. Available in sizes from 0.5 to 30 mm, alumina balls are used in industries that include cement, chemical, and mineral processing. There are also alumina balls of varying porosity, which makes them applicable for grinding and polishing.
- Porcelain balls: Made of porcelain clay, these are less dense and softer than alumina ceramic balls. Available in sizes ranging from 25 mm to 40 mm, these balls are effective for lighter milling jobs or when grinding materials that are softer. You can find these balls mainly in smaller, more compact ball mills used in the laboratory or for small-scale production.
- Zirconia balls: Comprised of zirconium oxide, zirconia balls are famed for their durability and resistance to wear, making them ideal for high-energy milling processes. Available in sizes ranging from 1 mm to 20 mm, they are effective for milling ceramic materials, metals, and other hard substances. They are also resistant to chemical wear, thus improving their effectiveness.
- China balls: Also known as ceramic media, china balls are made from a combination of clay, feldspar, and quartz. They are thus less dense and softer compared to alumina and zirconia balls. They are mainly suited for lighter milling tasks and for grinding materials like clay, which are less dense.
- Feldspar balls: These are manufactured from feldspar clay and come in sizes ranging from 5 mm to 50 mm. They are mainly used in the production of ceramic tiles and porcelain, and their lower density makes them suitable for lighter milling tasks.
How to choose ceramic balls for ball mill
When choosing ceramic media balls there are several factors that one should consider for the specific application. These factors include the:
- Milling requirements: Consider the type of material that must be ground and the required fineness. For materials that are softer or are less dense, use porcelain or china balls. For harder materials, use alumina, zirconia, or feldspar balls. The size of the ball is also an important consideration. Smaller size balls are suited for fine grinding, while larger ones are ideal for general milling.
- Ball properties: Assess the balls' hardness, density, and surface finish. Balls with a smoother surface can minimize wear. Also, harder balls are more effective for grinding tougher materials. Check the degree of porosity as well. Less porous balls are more effective for grinding processes where minimal ball absorption is required.
- Engineered specifications: Determine the mill's compatibility with the media in use. Certain mills operate more effectively with specific media types. Check the mill manufacturer recommendations for the type and size of media. Assess the wear rate of the balls, too. Some mills are compatible with media that wears out faster than others. Take notice of the media consumption rate, as well. Some types of media consume less material than others.
- Cost considerations: Assess the initial cost of the media versus the long-term cost implications. Options with higher initial costs may be more economical in the long run if they offer lower wear rates. Weigh the costs against performance requirements.
- Chemical resistance: If the milling process involves chemical substances, consider the balls' resistance to chemical wear. For chemically active materials, zirconia balls are more effective since they are resistant to chemical wear.
- Temperature resistance: If the milling process generates significant heat, select balls that can withstand elevated temperatures. Alumina balls are well suited to high-temperature applications.
How to use ceramic balls for a ball mill
When using ceramic ball mill media there are several critical factors a user should consider for an effective ball milling process. These factors and how to implement them include:
- Set up: Place the ceramic balls and materials to be milled inside the ball mill drum and then close the mill. The ratio of the material to the balls should normally be 1:1. Adjust the mill's settings, including rotation speed and duration of the milling time. Depending on the material and desired fineness, the milling time should be from a few minutes to several hours. Smaller balls work more effectively for fine grinding, while larger ones are ideal for general milling.
- Operation: Start the ball mill and allow it to operate for the preset duration. Continually monitor the mill for any anomalies during operation. Check for any excessive noise or vibrations as these are sometimes indicators of problems with the milling process. It is critical to stop the mill at pre-defined intervals so as to prevent over-milling.
- Checking progress: After the milling time is up, open the mill and inspect the material. If it is not yet at the desired fineness, add more time and restart the mill. Perform this task until the material achieves the desired level of fineness.
- Maintenance: After each use, clean both the balls and the mill thoroughly. This is critical for avoiding cross-contamination during the milling of different materials. Check the balls for signs of wear or damage and replace them as necessary. Regularly inspect the mill for any signs of wear or malfunctioning.
Ceramic balls for ball mill shipping and storage
When buying ceramic ball mills business owners should be concerned about how the product is shipped and stored. This is because proper shipping and storage is critical for optimal performance in the ball-milling process. Here is a rundown of the several factors to consider when storing and shipping these ceramic balls:
- Shipping packaging: Use strong packaging materials that will protect the ceramic balls from damage. Custom-sized boxes or pallets with plastic wrap are viable options. Cushioning materials like bubble wrap or foam should be employed to minimize movement and impact during transit. Do not forget to label packages as fragile and provide handling instructions to avoid rough handling.
- Shipping conditions: Ensure that shipments occur under dry conditions, as exposure to moisture can affect the balls’ properties, especially if they are porous. Shipment in dry containers or trucks during dry weather is critical so the balls do not absorb moisture and get damaged. Shipment under controlled temperature conditions is critical for specific types of ceramic balls that are sensitive to extreme temperatures.
- Storage conditions: When the ceramic balls are in storage, keep them in a dry, temperature-controlled environment. This minimizes both exposure to moisture and extreme temperatures. Store the balls in containers or bags that are labelled to avoid mix-ups. Additionally, keep the storage area organized to enable easy access when needed. Exposure to moisture can promote rusting or chemical reactions, degrading the balls’ quality. Monitor stock levels regularly to avoid either oversupply or undersupply.
- Handling: Use gloves or other protective gear when handling ceramic balls to avoid contamination from oils or dirt.
FAQs
What are ceramic balls for a ball mill used for?
Ceramic balls for a ball mill grinder are normally used for grinding and pulverizing materials in various industries. Such industries as the chemical industry, mining, ceramics, and material manufacturing employ these balls to reduce the size of particles, blend materials, and achieve desired levels of fineness. In addition, their durability and resistance to wear enable the balls to undertake high-energy milling processes while retaining their shape. This makes them optimal for both high and low-density milling.
Do ceramic balls for ball mills have any benefits?
Yes, they do. For instance, ceramic ball mill media have a benefit of minimizing contamination during the milling process as they do not introduce metallic particles into the material. They also have a long lifespan, thus offering a significant reduction in operating costs due to lower media replacement frequency. Also, due to their lighter weights, they require less energy to operate when compared to their steel ball counterparts.
Are ceramic balls preferable to steel balls for a ball mill?
Yes, they are in particular scenarios. Ceramic balls are more effective than steel balls when the milling process involves materials that are chemically active or sensitive to metal contamination. In such scenarios, ceramic balls are effective as they do not introduce metallic particles into the material. Moreover, the ceramic balls are effective for lighter milling tasks, while steel balls are suited for heavy-duty grinding of harder materials.
How does one prevent wear in ceramic balls for a ball mill?
To minimize wear in the ceramic balls, ensure that the material to be milled is not harder than the balls themselves. Alumina balls are ideal for milling tough materials. Employ a proper size reduction technique and use the right size of balls for the milling task. Also, avoid overloading the mill as this exerts excessive pressure on the balls. Operate the ball mill within the manufacturer’s recommended speed and time limits to avoid overheating.
How does one properly dispose of worn-out ceramic balls for a ball mill?
Worn-out ceramic balls should be recycled if they are made of recyclable material such as alumina or zirconia. These recycled materials can be used to produce new ceramic products or as aggregates in construction. If the balls are irrevocably damaged or made of materials that cannot be recycled, dispose of them according to local regulations on hazardous waste. You can also reuse highly worn balls in less critical milling applications.
