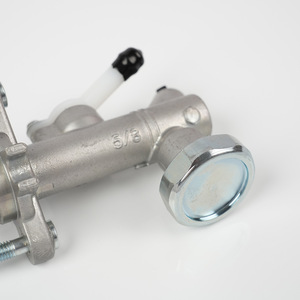

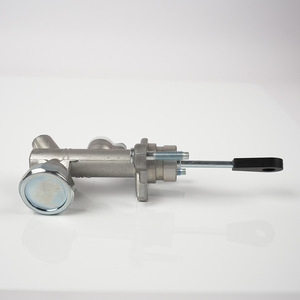

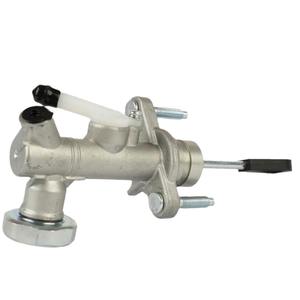

Types of Brake Master Cylinder for Hyundai Starex
The brake master cylinder for Hyundai Starex is a crucial component in the vehicle’s braking system, acting as a hydraulic pump that translates mechanical force from the brake pedal into hydraulic pressure. This pressure activates the brake calipers or wheel cylinders, ensuring reliable stopping power and safety. A well-functioning brake master cylinder significantly affects the overall efficiency and responsiveness of the braking system.
For Starex owners looking to enhance their vehicle's performance—especially those who have upgraded brakes, engines, or suspension systems—it becomes essential to evaluate whether the stock brake master cylinder can handle increased demands. Upgrading the brake master cylinder may be necessary to ensure optimal brake modulation, sensitivity, and reliability under more strenuous driving conditions.

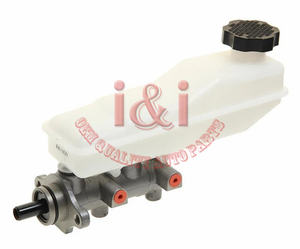

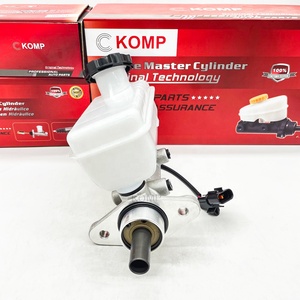

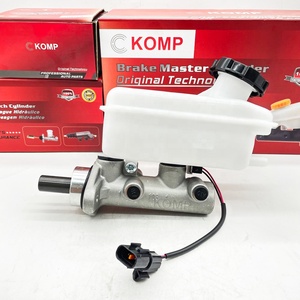

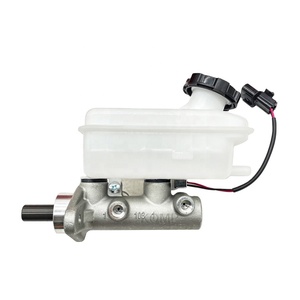

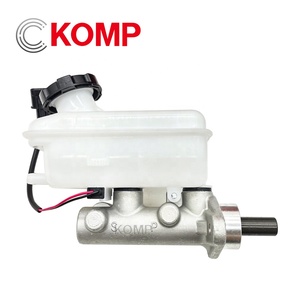

Standard Brake Master Cylinders
Hyundai Starex models are typically equipped with dual-circuit standard brake master cylinders. These units feature two separate hydraulic circuits—one primarily responsible for front brake engagement and the other for rear brake activation—to maintain safety even if one circuit fails.
Advantages
- Reliable for daily driving conditions
- Built-in redundancy (dual-circuit design)
- Cost-effective replacement option
- Easily available OEM parts
Limitations
- Limited performance capabilities
- May not support larger brake upgrades
- Less modulation control under heavy use
Best for: Stock setups, city commuting, light-duty use
High-Performance Brake Master Cylinders
Certain high-performance variants of the Hyundai Starex, particularly turbocharged models, come equipped with enhanced brake master cylinders designed to deliver greater hydraulic pressure and improved pedal feel. These units often include larger diameter brake boosters for superior leverage and response.
Advantages
- Increased brake pressure output
- Improved pedal sensitivity and feedback
- Enhanced compatibility with larger calipers
- Better suited for aggressive driving styles
Limitations
- Higher cost compared to standard units
- May require additional modifications
- Overkill for basic driving needs
Best for: Turbocharged models, spirited driving, modified vehicles

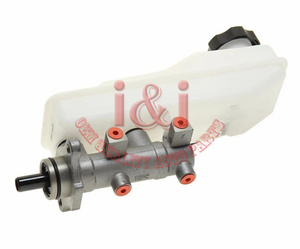

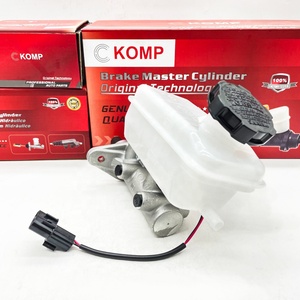

Aftermarket Brake Master Cylinders
Many aftermarket manufacturers offer specialized brake master cylinders tailored for different driving requirements. These options often include features such as corrosion-resistant coatings, larger fluid reservoirs, adjustable piston sizes, and customizable brake balance settings.
Advantages
- Variety of customization options
- Upgraded materials for durability
- Adjustable brake bias for tuning
- Improved thermal resistance and longevity
Limitations
- Quality varies between brands
- Installation complexity may increase
- Potential compatibility issues
Best for: Performance enthusiasts, custom builds, track-prepped Starex vans
| Type | Durability | Braking Power | Customization | Best For |
|---|---|---|---|---|
| Standard | Moderate | Adequate | Low | Daily commuting, stock vehicles |
| High-Performance | High | Excellent | Moderate | Sportier driving, turbo models |
| Aftermarket | Very High | Excellent | High | Racing, customization, off-road |
Expert Tip: When upgrading your Hyundai Starex's brake master cylinder, always check compatibility with your existing brake system components—especially caliper size, booster type, and pedal ratio. Proper matching ensures balanced braking and prevents premature wear on pads or rotors.
Specifications and Maintenance of Brake Master Cylinder for Hyundai Starex
The brake master cylinder is a critical component of the braking system in your Hyundai Starex. Understanding its specifications and how to properly maintain it can significantly impact vehicle safety, performance, and longevity. Here's an in-depth guide covering key aspects to consider when selecting or maintaining this essential part.
Key Specifications to Consider
Cylinder Bore Size
The bore size of the brake master cylinder determines the amount of hydraulic pressure generated with each press of the brake pedal. It directly affects braking efficiency and pedal feel. For the Hyundai Starex, standard bore sizes typically range between 25mm and 30mm.
A larger bore diameter produces more fluid displacement per stroke, which enhances stopping power but may reduce pedal sensitivity. Conversely, a smaller bore requires more pedal effort to achieve the same stopping force, making it less ideal for heavy vehicles like the Starex unless optimized for specific applications.
Number of Cylinder Pots (Circuits)
Modern brake systems often utilize dual or triple-circuit master cylinders. The Hyundai Starex commonly uses a dual-circuit design for redundancy and safety. This means if one circuit fails, the other remains functional to provide partial braking capability.
Triple-circuit systems are typically found in high-performance or commercial variants where additional braking zones (such as separate circuits for front/rear or ABS integration) are required. Always verify your Starex model’s original configuration before replacement.
Brake Fluid Compatibility
Hyundai Starex brake master cylinders are generally designed to operate with DOT 3 or DOT 4 brake fluids. These glycol-based fluids offer high boiling points, excellent lubrication properties, and compatibility with rubber seals and metal components.
DOT 4 has a higher wet and dry boiling point than DOT 3, making it suitable for more demanding driving conditions. Always use the type recommended by the manufacturer to avoid seal degradation, corrosion, or reduced braking efficiency.
Material Construction
Brake master cylinders are primarily manufactured from cast iron or aluminum alloys. Each material comes with distinct advantages:
- Cast Iron: Known for durability and heat resistance, though heavier and prone to rust without proper coating or maintenance.
- Aluminum: Lightweight, corrosion-resistant, and increasingly used in modern applications. Requires less frequent maintenance compared to cast iron.
Selecting the right material depends on driving conditions, climate, and whether you're prioritizing weight reduction or maximum durability.
| Specification | Importance | Recommendations |
|---|---|---|
| Bore Size | High | Stick to OEM specs (25–30mm) unless upgrading for performance; consult a mechanic for modifications |
| Fluid Type | High | Use DOT 3 or DOT 4 as specified in owner’s manual; avoid mixing different types |
| Mounting Pattern | Medium | Ensure bolt holes match your Starex model to prevent installation issues |
| Reservoir Capacity | Medium | Larger reservoirs may be needed for modified braking systems or long-distance travel |
Essential Maintenance Practices
Regular maintenance of the brake master cylinder ensures safe operation and prevents costly repairs. Follow these best practices:
Important: Never ignore signs of a failing brake master cylinder such as a sinking brake pedal, fluid leakage, or warning lights. Address issues immediately to avoid complete brake failure and ensure road safety.
How to Choose a Brake Master Cylinder for Hyundai Starex
Selecting the correct brake master cylinder for your Hyundai Starex is essential for maintaining optimal braking performance and safety. The master cylinder plays a crucial role in converting pedal pressure into hydraulic force, which activates the brakes across all wheels. Here are key factors to consider when choosing the right component:
Vehicle Specifications
The brake master cylinder must match the exact specifications of your Hyundai Starex model, including make, year, engine type, and braking system configuration. Using mismatched parts can lead to compromised braking efficiency or even failure.
- Check your vehicle's VIN number to confirm compatibility
- Refer to the owner’s manual for OEM part numbers
- Verify with an online parts catalog or professional mechanic
Pro tip: Some models may have ABS systems or different caliper configurations that require specific master cylinders.
OEM vs Aftermarket Options
Decide whether you want to go with an Original Equipment Manufacturer (OEM) part or a high-quality aftermarket alternative. Both options have their advantages depending on budget, availability, and performance expectations.
- OEM parts guarantee perfect fit and function but may cost more
- Aftermarket brands like ACDelco, Bosch, and Textar offer reliable alternatives
- Ensure aftermarket units meet or exceed OE standards (e.g., ISO certifications)
Note: Always cross-reference part numbers before purchasing to avoid fitment issues.
Quality and Reliability
A high-quality brake master cylinder ensures consistent performance and longevity. Look for signs of durable construction such as corrosion-resistant coatings, precision machining, and leak-proof seals.
- Choose units made from high-grade aluminum or steel alloys
- Inspect for smooth piston movement and proper fluid flow channels
- Look for built-in wear indicators or secondary seals for added safety
Key indicator: Reputable brands often include rebuild kits or service manuals with replacement units.
Warranty and Support
A solid warranty reflects the manufacturer's confidence in the product. Compare coverage terms between different suppliers to ensure long-term reliability and customer support.
- Extended warranties (1–3 years) are common for quality parts
- Some manufacturers offer lifetime replacement guarantees
- Check if technical support is available during installation
Smart choice: Opt for components with hassle-free return policies and clear documentation.
Budget Considerations
While it's tempting to choose the cheapest option, remember that the brake master cylinder is a critical safety component. Investing in a dependable unit will prevent frequent replacements and potential repair costs down the road.
- Compare prices from multiple vendors online
- Factor in labor costs if having it professionally installed
- Look for rebates, promotions, or bundled deals
Value advice: Mid-range priced parts from trusted brands often provide the best balance of cost and quality.
Professional Consultation
If you're unsure about selecting the right master cylinder, consulting with a certified mechanic or parts specialist can save time, money, and potential headaches later on. They can help identify any hidden compatibility issues or recommend upgrades based on driving conditions.
- Local dealerships can verify OEM compatibility
- Brake specialists may suggest performance-enhancing options
- Mobile mechanics can sometimes source and install the part directly
Expert suggestion: Ask for recommendations based on similar Hyundai models or known reliability trends.
Installation Tip: When replacing the brake master cylinder, always bleed the entire brake system afterward to remove air bubbles and ensure consistent braking power. Use only the recommended brake fluid type (usually DOT 3 or DOT 4) specified in your vehicle’s manual.
| Component Type | Pros | Cons | Recommended For |
|---|---|---|---|
| OEM Master Cylinder | Precise fit, factory-level performance, full compatibility | Higher price point, limited availability | Owners seeking original-spec reliability and resale value |
| High-End Aftermarket | Cost-effective, widely available, good warranties | May require double-checking fitment details | DIYers and budget-conscious owners who prioritize quality |
| Economy Aftermarket | Inexpensive, easy to find | Shorter lifespan, possible inconsistency in build | Temporary fixes or short-term use vehicles |
DIY Replacement Guide for Brake Master Cylinder on Hyundai Starex
Replacing the brake master cylinder in your Hyundai Starex is a crucial maintenance task that ensures optimal braking performance and safety. While it's a moderately complex job, with proper tools, patience, and this detailed guide, you can successfully complete the replacement at home.
Safety Warning: Always work on a vehicle that is securely supported and never rely solely on jacks. Wear protective gloves and eyewear to prevent injury from brake fluid or sharp edges. Work in a well-ventilated area when handling chemicals like brake fluid.
Preparation Steps
- Safety First
- Park the vehicle on a level surface and engage the parking brake
- Place wheel chocks behind the rear wheels for added security
- Wear safety glasses and gloves throughout the process
- Have a fire extinguisher nearby in case of fluid leaks near hot surfaces
- Gather Tools and Materials
- Socket set (typically 10mm and 13mm sizes)
- Open-end wrenches
- Brake bleeder kit or clear plastic hose
- New OEM-compatible brake master cylinder
- Fresh DOT 3 or DOT 4 brake fluid (as specified by manufacturer)
- Clean rags and drip pan
- Wire brush for cleaning connections
- Battery Disconnection
- Locate the negative battery terminal and disconnect it using a wrench
- This prevents any electrical shorts during the procedure
- Take photos of the original setup for reference during reassembly
| Tool Category | Required Items | Optional but Helpful | Common Mistakes to Avoid |
|---|---|---|---|
| Mechanical Tools | Socket set, wrenches, screwdrivers | Extension bar, torque wrench | Using incorrect socket sizes causing rounded bolts |
| Fluid Handling | Drip pan, new brake fluid, tubing | Brake bleeding kit, funnel with filter | Allowing reservoir to run dry during removal |
| Organization | Label maker, zip ties, container for parts | Magnetic tray for screws/bolts | Mixing up brake line positions |
Pro Tip: Before starting, bench bleed the new master cylinder if possible. This involves filling it with brake fluid and operating the piston to remove air bubbles, which makes the in-vehicle bleeding process much easier.
Removal of Old Master Cylinder
- Drain Brake Fluid
- Remove the brake fluid reservoir cap
- Use a turkey baster or suction tool to extract most of the fluid
- Dispose of old brake fluid properly according to local regulations
- Disconnect Brake Lines
- Loosen the brake lines connected to the master cylinder using a flare nut wrench
- Have a container ready to catch residual fluid
- Plug the open lines with clean rubber caps or tape to prevent contamination
- Remove Mounting Hardware
- Locate and remove the mounting bolts securing the master cylinder to the brake booster
- Keep all hardware organized for potential reuse
- Note any washers or spacers used in the original configuration
- Extract Old Unit
- Gently pull the master cylinder straight back to disengage from the booster pushrod
- Be careful not to damage surrounding components
- Inspect the brake booster seal for wear while accessing this area
Installation of New Master Cylinder

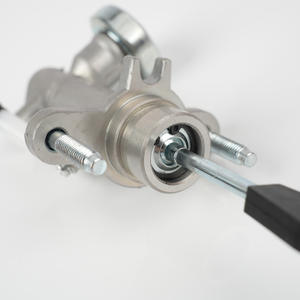

- Position New Unit
- Align the new master cylinder with the brake booster pushrod
- Ensure proper orientation before tightening mounting bolts
- Use a small amount of silicone grease on the pushrod contact point if recommended
- Secure Mounting Hardware
- Install the mounting bolts and tighten to factory specifications (usually around 18-22 ft-lbs)
- Replace any corroded or damaged bolts with new ones
- Double-check alignment after tightening
- Reconnect Brake Lines
- Attach each brake line to its corresponding port on the master cylinder
- Tighten fittings to manufacturer specifications (typically 89-104 inch-pounds)
- Use thread sealant only if specified by the manufacturer
- Refill and Initial Bleeding
- Fill the brake fluid reservoir to the "MAX" line with fresh brake fluid
- Begin bleeding the system starting with the wheel farthest from the master cylinder
- Follow a systematic approach: driver’s rear → passenger rear → driver’s front → passenger front
- Check and top off fluid level frequently during the bleeding process
Final Tip: After installation, pump the brake pedal slowly until resistance is felt. Check all connections for leaks before taking the vehicle for a test drive at low speed. Remember to properly dispose of all waste fluids and materials.
Post-Installation Checklist
- Verify all brake line connections are tight and free of leaks
- Confirm the brake pedal feels firm with minimal travel
- Test lights and warning indicators on the dashboard
- Take short test drive at low speeds to ensure proper braking function
- Schedule a professional brake inspection within 500 miles
Frequently Asked Questions About Hyundai Starex and Brake Master Cylinder
The Hyundai Starex is a versatile and widely recognized van manufactured by Hyundai Motor Company, designed to serve both commercial and passenger transportation needs. It’s known for its spacious interior, durability, and adaptability across various markets. In different regions, it may be referred to as the Hyundai iMax (especially in Australia) or the H-1 in other global markets.
With rear-wheel drive (RWD) configuration, the Starex offers better traction and handling performance, particularly under heavy load conditions. The suspension system features an independent MacPherson strut with coil springs and a stabilizer bar at the front, ensuring stability and ride comfort. The rear suspension uses leaf springs, which are ideal for supporting heavier loads.
The brake master cylinder is a critical component of the braking system, responsible for converting pedal pressure into hydraulic force that activates the brakes. The Starex series is available in several seating configurations, making it suitable for families, shuttle services, and cargo transport.
- Hyundai Starex Premium: Top-tier variant offering enhanced comfort, advanced safety features, and improved aesthetics.
- Hyundai Starex 9-seater: Ideal for medium-sized families or small business transport needs.
- Hyundai Starex 12-seater: Designed for group transportation such as school shuttles or tour vans.
- Hyundai Starex 10-seater: A balanced option between capacity and space efficiency.
- Hyundai Starex 8-seater: Offers extra legroom and flexibility, often used for executive transport or premium family use.
The brake master cylinder in the Hyundai Starex is typically constructed from high-quality materials such as cast iron, steel, or aluminum alloys. These materials are chosen for their strength, heat resistance, and ability to withstand repeated pressure cycles without deformation.
Cast iron provides excellent wear resistance and thermal stability, while steel adds structural rigidity. Aluminum versions are lighter, contributing to overall vehicle weight reduction, which can improve fuel economy and performance. Regardless of material, the design emphasizes corrosion resistance and long-term reliability to ensure consistent braking performance over time.
The brake master cylinder plays a central role in the brake control system. When the driver presses the brake pedal, the master cylinder generates hydraulic pressure that activates the brake calipers or drums at each wheel. Additionally, modern systems may integrate hill-start assist functionality, where the brake remains momentarily engaged after the driver releases the pedal to prevent rollback on inclines.
This feature enhances driving safety and convenience, especially in urban environments with frequent stops on slopes. It works in tandem with the anti-lock braking system (ABS) and electronic stability control (ESC) to maintain optimal control during challenging driving conditions.
The brake pedal feel refers to the tactile feedback experienced when pressing the brake pedal. A well-functioning brake master cylinder ensures a firm, consistent, and responsive pedal feel. Ideally, the resistance should be proportional to the amount of pressure applied—allowing the driver to modulate braking force effectively.
Any changes in pedal feel, such as sponginess, stiffness, or uneven resistance, could indicate issues like air in the brake lines, fluid leakage, or internal wear in the master cylinder. Regular inspection and maintenance are crucial to preserving safe and predictable braking performance.
