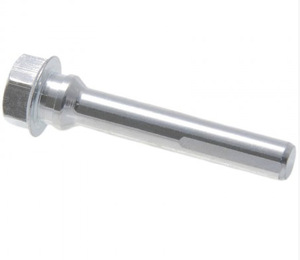

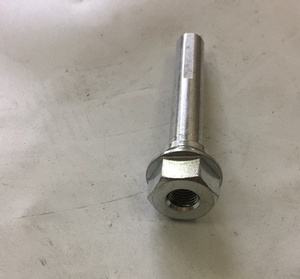

Types of Brake Caliper Pins
The brake caliper pin is a critical connector component that securely attaches the brake calipers to the brake system. These pins are engineered in various designs to accommodate different vehicle requirements and braking systems. Understanding the differences between pin types is essential for proper maintenance and replacement.
Floating Caliper Pins
Floating caliper pins are designed to move in and out when brakes are engaged. They're specifically used in floating caliper systems where:
- The piston pushes the inner pad against the rotor
- The floating pin moves to push the outer pad against the rotor
- When brakes are released, the pin moves in the opposite direction
Key benefit: Enables even pad wear and efficient braking mechanisms
Guide Pins
Guide pins remain stationary and are mounted on the fixed side of the caliper. These pins:
- Act as guides for caliper movement during brake engagement
- Ensure precise alignment of the caliper over the rotor
- Enable uniform brake pad contact with the rotor surface
Key benefit: Maintains consistent caliper alignment for optimal braking performance
Solid Pins
As the name suggests, solid pins have no hollow sections or cutouts. These pins:
- Offer a simple yet sturdy design
- Provide reliable structural integrity
- Are typically more cost-effective to manufacture
Key benefit: Maximum durability with minimal production cost
Slider Caliper Pins
Slider caliper pins move with the entire caliper assembly when brakes are engaged. In this system:
- Both caliper and pins move to press pads against the rotor
- Pins move within slots of the caliper frame during braking
- Caliper and pins retract when brakes are released
Key benefit: Ensures even pad wear and optimal distribution of braking force
Hollow Pins
Hollow brake caliper pins feature a central channel running through their length. These specialized pins:
- Allow brake fluid to pass to the piston through their central channel
- Reduce the number of fluid transfer components
- Minimize potential fluid leak points in the system
Key benefit: Streamlines hydraulic system while enhancing overall performance
Comparative Analysis of Brake Caliper Pin Types
| Pin Type | Movement | Best Application | Maintenance Level | Relative Cost |
|---|---|---|---|---|
| Floating Pins | Dynamic | Passenger vehicles with floating calipers | Moderate | Medium |
| Guide Pins | Stationary | Fixed-caliper systems requiring precise alignment | Low | Low |
| Solid Pins | Varies by system | Heavy-duty applications | Low | Low |
| Slider Pins | Dynamic | Sliding caliper systems | High | Medium |
| Hollow Pins | Varies by system | Integrated hydraulic systems | High | High |
Expert Tip: When replacing brake caliper pins, always match the exact type that was originally installed. Mixing pin types can lead to uneven braking, premature pad wear, and potential safety issues.
Specifications of Brake Caliper Pins
Brake caliper pins are manufactured with precise specifications to ensure proper fit and function in your vehicle's braking system. Understanding these specifications is crucial when selecting replacement pins.
-
Material Composition
Brake caliper pins are fabricated from various materials, each offering specific advantages:
- Steel: Provides excellent strength and heat resistance, making it ideal for demanding braking conditions
- Titanium: Offers superior strength-to-weight ratio and exceptional corrosion resistance
- Brass: Features low friction properties that can enhance smooth caliper movement
- Aluminum: Provides weight reduction while maintaining adequate strength and excellent corrosion resistance
-
Size Dimensions
The precise dimensions of brake caliper pins are critical for proper fitment and function:
- Length: Typically ranges from 30mm to 80mm, depending on the caliper design
- Diameter: Usually between 5mm and 12mm, must match caliper specifications exactly
- Thread pitch: For threaded pins, must match the caliper housing threads precisely
-
Quantity Requirements
Brake calipers utilize multiple pins to ensure proper operation:
- Most systems use 2-4 pins per caliper
- Higher performance vehicles may use additional pins for increased stability
- Pin configuration directly affects force distribution and braking performance
-
Surface Treatments
Protective coatings enhance pin durability and performance:
- Zinc plating: Provides basic corrosion protection
- Chrome plating: Offers superior corrosion resistance and reduced friction
- Nickel plating: Delivers excellent hardness and wear resistance
- Heat treatments: Can improve strength and durability of the base material
| Specification | Common Range | Importance | Selection Consideration |
|---|---|---|---|
| Material | Steel, Titanium, Brass, Aluminum | High | Match to vehicle requirements and driving conditions |
| Length | 30mm - 80mm | Critical | Must match OEM specifications exactly |
| Diameter | 5mm - 12mm | Critical | Must match OEM specifications exactly |
| Surface Treatment | Zinc, Chrome, Nickel plating | Medium | Consider environmental exposure and driving conditions |
| Quantity per Caliper | 2-4 pins | Medium | Always replace complete sets |
Important: Using incorrectly sized or specified brake caliper pins can lead to brake system failure, compromised vehicle control, and potential accidents. Always match pins precisely to your vehicle's specifications.
Maintenance of Brake Caliper Pins
Proper maintenance of brake caliper pins is essential for ensuring optimal braking performance, safety, and longevity of your vehicle's brake system. Regular inspection and maintenance can prevent costly repairs and ensure reliable braking when you need it most.
-
Regular Inspection
Carefully examine brake caliper pins for these warning signs:
- Visible corrosion or rust development
- Scoring, pitting, or uneven wear on the pin surface
- Bending or deformation that could impair movement
- Damage to rubber boots or sleeves protecting the pins
-
Proper Caliper Pin Greasing
Applying the correct lubricant is crucial for optimal pin performance:
- Only use high-temperature synthetic brake grease specifically formulated for caliper pins
- Apply a thin, even layer to the pin surface
- Ensure grease coverage is complete but not excessive
- Avoid petroleum-based greases that can damage rubber components
-
Protective Boot Maintenance
The rubber boots protecting caliper pins are essential components:
- Inspect boots for tears, cracks, or hardening
- Replace damaged boots immediately to prevent pin contamination
- Ensure boots are properly seated when reinstalling pins
- Clean boots thoroughly during pin maintenance
-
Recommended Maintenance Schedule
Follow these guidelines for optimal brake system performance:
- Visual inspection: Every 15,000 miles or during tire rotations
- Pin cleaning and re-greasing: Every 30,000 miles or at brake pad replacement
- Pin replacement: When visible wear is present or at 60,000-80,000 miles
- More frequent maintenance for severe driving conditions (towing, mountainous terrain, etc.)
Maintenance Schedule by Driving Conditions
| Maintenance Task | Normal Driving | Severe Conditions | Performance Driving |
|---|---|---|---|
| Visual Inspection | 15,000 miles | 7,500 miles | 5,000 miles |
| Pin Cleaning & Greasing | 30,000 miles | 15,000 miles | 10,000 miles |
| Pin Replacement | 60,000-80,000 miles | 40,000-50,000 miles | 30,000-40,000 miles |
| Boot Inspection | Every oil change | Every oil change | Every oil change |
Professional Tip: When performing brake caliper pin maintenance, take the opportunity to inspect the entire caliper assembly, brake pads, and rotors for signs of wear or damage. This comprehensive approach can identify potential issues before they become serious problems.
How to Choose Brake Caliper Pins
Selecting the right brake caliper pins is crucial for maintaining optimal braking performance and vehicle safety. Consider these key factors when choosing replacement pins for your vehicle:
-
Vehicle Compatibility
Ensure precise compatibility with your specific vehicle:
- Match the exact make, model, year, and trim level of your vehicle
- Consult your vehicle's service manual for exact specifications
- Consider any performance modifications that might affect braking system requirements
- Verify compatibility with your specific caliper model and design
-
Quality and Reliability
Prioritize quality when selecting brake components:
- Choose pins from reputable manufacturers with proven track records
- Consider OEM (Original Equipment Manufacturer) parts for guaranteed fit
- Read customer reviews and professional ratings of aftermarket options
- Look for quality certifications and warranties that indicate manufacturer confidence
-
Driving Environment and Habits
Match pin specifications to your specific driving conditions:
- Consider climate factors - salt exposure, humidity, and temperature extremes
- Evaluate your driving style - aggressive driving requires more robust pins
- For performance driving, consider upgraded materials like titanium or specialized coatings
- For towing or heavy loads, prioritize pins designed for increased durability
-
Budget Considerations
Balance cost with quality for the best value:
- Recognize that brake system components directly impact safety
- Consider total cost of ownership, including expected lifespan
- Compare pricing across reputable retailers and online sources
- Be wary of unusually low-priced pins that may compromise quality
-
Future Maintenance Requirements
Consider long-term maintenance factors:
- Evaluate ease of future pin removal and installation
- Consider availability of replacement parts for the specific pin type
- Some pin designs may require special tools for maintenance
- Factor in the cost and availability of compatible lubricants
Selection Criteria Priority Matrix
| Selection Factor | Daily Driver | Performance Vehicle | Heavy-Duty/Towing |
|---|---|---|---|
| Exact OEM Match | High Priority | Medium Priority | High Priority |
| Material Quality | Medium Priority | High Priority | High Priority |
| Corrosion Resistance | Medium Priority | Medium Priority | High Priority |
| Heat Tolerance | Low Priority | High Priority | Medium Priority |
| Cost | Medium Priority | Low Priority | Medium Priority |
Safety Warning: Never compromise on brake component quality to save money. Brake failure due to inferior caliper pins can lead to serious accidents. Always prioritize reliability and proper specification matching over cost savings.
DIY Brake Caliper Pin Replacement Guide
Replacing brake caliper pins is a moderately challenging DIY task that can save you money while ensuring your braking system functions properly. Follow this step-by-step guide for safe and effective caliper pin replacement.
Required Tools and Materials
- New brake caliper pins (matched to your vehicle specifications)
- High-temperature synthetic brake grease
- Jack and jack stands
- Lug wrench
- Socket set and wrenches
- Pliers (regular and needle-nose)
- Wire brush or caliper cleaning tool
- Brake cleaner spray
- Disposable gloves
- Safety glasses
- Caliper pin removal tool (if necessary)
Step-by-Step Replacement Process
Prepare the Vehicle
Begin by parking on a flat, level surface and ensuring the vehicle won't move during the procedure:
- Engage the parking brake and chock the wheels that will remain on the ground
- Loosen (but don't remove) the lug nuts on the wheel you'll be working on
- Use a proper jack point to raise the vehicle and secure it with jack stands
- Remove the wheel completely for unobstructed access to the brake assembly
Remove the Caliper
Carefully detach the caliper to access the pins:
- Locate and remove the caliper bolts (typically behind the caliper)
- Gently slide the caliper off the rotor, being careful not to stretch or damage the brake line
- Support the caliper with wire or a bungee cord to prevent it from hanging by the brake line
- Take note of the original position and orientation of all components
Extract the Old Pins
Remove the existing pins for replacement:
- Remove any retaining clips or hardware securing the pins
- Carefully pull the pins from the caliper bracket
- If pins are stuck, apply penetrating oil and allow it to soak before trying again
- For severely stuck pins, a caliper pin removal tool may be necessary
Tip: If pins are difficult to remove, try gently tapping them with a soft mallet while applying outward pressure. Never use excessive force that could damage the caliper housing.
Clean and Inspect Components
Thoroughly clean and examine all parts before installing new pins:
- Use brake cleaner to remove old grease, dirt, and debris from pin holes and caliper bracket
- Clean the caliper slider channels with a wire brush or dedicated caliper cleaning tool
- Inspect the caliper bracket for damage, cracks, or excessive wear
- Check rubber boots for tears or deterioration and replace if necessary
Install New Pins
Properly install and lubricate the new caliper pins:
- Apply a thin layer of high-temperature synthetic brake grease to the new pins
- Insert the pins into the caliper bracket in the correct orientation
- Ensure the pins move freely and smoothly in their channels
- Install any retaining clips or hardware that secure the pins
Reassemble the Brake System
Complete the installation by reassembling all components:
- Slide the caliper back into position over the rotor
- Reinstall and torque the caliper bolts to manufacturer specifications
- Verify the caliper moves freely on the new pins
- Check for proper clearance between all components
Final Assembly and Testing
Complete the job and verify proper function:
- Reinstall the wheel and hand-tighten lug nuts
- Lower the vehicle and torque lug nuts to manufacturer specifications in a star pattern
- Pump the brake pedal several times to restore proper brake pressure
- Test drive at low speeds in a safe area to ensure proper brake function
Safety Critical: After completing any brake work, always test your brakes at low speeds in a safe location before returning to normal driving. Verify that the brake pedal feels firm and that the vehicle stops promptly and evenly.
Frequently Asked Questions
The optimal greasing interval for brake caliper pins depends on several factors including driving conditions and vehicle usage. As a general guideline:
- For normal driving conditions: Check and re-grease pins during routine brake service or every 30,000 to 50,000 miles
- For severe driving conditions (dusty roads, frequent short trips, extreme temperatures): Increase frequency to every 15,000 to 25,000 miles
- For performance driving: Inspect and maintain pins every 10,000 to 15,000 miles
Always inspect pins whenever brake pads are replaced, regardless of mileage interval. Signs like grinding noises, uneven brake pad wear, or pulling to one side during braking indicate immediate pin maintenance is needed.
A loose brake caliper pin can cause several serious issues in your braking system:
- Uneven brake pad wear: The misaligned caliper causes one side of the pad to contact the rotor more than the other
- Brake noise: Squealing, grinding, or rattling sounds can result from improper caliper movement
- Vibration: You may feel vibrations through the brake pedal or steering wheel during braking
- Reduced braking performance: Stopping distance may increase and braking may feel less responsive
- Potential caliper damage: The misaligned caliper can be damaged by improper forces during braking
If you suspect a loose caliper pin, have your braking system inspected immediately. Continued driving with loose pins can lead to brake system failure and unsafe driving conditions.
Freeing stuck brake caliper pins requires patience and the right technique:
- Preparation: Remove the caliper to access the pins fully, supporting it properly to avoid damaging the brake line
- Apply penetrating oil: Spray a quality penetrating oil or brake parts cleaner around the stuck pin and allow it to soak for 15-30 minutes
- Use controlled force: Try gently tapping the pin with a soft mallet while applying steady outward pressure
- Apply heat (if necessary): For severely stuck pins, carefully apply heat using a heat gun to the caliper bracket around the pin (never direct flame)
- Use proper tools: A caliper pin removal tool or slide hammer may be required for extremely stuck pins
- Last resort: If pins cannot be freed, the entire caliper bracket may need replacement
Never force a pin with excessive pressure as this can damage the caliper bracket or brake components. If you're uncomfortable with the process, seek professional assistance.
Some brake caliper pins are indeed directional and must be installed in a specific orientation:
- Design variations: Pins may have different head shapes, lengths, or special features that require proper orientation
- Anti-corrosion coatings: Some pins have specialized coatings on specific surfaces that must be positioned correctly
- Groove patterns: Certain pins have lubrication grooves or channels that must be aligned properly
- Manufacturer specifications: Always follow vehicle-specific installation instructions
When removing old pins, note their original orientation and install new pins in the same manner. If uncertain, consult your vehicle's service manual or manufacturer documentation for the correct installation procedure.
No, you should not use just any grease on brake caliper pins. The correct lubricant is critical for proper brake system function and safety:
- Use only high-temperature synthetic brake grease specifically formulated for caliper pins and brake components
- Avoid standard chassis grease or multi-purpose grease which can break down under the high temperatures generated by braking
- Never use petroleum-based lubricants as they can damage rubber boots and seals in the brake system
- Silicone-based brake lubricants are often ideal as they resist water, are compatible with rubber components, and withstand extreme temperatures
- Ceramic-based lubricants provide excellent protection in high-performance applications
Using the wrong type of grease can lead to pin seizure, premature wear, brake noise, and potentially brake system failure. The small cost difference between proper brake grease and general-purpose lubricants is insignificant compared to the safety risks of using improper products.
