Betaflight flight controller

Types of Betaflight flight controllers

Flight controllers equipped with Betaflight software offer pilots programmable control for stable flight. While all Betaflight controllers have the same base software, they differ in features and hardware. Here are the types of Betaflight flight controllers based on the chips embedded in the device.

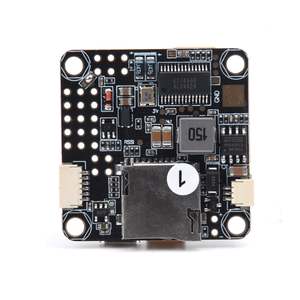

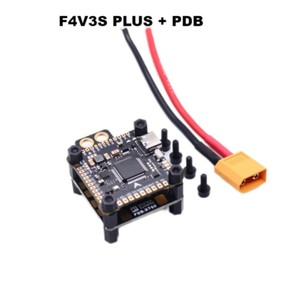

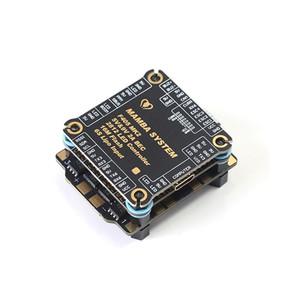

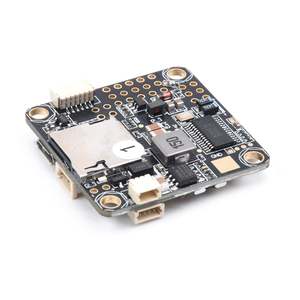

• STM32 F4 Series

  This was the first controller introduced to the drone community. It offered pretty good performance at the time it was launched. The STM32 F4 series of controllers have processing speed ranging from 168 MHz to 210 MHz. In addition to this, they have more memory storage than other controllers. The memory can range from 64 KB to 256 KB SRAM and 512 MB flash. Due to their ability to hold and process big data fast, the Betaflight flight controllers in the STM32 F4 series perform complex calculations needed for stable flight control.

  The STM32 F4 flight controller provides features like digital filters, multiple PID controllers, and configuration options. It serves a wide range of multi-rotor, fixed-wing, and VTOL aircraft.

• STM32 F7 Series

  The flight controller in this series offers better performance than those in the F4 series. It has a faster CPU speed and more memory. This gives pilots a better response and improves flight handling, especially tight and fast maneuvers. Pilots who fly drones with heavy payloads or need more computing power prefer controllers from the F7 series.

  The controller in this series has features like acceleration and rate presets. It uses the PROCESSOR_INFLIGHT_UPDATE feature that allows the processor to run higher during flight and provide better processing and control during flight. However, to enjoy the benefits of flight control, the drone pilot must use a transmitter and receiver combo that supports digital communication.

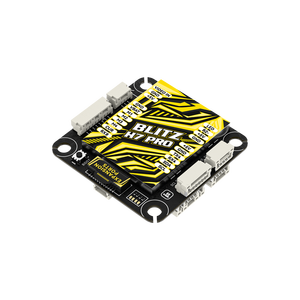

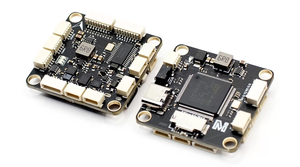

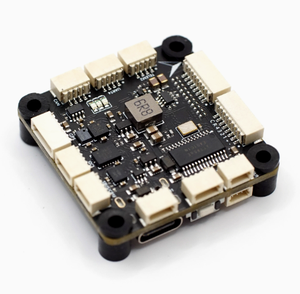

• STM32 H7 Series

  This series has the newest flight controller. Betaflight firmware brings out the full potential of the flight controllers in this series. The H7 series controller has the features, processing speed, and memory required for demanding applications and advanced flight control systems. Drone models needing complex algorithms and high data processing use Betaflight controllers with STM32 H7 chips.

The above series can have subcategories with different features that improve the drone's flight capabilities. Some controllers have an MPU 6000 chip that works well in normal temperature, while the MP 3200 works well in higher temperature ranges. There is also the ICM 20602/20601, which has a low noise level and works well in high vibration environments.

Functions and features

The Betaflight flight controller is compact, powerful, and loaded with features. Here are some of the functions and features that make it popular among drone enthusiasts.

• Stabilization: One of the key functions of flight controllers is to maintain stable flight. It achieves this by using algorithms to process data from the sensors. Then, it makes adjustments to the orientation and position of the aircraft. These controllers help beginner pilots learn to fly while experienced ones can focus on capturing footage.
• GPS Capability: Some Betaflight controllers have GPS capabilities. They use GPS data to execute automated flight modes. Examples are return-to-home, altitude hold, waypoint navigation, and geofencing. Controllers with GPS functionality provide safety, ease of use, and advanced flight modes.
• Brushless Motor Compatibility: Flight controllers provide brushless motor compatibility. Brushless motors offer better performance, reliability, and power-to-weight ratios compared to other kinds of motors. They are preferred for multirotors, and the Betaflight controller is optimized for use with brushless motors.

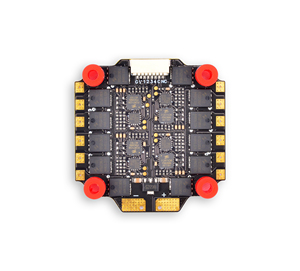

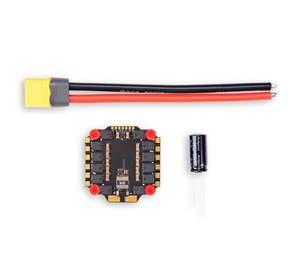

• ESC Integration: Betaflight controllers with integrated ESCs simplify the building and troubleshooting process. They provide efficient motor control, save space in the aircraft, and work with PWM or DSHOT protocols.
• Real-Time Telemetry: Real-time telemetry monitoring allows pilots to monitor important flight parameters. These include battery voltage, current consumption, GPS position, and flight altitude. Controllers that allow telemetry monitoring help users make informed decisions for safer flights.
• Modular Design: Some flight controllers come with a modular design. This feature allows components like the GPS module, I/O ports, and power distribution to be added or removed flexibly. Betaflight controllers with a modular design can be customized to meet specific operational needs.
• Advanced Tuning Options: Many Betaflight flight controllers have tuning options like PID tuning, filtering settings, and rates customization. These options provide increased responsiveness, better flight control, and optimized flight performance, especially in challenging conditions.

Scenarios

• Drone Racing:

  Drone racing is a popular use case for Betaflight. Pilots race drones through tight and technical courses. The Betaflight firmware provides high-speed flight controls that allow pilots to maneuver drones with precision and agility. Drift pilots rely on Betaflight's stabilization to keep control of their drones during races.

• Freestyle Flying:

  Freesylers use Betaflight to perform acrobatic maneuvers. Betaflight's control algorithms offer stabilization and protection during flips, rolls, and other freestyle tricks. Pilots can push their drones to the limit and showcase their skills.

• Long Range Flying:

  Some pilots use Betaflight for long-range missions. Betaflight can maintain control of the drone over long distances. There are specific flight modes that assist with long-range flying. Betaflight helps pilots explore beyond the visual range.

• Auto Missions:

  Betaflight has features for automated missions. Things like waypoints, return-to-home, and altitude hold allow users to set a mission and have their drones execute it. Automated flying can be used for mapping, surveying, or inspection tasks.

• Rugged Conditions:

  Betaflight can be used in applications with harsh environments. Things like search and rescue in heavy wind or tropical storm conditions utilize the stabilization of Betaflight to keep drones operational in extreme weather. Shipment inspection over oceans and pipelines also uses Betaflight to maintain control in their respective conditions.

How to Choose Betaflight Flight Controllers

• Simplicity vs. Advanced Features

  New pilots should stick with the standard Betaflight firmware that provides a simplified version of the PID tuning and the basic modes (Angle mode, Horizon mode, and Acro mode). As pilots advance their skills, they can switch to other firmwares with more customization options.

• Community Support

  The availability of good community/online support is very important. One should pick flight controllers that have an active community of popular forums where users can post questions and get support. Betaflight has a strong community that will help anyone interested in it.

• Price

  Price is determined by personal preferences. Regardless of the price, one should always settle for the flight controller that best suits their needs. Betaflight offers a wide range of flight controllers at affordable prices.

• Size and Weight

  Betaflight flight controllers give users the option to choose between micro and mini sizes. This controller's small size makes it compatible with tight spaces in smaller airframes. It's lightweight, so it won't affect the handling or performance of the aircraft.

• Microprocessor and Flight Control Sensors

  One must ensure that the Betaflight flight controller of their choice is equipped with a capable microprocessor that can handle complex flight algorithms. It should have accurate and responsive flight sensors (gyroscope, accelerometer magnetometer). These sensors will provide stable flight control and help implement features like GPS hold and altitude.

• Hardware and Software Compatibility

  Business buyers should look for flight controllers with high-quality build hardware, including connectors, capacitors, and resistors. They should also be compatible with the latest Betaflight software to take advantage of the new features and updates. It is important to note that there should be compatibility between the hardware of the flight controller and software, so one can get good performance.

• Configuration and Tuning

  It is important to know whether the flight controller can be easily configured and tuned using a PC or smartphone. One should find a user-friendly configuration tool or app to use the Betaflight features and settings easily. Pilots should look for flight controllers that offer presets for different aircrafts designs, such as ready-made configurations for drones and Betaflight mode.

• Safety Features

  Buyers should make sure the flight controller has some important safety features such as low-voltage alarm, failsafe and flight log.

Betaflight flight controller Q&A

Q1: What is the role of the Betaflight flight controller in a drone?

A1: It controls and stabilizes the drone. With inputs from the pilots or sensors, it manages all flight operations. Its core function is to maintain stability, respond to control inputs, and execute maneuvers effectively.

Q2: What factors should be considered when choosing a Betaflight flight controller?

A2: Particulars like controller size, supported modes, processor power, ports, and mountings should be considered when choosing a controller. Also, the intended use and personal preferences are key in the decision-maker process.

Q3: Does every drone need to betaflight?

A3: Not every drone needs Betaflight. While Betaflight provides advanced flight control features, some drones may operate with other flight controllers or firmware depending on their specific requirements and functionalities.

Q4: What is the difference between a flight controller and an ESC?

A4: The flight controller and electronic speed controller (ESC) work hand in hand to control the drone. While the flight controller processes sensor data and determines the required motor speeds for stabilization and control, the ESC receives signals from the flight controller and adjusts the speed of each motor to execute the flight controller's commands.
