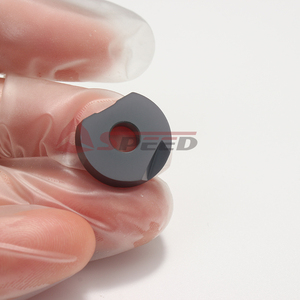

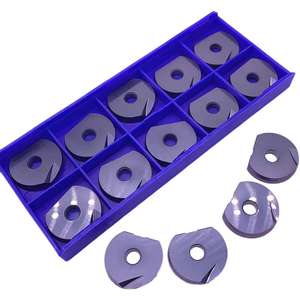

Ball nose insert

Types of Ball Nose Inserts

There are several types, each with unique characteristics suitable for different machining tasks.

• Cemented Carbide Ball Nose Inserts

  Cemented carbide ball nose inserts are extensively used in machining due to their exceptional hardness and durability. Manufactured by embedding tungsten carbide grains in a cobalt matrix, these inserts maintain their cutting edge even under high-temperature conditions. Ball nose carbide inserts are well-suited for machining hard materials like steel, cast iron, and heat-resistant alloys. Their ability to take precisely shaped components ensures longevity and reduced tool wear. These features make them preferred in heavy industrial applications.

• Ball Nose R Inserts

  Ball nose R inserts find their primary application in creating radii onwork pieces. Their radius profile is instrumental in generating rounded edges or contours, critical in mold making and die manufacturing. These inserts come in varied radius sizes, adaptable to specific curvature requirements. A ball insert tool allows for smooth transitions and fitting components. Thus, it ensures aesthetic and functional efficiency in producing intricate designs. Their precision makes them indispensable for tasks requiring fine detail and accuracy.

• Rotary Ball Nose Inserts

  Engineered for use in rotary tools, these ball nose inserts are highly useful in operations that demand both rotation and milling. Their versatile nature allows quick tool changes, making them suitable for intensive machining processes. Also, rotary ball nose inserts excel in 3D contouring, delivering smooth and precise cuts. This insert type applies to industries where time efficiency and precision are critical, such as aerospace and automotive. Moreover, its adaptability to different materials enhances its value across diverse applications.

• Negative Angle Ball Nose Ball Inserts

  Ball nose cnc inserts with negative angles have an inward-cutting edge profile. This construction makes it ideal for machining convex surfaces. Its design allows effective chip removal in challenging material contexts. Therefore, it reduces cutting forces and enhances stability. Negative angle ball nose inserts suit deep cavity machining in the mold and die industry. Their efficiency in maintaining edge integrity under adverse conditions makes them essential for heavy-duty and long-run operations.

• Indexable Ball Nose Inserts

  Indexable ball nose inserts present an economical solution for heavy machining. These inserts are designed to be rotated or replaced once worn, thus minimizing tool costs. Also, they provide the flexibility to adjust cutting edges without replacing the entire tool. This feature is particularly beneficial to high-volume production environments. Where periodic tool wear occurs frequently. Also, these inserts maintain exceptional precision in contouring. Indexable ball nose inserts, therefore, combine cost-efficiency with sustained high performance in machining complex shapes.

Industrial Applications of Ball Nose Inserts

Ball nose turning inserts are widely used in industries that require high-precision machining of complex surfaces. Their unique shape, designed for contouring and 3D machining, makes them ideal for creating intricate shapes, grooves, and profiles on various materials. Here are some key industrial applications of ball nose inserts:

• CNC Machining

  In computer numerical control (CNC) machining, ball nose inserts play a pivotal role in 3D contouring tasks. They enable the machining of complex surfaces with high accuracy, making them essential in aerospace parts, automotive components, and molds. CNC machines emphasize precision, and ball nose inserts meet this demand for intricate designs.

• Mold and Die Making

  Ball nose inserts are indispensable in the mold and die-making industry. They ensure smooth surface finishes on molds used to produce plastic parts, metal castings, and more. The ability of these inserts to create detailed and polished mold surfaces directly impacts the quality of the final product. This comes into play in sectors such as electronics, consumer goods, and automotive, where molds must replicate complex designs accurately.

• Aerospace

  The aerospace industry demands materials that can withstand extreme conditions. Here, ball nose inserts prove useful, particularly when working with denser alloys and composites. Precision machining is essential for components like aircraft skins, engine parts, and fatigue-critical elements. Here, even the slightest error can have severe consequences. Aerospace relies on ball nose inserts to achieve the precision and surface finish required for safety and performance.

• Automotive Industry

  Ball nose inserts are commonly used in high-precision automotive component machining. From engine parts to suspension components, the ability to create complex profiles is vital for assembling vehicle systems. In high-performance automotive manufacturing, these inserts are critical to working with premium materials. Some of these materials include titanium and high-strength steel. The inserts ensure smooth surface finishes and enhance component durability.

• Medical Device Manufacturing

  Complex components such as implants and surgical instruments require precise machining in the medical industry. Ball nose inserts are ideal for creating the intricate geometries often needed for these components. Additionally, many medical devices use premium biocompatible materials like titanium and stainless steel. Here, precision is paramount for patient safety and device efficacy. Ball nose inserts help meet exacting standards in quality and precision in this space.

• Aviation

  Aviation demands usually require components to be lighter but also stronger. Therefore, machining these components demands tools that can work with advanced materials. Ball nose inserts excel at creating precise contours and profiles on these critical parts. Thus, helping to maintain the industry’s strict safety and performance required standards.

Product Specifications and Features of Ball Nose Inserts

Key Features

• Geometric Design

  Featuring a rounded tip, ball nose inserts are designed to machine complex 3D contours. This design makes them ideal for profiling and contouring tasks across multiple applications.

• Material Composition

  Usually, ball nose inserts are made from cemented carbide, a blend of tungsten carbide and cobalt. This composition offers extreme hardness, helping the insert cut even the hardest of materials.

• Coatings

  Inserts for ball nose end mills may feature coatings such as titanium nitride (TiN), titanium carbide (TiC), or aluminum oxide (Al2O3). These coatings improve the insert's wear resistance. The coatings also help reduce friction and extend the life of the tool under heavy-duty operations.

• Cutting Edges

  Usually, ball nose inserts come with sharp edges. It ensures clean cuts and minimal material deformation. Therefore, this sharpness is crucial for applications where surface finish directly impacts the final product's quality.

How to Install

• Loosen the Insert Holder

  This can be done with a hex key or wrench, depending on the holder’s design. Loosen any screws or bolts that secure the old insert in place. Take care to not fully remove the fasteners from the holder.

• Remove Old Inserts

  Gently take out the old inserts. These could be worn-out or damaged ones. Take note of any accompanying spacers or shims. Keep them aside as they will be used in subsequent installs.

• Clean the Insert Pockets

  Assess the condition of the pockets where the inserts are seated. Take a clean cloth and give the pockets a thorough wipe. This removal prevents debris or old insert fragments from interfering with the new insert during operation.

• Insert Positioning

  Place the new ball nose inserts into the appropriate pockets. Ensure the cutting edge is properly aligned. Proper installation position is crucial for even wear and effective cutting during operation. These inserts are designed with a positive or negative rake angle accommodating specific machining needs.

• Secure the Inserts

  Once the new inserts are properly positioned, tighten them securely. Go ahead to tighten the screws or bolts to the manufacturer’s specified torque. This ensures stability and the correct insert height during the operation. Failure to properly secure the inserts can lead to vibrations.

• Reattach the Holder

  Place the insert holder back in its appropriate location. Reattach any fasteners that hold it in place. Give the holder a thorough check to ensure it is securely fastened into the machine. This is to avoid unexpected accidents during the subsequent operation.

Maintenance and Repair

• Regular Inspections

  Daily inspections of the ball nose inserts before and after use are recommended. Perform visual assessments for signs of wear, chipping, or cracking. Pay close attention to the cutting edges and radius as this is where most stress gets concentrated. Catching wear early on helps in timely replacements. This, in turn, prevents compromised work quality.

• Essential Cleaning

  Post-operation cleaning is crucial. Use a soft brush or compressed air to remove built-up swarf or debris from the insert and its holder. Avoid using metallic brushes as they can damage the insert surfaces. Cleaned parts prevent premature wear and ensure optimal cutting performance for the inserts.

• Cutting Edge Maintenance

  Use a fine diamond file or honing stone to gently touch up the cutting edges. This helps remove minor nicks or burrs that develop over time. Careful edge maintenance ensures smooth cuts and reduces the strain on the insert. Doing this regularly minimizes the need for complete insert replacements.

• Insert Rotation

  If inserts in the machine have multiple edges, rotate them regularly. This action helps all edges wear evenly, ultimately extending the insert's lifespan. Established rotation schedules based on usage.

• Proper Storage

  Store inserts in a clean, dry environment to prevent contamination from particles or moisture. Use dedicated storage cases for each type of insert. This prevents mixing and ensures quick accessibility. Additionally, maintained inserts guarantee longer service life and consistent machining quality.

• Repairs and Replacements

  Occasionally, an insert might get beyond repair. Usually, inserts can be reconditioned by professional services that grind and retip worn inserts. Where inserts are damaged beyond repair, timely replacement is the most ideal way to maintain cutting efficiency.

Quality Checks for Ball Nose Inserts

Carrying out frequent quality checks on steel inserts helps a great deal in guaranteeing superior machining performance. It also helps in boosting tool longevity. Here are some important quality checks as well as inspections in the maintenance of ball nose inserts:

• Dimensional Accuracy

  Check the insert dimensions using calipers or micrometers to measure the radii, lengths, and widths. Each of these measurements should always be on the insert’s specification sheet. Any discrepancies usually can lead to improper fit and reduced machining precision.

• Material Composition Analysis

  To ensure that the ball nose inserts are made from the recommended materials, conduct a material composition analysis. Use techniques such as X-ray fluorescence (XRF). This is especially for composite materials, to ensure elements like tungsten and cobalt are present in the right proportions. In cases of newbies, they may still use a simple magnet test to check for cobalt content.

• Surface Finish Examination

  Using a high magnification eye to check the surface finish is essential in preventing surface irregularities like roughness or pitting. Pay special attention to the cutting edge and ball nose radius. Any irregularities there can hamper cutting performance and negatively impact the workpiece finish quality.

• Coating Integrity Assessment

  Designs like TiN or TiC-coated inserts require frequent attention to ensure coating integrity. Visually inspect for blisters, peeling, or wear using a microscope. Go for small ball nose inserts from Alibaba.com as they have been manufactured to meet quality standards. A compromised coating reduces wear resistance and might increase friction during machining.

• Hardness Testing

  Use a durometer or Rockwell hardness tester to assess the hardness of ball nose inserts. Ball nose inserts made to industry standards usually have a hardness of over HRA. Reduced hardness indicates the insert might have degraded from prolonged use or sub-optimal machining conditions.

• Edge Wear Evaluation

  Use a microscope to assess edge wear closely. Also, check for chipping, rounding, or micro-cracking, which could affect performance. One tip is to frequently compare worn edges to a standard “new” edge. This helps ensure worn components get replaced promptly.

• Insert Fitment Test

  Last but not least, always test the fit of the insert within its holder. Measure the pocket dimensions to ensure they accommodate the insert. Poor insert-to-holder fit can lead to vibrations. It also causes less-than-precise machining. Besides, measure each insert against its specifications and make sure they measure true so it can yield consistent performance during operations.

Q&A

Q1: What are ball nose inserts used for?

A1: Ball nose inserts are primarily designed for 3D contouring and profiling. They basically create complex shapes and curves on various materials. This makes them indispensable in such industries as aerospace, automotive, and mold making.

Q2: How do ball nose inserts differ from other cutting tools?

A2: The unique feature of turning tool inserts is their rounded tip, which allows for smooth, spherical cuts. Other cutting tools often have straight or angled edges. These are suited for flat machining or linear cuts, thus making ball nose ideal for more intricate 3D machining tasks.

Q3: Which materials are ball nose inserts usually made of?

A3: Ball nose inserts are usually produced from cemented carbide, a blend of tungsten and cobalt. Some also come in cermet, ceramic, and high-speed steel. They are suitable for effectively cutting hard materials while retaining durability and edge sharpness.

Q4: What is the importance of coating on ball nose inserts?

A4: Ball nose inserts with coatings like TiN and TiC have improved wear resistance and reduced friction properties. This prolongs the life of the insert during rigorous operations. The coating also guards against thermal damage, which contributes to more consistent cutting performance over time.

Q5: How is chip removal aided with ball nose inserts?

A5: Efficient chip removal is vital for premier machining. Ball nose inserts have a unique profile that helps prevent chips from piling up on the workpiece. This, in turn, minimizes interruption during the operation as well as improved surface finishes.

Q6: What factors contribute to ball nose insert wear?

A6: Several factors contribute to wear on ball nose inserts. Those factors include machining speed, feed rate, workpiece material, and tool lubrication. Watching out for all these variables will help minimize wear. This will also ensure optimal insert performance in its own durability.

Q7: What role do radial and axial clearance angles play in ball nose inserts?

A7: Both radial and axial clearance angles allow efficient cutting action while preventing friction. Properly aligned angles ensure that the inserts engage the workpiece optimally, contributing to superior surface finishes and reduced insert wear.

Q8: What maintenance practices promote the lifespan of ball nose inserts?

A8: To prolong the life of ball nose inserts, regular cleaning of the tool is critical. It is also essential to conduct frequent inspections, proper storage, and use of lubricants. Routine checks will guard against premature wear. Also, timely identification and correction of insert wear will result in minimized downtimes. Moreover, maximized efficiency in production will come in handy.
