Types of Auto Reversing Cameras for Hyundai Vehicles
A reversing camera is an essential safety feature in modern Hyundai vehicles, designed to enhance driver visibility and improve parking precision. When the driver shifts into reverse gear, the system automatically activates a rear-facing camera that provides a live video feed of the area behind the vehicle. This visual aid significantly reduces blind spots and helps prevent accidents involving pedestrians, objects, or other vehicles.

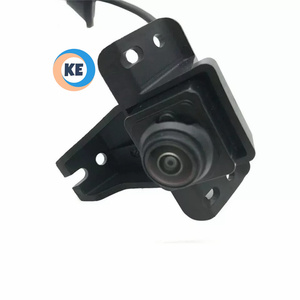

The camera unit is typically mounted on the rear bumper, license plate frame, or trunk lid, depending on the model. Most systems include a wide-angle lens to capture a broad field of view, while some advanced models offer ultra-wide or fish-eye angles for enhanced spatial awareness. Let's explore the different types of reversing cameras available for Hyundai vehicles:
Standard Reversing Camera
This basic system includes a rear camera and a dedicated display screen. When reverse gear is engaged, the screen shows a clear view of the area behind the vehicle with static guidelines to help judge distances.
- Budget-friendly option
- Easy to install (especially as aftermarket kits)
- Ideal for older Hyundai models without factory-installed systems
Best For: Simple parking assistance, everyday use
Dynamic Guideline System
An upgraded version featuring dynamic trajectory lines that adjust in real-time based on steering wheel movement. These moving guidelines show the projected path of the vehicle when reversing.
- Improves maneuvering accuracy
- Helps with parallel parking and tight spaces
- Available on mid-range and newer Hyundai models
Best For: Precise parking, city driving, trailer hitching
High-Definition (HD) Camera
Features a higher resolution sensor and improved optics for clearer images, especially in low-light conditions. Some HD systems incorporate HDR (High Dynamic Range) technology for better contrast in challenging lighting situations.
- Superior image quality
- Enhanced night vision capabilities
- Wider dynamic range for bright and dark environments
Best For: Nighttime parking, varying weather conditions
Surround View Monitor (SVM)
An advanced multi-camera system using front, side, and rear cameras to create a virtual 360° bird's-eye view of the vehicle. This system provides comprehensive situational awareness around the entire vehicle.
- Complete perimeter coverage
- Multiple viewing angles
- Especially useful for larger SUVs and crossovers
Best For: Tight parking, off-road navigation, large vehicles
Smartphone Integrated Camera
Designed to work with smartphone mirroring systems like Apple CarPlay and Android Auto. The camera feed appears on the infotainment screen when connected devices are used for navigation or media functions.
- Seamless smartphone connectivity
- Shared display for multiple functions
- Modern interface with app integration
Best For: Tech-savvy drivers, frequent phone users
Park Distance Control Integration
Combines the visual feedback of a reversing camera with audible alerts from ultrasonic sensors. As the vehicle approaches an obstacle, the system emits warning beeps that increase in frequency as distance decreases.
- Dual sensory feedback (visual & auditory)
- Redundant safety system
- Available in premium trims and packages
Best For: Safety-focused driving, urban environments
| Feature | Standard | Dynamic Guidelines | HD Camera | Surround View | Integrated Systems |
|---|---|---|---|---|---|
| Basic Video Feed | ✓ | ✓ | ✓ | ✓ | ✓ |
| Static Guidelines | ✓ | ✓ | ✓ | ✓ | ✓ |
| Dynamic Trajectory Lines | - | ✓ | ✓ | ✓ | ✓ |
| HD Resolution | - | - | ✓ | ✓ | - |
| Night Vision Enhancement | - | - | ✓ | ✓ | - |
| 360° View | - | - | - | ✓ | - |
| Smartphone Compatibility | - | - | - | - | ✓ |
| Obstacle Detection Sensors | - | - | - | ✓ | ✓ |
Key Benefits of Reversing Cameras in Hyundai Vehicles
- Improved Safety: Reduces the risk of backing-over accidents by providing visibility where it's otherwise limited or non-existent.
- Enhanced Parking Precision: Makes parallel parking easier and helps align the vehicle perfectly in standard parking spaces.
- Reduced Blind Spots: Offers a clear view of areas that cannot be seen through mirrors alone, particularly important for taller vehicles.
- All-Weather Performance: Many systems maintain functionality in various weather conditions, including rain and snow.
- Increased Confidence: Helps drivers feel more secure when reversing in crowded or unfamiliar environments.
- Resale Value: Vehicles equipped with advanced safety features like reversing cameras often have higher resale value.
Expert Tip: When selecting a reversing camera system for your Hyundai, consider how you primarily use your vehicle. Urban drivers may benefit most from Park Distance Control integration, while those who frequently tow trailers should prioritize dynamic guidelines. For maximum versatility, the Surround View Monitor offers the most comprehensive solution.
Specifications and Maintenance of Auto Reversing Cameras for Hyundai Vehicles
Key Specifications to Consider When Choosing a Reversing Camera
Selecting the right reversing camera for your Hyundai is essential for safety, functionality, and long-term satisfaction. Understanding key specifications helps ensure you choose a system that meets your driving needs and environmental conditions.
Display Type and Integration
The display serves as the visual interface between the driver and the rear camera feed. Hyundai models may feature either touchscreen displays or traditional physical units, depending on trim level and year.
Touchscreen displays offer intuitive control and often support additional features like audio, navigation, and smartphone connectivity. For seamless integration, it's crucial to match the camera system with your vehicle’s existing display capabilities.

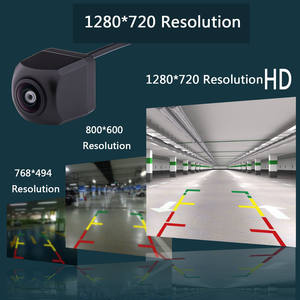

Camera Resolution Quality
Resolution determines how sharp and clear the image appears on your screen. Most modern systems offer HD (720p or 1080p) resolution, which provides significantly better clarity than standard definition options.
Higher resolution cameras enhance visibility of small objects behind the vehicle, making them especially valuable in urban environments or when backing up near children or pets.
Field of View Coverage
The field of view indicates how wide an area the camera can capture behind your vehicle. A wider angle (typically between 120°–170°) offers greater situational awareness but may introduce some distortion at the edges.
A broader field of view is particularly beneficial for larger vehicles like SUVs and trucks, where rear visibility from the driver’s seat is naturally limited.
Parking Guidelines and Overlay Features
Parking guidelines—dynamic lines that appear on the screen—help visualize the trajectory of the vehicle during reverse maneuvers. These lines adjust based on steering input to guide precise parking.
Advanced systems may include multiple reference lines, distance markers, and even grid overlays to assist with parallel parking, trailer hitch alignment, and tight-space navigation.
Night Vision Capabilities
Cameras equipped with night vision technology use infrared LEDs or advanced low-light sensors to provide visibility in darkness. This feature enhances safety during evening parking or in poorly lit areas.
When choosing a reversing camera for nighttime use, look for infrared range specifications (typically 10–30 feet) and whether the camera automatically adjusts brightness levels based on ambient light.
Weather Resistance and Durability
Since reversing cameras are mounted externally, they must withstand exposure to rain, snow, extreme heat, and road debris. Look for IP ratings such as IP67 or IP69K, which indicate dust-tight construction and water resistance.
High-quality housing materials like ABS plastic or aluminum alloy contribute to longevity and performance in adverse weather conditions.
| Specification | Importance | Selection Tips |
|---|---|---|
| Connection Type | High | Wired connections offer more stable signal transmission, while wireless setups simplify installation but may suffer interference. Choose wired for reliability, wireless for convenience. |
| Installation Complexity | Medium-High | Determine if you'll install it yourself or need a professional. DIY kits should come with detailed instructions and all necessary hardware for easy setup. |
| Compatibility with Hyundai Models | High | Ensure the camera system is compatible with your specific Hyundai model, trim, and year. Some systems integrate directly with OEM controls and display settings. |
| Additional Features | Medium | Consider features like motion detection, voice prompts, or multi-camera support if you're looking for enhanced safety or a more comprehensive rearview solution. |
Recommended Maintenance Practices for Optimal Performance
Proper maintenance ensures your Hyundai reversing camera remains functional and reliable throughout its lifespan. Regular care prevents issues and extends the life of both internal electronics and external components.
Important: Always test the reversing camera system after performing any maintenance or repairs. Turn the vehicle into reverse gear and verify that the display activates properly and the image is clear without interference or delay.
How to Choose an Auto Reversing Camera for Hyundai
Selecting the right reversing camera for your Hyundai is essential for enhancing safety, improving visibility while backing up, and reducing the risk of collisions with obstacles or pedestrians. A high-quality reversing camera can significantly improve your driving experience, especially in tight parking situations or when reversing in low-visibility conditions.
Camera Quality and Resolution
The quality of the camera sensor and its resolution are among the most critical factors when choosing a reversing camera for your Hyundai. A higher-resolution camera provides clearer images, allowing you to accurately judge distances and identify potential hazards behind the vehicle.
- A minimum resolution of 720p HD is recommended for clear visuals
- Cameras with 1080p Full HD resolution offer superior clarity and detail
- Look for models with CMOS sensors for better performance in various lighting conditions
Pro Tip: Ensure the camera includes features like noise reduction and digital image enhancement for sharper night-time images.
Viewing Angle Considerations
The viewing angle determines how much of the area behind your vehicle is visible on the screen. Choosing the right field of view depends on your typical driving environment and parking needs.
- 120° wide-angle cameras are suitable for standard use
- 150°–180° ultra-wide angles provide maximum coverage for tight spaces
- Some models include adjustable mounting brackets for custom positioning
Note: Wider angles may cause some distortion at the edges, so it's important to test the display before final installation.
Display Size and Clarity
The size and quality of the display unit play a significant role in how effectively you can use the reversing camera system. A larger, high-resolution display makes it easier to interpret visual information quickly and accurately.
- Opt for a 7-inch or larger display for optimal visibility
- Displays with 1080p resolution ensure crisp and detailed images
- Consider split-screen functionality for simultaneous multi-camera views
Important: Make sure the display integrates well with your existing infotainment system or dashboard layout.
Night Vision and Low-Light Performance
Reversing at night or in poorly lit areas requires a camera with strong low-light capabilities. Night vision technology ensures that you maintain visibility regardless of ambient lighting conditions.
- Infrared (IR) LEDs illuminate dark areas behind the vehicle
- Cameras with backlit compensation perform better in challenging light conditions
- Brightness and contrast controls allow customization based on surroundings
Key Feature: Look for models with automatic switching between day and night modes for seamless operation.
Installation Simplicity and Wiring
The ease of installation and wiring requirements can greatly affect the time and cost involved in setting up your reversing camera. Some systems are designed for DIY installation, while others may require professional assistance.
- Wireless systems eliminate complex wiring but may be susceptible to interference
- Hardwired setups provide more reliable connections and consistent signal quality
- Cable length should accommodate different mounting positions without strain
Recommendation: Choose a model with pre-cut wiring harnesses and included mounting hardware to simplify installation.
Additional Features and Functionality
Many modern reversing cameras come with advanced features that enhance usability and safety beyond basic rear visibility. These extras can make a noticeable difference in everyday use.
- Parking guidelines overlay real-time path projections on the screen
- Obstacle detection systems alert you with audio cues as you approach objects
- Multi-camera support allows switching between front, rear, and side views
- Weatherproof housing ensures durability in all seasons
Bonus: Some units integrate with smartphone apps for remote monitoring and configuration adjustments.
Expert Recommendation: For Hyundai owners, it's best to verify compatibility with your specific model year and trim level before purchasing. Factory-fit integration options may be available through authorized dealers, offering plug-and-play convenience and enhanced reliability.
| Feature | Basic Model | Mid-Range Model | Premium Model |
|---|---|---|---|
| Resolution | 480p | 720p HD | 1080p Full HD |
| Viewing Angle | 120° | 150° | 180° + Adjustable Mount |
| Night Vision | No IR LEDs | Moderate IR Range | Extended IR Coverage |
| Display Size | 4.3” | 7” Touchscreen | 9” High-Res Display |
| Additional Features | Basic Image Only | Dynamic Guidelines | Split-Screen, Obstacle Detection, Wireless Connectivity |
DIY Guide to Replacing an Auto Reversing Camera for Hyundai Vehicles
Upgrading or replacing your Hyundai's reverse camera can significantly improve visibility while backing up, enhancing safety and convenience. This step-by-step guide will walk you through the process of replacing your auto reversing camera system at home with minimal tools and effort.
Safety Warning: Always disconnect the battery before working on electrical systems. Ensure the vehicle is parked on a flat surface and turned off during installation to avoid accidents.
Preparation and Tools Required
Before starting the replacement process, gather the following tools and materials:
- Phillips screwdriver
- Flathead screwdriver
- Wire stripper (if needed)
- Electrical tape or heat shrink tubing
- New reverse camera unit compatible with your Hyundai model
- Cable ties for wire management
Pro Tip: Confirm compatibility by checking your vehicle’s make, model, and year against the camera specifications. Some models may require specific wiring harnesses or adapters.
Detailed Installation Steps
- Remove the Old Camera
- Locate the existing reverse camera—usually mounted near the license plate or integrated into the tailgate handle.
- Use a Phillips screwdriver to remove the screws securing the old camera in place.
- Gently slide the camera out and disconnect the wiring harness behind it.
- Install the New Camera Unit
- Slide the new camera into the mounting position where the old one was removed.
- Secure it using the provided screws or original hardware if applicable.
- Connect the camera’s wiring harness. If colors don’t match, refer to the manual for correct polarity.
- Mount the Monitor Inside the Vehicle
- Locate the dashboard radio area where the monitor will be installed.
- Remove the two screws holding the radio bezel or stereo unit in place.
- Slide the stereo unit forward and disconnect any wiring harnesses if necessary to create space.
- Position the monitor above or beside the stereo unit, ensuring it doesn't block air vents or controls.
- Connect the Wiring
- Plug the camera cable into the monitor input port—this is usually labeled as "CAM" or "Video In."
- Connect the other end of the cable to the reverse light circuit. This is typically done by tapping into the reverse light wire located in the trunk or rear panel.
- Use wire connectors or soldering to secure the connection and insulate properly with electrical tape or heat shrink tubing.
- Final Assembly and Testing
- Reinstall the stereo unit by pushing it back into place and securing the two screws you previously removed.
- Turn on the vehicle and shift into reverse to activate the camera system.
- Check that the monitor displays the camera feed clearly without interference.
- Ensure the camera activates only when the vehicle is in reverse gear.
| Installation Phase | Key Actions | Potential Issues | Tools Needed |
|---|---|---|---|
| Camera Removal | Unscrew and disconnect old unit | Mislabeling wires, damaging surrounding trim | Screwdrivers, gloves |
| Camera Mounting | Secure new camera in place | Loose fit, incorrect orientation | Drill (if required), zip ties |
| Monitor Installation | Position and install monitor | Blocking essential controls, poor visibility | Trim removal tool, cable clips |
| Wiring Connection | Connect camera to power and monitor | Incorrect polarity, loose connections | Wire stripper, multimeter |
| Testing | Verify functionality in reverse gear | No signal, intermittent display | Test drive, flashlight (for night check) |
DIY Tip: For a cleaner look, route cables along existing wiring paths and use cable ties to keep them organized. Consider using a wireless backup camera system if hardwiring seems too complex.
Troubleshooting Common Problems
- No Display: Check all wiring connections and ensure the monitor is receiving power. Verify the reverse light switch is activating the camera circuit.
- Interference or Static: Make sure the video cable isn’t running parallel to power lines. Use shielded cables if possible.
- Camera Doesn't Activate: Test the reverse light switch with a multimeter. The camera should only activate when the vehicle is in reverse gear.
- Blurry Image: Clean the camera lens and adjust the monitor brightness/contrast settings for optimal clarity.
With proper installation and testing, your new reverse camera should provide clear, reliable assistance every time you shift into reverse. Regularly clean the camera lens and inspect wiring connections to maintain peak performance over time.
Hyundai Reverse Camera FAQs
The malfunction of a Hyundai reverse camera can stem from various issues, each requiring different troubleshooting steps:
- Loose or Damaged Cables: Over time, vibrations and exposure to weather conditions can cause wiring connections to loosen or deteriorate. Inspect the cables for fraying, corrosion, or disconnection.
- Software Glitch: Some modern infotainment systems rely on software that may freeze or crash. A simple reset of the system or camera module could resolve this issue.
- Dirt or Obstruction: The camera lens located near the rear license plate can accumulate dirt, mud, or ice. Regular cleaning with a soft cloth and lens cleaner can restore visibility.
- Hardware Failure: If all else checks out, the camera itself might be faulty. This usually requires professional diagnosis and replacement by a qualified technician.
If you're unable to identify or fix the problem yourself, consult a certified Hyundai service center or an automotive electronics specialist.
The cost of a reversing camera for the Hyundai i30 varies based on several key factors:
- OEM vs. Aftermarket: Original Equipment Manufacturer (OEM) cameras are specifically designed for your vehicle model and often range between $150 to $400. Aftermarket options are more affordable, typically costing $80 to $250, but quality can vary significantly.
- Features: Advanced features such as HD resolution, night vision, wide-angle lenses, and wireless connectivity will increase the price. Basic models may lack these enhancements.
- Installation Costs: Professional installation at a dealership or car audio shop can add $50 to $200 depending on labor rates and complexity.
To get the best value, compare quotes from multiple suppliers and read customer reviews before purchasing. Always ensure compatibility with your specific i30 model year and trim level.
No, not all reversing cameras are universally compatible with Hyundai vehicles. Compatibility depends on several technical and physical considerations:
- Mounting Location: Hyundai models have specific mounting points (e.g., license plate area, bumper, tailgate). Cameras must fit these locations without extensive modification.
- Electrical System Integration: Many Hyundai models use proprietary wiring harnesses and signal types (analog vs. digital). Cameras must match these specifications to function properly.
- Infotainment Compatibility: For integrated systems, the camera must work with the factory head unit’s input format and screen aspect ratio to display correctly.
When selecting a camera, verify it is explicitly labeled as compatible with your Hyundai model and year. Consult with a professional installer if unsure about compatibility.
Determining compatibility involves checking several critical aspects of both the camera and your vehicle:
- Vehicle Specifications: Note the make, model, and year of your Hyundai. Most reputable sellers list compatible vehicle details in product descriptions.
- Camera Mounting Type: Ensure the camera design matches your vehicle’s available mounting location (e.g., license plate mount, flush-mount, trailer hitch mount).
- Signal Type: Confirm whether your car uses analog or digital inputs and select a camera that matches. Mismatches can lead to no video signal or poor image quality.
- Wiring Harness: Check if the camera includes a compatible wiring harness or if additional adapters are required for integration with your vehicle’s electrical system.
If a camera doesn’t work after proper installation, it likely isn't compatible. Always return or exchange for a verified compatible model rather than forcing functionality through modifications.
Yes, upgrading your reverse camera to achieve higher-quality images is a common enhancement that improves safety and usability:
- HD Resolution Cameras: Upgrading from standard definition (SD) to high definition (HD) provides clearer visuals, especially in low-light conditions or bad weather. Look for 720p or 1080p resolution models.
- Wide-Angle Lenses: These provide a broader field of view, helping drivers see more of the area behind the vehicle, including curbs and obstacles close to the wheels.
- Night Vision & IR Capability: Infrared LEDs allow for improved visibility when backing up at night or in shaded areas.
- Wireless Options: Some upgrade kits offer wireless transmission, eliminating the need for long cable runs and reducing installation complexity.
While DIY installation is possible for experienced individuals, professional installation ensures proper alignment, sealing against moisture, and secure wiring routing to prevent damage or shorts. Always choose a camera that's compatible with your Hyundai model for seamless integration.
