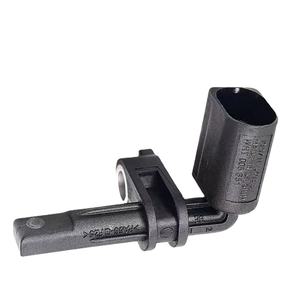

Types of ABS Sensors
The Anti-lock Braking System (ABS) sensor is a vital safety component in modern vehicles. These sensors monitor wheel speed and relay real-time data to the ABS control module, which prevents wheels from locking up during hard braking. Proper functioning of these sensors ensures enhanced vehicle stability, shorter stopping distances on slippery surfaces, and improved driver control. Understanding the different types of ABS sensors helps in diagnosing issues, performing maintenance, or upgrading components for better performance.
Passive ABS Sensors
Passive ABS sensors operate without an external power source. They rely on electromagnetic induction to detect wheel speed. The sensor consists of a permanent magnet and a coil of wire. As the toothed reluctor ring attached to the wheel rotates past the sensor, it creates fluctuations in the magnetic field, inducing an alternating current in the coil. This analog signal is interpreted by the ABS control unit to determine rotational speed.
Advantages
- Simple and durable design
- No need for external power supply
- Cost-effective replacement option
- Proven reliability in older vehicle models
Limitations
- Less accurate at low speeds
- Susceptible to interference from dirt and debris
- Signal strength decreases with wear
Best for: Older vehicles, basic ABS systems, cost-conscious repairs
Active ABS Sensors
Active ABS sensors are powered by the vehicle’s electrical system and typically operate using Hall-effect or magneto-resistive technology. Unlike passive sensors, they generate a digital signal that provides more precise information about wheel speed and direction. Active sensors can detect zero-speed conditions accurately, making them essential for advanced features like traction control, hill-start assist, and electronic stability programs (ESP).
Advantages
- High accuracy across all speeds
- Digital signal output for better resolution
- Supports advanced driver-assistance systems (ADAS)
- Less affected by dirt and environmental factors
Limitations
- More complex internal electronics
- Higher replacement cost
- Requires proper calibration after installation
Best for: Modern vehicles, luxury cars, ADAS-equipped models
Position-Based ABS Sensor Types
In addition to the operational classification, ABS sensors are also categorized based on their location within the vehicle's braking system. Each position serves a unique function in monitoring wheel behavior under various driving conditions.
Front-Wheel ABS Sensors
These sensors are mounted near the front hubs or brake rotors and play a critical role in detecting wheel lock-up during heavy braking. Since the front wheels bear most of the braking force and handle steering, these sensors are crucial for maintaining directional control and preventing skidding.
Advantages
- Directly influence steering stability
- Help prevent understeer during emergency stops
- Integral to adaptive cruise control systems
Limitations
- Exposed to road debris and water
- May require suspension removal for replacement
- Vulnerable to damage during front-end collisions
Best for: Front-wheel-drive vehicles, sport-oriented cars, trucks with aggressive braking setups
Rear-Wheel ABS Sensors
Located near the rear axle or drums, rear-wheel sensors help maintain rear stability and prevent fishtailing during braking. In rear-wheel-drive and all-wheel-drive vehicles, these sensors are particularly important for managing torque distribution and ensuring balanced braking performance.
Advantages
- Prevents rear instability on slippery roads
- Enhances effectiveness of traction control systems
- Improves handling in AWD and RWD vehicles
Limitations
- Less responsive compared to front sensors
- May be harder to access depending on vehicle design
- Can be overlooked during routine diagnostics
Best for: Rear-wheel-drive vehicles, all-wheel-drive SUVs, towing applications
| Type | Power Requirement | Accuracy | Use Case | Common Vehicles |
|---|---|---|---|---|
| Passive ABS Sensor | No | Moderate | Basic ABS functionality | Economy cars, older models |
| Active ABS Sensor | Yes | High | Advanced ABS & ADAS | Luxury sedans, EVs, SUVs |
| Front-Wheel Sensor | Varies | High | Steering and stability | Front-wheel-drive vehicles |
| Rear-Wheel Sensor | Varies | Moderate | Traction and balance control | RWD, AWD vehicles |
Expert Tip: If your ABS warning light illuminates intermittently, especially at low speeds, it could indicate a failing passive ABS sensor. Consider replacing both front sensors simultaneously if one shows signs of wear, as they often degrade at similar rates due to shared operating conditions.
Important Note: Faulty ABS sensors not only compromise braking performance but may also affect other safety systems such as ESC (Electronic Stability Control), TCS (Traction Control System), and even automatic parking features in some modern vehicles. Always address ABS warnings promptly to ensure full system integrity.
Specifications and Maintenance of ABS Sensors
When purchasing and maintaining ABS (Anti-lock Braking System) sensors for retail applications, understanding the technical specifications and proper maintenance practices is crucial for ensuring vehicle safety and system reliability. This comprehensive guide covers essential sensor characteristics and maintenance strategies to help you make informed decisions.
Key Technical Specifications
ABS sensors are critical components in modern braking systems that monitor wheel rotation speed and provide real-time data to the ECU (Electronic Control Unit). Several key specifications determine their performance and compatibility:
Sensor Type
There are two primary types of ABS sensors: magnetic sensors and Hall effect sensors. Magnetic sensors utilize electromagnetic induction to generate voltage signals proportional to wheel speed, while Hall effect sensors use a semiconductor material exposed to a magnetic field to produce digital on/off signals.
Magnetic sensors are more common in older vehicles and offer simple operation but can be less precise at low speeds. Hall effect sensors are prevalent in modern vehicles due to their superior accuracy across all speed ranges and better resistance to electrical interference.
Voltage Signal Characteristics
ABS sensors communicate with the ECU through voltage signals generated based on wheel rotation. The signal strength varies depending on the sensor type and rotational speed.
Magnetic sensors typically produce variable voltage outputs that increase with wheel speed, while Hall effect sensors generate consistent digital pulses regardless of speed. Understanding these characteristics helps in diagnosing sensor faults and selecting compatible replacement parts.
Signal Type and Output
As mentioned earlier, magnetic sensors output analog signals that vary continuously with wheel speed, whereas Hall effect sensors produce discrete digital pulses.
Digital signals from Hall effect sensors offer greater precision and reliability, making them ideal for advanced driver assistance systems (ADAS) and stability control features. Analog signals remain relevant in certain applications where simplicity and cost-effectiveness are priorities.
Operating Voltage Supply
ABS sensors receive power from the vehicle's ECU, operating within specific voltage ranges. Most sensors function between 5-12 volts for standard operations, though some high-performance systems may require up to 20 volts.
Modern sensors are designed to accommodate voltage fluctuations within the vehicle's electrical system, but extreme variations can affect sensor accuracy and longevity. Always verify voltage compatibility when replacing sensors.
| Specification | Criticality Level | Technical Considerations |
|---|---|---|
| Sensor Frequency Range | High | Typically operates between 100Hz to 20kHz, corresponding directly to wheel speed; higher frequencies indicate faster rotation |
| Environmental Resistance | High | Must withstand moisture, road salt, temperature extremes (-40°C to +150°C), and vibration |
| Electrical Compatibility | Medium | Ensure matching connector types and wiring harness configurations for seamless integration |
| Installation Orientation | Medium | Some sensors require specific mounting positions for optimal signal detection and durability |
Essential Maintenance Practices
Proper maintenance of ABS sensors ensures reliable braking performance and prevents expensive repairs. Follow these best practices to maintain optimal sensor functionality:
Important: When replacing an ABS sensor, always verify compatibility with your vehicle's specific make, model, and year. Using incorrect sensors can lead to improper system calibration, reduced braking efficiency, and potential safety hazards. Additionally, recalibrate the ABS system after installation if required by manufacturer specifications.
How to Choose ATE ABS Sensors
Selecting the right ATE ABS sensor for your vehicle is essential to ensure reliable braking performance, safety, and compatibility with your car's anti-lock braking system (ABS). Choosing the correct sensor not only enhances vehicle control but also contributes to long-term reliability.
Application & Compatibility
One of the most critical factors when purchasing an ATE ABS sensor is ensuring it is specifically designed for your vehicle’s make, model, and year. Each manufacturer designs its ABS systems differently, and using a mismatched sensor can lead to inaccurate readings or even system failure.
- Confirm fitment using vehicle identification numbers (VINs) or online compatibility tools
- Some models may require specific calibration or coding after installation
- Check if the sensor matches OE (Original Equipment) specifications
Key consideration: Always cross-reference part numbers with your vehicle’s service manual or contact ATE directly for confirmation.
Quality and Construction
The quality of an ATE ABS sensor determines how accurately it reads wheel speed and how long it lasts under various driving conditions. High-quality sensors are made from durable materials that resist corrosion, vibration, and extreme temperatures.

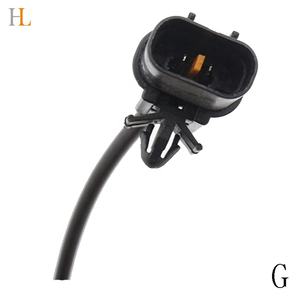

- Look for sensors with sealed connectors to prevent moisture ingress
- ATE uses advanced magnetic or Hall-effect technology for precise signal transmission
- High-grade wiring ensures resistance to wear and electrical interference
Inspection tip: Examine the build quality before purchase—avoid sensors with flimsy housings or exposed wires.
Professional Advice and Installation Guidance
While many ATE ABS sensors are designed for DIY installation, consulting with a professional mechanic or brake system specialist can help you choose the best option for your specific needs. Experts understand nuances such as sensor positioning, signal strength, and integration with other components like the ABS module and traction control system.
- Technicians can identify signs of wear in related components during installation
- They can perform post-installation diagnostics to verify proper function
- Professionals often have access to technical bulletins about known issues with certain models
Wise move: If unsure, always ask for a diagnostic scan before replacing the sensor.
Warranty Coverage and Manufacturer Support
A good warranty indicates the manufacturer’s confidence in their product. When choosing ATE ABS sensors, look for those offering extended warranties and accessible customer support in case of defects or premature failures.
- Extended warranties (e.g., 2–3 years) offer peace of mind against manufacturing flaws
- Registered warranties may allow for easier returns or replacements
- ATE offers comprehensive support documentation and technical assistance
Pro tip: Keep your receipt and registration documents for warranty claims.
Price vs. Value Consideration
While budget is important, the cheapest option isn’t always the best value. Investing in a high-quality ATE ABS sensor can save money over time by reducing the likelihood of repeat replacements and avoiding damage to other braking components due to faulty signals.
- Compare prices across authorized dealers and certified resellers
- Factor in labor costs if installing through a shop
- Consider lifetime cost per mile rather than upfront price alone
Smart approach: Balance cost with durability and performance metrics.
Selection Advice: Always opt for genuine ATE parts or OEM-compatible replacements. While generic alternatives may be cheaper, they often lack the precision engineering needed for consistent ABS operation. Additionally, consider buying in kits if replacing multiple sensors at once, which often provides better value and ensures uniformity across all wheels.
| Vehicle Type | Recommended Sensor Type | Estimated Lifespan | Key Features |
|---|---|---|---|
| Compact Sedan | Magnetic ABS Sensor | 5–7 years | Corrosion-resistant housing, OE-level accuracy |
| SUV / Off-road Vehicle | Heavy-duty Hall-effect Sensor | 6–8 years | Vibration damping, waterproof seal |
| Luxury Performance Car | High-precision Digital Sensor | 7–10 years | Self-calibrating, ECU synchronization |
| Commercial Fleet Vehicle | Durable Multi-function Sensor | 4–6 years | Integrated wear indicators, modular design |
DIY Guide to Replacing an ABS Sensor
Replacing an Anti-lock Braking System (ABS) sensor is a common repair that can help restore proper brake function and eliminate warning lights on your dashboard. While procedures may vary slightly depending on the make and model of your vehicle, this guide provides a comprehensive overview of the process. Always refer to your specific service manual for exact instructions tailored to your vehicle.
Safety Warning: Working under a raised vehicle is inherently dangerous. Always use proper lifting equipment such as jack stands and ensure the vehicle is securely supported before beginning any work. Disconnecting the battery prevents electrical shocks or short circuits.
Gathering Tools and Materials
Before starting the replacement process, assemble all necessary tools and materials to avoid interruptions during the job:
- Socket set (including metric and standard sizes)
- Wrench set
- Flathead and Phillips screwdrivers
- Needle-nose pliers
- Torque wrench (for precise fastening)
- New ABS sensor (OEM or high-quality aftermarket)
- Sensor cleaning kit (especially if reusing components temporarily)
- Gloves and safety glasses
- Wheel chocks (for added safety)
Step-by-Step Replacement Procedure
- Park Safely and Prepare the Vehicle
- Park the vehicle on a level, hard surface and engage the parking brake firmly.
- Place wheel chocks behind the rear wheels (if lifting the front) or in front of the front wheels (if lifting the rear).
- Turn off the ignition and disconnect the negative terminal of the battery to prevent accidental electrical shorts.
- Lift the Vehicle Securely
- Use a floor jack to raise the vehicle at the appropriate jacking points indicated in your service manual.
- Support the vehicle with jack stands placed under sturdy frame rails or subframes.
- Double-check stability before crawling under the vehicle.
- Remove the wheel where the faulty ABS sensor is located (front or rear hub assembly).
- Locate and Access the ABS Sensor
- The ABS sensor (often made by ATE, Bosch, or another manufacturer) is typically mounted near the wheel hub or brake rotor.
- Trace the wiring harness from the sensor back to its connector point, usually found near the wheel well or along the chassis.
- Disconnect the electrical connector carefully—some connectors have locking tabs that need to be pressed before pulling them apart.
- Remove the Old ABS Sensor
- Using the appropriate socket or wrench, remove the bolt(s) securing the sensor to the hub or steering knuckle.
- If the sensor is press-fit, gently wiggle it while pulling straight out. If it's stuck, apply penetrating oil around the edges and wait a few minutes before trying again.
- Take note of the orientation and mounting method so you can install the new sensor correctly.
- Clean the Mounting Area
- Use a clean cloth or sensor-cleaning solution to wipe away dirt, rust, or debris from the sensor mounting hole and surrounding area.
- This step ensures accurate readings and helps prevent contamination when installing the new sensor.
- Install the New ABS Sensor
- Align the new sensor properly with the mounting hole. Do not force it into place—if resistance is felt, double-check alignment.
- Secure the sensor using the provided bolts or by pressing it in, depending on your vehicle’s design.
- Tighten bolts to the manufacturer’s specified torque value using a torque wrench.
- Reconnect the electrical harness securely until you hear a click or feel resistance indicating a proper connection.
- Final Steps and Testing
- Reinstall the wheel and lower the vehicle to the ground.
- Reconnect the battery and start the engine. The ABS light should turn off after a few seconds if the system recognizes the new sensor.
- Take the vehicle for a short test drive at low speeds to verify that the ABS engages properly and no warning lights remain illuminated.
| Stage | Key Actions | Common Mistakes | Recommended Tools |
|---|---|---|---|
| Preparation | Reading the service manual, gathering tools, securing the vehicle | Rushing preparation, skipping safety steps | Service manual, gloves, safety glasses |
| Removal | Disconnecting electrical connections, removing old sensor | Damaging wiring harness, forgetting to label connections | Socket set, screwdrivers, pliers |
| Installation | Proper alignment, secure mounting, reconnecting wires | Forcing the sensor, incorrect torque settings | Torque wrench, cleaning kit |
| Testing | Reconnecting battery, checking warning lights, test driving | Skipping diagnostics, ignoring error codes | Multimeter (optional), OBD-II scanner |
Expert Tip: If the ABS light remains on after installation, try clearing any stored fault codes using an OBD-II scanner. Some vehicles require a reset even after successful sensor replacement.
Additional Tips for Success
- Inspect the ABS tone ring (mounted on the axle or hub) for damage while replacing the sensor. A damaged tone ring can cause false ABS signals.
- Apply dielectric grease to the sensor’s electrical contacts before connecting them to prevent corrosion and improve conductivity.
- Always replace the sensor with a compatible unit—OE specification sensors are recommended for reliability and compatibility.
- Keep the sensor tip clean during installation to avoid interference with magnetic readings.
ABS Sensor Replacement and Maintenance FAQs
Replacing a broken ABS (Anti-lock Braking System) sensor typically takes between 30 minutes to a few hours, depending on several factors:
- Vehicle Make and Model: Some vehicles have sensors that are easily accessible, while others may require removing components like brake calipers or suspension parts.
- Sensor Location: Front sensors are often easier to reach than rear ones, especially in compact or older vehicle designs.
- Technician Experience: A skilled mechanic may complete the job faster than a novice attempting DIY repairs.
- Tools Available: Having proper tools such as jack stands, socket sets, and diagnostic equipment can significantly reduce replacement time.
On average, most replacements fall within the 1–2 hour range for experienced technicians working on common models with accessible sensors.
Yes, a malfunctioning ABS sensor can impact not only the Anti-lock Brake System but also other interconnected safety and performance systems, including:
- Traction Control System (TCS): This system relies on wheel speed data from ABS sensors to prevent wheel spin during acceleration.
- Electronic Stability Control (ESC): Also known as Vehicle Dynamics Control (VDC), this system uses wheel speed information to detect and correct loss of traction or skidding.
- Transmission Shifting (in some vehicles): Certain automatic transmissions use ABS sensor data for smoother gear changes based on driving conditions.
A faulty ABS sensor may cause warning lights to illuminate on the dashboard (such as the ABS light, TCS light, or Check Engine light) and could lead to reduced braking efficiency or compromised handling in slippery conditions.
Not all vehicles are equipped with an ABS sensor on every wheel. The number and placement depend on the vehicle's design and model year:
- Four-Sensor Systems: Most modern vehicles (especially those manufactured after 2010) feature four-wheel ABS, meaning each wheel has its own sensor.
- Three-Sensor Systems: Older or entry-level models might use one sensor for each front wheel and a single sensor for both rear wheels (common in early ABS systems).
- Two-Sensor Systems: Some basic or older vehicles may only have sensors on the rear wheels or none at all, particularly in non-luxury or economy models.
If your vehicle is equipped with four-wheel ABS, each wheel will have a dedicated ABS sensor. You can confirm by visually inspecting behind each wheel hub or consulting your vehicle’s service manual.
Yes, users can perform a basic visual inspection of ABS sensors to identify obvious signs of damage or contamination:
- Dirt and Debris: Sensors can become caked with road grime, which may interfere with signal transmission.
- Physical Damage: Cracks, corrosion, or bent mounting brackets are visible indicators of potential failure.
- Loose Wiring or Connectors: Wires that appear frayed, disconnected, or corroded at the connector point should be inspected further.
However, many issues with ABS sensors are internal or intermittent and cannot be detected through visual means alone. These include:
- Internal Circuit Failures: Sensor coils or electronic components inside the unit may fail without external signs.
- Intermittent Signal Loss: Sensors may work sporadically, making diagnosis difficult without specialized tools.
For accurate diagnosis, it's recommended to use an OBD-II scanner to read fault codes or consult a qualified technician who can test the sensor using a multimeter or oscilloscope.
No, it is not mandatory to replace all ABS sensors at once if only one is faulty. However, there are several considerations when deciding whether to replace additional sensors:
- Age and Mileage: If your vehicle has high mileage (typically over 80,000 miles) and one sensor has failed, the others may be nearing the end of their lifespan.
- Cost Efficiency: Replacing multiple sensors during a single service visit can save labor costs compared to separate visits.
- Preventative Maintenance: Proactively replacing aging sensors can help avoid unexpected breakdowns or sudden system malfunctions.
- System Balance: On some vehicles, mismatched sensor readings from old vs. new sensors can cause instability in ABS or stability control systems.
In summary, while replacing only the faulty sensor is acceptable, replacing all sensors may offer long-term reliability benefits, especially in older vehicles where multiple sensors are likely to fail soon after one another.
