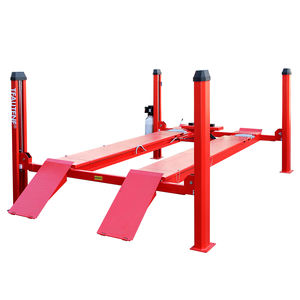

Types of 4 Post Lifts
A 4 post lift is a versatile and widely used automotive lifting solution found in repair shops, garages, and industrial settings. Featuring four vertical posts — one at each corner — this type of lift provides stability and support for lifting vehicles safely. Understanding the different types of 4 post lifts can help you choose the right model based on your needs, whether it's for vehicle maintenance, storage, or specialized services like wheel alignment.

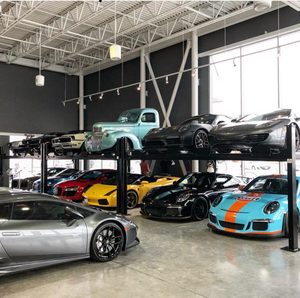

Parking Lifts
Designed to maximize parking space by lifting vehicles vertically, parking lifts are commonly used in residential areas, urban parking lots, and commercial facilities where floor space is limited. These lifts ensure that two vehicles can be parked in the space typically occupied by one.
Advantages
- Optimizes available parking space
- Easy to install and operate
- Safe and secure design
- Ideal for residential and small businesses
Limitations
- Limited use beyond parking applications
- Not suitable for heavy-duty repairs
Best for: Home garages, apartment complexes, office buildings
Wheel-Engagement Lifts
These lifts securely raise vehicles using their wheels as contact points. They feature upper platforms that cradle the wheels and lower platforms that provide the lifting force. This design allows technicians to access the undercarriage while keeping the vehicle’s suspension loaded, making them ideal for diagnostics and service work.
Advantages
- Preserves natural suspension geometry
- Excellent for brake and undercarriage service
- Quick setup and takedown
- Space-efficient for compact workshops
Limitations
- Less accessible for full vehicle underbody work
- May require additional equipment for full removal
Best for: Automotive repair shops, brake specialists, tire centers
Portable 4-Post Lifts
Lightweight and equipped with casters, portable 4-post lifts offer mobility and flexibility. They can be easily moved between locations within a workshop or even transported to job sites. Their adaptability makes them popular among mobile mechanics and small garage owners.
Advantages
- Highly mobile and repositionable
- Ideal for multi-purpose use (parking + maintenance)
- Easy to store when not in use
- Cost-effective for smaller operations
Limitations
- Lower weight capacity compared to fixed models
- May lack advanced features of stationary lifts
Best for: Small repair shops, mobile mechanics, temporary setups
Heavy-Duty 4-Post Lifts
Built to handle large and heavy vehicles such as buses, trucks, and commercial vehicles, these lifts have reinforced frames and powerful hydraulic systems. Designed for frequent usage in demanding environments, they offer exceptional durability and lifting capacity.
Advantages
- High load-bearing capacity (often exceeding 15,000 lbs)
- Durable construction for industrial use
- Stable platform for large vehicle servicing
- Compatible with advanced tools and inspection equipment
Limitations
- Large footprint requires more space
- Higher cost and installation complexity
Best for: Bus depots, truck fleets, public transportation maintenance
Alignment Lifts
Specifically engineered for precision wheel alignment tasks, alignment lifts come with adjustable height controls and slip plates that allow tires to move freely during calibration. These lifts ensure accurate readings and smooth workflow for alignment specialists.
Advantages
- Provides optimal clearance for alignment tools
- Adjustable height for technician comfort
- Slip plates enable free tire movement
- Improves accuracy of alignment procedures
Limitations
- More expensive than standard 4-post lifts
- Specialized use limits versatility
Best for: Tire shops, alignment centers, performance tuning garages
| Type | Main Use | Mobility | Weight Capacity | Recommended For |
|---|---|---|---|---|
| Parking Lifts | Vehicle Storage | Stationary | Up to 8,000 lbs | Urban spaces, homes, offices |
| Wheel-Engagement Lifts | Service & Maintenance | Stationary | Up to 12,000 lbs | Repair shops, tire centers |
| Portable 4-Post Lifts | Multi-purpose | Movable | Up to 10,000 lbs | Small garages, mobile mechanics |
| Heavy-Duty 4-Post Lifts | Industrial Use | Stationary | Over 15,000 lbs | Bus/truck fleet maintenance |
| Alignment Lifts | Wheel Alignment | Stationary | Up to 12,000 lbs | Alignment centers, dealerships |
Expert Tip: Always check local regulations and certifications before installing a 4 post lift. Ensure proper anchoring to the floor and regular maintenance to guarantee safety and longevity of the equipment.
Specifications and Maintenance of 4-Post Lifts
Key Specifications to Consider
When selecting a 4-post lift for automotive service or garage use, understanding its specifications is crucial for ensuring safety, efficiency, and compatibility with your intended applications. Below are the primary factors to evaluate before making a purchase.
Load Capacity
The load capacity refers to the maximum weight the lift can safely support. This is typically measured in pounds and ranges from 6,000 to 20,000 lbs depending on the model and design.
It's essential that the total weight of the vehicle being lifted does not exceed this limit. For example, heavy-duty trucks will require lifts at the higher end of the capacity spectrum, while standard passenger cars may be adequately supported by lower-capacity models.
Lift Height
Lift height determines how far above the ground the vehicle can be raised. Most four-post lifts offer between 72 to 80 inches (6 to nearly 7 feet) of lifting clearance.
This measurement is vital for mechanics who need sufficient undercarriage access for maintenance tasks like exhaust system repairs, oil changes, and inspections. Always verify that the lift height accommodates both the tallest vehicle you'll work on and any tools or equipment needed below it.
Lift Speed
Lift speed indicates how quickly the platform raises or lowers, usually expressed in inches per minute. Standard four-post lifts operate between 30 to 60 inches per minute.
A faster lift speed increases efficiency but may reduce control during positioning. Slower speeds provide more precise movement, which is especially important when aligning vehicles or working with delicate components.
Platform Dimensions
The platforms are where the vehicle rests during lifting. Platform length typically ranges from 14 to 20 feet, while widths generally fall between 3 to 4 feet.
These dimensions must accommodate various vehicle sizes, from compact sedans to large SUVs and light trucks. Ensure the lift’s platform spacing allows for proper wheelbase alignment and secure placement of different vehicle types.
Power Supply Requirements
Four-post lifts typically operate using electrical power sources ranging from 110V to 240V. The exact voltage required depends on the hydraulic pump motor size and the lift's overall power needs.
Verify that your facility has the appropriate electrical infrastructure to support the lift. Some models may require dedicated circuits or professional installation to function safely and efficiently.
Construction Material
The structural integrity of a 4-post lift heavily relies on the materials used in its construction. Steel is the most common material due to its strength, durability, and resistance to wear over time.
High-quality steel frames are often powder-coated or treated to resist corrosion, extending the life of the lift and maintaining its performance under heavy usage. Look for models with reinforced cross-members and thick-walled tubing for added stability.
| Specification | Typical Range | Considerations |
|---|---|---|
| Load Capacity | 6,000–20,000 lbs | Match to heaviest vehicle expected; consider future needs |
| Lift Height | 72–80 inches | Ensure adequate headroom and under-vehicle clearance |
| Lift Speed | 30–60 inches/min | Balances efficiency with precision control |
| Platform Length | 14–20 feet | Accommodates various vehicle lengths and wheelbases |
| Platform Width | 3–4 feet | Ensures stability and supports wider vehicles |
| Power Supply | 110–240V | Check available power supply and circuit requirements |
Maintenance Guidelines for Optimal Performance
Proper maintenance of a 4-post lift is critical for ensuring operator safety, prolonging the lifespan of the equipment, and minimizing downtime. Here are key maintenance practices to follow:
Important: Establish a routine maintenance schedule and document all service activities. Consistent upkeep not only extends the life of your 4-post lift but also ensures compliance with workplace safety regulations and insurance requirements.
How to Choose a 4-Post Lift
Selecting the right 4-post lift for your garage or workshop involves evaluating several critical factors that impact performance, safety, and long-term value. Whether you're a professional mechanic or a DIY enthusiast, understanding these key considerations will help you make an informed decision that aligns with your specific needs.
Weight Capacity
The weight capacity of a 4-post lift is arguably its most important specification. This determines which vehicles the lift can safely handle and how stable it remains under load.
- Standard passenger cars typically require lifts rated for 8,000–10,000 lbs
- SUVs and light trucks benefit from lifts rated above 12,000 lbs
- Commercial garages should consider heavy-duty models rated for 15,000+ lbs
Safety note: Always choose a lift with at least 20% more capacity than your heaviest vehicle
Lift Height
The maximum lifting height determines what kind of work you can perform underneath the vehicle and whether taller vehicles will fit properly.
- Basic maintenance requires minimum 72" (6 feet) clearance
- Transmission work or full chassis inspection needs 90"+ height
- Low-ceiling garages may need compact designs with reduced height profiles
Measurement tip: Measure ceiling height minus lighting fixtures before purchasing
Footprint Dimensions
The physical size of the lift must match your available workspace while still accommodating different vehicle sizes.
- Compact cars can work with lifts as narrow as 96"
- Full-size trucks require widths exceeding 120"
- Adjustable-length models offer flexibility for multiple vehicle types
Space optimization: Consider drive-thru models for multi-bay efficiency
Drive-Thru Clearance
This measurement between front and rear columns determines how easily vehicles can enter and exit the lift platform.
- Minimum recommended clearance: 110 inches
- Extended wheelbase vehicles need 120"+ clearance
- Wider vehicles benefit from greater side clearance
Design consideration: Look for tapered column designs for improved accessibility
Foundation Requirements
Proper installation begins with understanding what type of foundation your chosen lift requires and whether modifications are needed.
- Most lifts require reinforced concrete at least 4" thick
- Industrial-grade models might need deeper footings
- Some portable models work on level asphalt (with limitations)
Cost factor: Foundation preparation often equals 15–25% of total investment
Safety Features
Modern 4-post lifts incorporate multiple safety mechanisms to protect both operator and equipment during use.
- Overload sensors prevent operation beyond rated capacity
- Mechanical locks provide secondary support at various heights
- Emergency descent controls allow safe lowering in power failures
- Shear-resistant design prevents catastrophic failure modes
Regulatory compliance: Look for ALI/ETL certified models meeting ANSI safety standards
Installation Tip: If you're planning to install alignment equipment alongside your 4-post lift, look for models with precision leveling systems and pre-drilled mounting points. This will save significant time and money when setting up wheel alignment capabilities later.
| Application Type | Recommended Capacity | Minimum Height | Typical Width |
|---|---|---|---|
| Home garage - compact cars | 8,000–10,000 lbs | 72" | 96–108" |
| Small shop - sedans/SUVs | 12,000–14,000 lbs | 84" | 108–120" |
| Commercial service - trucks | 16,000–20,000 lbs | 96"+ | 120"+ |
| Race shop - competition use | 20,000+ lbs | 108"+ | Custom |
Vehicle Compatibility
While 4-post lifts offer broad compatibility, certain vehicle types have special requirements that should be considered.
- Low-profile sports cars need low-rise models with minimal rise height
- Off-road vehicles benefit from extra-wide designs for lifted suspensions
- Classic cars often require soft-touch contact pads to protect original frames
Adaptability feature: Look for adjustable carriage positions and interchangeable adapters
Brand Reputation & Support
Your choice of manufacturer affects not only initial quality but also long-term ownership experience through parts availability and technical support.
- Established brands offer better warranty coverage (5–10 years typical)
- Local distributors improve access to replacement parts
- Comprehensive documentation simplifies troubleshooting
Long-term value: Factor in expected service life (15–20 years for quality units)
Budget Planning: While upfront cost is important, consider total cost of ownership including maintenance, energy consumption, and potential upgrades. A higher-quality lift may cost 30% more initially but last twice as long with lower repair costs.
Comprehensive DIY Guide to Replacing a 4-Post Lift
Replacing a 4-post lift is a significant mechanical task that requires careful planning, precision, and attention to safety. While it's typically recommended for professionals due to the size, weight, and complexity of these lifts, experienced DIYers with advanced mechanical skills can tackle this project successfully. This guide provides an expanded, step-by-step process to help you safely replace your 4-post lift while ensuring long-term performance and safety compliance.
Safety Warning: A 4-post lift can weigh several hundred pounds and involves working at height. Always use proper lifting equipment, wear protective gear, and ensure all structural components are secure before testing the lift. Improper installation could lead to serious injury or property damage.
Detailed Replacement Process
- Thorough Manual Review
- Obtain both the manufacturer’s manual for the new lift and any documentation related to the existing unit
- Familiarize yourself with specific torque specifications, alignment requirements, and component diagrams
- Review local building codes and safety regulations regarding automotive lifts
- Verify that the new lift meets the required capacity and certification standards (e.g., ALI/MHIA certification)
- Disassembly of Existing Lift
- Ensure the lift is fully lowered and securely blocked in place before starting disassembly
- Disconnect any electrical wiring connected to the lift mechanism or safety locks
- Remove safety locks, carriage stops, and lifting arms if they won’t be reused
- Loosen and remove all anchor bolts securing the lift columns to the concrete floor
- Use appropriate rigging equipment to carefully lift and transport the old lift away from the workspace
- Site Preparation and Floor Inspection
- Inspect the concrete floor for cracks, spalling, or unevenness that could compromise lift stability
- Ensure the floor thickness meets the minimum requirement (typically 4–6 inches of reinforced concrete)
- Clean the surface thoroughly using a degreaser and scraper to remove oil, grease, and debris
- Mark the exact placement of anchor holes based on the new lift’s layout template
- Drill anchor holes to the specified depth and diameter using a rotary hammer drill
- Assembly of New Lift Components
- Lay out all components and verify that nothing is missing or damaged during shipping
- Begin assembly of each column by attaching braces, cross tubes, and lifting mechanisms as per instructions
- Install the power unit (hydraulic pump or air-over-hydraulic system) according to location recommendations
- Mount lifting carriages and safety locks, ensuring smooth movement along the columns
- Double-check all bolted connections with a torque wrench to meet factory specifications
- Installation and Alignment
- Position the assembled lift accurately over the prepared anchor holes
- Insert anchor bolts through the base plates and into the pre-drilled holes
- Adjust the level of each column using shims and a digital level for precise vertical alignment
- Tighten all anchor nuts to the recommended torque values
- Reconnect the electrical system and test the control panel functionality
- Final Testing and Safety Checks
- Perform a dry run without load to check for binding, unusual noises, or uneven lifting
- Test all safety features including mechanical locks, emergency stop buttons, and overload protection
- Conduct a hydraulic pressure test to detect leaks or irregularities in cylinder operation
- Gradually apply load to verify the lift operates smoothly under weight
- Document all inspection points and keep records for future reference and compliance audits
| Phase | Key Considerations | Potential Risks | Essential Tools |
|---|---|---|---|
| Planning & Review | Understanding specs, certifications, and site readiness | Mismatched lift specs, overlooked regulations | Manuals, measuring tape, level, smartphone camera |
| Disassembly | Safe removal, labeling parts, preserving reusable components | Injury from unstable components, lost hardware | Socket set, impact wrench, pry bar, rope hoist |
| Site Prep | Floor integrity, accurate layout, clean surface | Improper anchoring, misalignment | Rotary hammer, chisel, vacuum, chalk line |
| Assembly | Correct torque specs, lubrication, sequence adherence | Binding components, stripped threads | Torque wrench, allen keys, mallet, jack stands |
| Installation | Leveling, anchoring, electrical integration | Structural instability, faulty controls | Hydraulic fluid tester, multimeter, laser level |
| Testing | Functionality, safety systems, load behavior | Equipment failure, unsafe operation | Weight dummies, leak detection dye, log sheet |
DIY Tip: Before installing the new lift, inspect the condition of the surrounding area—ensure adequate overhead clearance, accessibility for vehicles, and proper lighting. If replacing with a similar model, consider upgrading to LED lighting kits or wireless remote controls for enhanced usability.
Post-Installation Best Practices
- Create a maintenance schedule based on the manufacturer's recommendations
- Label all service points and keep a log of inspections and repairs
- Train all users on safe operating procedures and emergency protocols
- Keep spare parts such as shear pins, seals, and fuses readily available
- Consider adding secondary safety supports during regular use for added peace of mind
Professional Recommendation: Even for experienced DIYers, having a certified technician inspect your completed installation is highly advised. Many manufacturers require professional certification to validate warranties and ensure ongoing compliance with safety standards.
Frequently Asked Questions About 4-Post Lifts
Yes, 4-post lifts are considered among the safest types of vehicle lifts when used correctly. Their design inherently provides stability due to the four vertical support columns positioned at each corner of the vehicle. These lifts typically include multiple safety mechanisms such as:
- Mechanical locking systems that engage automatically at regular intervals during lifting
- Hydraulic overload protection to prevent overextension or strain on components
- Emergency lowering valves for controlled descent in case of power failure
To ensure maximum safety, users should always follow the manufacturer's guidelines, including proper positioning of the vehicle, ensuring all locks are engaged before working underneath, and never exceeding the lift's rated capacity.
Absolutely — one of the primary advantages of a 4-post lift is its ability to accommodate heavier and larger vehicles, including trucks, SUVs, and even commercial vans. This capability depends on selecting a model with appropriate weight capacity, which typically ranges from:
- 7,000 lbs for smaller personal use lifts
- 10,000–15,000 lbs for professional automotive shop models
- Over 20,000 lbs for heavy-duty industrial versions
When choosing a 4-post lift for larger vehicles, it’s essential to consider not just the weight rating but also the lifting height and platform dimensions to ensure proper clearance and fitment for your specific vehicle type.
Yes, driving onto a 4-post lift is generally very user-friendly thanks to its open design and low entry height. Most models feature:
- Raised runways or platforms that allow for smooth wheel-on access
- Optional drive-on ramps for vehicles with minimal ground clearance
- Adjustable wheel stops to align the vehicle properly
This makes them particularly suitable for home garages and professional shops alike. For optimal usability, check that the lift includes adjustable carriage positions to accommodate various wheelbases and track widths, ensuring compatibility with different vehicle sizes and types.
Yes, a 4-post lift is ideal for undercarriage maintenance and repairs. When the vehicle is raised, the open space between the posts allows full access to the underside without obstruction. This makes it perfect for tasks such as:
- Exhaust system replacement or repair
- Suspension component inspection and servicing
- Lubrication of driveline components
- Transmission and differential fluid changes
- Frame inspections and rust prevention
The elevated position also improves ergonomics, reducing physical strain on technicians compared to working on creeper sliders or jack stands.
While some experienced DIYers can install a 4-post lift themselves, professional installation is highly recommended for several reasons:
- Foundation requirements: Many lifts require a concrete floor of specified thickness (typically 4–6 inches) with proper reinforcement.
- Leveling precision: Ensuring the lift is perfectly level across all four posts is critical for safe operation.
- Hydraulic and electrical connections: Mistakes in connecting hydraulic lines or wiring can lead to malfunctions or safety hazards.
- Compliance and certification: Some regions require certified installation for insurance or regulatory purposes, especially in commercial settings.
If opting for self-installation, be sure to strictly follow the manufacturer’s instructions and double-check all torque specifications, alignment markers, and safety lock engagement points before first use.
