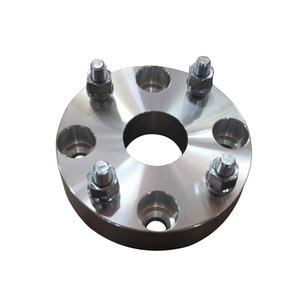

4 lug hub wheel spacer

Types of 4 lug hub wheel spacers

4-lug hub wheel spacers come in various types, each designed to cater to specific vehicle needs and preferences. Here are some common types:

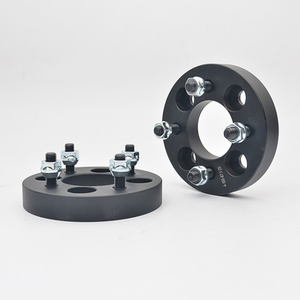

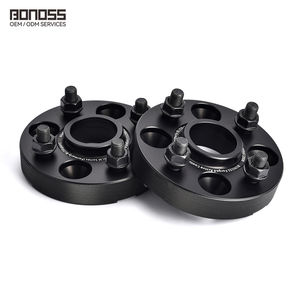

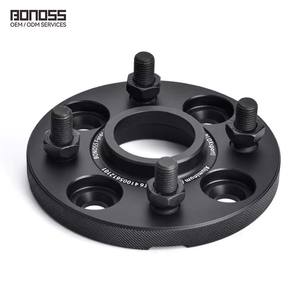

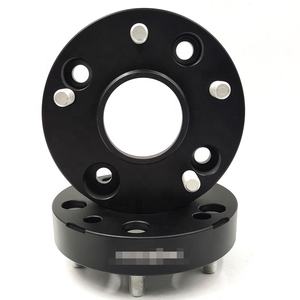

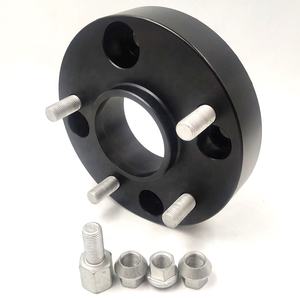

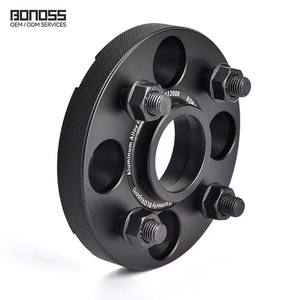

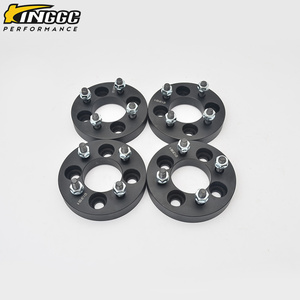

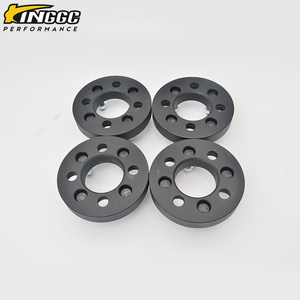

• 4 lug hub wheel spacer

  The 4-lug hub wheel is a type of wheel spacer that is used on a variety of vehicles, especially older cars and compact cars. These vehicles typically have a 4-lug bolt pattern on their wheel hubs, which means they have four bolts for attaching the wheels.

• Slip-on spacers

  Slip-on spacers are the most common type of wheel spacers. They are designed to be slipped onto the wheel hub, and the wheels are mounted directly onto the spacers. This type of spacer provides a more secure fit and is often used in performance applications.

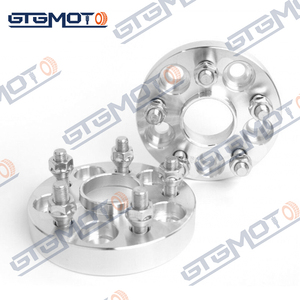

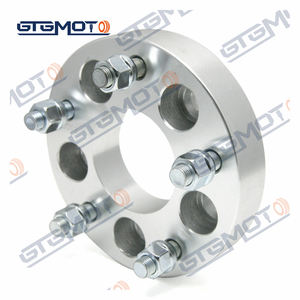

• Adapter spacers

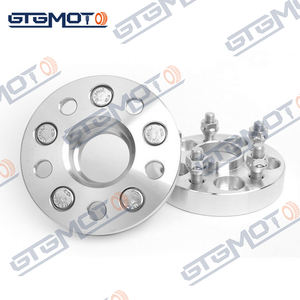

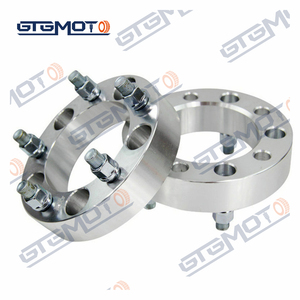

  Adapter spacers are designed to change the wheel lug pattern. For example, they can convert a 4-lug pattern to a different configuration, such as 5 lugs. This allows the installation of wheels from other vehicles or aftermarket wheels with different bolt patterns.

• Tapered seat spacers

  Tapered seat spacers are designed to accommodate wheels with tapered seat lug nuts. Instead of using flat washers, these spacers have tapered seats that match the shape of the lug nut holes in the wheels. This ensures a proper fit and even distribution of load on the lug nuts.

Specifications and Maintenance of 4 Lug Hub Wheel Spacer

Below are some of the specifications of the 4-lug hub wheel spacer

• Size

  The size of a 4-lug wheel hub spacer is also referred to as its thickness. It often ranges from 1/4 inches to 2 inches. The size of the wheel hub spacer that is appropriate for a vehicle depends on the clearance required and the size of the wheel that will be fitted onto the spacer.

• Stud size

  The stud size refers to the diameter of the wheel studs on the spacer. Common diameters are 1/2 inches or 14 millimeters. The stud size needs to be compatible with the wheel and the vehicle's lug nut threads.

• Material

  4 lug hub wheel spacers are manufactured from aluminum and steel. Aluminum spacers are lightweight and corrosion resistant. This makes them suitable for racing and high-speed applications. On the other hand, steel spacers offer strength and durability.

• Offset

  The offset of a 4-lug hub wheel spacer affects a vehicle's handling, steering, and stability. A spacer with a positive offset pushes the wheel inward, while a negative offset pushes it outward. The offset of a hub wheel spacer usually ranges from 0 to 20 millimeters.

Below are some of the maintenance tips for the 4 lug hub wheel wheel spacer

• 1. Regular Inspection: Check the 4 lug wheel spacers for signs of wear and damage. Look out for cracks, warping, or corrosion. The condition of the spacers can affect the performance and safety of the vehicle.
• 2. Proper Torque: Ensure that the lug nuts are tightened to the manufacturer's recommended torque specifications. This prevents the wheel from coming off while driving or damaging the lug studs.
• 3. Cleanliness: Keep the 4-lug hub wheel spacers clean. Dirt, grime, and debris can cause damage to the spacers and affect the wheel alignment. Use mild soap and water when cleaning the spacers.
• 4. Regular Wheel Alignment: Check the wheel alignment regularly. Improper alignment can lead to uneven wear of the wheel spacers. A professional mechanic should be contacted when there is a need for wheel alignment.
• 5. Use High-Quality Spacers: Using high-quality spacers like those from reputable manufacturers is important. While cheap spacers might seem cost-effective, they could be dangerous and cause damage in the long run.
• 6. Replace When Necessary: 4-lug hub wheel spacers have a lifespan. Depending on the condition, wear, or damage, the spacers may need to be replaced.

How to choose 4-lug hub wheel spacers

There are several factors to consider when choosing a four lug wheel hub spacer. They include:

• Compatibility

  When choosing a 4-lug wheel hub spacer, compatibility is a crucial factor to consider. The size and design of the spacer should be suitable for the vehicle's axle hubs and the wheels. This ensures proper fitment and reduces the risk of vibrations or damage. Additionally, considering the vehicle's specifications, such as make, model, and year, helps select a compatible spacer. This is because different vehicles may have variations in lug bolt patterns, sizes, and hub shapes.

• Quality and performance

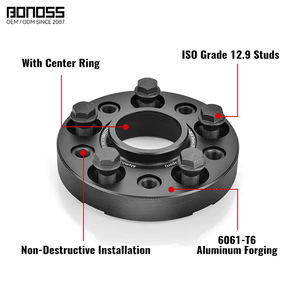

  Quality and performance are essential considerations when selecting 4-lug wheel spacers. High-quality spacers are manufactured from durable materials such as forged aluminum or high-strength steel. These materials offer longevity and withstand the stresses of daily driving or high-performance applications. Quality spacers also ensure precise machining, resulting in accurate fitment, balance, and alignment. This minimizes the risk of vibrations, premature wear, or component failure. Additionally, quality spacers undergo rigorous testing and meet industry standards for safety and performance. This gives drivers peace of mind knowing that their spacers will perform reliably and consistently.

• Thickness

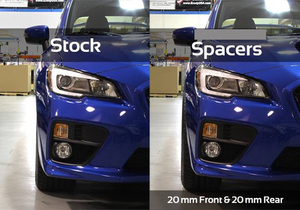

  The thickness of a 4-lug wheel spacer is an important feature to consider when choosing one. Thickness affects the wheel's positioning relative to the vehicle's body and suspension components. It is measured in millimeters or inches. Common sizes include 5 mm, 10 mm, 15 mm, and 20 mm or more. A thicker spacer pushes the wheels further outward, increasing track width. This can improve stability, cornering grip, and the vehicle's overall aggressive appearance. However, it may also affect the steering effort, fender clearance, and clearance of the suspension components. On the other hand, a thinner spacer offers a subtle adjustment and may be suitable for specific applications or fitment issues.

• Intended use

  Intended use is a key consideration when selecting a 4-lug wheel spacer. The specific application significantly impacts performance, compatibility, and durability requirements. For instance, a vehicle used for racing or high-performance driving requires wheel spacers designed for such demanding conditions. In this case, opt for spacers that offer precise fitment, improved stability, and enhanced handling characteristics. On the other hand, a street or daily-driven vehicle may need spacers that focus on comfort, reliability, and modest wheel adjustments. For off-road vehicles, wheel spacers provide increased clearance for larger tires and improved articulation in rough terrain. In this case, choose spacers that withstand the rigors of off-road driving while improving wheel fitment and clearance.

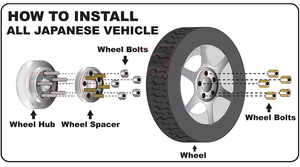

How to DIY and Replace 4-lug hub wheel spacers

Before purchasing a 4-lug hub wheel spacer, it is important to understand how to install it. Here are the steps:

• 1. Choose the right wheel spacer: Ensure the wheel spacer is compatible with the car's hub and wheels. It should match the lug pattern, size, and offset.
• 2. Gather necessary tools: Get a jack and jack stands, a lug wrench and socket, a torque wrench, a ratchet, and a breaker bar. Clean the new wheel spacers with a brake cleaner or a degreaser before installing them.
• 3. Secure the vehicle: Once the user has the necessary tools and parts, they should park the vehicle on a level surface and engage the parking brake. Then, loosen the lug nuts and use the jack to lift the vehicle off the ground. After that, place the jack stands under the vehicle to provide extra support and safety.
• 4. Remove the wheels: Remove the lug nuts completely and take off the wheels.

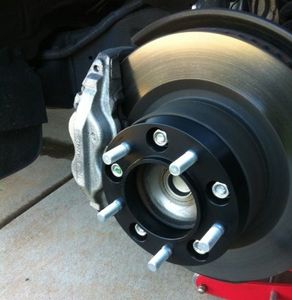

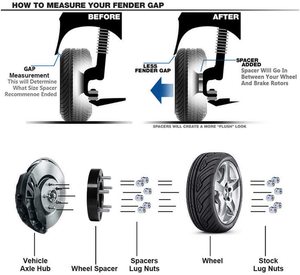

• 5. Install the wheel spacers: Align the holes on the wheel spacer with the hub's holes and place the spacer against the hub. Then, install the provided lug bolts or studs through the wheel spacer into the hub. Tighten the lug nuts finger tight to hold the spacer in place.

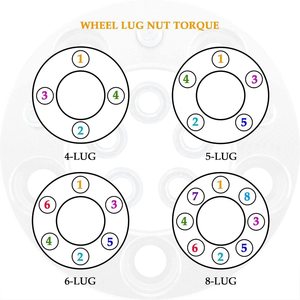

• 6. Reinstall the wheels: Position the wheels over the wheel spacacer and align the holes with the studs or bolts. Then, install the lug nuts in a star pattern and tighten them securely.
• 7. Lower the vehicle: Use the jack handle to lower the vehicle gradually. Once the car is back on the ground, remove the jack stands, and retighten the lug nuts with a torque wrench. Driving the vehicle a few miles will help the user retighten the lug nuts properly. This is because the lug bolts and nuts might loosen a bit after installing the wheel spacers.

Q and A

Q1. What is the difference between a 4-lug hub wheel spacer and other wheel spacers?

A1. A 4-lug hub wheel spacer is specifically designed for vehicles with a 4-stud wheel hub. Other wheel spacers are available in configurations that match vehicles with different wheel hub setups, such as 5, 6, or 8 lug patterns.

Q2. Do all vehicles with 4-stud wheel hubs use a 4-lug hub wheel spacer?

A2. No, a 4-lug hub wheel spacer is not universally compatible with all 4-stud wheel hubs. These spacers are manufactured in different sizes to accommodate various 4-lug wheel hub configurations. Buyers must check the specifications of both the wheel hub and the wheel spacer to ensure compatibility.

Q3. Can a 4-lug hub wheel spacer fit any 4-stud wheel hubs?

A3. A 4-lug hub wheel spacer cannot fit every 4-stud wheel hub. It is designed for a specific type of wheel hub with a unique lug pattern, diameter, and thread pitch. Trying to fit an incompatible wheel spacer could damage both the spacer and the wheel hub, leading to safety issues.

Q4. How thick is a 4-lug hub wheel spacer?

A4. The thickness of a 4-lug hub wheel spacer varies according to the design and intended use. Typically, these spacers range from 3 mm to 30 mm. Thicker spacers provide more significant wheel offset and may be used to correct clearance issues resulting from modifying a vehicle's suspension.

Q5: Are 4-lug hub wheel spacers safe?

A5. When correctly installed and used as intended, 4-lug hub wheel spacers are safe. They should be properly torqued to the wheel hub to avoid separation while driving. Unsuitable spacers or improper installation can lead to wheel alignment issues, which can cause accidents.
