Types of 4-Cylinder Engine Blocks

A cylinder block, often referred to as the engine block, is a foundational component of an internal combustion engine that houses the cylinders where combustion occurs to generate power. While sometimes mistakenly called a cylinder head (which is a separate component), the cylinder block forms the structural foundation for pistons, crankshaft, and other critical engine parts.

The 4-cylinder engine block is widely used in compact and mid-sized vehicles due to its balance between fuel efficiency and manageable performance. These blocks are typically constructed from cast iron or aluminum alloys, with each material offering distinct advantages in terms of durability, weight, and thermal management.

Despite common misconceptions, modern 4-cylinder engines have evolved significantly, especially with technologies like turbocharging and direct injection. They now offer impressive performance while maintaining excellent fuel economy. Below are the primary designs of 4-cylinder engine blocks currently in use:

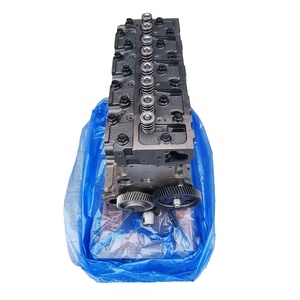

Inline 4-Cylinder Block

This configuration features all four cylinders arranged in a straight line along a single crankshaft. It's the most prevalent layout due to its simplicity and cost-effectiveness.

Advantages
  • Simpler design with fewer components
  • Easier maintenance and repair
  • Lightweight and compact
  • Lower manufacturing costs
  • Excellent fuel efficiency
Limitations
  • Potential for increased vibration at high RPMs
  • Limited potential for extreme horsepower outputs
  • Longer engine bay requirements compared to V-configurations

Best for: Economy cars, compact sedans, hatchbacks, entry-level SUVs, and motorcycles

V4 Cylinder Block

In this configuration, the four cylinders are divided into two banks angled apart (typically at 60° or 90°), sharing a common crankshaft. This layout provides packaging advantages and improved balance.

Advantages
  • Shorter overall length
  • Better weight distribution
  • Improved smoothness at higher RPMs
  • Higher potential for performance tuning
  • More rigid structure than inline designs
Limitations
  • More complex and expensive to manufacture
  • Requires more space width-wise
  • More complicated maintenance procedures
  • Heavier than comparable inline configurations

Best for: High-performance motorcycles, compact sports cars, marine engines, and specialized automotive applications

Boxer 4-Cylinder Block

Also known as a flat-four engine, this design places the cylinders horizontally opposed on either side of the crankshaft. It shares some similarities with the V4 but offers unique performance characteristics.

Advantages
  • Exceptionally low center of gravity
  • Natural vibration cancellation
  • Even firing intervals for smooth operation
  • Excellent handling characteristics due to weight distribution
  • Distinctive sound and driving feel
Limitations
  • Wider engine footprint
  • More challenging servicing access
  • Unique cooling system requirements
  • Specialized parts availability

Best for: Sports cars, rally vehicles, Subaru models, Porsche 911 variants, and aircraft engines

Modular Inline-4 Block

An advanced evolution of the traditional inline-4, these blocks are designed with modularity in mind, allowing for easier integration of modern technologies and potential for hybridization.

Advantages
  • Designed for easy integration of turbochargers and hybrid systems
  • Optimized for emissions compliance
  • Highly adaptable architecture
  • Improved strength-to-weight ratio
  • Facilitates downsizing without power loss
Limitations
  • More complex casting processes
  • Higher initial development costs
  • May require specialized tools for service

Best for: Modern eco-friendly vehicles, plug-in hybrids, next-generation compact performance cars

Type Balance Fuel Efficiency Performance Potential Maintenance Complexity Typical Applications
Inline 4 Fair Excellent Good Low Economy cars, compact vehicles, basic transportation needs
V4 Very Good Good Excellent High Motorcycles, performance-oriented small cars, specialty applications
Boxer 4 Excellent Good Excellent Moderate Sports cars, rally machines, all-wheel drive performance vehicles
Modular Inline-4 Good Excellent Very Good Moderate Modern passenger vehicles, hybrid/electric-assisted platforms

Expert Tip: When considering engine upgrades or modifications, remember that modern turbocharged inline-4 engines can often match or exceed the performance of naturally aspirated V6 engines while maintaining better fuel economy and lower emissions.

Important Note: While 4-cylinder engines are generally more fuel-efficient, they may not be suitable for heavy-duty applications such as towing large loads or powering commercial vehicles where sustained torque output is crucial.

Specifications and Maintenance of 4-Cylinder Engine Blocks

Understanding 4-Cylinder Block Specifications

A 4-cylinder engine block is a fundamental component of many modern vehicles, known for its balance between fuel efficiency and performance. While specifications may vary by make and model, understanding the core design elements helps in selecting the right engine or maintaining an existing one.

Cylinder Head Configuration

Most 4-cylinder engines utilize a single overhead cam (SOHC) or double overhead cam (DOHC) configuration with one or two cylinder heads. Some high-performance variants may feature multiple heads per cylinder, though this is less common in standard production models.

The cylinder head plays a critical role in sealing the combustion chamber and housing vital components like valves, camshafts, and spark plugs. Proper sealing ensures efficient combustion and engine longevity.

Material Composition

Engine blocks are typically constructed from cast iron or aluminum alloys. Cast iron offers superior durability and heat resistance, making it ideal for heavy-duty applications. Aluminum, being significantly lighter, improves fuel economy and overall vehicle handling but requires additional reinforcement to match the strength of cast iron.

Cylinder heads made from aluminum further enhance thermal dissipation, reducing the risk of overheating and allowing for tighter tolerances in high-performance settings.

Valve Configuration

Modern 4-cylinder engines commonly use four valves per cylinder — two intake and two exhaust — although configurations can range from two to five valves depending on the design philosophy and intended use.

More valves allow better airflow into and out of the combustion chamber, enhancing engine breathing and output. Variable valve timing (VVT) systems further optimize this process across different RPM ranges.

Valve Size and Timing Mechanism

Valve diameters in 4-cylinder engines generally range between 25–40 mm, with intake valves typically larger than exhaust valves to improve air intake efficiency. Precise sizing contributes to optimal airflow and combustion efficiency.

Valve timing is controlled by either a timing belt or chain, ensuring synchronized operation between the crankshaft and camshaft(s). Chains tend to be more durable and require less frequent maintenance, while belts are lighter and quieter but need periodic replacement as recommended by the manufacturer.

Specification Description Typical Range / Use Case
Block Material Determines weight, strength, and thermal properties Cast Iron – Durability; Aluminum – Lightweight performance
Cylinder Heads Configuration affects airflow and engine complexity 1-2 heads (standard); 3-4 heads (high-performance)
Valves Per Cylinder Impacts engine breathing and power output 2 (basic), 4 (common), 5 (performance-focused)
Timing System Controls synchronization of valve operation Belt – Quieter, needs replacement; Chain – Durable, longer lifespan

Maintenance Best Practices for 4-Cylinder Engines

Proper maintenance is crucial to ensure the longevity and performance of your 4-cylinder engine. Regular inspections and timely servicing help prevent costly repairs and maintain optimal efficiency.

  • Engine Oil Management: Monitor oil levels regularly and change oil every 3,000 miles or as specified in the owner’s manual. Clean oil reduces internal friction and protects moving parts from premature wear.
  • Air Filter Inspection: A clean air filter ensures proper airflow to the engine, improving combustion efficiency and fuel economy. Replace the filter if it appears dirty or clogged during routine maintenance checks.
  • Cooling System Monitoring: Check coolant levels frequently and flush the system according to the manufacturer's schedule. Ensure the coolant is free from debris and contaminants that could cause overheating or corrosion.
  • Spark Plug Replacement: Replace spark plugs approximately every 40,000 miles or sooner if signs of fouling or misfiring occur. Properly functioning spark plugs are essential for complete combustion and smooth engine operation.
  • Fuel System Integrity: Inspect fuel lines and connections for leaks or wear. A clean fuel filter ensures consistent fuel delivery and prevents particulate buildup in the injectors or carburetor.
  • Belt and Hose Condition: Regularly examine drive belts and radiator hoses for cracks, fraying, or bulges. Replace any worn components promptly to avoid sudden failure that could lead to engine damage or breakdowns.
  • Important: Neglecting regular maintenance can lead to reduced engine performance, increased emissions, and potentially severe mechanical failures. Always follow the recommended service intervals and address issues immediately upon detection to preserve engine health and reliability.

    How to Choose 4-Cylinder Engine Blocks

    Selecting the right 4-cylinder engine block is a critical decision that impacts performance, durability, and marketability of the vehicle or engine build. Whether you're sourcing for OEM production, aftermarket sales, or performance tuning, understanding key selection criteria will help ensure you choose blocks that meet both technical requirements and customer expectations.

    Market Requirements and Buyer Preferences

    Understanding your target audience is essential when selecting 4-cylinder blocks. Different buyers prioritize different characteristics based on their usage scenarios:

    • Fuel-efficient city drivers prefer compact blocks with smaller displacement (e.g., 1.4L–1.6L)
    • Performance enthusiasts seek larger displacements (e.g., 2.0L–2.5L) for higher output
    • Commercial vehicle users value reliability and longevity over peak power

    Insight: Analyze regional trends – for example, European markets often favor turbocharged small-displacement engines, while North American buyers may prioritize low-end torque and towing capability

    Material Composition Options

    The material choice significantly affects weight, thermal properties, and overall engine characteristics:

    • Cast Iron: Exceptional durability and wear resistance; ideal for high-torque applications but adds considerable weight
    • Aluminum Alloys: Lightweight with excellent heat dissipation; commonly used in modern fuel-efficient engines but more expensive
    • Hybrid Designs: Some manufacturers use iron sleeves within aluminum blocks for optimal balance of weight and wear resistance

    Cost consideration: Aluminum blocks typically cost 20-30% more than comparable cast iron versions

    Engine Block Configuration Considerations

    Modern 4-cylinder blocks come in various configurations tailored to specific performance goals:

    • Standard naturally aspirated designs for basic applications
    • Turbo-ready blocks with reinforced cylinder walls and oil cooling passages
    • Diesel-specific blocks built for higher compression ratios and thermal stress
    • Modular designs that allow easy integration with hybrid systems or alternative fuels

    Technical note: Turbo-compatible blocks often feature thicker decks and improved water jacket designs for enhanced cooling

    Component Compatibility Factors

    Ensuring compatibility with surrounding components is crucial for successful engine builds:

    • Verify transmission bolt patterns and bellhousing alignment
    • Check intake manifold mounting dimensions and port spacing
    • Confirm exhaust header fitment and gasket matching requirements
    • Evaluate accessory drive system compatibility (alternator, AC compressor, etc.)

    Assembly tip: Always test-fit major components before final machining and assembly

    Quality Assurance Advice: When evaluating suppliers, request detailed metallurgical reports and dimensional inspection data. Reputable manufacturers should be able to provide documentation showing compliance with industry standards like SAE J438 for cast iron or SAE J452 for aluminum alloys.

    Application Type Recommended Material Typical Displacement Range Key Features
    Economy commuter vehicles Aluminum alloy 1.2L - 1.6L Lightweight design, optimized for fuel efficiency
    Entry-level performance Cast iron sleeves in aluminum 1.8L - 2.0L Balance of weight savings and durability
    Racing/modified applications High-nickel cast iron 2.0L - 2.5L Reinforced structure, oversized main journals
    Diesel engines Compacted graphite iron 1.9L - 2.2L High strength-to-weight ratio, vibration damping

    Performance and Power Requirements

    Engine blocks must be matched to the intended power output level:

    • Stock replacement blocks handle standard factory power levels
    • Heavy-duty blocks withstand moderate modifications (turbo upgrades, nitrous oxide systems)
    • Race-prepared blocks engineered for extreme horsepower applications
    • Consider factors like bore thickness, main cap reinforcement, and deck plate rigidity

    Power threshold guideline: Factory blocks generally support safe operation up to 30-40% above stock power levels

    Pricing and Value Considerations

    Price varies significantly based on multiple factors including:

    • Material composition (aluminum vs. cast iron)
    • Manufacturing process (sand casting vs. CNC-machined billet)
    • Intended application (stock replacement vs. racing)
    • Supplier reputation and quality assurance processes

    Value strategy: Consider total cost of ownership – a more expensive block with better durability may prove more economical long-term

    Warranty Wisdom: Prioritize suppliers offering comprehensive warranties that cover not just the block itself, but also potential damage caused by manufacturing defects. A typical warranty might range from 12 months (for generic parts) to 5 years (premium manufacturer warranties).

    DIY Replacement Guide for 4-Cylinder Engine Blocks

    Replacing a 4-cylinder engine block is a complex but rewarding project that can restore performance and extend the life of your vehicle. Whether you're repairing damage from overheating, internal wear, or replacing it with a remanufactured unit, this detailed guide will walk you through each step to ensure a successful DIY installation.

    Safety Warning: Replacing an engine block involves heavy lifting, hazardous fluids, and electrical systems. Always use proper safety equipment like gloves, eye protection, and jack stands. Work in a well-ventilated area and keep a fire extinguisher nearby.

    Preparation and Planning

    Before diving into the replacement process, ensure you have all the necessary tools, parts, and information. This includes the correct service manual for your vehicle, a complete set of metric wrenches and sockets, an engine hoist, jack stands, and protective gear. Also, make sure you have a clean, organized workspace and adequate lighting.

    Pro Tip: Take photos during disassembly to help with reassembly later. Label all wires, hoses, and bolts as you remove them to avoid confusion.

    Detailed Step-by-Step Replacement Process

    1. Park Safely and Disconnect Battery
      • Park the vehicle on level ground and engage the parking brake.
      • Disconnect the negative terminal of the battery to prevent any accidental short circuits.
    2. Drain All Fluids
      • Drain engine oil, coolant, and fuel (if applicable) into appropriate containers.
      • Ensure proper disposal according to local environmental regulations.
    3. Remove Engine Accessories
      • Detach components such as the alternator, starter motor, power steering pump, water pump, and air intake manifold.
      • Label and organize all removed parts and their connections for easy reference during reinstallation.
    4. Disconnect Electrical Components and Hoses
      • Carefully disconnect all wiring harnesses connected to sensors, injectors, and other engine components.
      • Use zip ties and tags to label each connection for easier reassembly.
      • Remove coolant hoses, oil lines, and vacuum lines, sealing them if possible to prevent spills or contamination.
    5. Support or Disconnect Transmission
      • Depending on the vehicle’s configuration, you may need to support the transmission using jack stands or disconnect it entirely from the engine before removal.
    6. Remove Engine Mounts
      • Locate and remove the engine mounts securing the block to the chassis.
      • Loosen any additional brackets or supports connected to the engine block.
    7. Attach and Test Engine Hoist
      • Securely attach the engine hoist to the lifting points on the cylinder head or block.
      • Lift the engine slightly to test balance and ensure no remaining connections are still attached.
    8. Engine Removal
      • Slowly lift the engine using the hoist and carefully maneuver it out of the engine bay.
      • Be cautious not to scratch the paint or damage surrounding components like radiators or suspension parts.
    9. Prepare New Engine Block
      • Install essential components onto the new block, including the cylinder head, oil pan, timing belt or chain, and valve cover.
      • Inspect gaskets and seals for proper fit and replace any damaged ones before installation.
    10. Install New Engine Block
      • Position the new engine using the hoist and carefully lower it into place.
      • Align the engine properly with the mounting points and secure it with bolts.
    11. Reconnect All Disconnected Components
      • Reattach all electrical connectors, hoses, and fluid lines following your labeling system.
      • Reinstall accessories like the alternator, starter motor, and water pump.
    12. Final Assembly Checks
      • Double-check that all bolts are torqued to factory specifications.
      • Verify the timing belt/chain alignment and tensioner settings.
      • Ensure all fluids are refilled to the correct levels and there are no leaks.
    13. Start and Test the Engine
      • Reconnect the battery and start the engine.
      • Listen for unusual noises and monitor for any warning lights or leaks.
      • Let the engine idle while checking temperature, oil pressure, and coolant circulation.
    Phase Key Tasks Common Pitfalls Essential Tools
    Disassembly Labeling connections, draining fluids Mixing up wire labels, forgetting to drain coolant Socket set, marking tape, drain pans
    Removal Hoisting technique, supporting transmission Improper balance causing engine tilt Engine hoist, jack stands, breaker bar
    Installation Mount alignment, torque specs Over-tightening bolts, incorrect positioning Torque wrench, alignment tools
    Reconnection Electrical hookups, hose routing Missed connections, leaking fittings Wire crimpers, fluid pressure tester
    Testing Leak check, system diagnostics Rushing startup without full inspection Multimeter, coolant pressure tester

    Expert Advice: After installation, perform a thorough visual inspection of all components. Start the engine and let it run for at least 10–15 minutes while monitoring for any irregularities. Check fluid levels again after initial operation and top off as needed.

    Note: While these steps provide a general framework, always consult your vehicle’s specific service manual for detailed instructions and torque specifications. Some vehicles may require special procedures due to tight engine compartments or unique component arrangements. If you're unsure about any part of the process, consider seeking assistance from a qualified mechanic.

    Frequently Asked Questions About 4-Cylinder Engines

    Q1: What is the 4-cylinder block engine good for?

    The 4-cylinder block engine is an extremely versatile powerplant that offers a well-rounded balance of performance, efficiency, and affordability. Designed with four cylinders arranged in a straight line within a single engine block, this configuration provides sufficient power for most everyday driving scenarios while maintaining excellent fuel economy.

    This type of engine is particularly well-suited for:

    • Compact and midsize cars: Ideal for sedans and hatchbacks where space optimization and cost-efficiency are key considerations.
    • Hybrid applications: Frequently used in hybrid vehicles due to its compact size and efficient operation when paired with electric motors.
    • Light trucks and SUVs: Modern turbocharged variants provide adequate towing capacity and hauling capability for lighter utility needs.
    • Sports compacts: Performance-tuned versions deliver sporty acceleration without excessive fuel consumption.

    Thanks to advancements like variable valve timing (VVT), direct fuel injection, and forced induction via turbocharging or supercharging, modern 4-cylinder engines offer significantly enhanced performance compared to earlier generations. Their lightweight design also contributes to better handling dynamics and improved braking performance due to reduced unsprung weight.

    Economically speaking, 4-cylinder engines are cheaper to manufacture, which translates to more affordable vehicle pricing and lower maintenance costs over the ownership lifecycle. They're also easier to service due to their relatively simple construction compared to larger V6 or V8 engines.

    Q2: Are 4-cylinder engines powerful?

    Modern 4-cylinder engines can indeed be quite powerful, especially when equipped with advanced technologies such as turbocharging, intercooling, and high-pressure direct fuel injection systems. While traditionally viewed as basic transportation units suitable only for commuting purposes, today's iterations have dramatically changed this perception.

    Key performance characteristics include:

    • Turbocharged models: Can produce over 300 horsepower in performance-oriented applications like the Ford Focus RS or Honda Civic Type R.
    • High-revving naturally aspirated versions: Offer smooth power delivery and impressive redline capabilities, often exceeding 7,000 RPM.
    • Mid-range torque curves: With innovations like variable camshaft timing, these engines maintain usable torque across a wide RPM range, improving drivability.

    In real-world driving conditions, even base models typically provide ample power for highway merging, passing maneuvers, and moderate towing requirements. The latest generation of downsized, turbocharged 4-cylinder engines delivers performance comparable to older V6 units while consuming less fuel and emitting fewer pollutants.

    While they may not match the brute force of large displacement V6 or V8 engines, modern 4-cylinder units excel at delivering usable, responsive power that satisfies the needs of most drivers while maintaining excellent efficiency ratings.

    Q3: Why do some drivers dislike 4-cylinder engines?

    Despite their many advantages, some drivers remain dissatisfied with certain aspects of 4-cylinder engines. These concerns primarily stem from inherent mechanical characteristics and evolving driver expectations:

    • Engine noise and vibration: Compared to six- or eight-cylinder engines, 4-cylinder units tend to produce more noticeable mechanical vibrations and operating noise, especially under load or at higher RPMs. This can result in a coarser driving experience compared to smoother V6 or inline-six engines.
    • Lower low-end torque: Traditional 4-cylinder engines often exhibit less immediate acceleration response from a standstill compared to larger displacement engines. Turbocharged versions help mitigate this issue but may still exhibit slight turbo lag before full boost pressure is achieved.
    • Perceived lack of durability: Some enthusiasts believe that smaller engines work harder and may wear out faster than larger displacement units, though modern manufacturing techniques and improved lubrication systems have largely negated this concern.
    • Sound quality preferences: Performance-oriented drivers sometimes prefer the deep rumble of a V8 or the refined purr of a straight-six engine rather than the characteristic sound of a four-cylinder unit.

    These factors contribute to why certain automotive enthusiasts and heavy-duty users might prefer larger engines despite the efficiency benefits of 4-cylinder alternatives. However, continuous technological improvements are gradually addressing many of these traditional drawbacks.

    Q4: What are the pros and cons of the 4-cylinder engine?

    The 4-cylinder engine remains one of the most popular configurations in the automotive industry due to its balanced approach between performance and practicality. Here's a comprehensive overview of its advantages and disadvantages:

    Advantages Disadvantages
    Exceptional fuel efficiency: Smaller displacement and fewer moving parts result in lower fuel consumption compared to larger engines. Typical city/highway combined ratings often exceed 35 mpg in modern compact vehicles. Less available torque: Particularly at low RPMs, which can affect towing capability and hill-climbing performance without turbocharging assistance.
    Lower production and maintenance costs: Simpler design means reduced manufacturing expenses and generally more affordable repair bills throughout the vehicle's lifespan. Increased vibration and noise: Compared to engines with more cylinders, requiring additional balancing mechanisms and insulation materials.
    Compact size and lightweight: Allows for more flexible vehicle packaging options and contributes to better fuel economy through reduced overall vehicle mass. Power limitations: May struggle to meet performance demands in larger SUVs or trucks without forced induction systems.
    Environmental benefits: Lower emissions output makes these engines more compliant with increasingly stringent global emission regulations. Potential reliability concerns: In heavily turbocharged applications where components operate under increased stress levels.
    Versatility: Adaptable to various applications including hybrid powertrains, front-wheel drive layouts, and all-wheel drive systems. Higher NVH (Noise, Vibration, Harshness): Requires more extensive sound deadening measures to achieve cabin quietness comparable to six-cylinder engines.

    When evaluating whether a 4-cylinder engine suits your needs, consider your specific driving requirements, vehicle type, and priorities regarding fuel economy versus raw power output. For most urban and suburban drivers, the benefits of a 4-cylinder engine far outweigh its limitations, especially with today's advanced engineering solutions addressing many traditional shortcomings.
