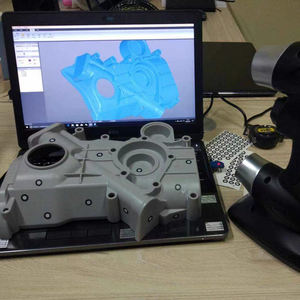

Reverse engineering with 3D scanning creates digital models from real-world objects by capturing their shapes and features. It helps understand how things are made so they can be improved. 3D scanners collect data using lasers, structured light, or photography to make 3D models called point clouds. This process can measure everything very accurately. The point cloud data is then changed into a 3D CAD model. CAD means computer-aided design, which are the new digital drawings created on a computer. These drawings show how every part goes together and work like the original object. This makes it easy to add new technology or materials to updated versions. They can also be used to change how things look or feel based on what people want. Some types help fix broken machines by scanning them and recreating the parts that need replacing. 3D scanning is better than regular measuring tools because it is quicker, more precise, and can be used anywhere.
Different types of 3D scanners can be used for reverse engineering:

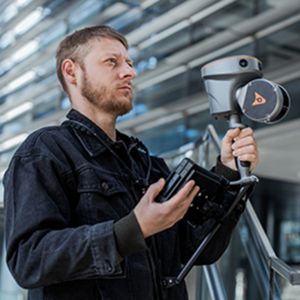

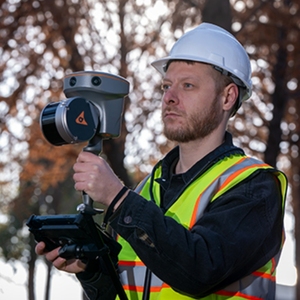

- Laser Scanners: Laser scanners use lasers and can capture a lot of information very accurately. They are good for measuring big structures like buildings accurately.

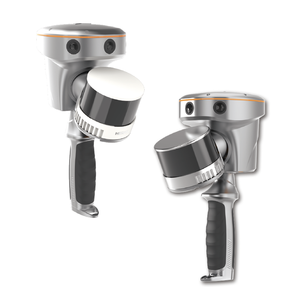

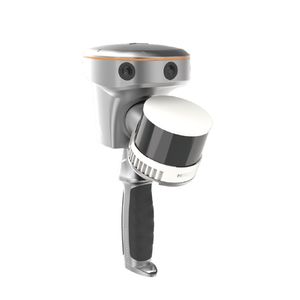

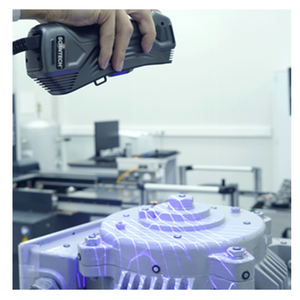

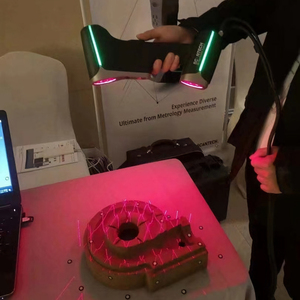

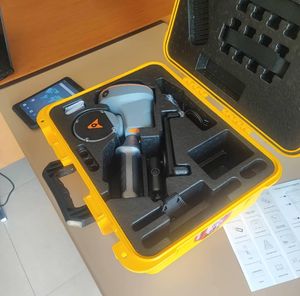

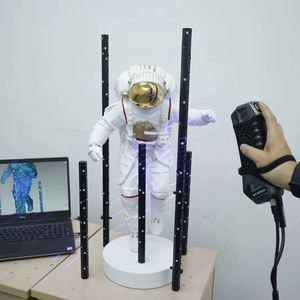

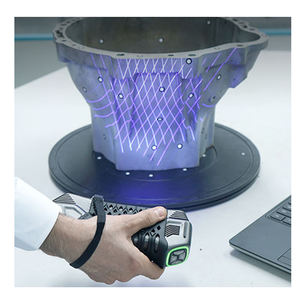

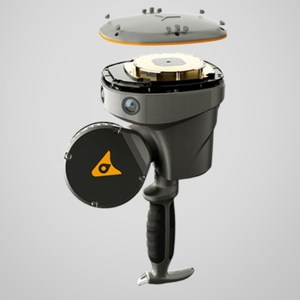

- Handheld Scanners: Handheld 3D scanners are small and easy to take anywhere. They allow users to scan objects by moving the scanner around them. These scanners are very precise and helpful for measuring complicated shapes like engine parts.
- Desktop Scanners: If things are small and need detail, desktop scanners work well. They are small enough to fit on a desk and good for scanning items like gears or electronic pieces.

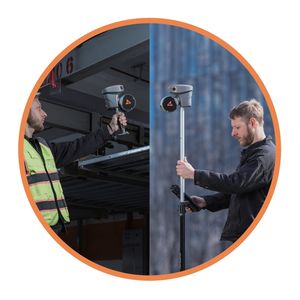

- Mobile Scanners: Mobile scanners allow users to scan objects anywhere. They are easy to use and let users make 3D copies of many different kinds of things while on the go.
- Structured Light Scanners: This type of scanner uses a projector and camera setup. It projects patterns of light that are captured with a computer vision system. This method works well for items needing a high level of detail.
Features and Functions
The 3D scanning reverse engineering process has many features that assist in its production, including engineering design, rapid prototyping, and product development. These features include the following;
- Precision Measurement: The precise measurement of physical items is made possible by 3D scanning, which gathers comprehensive geometric data. This exact data may be used to produce precise digital models, which are essential for reverse engineering.
- Speed: Compared to traditional measurement methods, 3D scanning is a relatively quick procedure. Complex geometries may be scanned in a matter of minutes, saving time on reverse engineering projects.

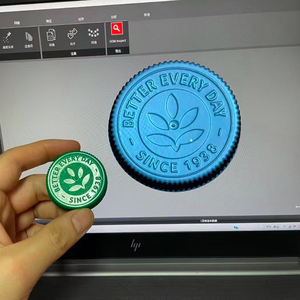

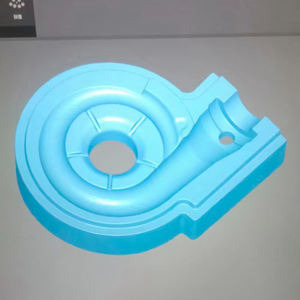

- Digital Representation: The thing is digitally represented by a 3D scan in the form of a triangulated mesh (STL) or point cloud file. This digital representation serves as the foundation for subsequent analysis and modeling efforts.
- Geometry Analysis: Engineers can examine an object's geometry using reverse engineering software tools. They can determine measurements, profiles, and other geometrical characteristics using these tools while also identifying any irregularities or design flaws.
- Modifications and Optimization: Reverse engineering makes it possible for engineers to improve upon an existing design. Modifying components for better performance, increased durability, or cost-cutting are a few examples of potential improvements.
- Material Selection: Material properties and characteristics that are physical may be obtained through 3D scanning. Engineers may choose the best materials for new parts using this information and taking into account criteria like cost, durability, and compatibility.
- Documentation: 3D scanning produces digital documentation of the physical object's geometry. This documentation is valuable for product lifecycle management, maintenance, and historical record-keeping.
Applications of 3D scanning and reverse engineering
The applications of 3D scanning reverse engineering are vast, highlighting the importance of these technologies in various industries and sectors. They offer innovative solutions for design, manufacturing, and preservation challenges. Their significant applications include:
- Manufacturing and Industry: In production and industries, 3D laser scanner reverse engineering is used to create digital models from physical parts that are outdated or have no CAD files. These models are then utilized to enhance current designs or develop new ones.
- Architectural Preservation: Engineers can construct precise 3D models of historical structures using architectural 3D scanners. They can also map out the buildings' complicated patterns and forms. This is helpful for preservation efforts, especially in cases where historical information is missing. The 3D models generated from the scans can also be used to restore and maintain such buildings.

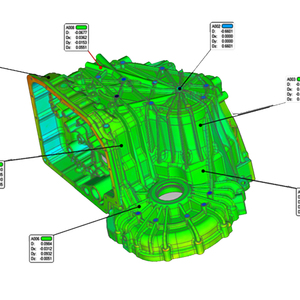

- Quality Assurance: 3D scan technology is used to conduct thorough inspections of items after they have been produced. The results are then compared to the original 3D models to check for accuracy. These inspections help identify any discrepancies or deviations, making them useful in ensuring that the parts produced meet the required quality standards.
- Digital Twins: Industries that use reverse engineering heavily can create digital twins of their physical assets after scanning them. A digital twin is a virtual duplicate of a physical object. These digital twins are comparably accurate and can be used for predictive maintenance, real-time monitoring, and even simulations.
- Automotive Industry: Precise 3D models of car parts can be made using 3D scanning devices. These models can then be used to replace missing components, improve their design, or develop new parts altogether. The models may also serve as references for the standardization of component design across multiple vehicle models.
- Aerospace: 3D scanning is helpful in the aerospace industry for various applications, including inspecting complex geometries and reverse engineering obsolete parts. Engineers can compare these precise 3D scans of airplane components to their original CAD models to confirm that they meet the necessary specifications and quality standards.
- Healthcare: In healthcare institutions, medical practitioners use 3D body scanners to build precise 3D models of their patients' anatomy from the scans. These models are essential for surgical planning, custom implant design, and anatomy study. They provide a better understanding of the patient's unique anatomy.
- Education and Research: Sleek scan 3D models are used in educational institutions for historical studies, engineering, design, and other disciplines. Students and researchers can access detailed digital representations that aid in learning and experimental purposes in their respective fields.
How to Choose 3D Scanning Reverse Engineering
When choosing a 3D scanner for reverse engineering purposes, it's essential to consider the capabilities of the scanner and the specific needs of the engineering project. Several critical factors must be evaluated to ensure that the selected 3D scanner is suitable for the task and can deliver the required results in an efficient and effective manner.
- Budget: The budget for purchasing a 3D scanner is the first thing to consider. Assess the funding and look into 3D scanners that are affordable.
- Accuracy and Resolution: When working with engineering applications, precision is of the utmost importance. Although lower-resolution scanners might be employed in some applications, it is critical to take into account the accuracy and resolution capabilities of the scanner. Examine the precision and resolution specifications to ensure that the scanner can meet the requirements of the particular project.
- Speed and Efficiency: When assessing the capabilities of a 3D scanner, speed and efficiency are critical to consider. Look at the time it takes the scanner to capture a scan and the throughput if multiple scans are required. The selected scanner should meet the project deadlines and minimize bottlenecks in the workflow.
- Software and Workflow Integration: It is important to thoroughly examine the software that comes with the scanner in order to assess its capabilities. The software has to be user-friendly, effective, and flexible. Consider the software's compatibility with current workflows and other engineering tools or software in use in the engineering department. Reverse engineering commonly refers to the process of taking a digital CAD model created via 3D scanning and making it fit for purpose. Assess the capabilities of the post-processing software to ensure that it can effectively prepare the scanned data for the intended engineering applications.
- Support and Training: Evaluate the quality of support and training offered by the 3D scanner supplier. Consider whether on-site training, documentation, tutorials, and responsive technical support are part of the post-purchase support. Reliable support can help address any issues, optimize scanner usage, and ensure a smooth integration process.
FAQ
Q1: What is the maximum size that a 3D scanner can handle when digitizing objects?
A1: The capacity of 3D scanners to handle large objects is influenced by many factors, including the scanner's model, technology, and specifications. While certain high-end scanners are renowned for their capacity to handle huge structures, the term "large" is relative and depends on the industry. As a general guideline, some 3D scanners can scan large objects, such as machines, buildings, or sculptures, measuring several meters in diameter. For precise scanning large-scale structures, using scanner models with laser scanning and a longer range is advisable. If there are doubts about the scanner's capability to handle certain object sizes, consulting the manufacturer's specifications or support team is highly recommended.
Q2: What steps should be taken to validate and verify the accuracy of a 3D scan data?
A2: A number of steps can be taken to make sure the accuracy and quality of the scanned 3D data are validated: Review the scan data visually to look for any anomalies or irregularities. The scan's precision should be checked against a reliable reference measurement or an actual item using a measurement tool. Compare the validated scan data to the original object to verify its fidelity. In case there are doubts about the scan's quality or accuracy, a secondary review or validation by a qualified individual or team can be requested. The scan data should be examined to ensure it satisfies the criteria and specifications for the intended application or use. In order to make sure the scanning process is accurate, implement quality control measures.
Q3: What role does software play in 3D scanning and reverse engineering?
A3: Software is essential to 3D scanning and reverse engineering, from data processing to modeling and analysis. After a 3D scan, the software processes and converts the scanned data into a usable format. Point clouds and mesh models made from scans serve as the basis for digital models in reverse engineering. CAD software is widely used in various industries to make precise drawings and models, and it often has features for dealing with mesh or point cloud data. Software is crucial in reverse engineering to compare existing models with newly made ones, making sure that they satisfy the criteria.
