3 wing hinge

Types of 3 Wing Hinge

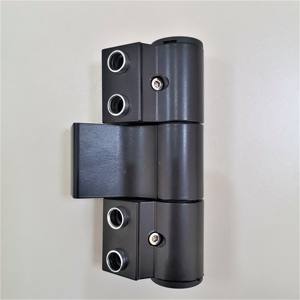

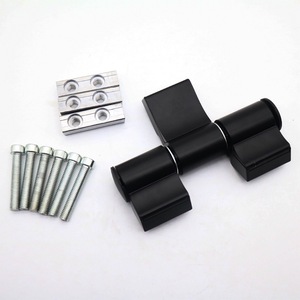

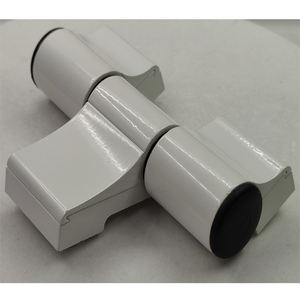

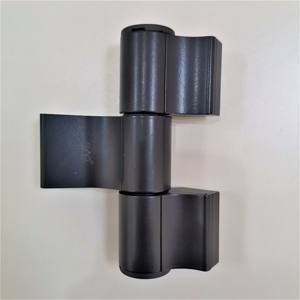

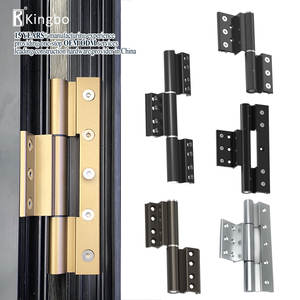

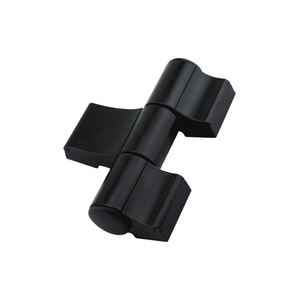

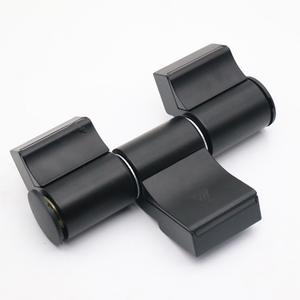

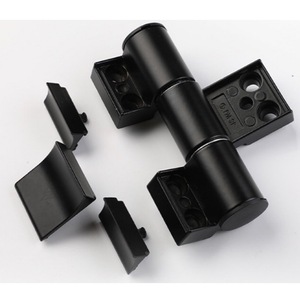

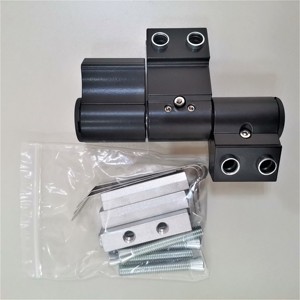

A 3 wing hinge is a type of door hinge that has three flaps, or "wings." These wings provide additional support and stability compared to traditional two-wing hinges. The extra wing helps distribute the weight of the door more evenly, allowing for smoother operation and reducing wear and tear over time. The three-wing design is particularly beneficial for heavy or large doors, as it offers a more robust pivot point. These hinges are often used in commercial settings, such as offices, hotels, and public buildings, where durability and reliability are paramount. Additionally, the 3-wing hinge can be used in residential settings for extra-strength requirements, such as gates, garage doors, or utility room doors. Here are the different types of 3-wing hinges:

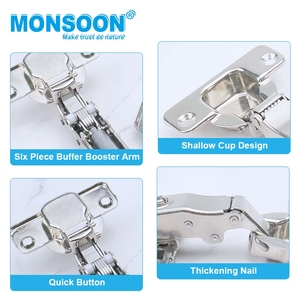

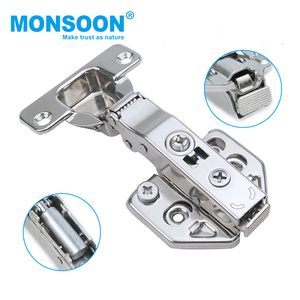

• Concealed 3-Wing Hinges:

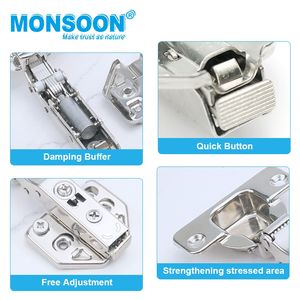

  These hinges are hidden from view when the door is closed, providing a clean, uninterrupted aesthetic. They offer the advantage of being able to adjust the door in the frame both vertically and horizontally. There is also a type of concealed 3-wing hinge called the soft-closing concealed hinge, which features a hydraulic mechanism that slows the door's movement just before it closes completely, ensuring a quiet and safe closure.

• Lift-Off 3-Wing Hinges:

  These special hinges allow the door to be lifted off the hinge assembly for easy removal. Usually, the top wing has a pin that fits into the bottom wing. The bottom wing is secured with screws to the frame, while the top wing is attached to the door. They are ideal for doors that need to be removed frequently for maintenance or in situations where maximum security is not required.

• Butt 3-Wing Hinges:

  These hinges have two wings that are flush with the door and the frame when it is open. They are perfect for heavy doors since they are made of strong materials like brass, stainless steel, and steel. They are also adjustable in size and have a minimum of four leaves. The third leaf is in between the other two and gives extra support and strength. Butt 3-wing hinges are typically used on wooden doors that are in homes, offices, and public spaces.

• Decorative 3-Wing Hinges:

  These hinges are used on doors that are not very heavy and are more for decoration than support. They are usually made of lighter materials like brass or iron. They also have intricate designs that make them visually appealing. The three wings provide stability, even though they are not as strong as other hinges. They are commonly used on cabinet doors, small gates, and vintage furniture.

Functions and features of 3 wing hinge

3-wing hinges are used in various applications, and their features and functions include:

• Support Heavy Doors

  3-wing hinges provide doors with support that are heavier than those supported by normal hinges. Because of their strength, they are used in huge commercial buildings, warehouses, factories, and industrial places.

• Enhanced Load-Bearing Capacity

  These hinges have another plate, which is called a wing. The extra wing spreads the weight of the door over a wider area. This means that the weight is not put on one spot. This makes 3-wing hinges very strong. Because they are strong, they can carry heavy doors without bending or breaking.

• Stability

  When a door opens and closes, it moves from side to side. A regular hinge makes the door move from side to side and sway. This makes the door unstable. But 3-wing hinges make the door very stable. The extra wing helps the door stay straight. This makes sure the door does not sway or move loosely.

• Smooth Operation

  The extra plate on 3-wing hinges makes sure that doors open and close smoothly. The door does not get stuck or drag on the ground. This makes the 3-wing hinge good for places like shops and offices that have a lot of people passing through.

• Durability

  3-wing hinges are made from strong materials like stainless steel or brass. These materials do not get damaged easily. The hinges can also be repaired if they get damaged. This means that 3-wing hinges can last a very long time before they get worn out.

• Versatility

  3-wing hinges can be used in many different places. They work well for doors that are heavy in homes, offices, hospitals, schools, hotels, and other buildings. These hinges can be put on wooden doors, metal doors, glass doors, and many more.

• Security

  These hinges make sure that the doors are secure. Because they are strong, they cannot be easily pulled off. This keeps the room safe from intruders. 3-wing hinges also make sure that the doors are safe for people inside the room.

Scenarios of 3 Wing Hinge

3 wing hinge has various applications in different industries and sectors. Here are some common usage scenarios:

• Heavy-Duty Doors

  3-wing hinges provide support and stability for heavy doors, especially in commercial, industrial, or high-traffic areas. They are used on storage room doors, entrance doors, and fire exit doors.

• Cabinet Doors

  These hinges are popular for providing smooth and stable opening and closing motion for large cabinet doors. They are commonly used in kitchen cabinets, wardrobe doors, and display cabinets in shops.

• Gates

  3-wing hinges are ideal for securing and allowing smooth movement of gates in fencing areas, such as in fencing of playgrounds, construction sites, and residential areas. They are easy to install and allow gates to swing open and closed smoothly.

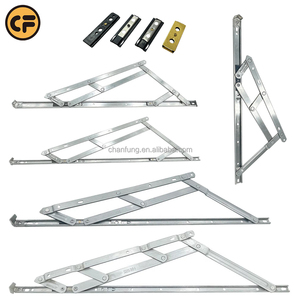

• Windows

  These hinges support and secure the window frames, enabling smooth operation of window openings and closings. They are used on casement windows in buildings and those in residential homes.

• Partitions and Walls

  3-wing hinges allow for flexible and smooth movement of foldable partition walls and flexible walls. They are useful in conference halls, exhibition centers, and office spaces where adaptable layouts are needed.

• Industrial Applications

  In industrial settings, 3-wing hinges are used on equipment covers, machine guards, and maintenance access panels. They provide strong support and ensure easy access for maintenance tasks.

• Metal Enclosures

  These hinges are used in metal enclosures, such as toolboxes, storage chests, and utility cabinets. They provide strong support and secure closure for the metal enclosure's lid or door.

• Marine Applications

  3-wing hinges are suitable for marine applications, such as on boats, yachts, and ships. They can withstand harsh marine conditions and enable smooth movement of hatches, doors, and storage compartments.

How to Choose 3 Wing Hinge

Choosing the right 3 wing hinge for a specific application involves considering several factors to ensure optimal functionality, durability, and aesthetic appeal. Here’s a comprehensive guide on how to choose a 3-wing hinge:

• Load-Bearing Capacity

  Determine the weight of the door or panel that the hinge will support. Heavier doors will require more robust hinges with a higher load-bearing capacity. Look for load capacity specifications provided by the manufacturer.

• Material Selection

  Consider the environment where the hinge will be installed. For indoor use, brass or stainless steel hinges may suffice. For outdoor or humid environments, choose materials with weather-resistant properties, such as marine-grade stainless steel or galvanized steel.

• Size and Dimensions

  Ensure the hinge dimensions are suitable for the door or panel thickness. Measure the door and choose a hinge that can accommodate the weight and thickness. Consider the leaf size and the distance between the holes for screws (pivot points).

• Design and Aesthetics

  Select a hinge design that complements the style of the door or panel and the overall room decor. Consider the finish, such as polished brass, oil-rubbed bronze, or brushed nickel, to match the aesthetic of the space.

• Adjustability

  For doors that may require future adjustments, choose hinges with adjustable features. Some hinges allow for the adjustment of the door's alignment horizontally, vertically, or in-depth, which can be beneficial for maintaining proper clearance over time.

• Fire Rating

  If the hinge will be used on fire-rated doors, ensure it is also fire-rated and suitable for use with fire-rated doors. Consult local building codes for fire-rated door requirements.

• Installation Requirements

  Consider the installation process. Some hinges may require welding for installation, while others can be screwed in. If the hinge demands welding, ensure that the installer has the necessary skills to do it correctly.

• Maintenance Needs

  Consider the maintenance requirements of the hinge material. Some materials may require regular lubrication to function properly, while others are low-maintenance. Choose a hinge material based on the desired level of maintenance.

3 wing hinge Q & A

Q1: Are 3-wing hinges more durable than traditional 2-wing hinges?

A1: The durability of a hinge depends on factors like construction quality and the door's size and weight. 3-wing hinges can provide more stability for heavy doors but durability will also depend on proper installation and using appropriate hinge type for the door.

Q2: Can 3-wing hinges be installed on doors that already have 2-wing hinges?

A2: It's not recommended to replace existing hinge with a 3-wing hinge without proper assessment. 3-wing hinge requires different preparation and specifications in the door frame. Consult an expert to evaluate the door and frame.

Q3: Do 3-wing hinges require special maintenance?

A3: 3-wing hinges don't need special maintenance. Just perform regular hinge maintenance by applying lubricant and checking for loose screws or signs of wear.
