About 2jz rods

Types of 2jz rods

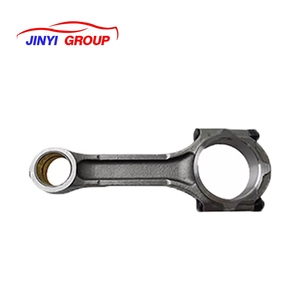

2JZ rods are the connecting rods used in the Toyota 2JZ engine family. This iconic engine family powers numerous Toyota vehicles, especially the Toyota Supra. The 2JZ engine family has three main variants: 2JZ-GE, 2JZ-GTE, and 2JZ-FSE. Regardless of the variant, the 2JZ rod is an essential component that plays the same role as any other connecting rod in a piston engine. It connects the engine's crankshaft to its piston, translating the piston's linear movement into rotational movement for the drivetrain.

  • OEM 2JZ connecting rods: The original 2JZ engine models, like the 2JZ-GTE and 2JZ-GE, came with cast iron or steel rods. These rods are the OEM 2JZ rods. They are durable enough for everyday driving and the power output of the 2JZ engine. However, they are not suitable for high-performance tuning or applications.
  • H-beam 2JZ rods: H-beam 2JZ rods are named after their connecting rod's inner cross-section. The rods' inner surface has an "H" shape. This design has a more uniform material distribution, improving strength and durability. H-beam 2JZ rods are suitable for most performance applications, from mild tuning to serious performance upgrades.
  • I-beam 2JZ rods: I-beam 2JZ rods are also called "I-section rods." Like the H-beam rods, these I-section rods have an "I" shaped inner cross-section. The 2JZ I-beam rods have a more uniform cross-sectional area throughout the length of the rod. This can improve the connecting rod's strength and durability. I-beam 2JZ rods are generally more expensive than H-beam rods. They are ideal for high-performance applications, such as competitive motorsport or extreme tuning.

Specification and maintenance of 2jz rods

The specifications of 2JZ rods tend to differ based on the type. For instance, the 2JZ-GE and 2JZ-GTE models have different specifications.

  • Material

    2JZ rods are made of various materials that affect their performance. Most of them are forged steel since this material is strong and durable. Some 2JZ rods are made of titanium. This alloy is lighter than steel, making it a good choice for racing vehicles.

  • Length

    The length of 2JZ rods differs based on the type. For example, the 2JZ-GTE and 2JZ-GE models have rods that measure between 145mm and 150mm in length. This measurement allows the connection of the piston to the crankshaft.

  • Big End Diameter

    The diameter of the big end of the 2JZ rods also varies. Most rods have a diameter measuring about 24mm to 27mm. This end connects the 2JZ rods to the crankshaft. On the other hand, the small end of the 2JZ rods connects to the piston.

  • Small End Diameter

    The small end of the 2JZ rods has a small diameter since this end connects to the piston. Most small ends have a diameter measuring about 21mm to 23mm.

  • Wrist Pin Diameter

    The wrist pin diameter of these rods varies depending on the model. Most 2JZ rods have a wrist pin diameter measuring about 22mm to 24mm. This component connects the piston to the connecting rod.

  • Bearing Size

    2JZ rods have different bearing sizes. Most of them have bearing sizes that measure between 0.25mm and 0.5mm. This component creates a connection between the crankshaft and the connecting rod.

  • Weight

    Most 2JZ rods weigh about 500g to 600g. The weight varies depending on the type and model of the rod.

Maintaining 2jz rods is crucial for ensuring optimal engine performance and longevity. Here are some of the ways to maintain these rods:

  • Regular Inspection

    2JZ rod users should routinely inspect the rods. This will help them identify any sign of wear or damage. During the inspection, pay attention to cracks, bending or deformation and address the issues immediately.

  • Cleaning

    Clean the 2JZ rods regularly to remove any dirt, debris or contaminants that might affect their performance. Use a mild detergent and a clean cloth or brush to clean the rods.

  • Lubrication

    These rods require proper lubrication to reduce friction and wear between the 2JZ rods and other engine components. Use the recommended lubricants for the 2JZ rods.

  • Replacement of Worn-out Components

    Users should replace any worn-out components related to the 2JZ rods. For example, they can replace rod bearings, as this will help maintain the performance of the connecting rods.

  • Proper Installation

    To maintain the condition of the 2JZ rods, users should ensure that they are properly installed. Improper installation can lead to misalignment, causing damage to the rods.

  • Torque Specifications

    When installing or removing the 2JZ rods, users should pay attention to the torque specifications. Using excessive force can lead to bending or breaking of the rods.

  • Avoid Over-Reving

    Users should avoid over-revving the engine, especially during high-speed driving or overtaking. This puts excessive stress on the connecting rods.

  • Engine Tuning

    If users want to tune their engines, they should seek professional help. Improper tuning can stress the connecting rods, leading to damage or failure.

How to Choose 2JZ Rods

When buying 2JZ rods, consider the following factors to ensure the right decision is made:

  • Compatibility

    Ensure the 2JZ rods are compatible with the desired engine configuration and can be used with the chosen pistons and crankshafts.

  • Budget

    Establish a budget and consider the long-term benefits of investing in high-quality 2JZ rods, even if they come at a higher initial cost.

  • Brand Reputation

    Consider the brand reputation of the 2JZ rod supplier. Look for reliable suppliers with positive customer reviews and testimonials.

  • Warranty

    Check if the 2JZ rod supplier offers a warranty. A warranty signifies the confidence of the supplier in the quality and durability of their products.

  • Appearance

    Check the color of the 2JZ rods. Normally, the 2JZ rods are steel gray, and the condition of the surface coating can also affect the appearance.

How to DIY and replace 2jz rods

Replacing 2JZ rod bearings is not a simple task. It requires a certain level of mechanical knowledge and experience. To replace the 2JZ rod bearings, follow the instructions below:

  • Remove the engine from the vehicle.

    To begin with, the engine will need to be detached from the vehicle and the technician will need to drain the engine oil and coolant. Once that is done, they will need to disconnect all the wiring harnesses and cables connected to the engine. The technician can then unbolt the engine from the transmission and remove it from the vehicle with a hoist or crane.

  • Remove the oil pan.

    Once the engine is out of the vehicle, the oil pan will need to be detached from the engine. This will give access to the 2JZ rod bearings.

  • Remove the old bearings.

    The next step will be to remove the old bearings from the connecting rods and the crankshaft journals. This can be done by carefully prying them off with a clean screwdriver or a bearing puller.

  • Install new bearings.

    Lubricate the new bearings with a small amount of engine oil and install them into the connecting rods and the engine's crankshaft. Ensure they are properly seated and aligned in their respective housings.

  • Reassemble the engine.

    Once the new bearings have been installed, the oil pan will need to be reattached to the engine using the appropriate gaskets and bolts. After that, the engine will be reconnected to the transmission, and all the detached wiring harnesses and cables will be reconnected. Finally, the engine will be reinstalled in the vehicle, and the engine oil and coolant will be filled to the appropriate levels.

Q and A

Q: What are 2JZ rods?

A: 2JZ rods are connecting rods used in 2JZ engines. They are designed to connect the engine's pistons to the crankshaft, converting the pistons' up-and-down motion into a rotating motion that powers the vehicle.

Q: What are the functions of 2JZ rods?

A: 2JZ rods play a crucial role in the normal operation of the 2JZ engine. As connecting tools, they ensure a stable and reliable connection between the pistons and the crankshaft, allowing smooth conversion of the pistons' linear motion into the crankshaft's rotary motion. This ensures the 2JZ engine's power output is stable and efficient, providing sufficient power for vehicles.

Q: How to maintain 2JZ rods?

A: Regular maintenance and inspection are essential to keep the 2JZ rods in good condition. Users should regularly check the 2JZ rods for signs of wear, damage, or corrosion and promptly replace or repair them if necessary. In addition, maintaining the 2JZ rods' lubrication is critical. Using high-quality engine oil and ensuring the oil supply system's normal operation can reduce friction and wear of the 2JZ rods, extending their service life.
