A220 kV cableis a high-voltage cable that comes in several types. People classify these types according to their construction, insulation material, and specific application requirements. Below are the common categories of 220 kV power cables.

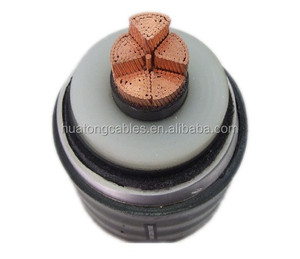

The cross-linked polyethylene (XLPE) insulated cables feature excellent thermal properties and are commonly used in varied environments. These environments range from underground installations to overhead use. The durability of the insulation also helps in operating under high temperatures. Thus, making it a favoured option in high voltage applications.
The paper insulated lead coated cable cables have been used for decades in utility applications. The traditional insulation of paper wrapped around conductors provides reliability. The lead coating provides water and moisture protection. People prefer PILC cables for their enduring performance in outdoor environments. This performance, coupled with cost-effective features, has enabled them to gain acceptance over time. However, with advancing technology, the popularity of PILC cables is declining.
They offer flexibility and resilience, making them ideal for mobile or temporary installations. They have not been used in permanent high-voltage environments due to their long-term durability concerns. People mainly use them on construction sites, in mining operations, or as temporary power solutions.
People prefer using magnesium oxide insulated cables in industries where high safety standards are a must. The magnesium oxide (Mi ) insulation provides a compact and durable solution for high voltage transmission. It suits areas that require increased fire safety and dependability in extreme settings. These areas include mining and heavy manufacturing.
Utility companies, hydroelectric plants, and nuclear power plants all use220 kV cables, which help transmit power from generators to substations. The high capacity of the cables to carry enormous power surges makes them suitable for usage in all large-scale generation procedures, assuring efficient transmission without large disminuir.
Wind and solar farms require a dependable high-voltage transmission infrastructure to connect their production sites to the electrical grid.220 kV cables220 kV cablesare capable of transmitting power over long distances by effectively bridging renewable energy production centres to the grid. This feature supports the transition to clean energy.
Many large-scale manufacturing operations depend on high voltage power supply for their machines, including metalworks and chemical production.220 kV cablesprovide a dependable energy source for such heavy-duty work, facilitating seamless operation without power fluctuations. Furthermore, their durability qualifies them for high-demand industrial applications.
Mining companies frequently run remote sites that require a powerful electric transmission system.220 kV cableis ideal for these tough circumstances through MI insulation, which provides unmatched endurance and safety features. These cables can power large mining machinery, motors, and ventilation systems while sustaining heavy power loads.
Electric rail systems and metro networks rely on220 kV cablesfor their power needs. People use these cables to link traction power substations, which then distribute power to train operations. The cables' ability to carry huge amounts of electric current allows for the smooth transit of electric trains while minimizing power losses across long distances.
Large commercial structures such as skyscrapers demand substantial power to service elevators, HVAC systems, and lighting.220 kV cablescan fulfill these high power needs by securely transmitting high voltage electricity throughout these structures. Their insulation quality lowers power loss and improves operation efficiency in large spaces.
Delivering220 kV cableto a job site normally entails heavy logistical and operational challenges owing to the isolation and complexity of the electrical system. Below are some key materials and equipment used during installation.
Due to their extreme length and weight,220 kV cablemust be handled delicately on robust spools or reels during installation activities.
People usually mount these reels on movable reel stands that allow for controlled unwinding as the cable is installed into trenches or conduducts. Electric hoists or winches are usually employed to manage the cable's weight as it is handled safely onto reels for transportation and placement. Construction workers also utilise brakes to securely lock unwinding activities, hence avoiding unregulated cable movement.
Installing underground220 kV cablesrequires the usage of excavation equipment such as backhoes and trenchers. These tools create the necessary trenches or bor holes to place the cable at the required depth. Regardless of the digging strategy used, whether manual or mechanised horation of the trench must meet utility standards to ensure the cable's proper placement. Note that vibration suppression attachments may also be fitted to excavators to reduce disturbance.
Speciallised220hv kV cable trenching machines are available for horizontal installation through conduits or direct burial without excavation. While these machines are primarily employed in soil types conducive to horizontal boring, they can also efficiently lay cables in strata after creating small-diameter trenches. These machines create narrow trenches that reduce wasted space. Their efficiency makes them ideal for cable installation in vast projects. However, they fall short in hard rock environments, necessitating the use of jackhammers or blasting methods.
Installing220 kV cables, particularly in mining conditions, demands that construction workers wear adequate personal protective equipment (PPE). High-voltage danger attire is a must, such as dielectric gloves and insulated mats to avoid any electric shock. High-visibility and hard hats with hearing guards are also beneficial, particularly if heavy equipment is nearby. Monitoring equipment to detect electromagnetic fields is critical in ensuring an environment that prioritises safety.
Construct workers use220 kV cablejoint and termination kits to handle high voltage cable connections and insulation rehabilitation. These kits include epoxy resin joint glue and heat shrink or cold shrink tubing, which provide efficient insulation and sealing. High voltage termination devices securely connect cables to transformers or substations while minimising power dissipation. People often have these kits readily available on-site during installations and repairs. This readiness allows for quick, safe jointing and termination with the right tools.
When purchasing220 kV cable cablefor a commercial client, cable buyers should consider several factors. Below are these factors.
Insulation and shielding play an integral role in the performance and safety of220 kV cables. People have build-up Paper insulated lead-covered cable. It has traditionally been the industry standard for lead and shielding insulated cables. It has proven its effectiveness in shielding against this. However, with modern technology, cross-linked polyethylene (XLPE) insulated cables, for instance, have robust thermal properties and are equally effective in shielding against electromagnetic interference. This efficacy makes them highly suitable for installation in diverse environments.
Apart from insulation types, buyers should consider how adequately the shielding layers safeguard the cable. For instance, lead or copper wire shielding effectively reduces electromagnetic interference (EMI) and ensures optimal cable functioning in high-tech settings.
Durability affects the maintenance and operational longevity of220 kV cables. Customer satisfaction heavily depends on whether the cable can withstand variable environmental conditions like extreme temperatures, moisture, and mechanical strain. For example, magnesium oxide insulated cables are preferable in industries like mining. They effectively provide superior resilience due to their compact design and endure harsh working conditions.
Further, durability also reduces the need for frequent maintenance. This leads to a decrease in long-term costs and downtimes in operations. Additionally, maintenance ease is a factor worth considering: cables designed with minimal maintenance requirements are typically easier to maintain. This makes routine checks and repairs uncomplicated for operational managers.
Cable manufacturers make220kV cablesusing either copper or aluminium conductors. Each of these materials has advantages depending on the client's distinct needs. Copper, which has standout conductivity and compactness, is ideal for space-constrained environments that require efficient power transmission. Conversely, clients with large-scale industrial operations or extensive transmission lines prefer aluminium. The clients prefer it because of its lightweight and cost-effective properties. However, they should consider its strength and choose a reinforced design where necessary.
220kVcablehave a vast and diverse commercial application. These applications range from power generation to commercial buildings. Each of these environments has its distinct requirements. For example, mining companies typically prefer cables that can withstand hazardous conditions and have high endurance. so220 kV cable with MI insulation should be a buyer's priority. It provides unparalleled durability and safety in these tough mining environments.
Conversely, manufacturing and large commercial spaces may require more flexibility in installation. In such spaces, XLPE insulated cables are ideal. Apart from their installation flexibility, they also offer great thermal endurance in diverse temperature ranges.
A1. Manufacturers use220kvcableunder several circumstances. For example, they are used in industries with large power needs, such as power generation and massive manufacturing facilities. They are also used in forcing renewable energy sources.220 kV cablesare especially useful for transmission in high-voltage substation and underground settings.
A2.220kV wireshave several distinct materials for varying insulation standards. People make the conductors of either copper or aluminium. Each of these two materials has its advantages. For instance, they use paper, cross-linked polyethylene, or rubber for insulation. Paper-insulated lead-covered cables have traditionally been the standard. However, modern advancements favour XLPE for its insulation effectiveness.
A3. Properly storing and handling220 kV cablesis paramount in preserving their integrity. Their huge size necessitates that clients cautiously store them on durable reels to avoid unrolling or damaging them. To maintain proper functioning, a client must prevent these cables from coming into contact with hazardous elements like chemicals and moisture. Additionally, they should place the reels in dry, level places free from heavy traffic to avoid unnecessary wear. One should always ensure the cable does not face extreme temperatures. These are the elements that degrade cable integrity.
A4. Yes,customised220kVcablesareavailabletomeetclients' distinctive demands. For instance, a manufacturer may produce cables with added wire conductors or varied insulation types to suit specific environments. Manufacturing companies can also modify cable lengths to accommodate their unique installation spaces. To make this happen, buyers should place customisation requests at the beginning of their purchases.
A5. A variety of factors significantly affect the lifespan of220 kV cables. These factors include insulation type and installation environment. For instance, cables with MI insulation perform better in harsh industrial settings than cables with rubber insulation. People also assume that underground220 kV cableswith paper and lead insulation offer better durability. They last for at least 30 years when it is well maintained and cared for. However, typical performance in HV substation and underground environments is up to 60 years.
