2 way crossover speaker

Types of 2-way crossover speakers

A 2 way crossover speaker divides the audio signal into two frequency ranges: low frequencies for woofers and high frequencies for tweeters. There are several types of 2-way crossover speakers.

• Passive Two-Way Crossovers:

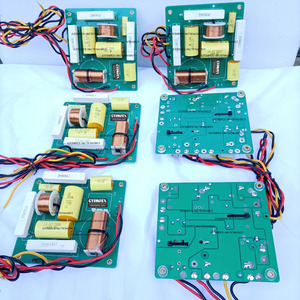

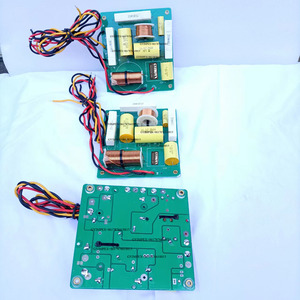

  Passive two-way crossovers use passive components like inductors and capacitors to filter audio signals. They send low-frequency signals to woofers and high-frequency signals to tweeters in the network. However, passive crossovers are not adjustable; their cutoff frequency is determined by the inductor's and capacitor's values. Moreover, they work at low levels before amplifying the audio. Their components can add to the overall sounds and may not perform well.

  Active Two-Way Crossovers:

  On the other hand, active two-way crossovers use electronic filters with adjustable parameters. It gives more control over the sound. Turn-on, amplifier, or signal path length are some places where it works. However, it requires more power supplies and additional amplifiers.

  Kits:

  Some manufacturers offer two-way crossover speaker kits. These kits include all the parts, like drivers, enclosures, crossovers, and mounting hardware, needed to build a complete two-way speaker system. Users assemble the kit into functional speakers. Kits offer a convenient way to construct custom audio solutions while gaining valuable experience in the assembly process.

  Powered Speakers:

  Some two-way speaker systems come as powered speakers. These built-in amps directly drive woofers and tweeters. Users only need to connect an audio source; no external power amps are required. While convenient, powered speakers typically offer less extensibility because amplification circuitry is incorporated.

  Floorstanding Dual-Crossover Speakers:

  Floor Dual-crossover Two-way speakers are larger models placed on the floor. They generally have more substantial woofers, so they render low frequencies more capable. Many floorstanders also incorporate multiple drivers and tweeters. They provide a full-range sound system.

  Bookshelf Two-Way Speakers:

  As their name suggests, bookshelf two-way speakers are more petite speakers designed to fit on bookshelves or other stands. Even though they are smaller than floorstanders, they can still produce balanced sound by utilizing quality drivers and crossovers.

Functions & Features

A speaker crossover is an electronic circuit that separates the audio signal from the amplifier into frequency bands and sends them to the appropriate speakers. It is known as a speaker crossover because it 'crosses over' the frequency range into different bands for woofers, midrange drivers, and tweeters.

The 2 way crossover speaker uses an analog passive design with 2-channel (stereo) output to drive a pair of 2-way speakers. A 2-way speaker consists of a woofer and tweeter. The dedicated high-frequency driver (tweeter) and low-frequency driver (woofer) are housed in one speaker enclosure.

Features include:

• The power handling capacity of crossover circuits can be enormous, depending on the size of the speaker system it drives.
• A 2-channel output allows driving 2 speakers or a pair of 2-way speakers.
• Variable frequency controls allow adjusting the frequency to the full-range speaker.
• Features premium components, including inductors with air-core coils and higher-efficiency capacitors.
• Can be used with aftermarket 2-way car speakers.
• Reinforced and extend the life of circuit boards and connectors.
• Simple plug-and-play installation between the amplifier and the speaker.

Applications of 2-way crossover speakers

The two-way speaker is an important part of the sound system. It is very useful for improving the sound quality in many places, which are listed below.

• Home audio systems: Two-way speakers produce better sound than regular speakers. Many people like to use them as a special surround sound system for watching movies at home or playing video games. Others use them for playing high-quality music from streaming services.
• Public address systems: Two-way speakers are very useful for large meetings places like auditoriums where the sound needs to reach everyone clearly. The speech and music will sound better because the speaker can send sounds with both high and low frequencies.
• Car audio systems: Most modern cars have built-in sound systems that use two-way speakers to give the listening experience of a surround sound system. This allows drivers and passengers to enjoy music at higher quality while on the road.
• Musical instrument amplification: Many instrument amplifiers are designed with a two-way system to give a more detailed sound when musicians play guitars, keyboards, or other instruments during live shows.
• DIY audio projects: Audio enthusiasts often try using different crossover circuits as a way to learn about sound systems. It also allows them the opportunities of creating custom setups optimized for particular uses.

How to choose 2 way crossover speakers

When looking for a speaker crossover circuit, there are a few important things to think about before buying.

• Sound preferences and applications:

  Understanding preferences for sound and knowing how and where the speaker will be used are the first steps in getting the right gear. Skipping this step could lead to getting equipment that doesn't serve the user's needs and listening to music that's not enjoyable to them. A guitar amp speaker will need to handle much higher frequencies than a speaker for home use. Achieving a good low-end response is extremely important for speakers that will be used for larger live shows.

• Speaker size and power:

  First, find out how much power the amp can put out and how much power the speaker can take. If the amp puts out more power than the speaker, this could damage the speaker.

• Crossover frequency:

  Each type of speaker plays a different range of sounds. Finding out what frequency the crossover works at will let one know what it's good for. A lower crossover (like 1,000 Hz or below) will be good for speakers that handle midrange and bass. Higher crossovers (like 3,000 Hz or more) will work well with woofers and subwoofers.

• Slope design:

  The slope design, which is how quickly the sound at the crossover point drops after the slope, can be either 12 or 24 dB per octave. A 12 dB slope lets some of the sound above the crossover point still come through. A 24 dB slope cuts more of the sound above the crossover point. Slopes that take a long time are better for more complex speaker systems.

• Quality level and budget:

  Budget needs to be set first, then quality expected must be determined. There might be a difference in sound and parts depending on price. Price is not always an indication of those other things. Doing research on different brands and prices is a good idea before buying. Some brands offer lower-priced models that perform comparably to more expensive models.

• Size and weight:

  Size and weight are important because they need to be moved around and stored.

• Warranty and return policy:

  The furniture and equipment will need to be protected, and a good return policy will ensure the right item has been purchased. If something breaks, it is essential to know whether it can be fixed or not.

2 way crossover speaker Q & A

Q1: How does a 2-way speaker work?

A1: A 2-way speaker employs two distinct speaker components: a driver and a tweeter. The crossover efficiently divides the sound frequencies produced by the audio source between the two speakers. In this instance, the keepers generate high-frequency sounds, while the drivers create low- and mid-frequency sounds.

Q2: What does the crossover do in a speaker?

A2: A speaker's crossover circuit transfers the correct frequency range of an audio signal to each driver. High frequencies are sent to the tweeter, while low and midrange frequencies are sent to the woofer or midrange driver.

Q3: How to wire a crossover to 2 speakers?

A3: If one intends to utilize a passive crossover, connect the amplifier to the crossover first. From the crossover, run separate lines to each speaker. Active crossovers are wired differently since they send amplified signals to the speakers.
