Ready to ShipThere are several types of 2 1 reduction gearboxes, each designed for specific applications and operational conditions. Selecting the appropriate type of gearbox depends on the particular needs of a project, such as load capacity, speed, orientation, and environmental conditions. Below is a detailed overview of the common types.
A planetary gearbox consists of several 'planet' gears revolving around a central 'sun' gear and also engaging with an 'annulus' or 'ring' gear. The unique arrangement of gears allows for high reduction ratios in a compact size. These gearboxes are suitable for applications where torque density and mechanical efficiency are critical.
This kind of gearbox uses helical gears that are cut at an angle to the gearface, in contrast to straight-cut spur gears. Helical gears provide a smoother and hence quieter operation as multiple teeth come into contact at a particular instant; this contrasts with the spur gear, which is quite noisy due to its design. The 2 1 reduction gearbox, made of a cylindrical helical kit, is usually considered for heavy-duty operations where little vibration is needed and a durable and efficient power transmission is required.

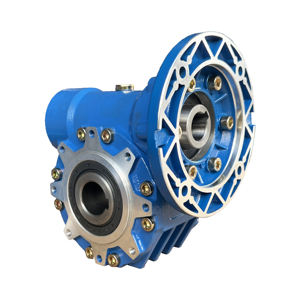

Worm gearboxes comprise a worm (a screw-like gear) that drives a larger helical gear or 'wheel'. This arrangement allows for very high reduction ratios with excellent torque amplification, for example, a 2 1 reduction gearbox, usually compact and well-suited for limited-space applications. Moreover, due to the gears' cross-axis orientation, these gearboxes can function effectively in tight areas.
This type of reduction uses spur gears, the most common use of gear teeth parallel to the shaft. It is the simplest form of reduction and is highly efficient for tasks where minimal torque loss is not a problem. A cylindrical spur gear kit is often used for basic mechanical devices where low-speed high-torque output is required.
The commercial value of a 2 1 reduction gearbox lies in its ability to optimize power transmission in various industrial and mechanical applications. With sustained global industrial growth, demand for these gearboxes has increased due to their multiplicity of applications across fields.
Here are some common uses that make them commercially relevant as well.
Reduction gearboxes are used to increase torque and decrease speed in electric motors employed throughout industrial settings. For the electric motor function, 2 1 reduction is ideal since it helps deliver optimal mechanical results with efficiency.
Many machines used in manufacturing like conveyor belts, mixers, and compressors all require power transmission. The 2 1 gearbox helps enhance operational efficiency; moreover, it withstands heavy loads in such mechanical situations.
In robotics, accurate motion control requires reduction gearboxes. They change motor output to give robots movements with high torque but low speed, making them ideal for robotic arms, grippers, and other precision tools. The demand increase for automation in industries has caused an increase in the demand for robotics and thus an increase in the demand for gearboxes.
Wind and solar energy systems also utilize them mostly in wind turbines, where they help transform the low-speed rotational energy from wind into higher-speed energy conducive to electricity generation. In solar tracking systems, gearboxes help move the solar panels to follow the sun for optimal energy capture.
The 2 1 reduction gearboxes are commonly found in construction equipment like excavators, cranes, and winches. They facilitate the movement of heavy loads with low engine power, improving fuel efficiency and extending engine life.
In automobiles, they are mainly used in differentials and automatic transmission systems, helping to equal the engine speed with wheel speed for better traction as well as fuel efficiency. Commercial vehicles where torque is more important employ these gearboxes to attain better hauling and towing capacity.
Even in the aerospace industry, these gearboxes are used in aircraft systems such as landing gear and control surfaces actuators, where they reduce engine output shaft speed while increasing torque to operate heavier components.
The efficiency of a 2 1 reduction gearbox can frequently be affected by different factors, thus resulting in torque loss or power transmission. Knowing these factors is very critical to optimizing the operation of a gearbox and also understanding when there might be issues with the production process.
Mechanical friction prevalent in the interacting gearbox components like gears, bearings, and seals is one of the principal causes of losses in efficiency. Friction between the interacting gear teeth surfaces resists motion. It consumes part of the input energy in the form of heat. Besides, friction between the rotating shafts and bearings also contributes to that energy loss. Lubrication is key to minimizing friction; hence, poorly lubricated components tend to consume more energy apart from accelerating wear and tear.
Uneven load distribution negatively affects the efficiency of a 2 1 reduction gearbox. It tends to slower the gears that are under more load because of more friction and wear and tear; thus, more energy is required to overcome this resistance. In applications that have variable loads or dynamic loads, that could lead to substantial efficiency losses. Proper load balancing helps counteract this problem.
Seals and gaskets are materials that prevent oil and grease from leaking out. However, they tend to consume a small part of the energy that passes through them in the name of power. This is referred to as 'seal drag'. While it is imperative to use seals to enhance lubrication maintenance, one must also ensure that the types of seals to employ do not have unnecessary resistance.
Improper alignment of gears within the gearbox can hinder the efficiency. When the gears are misaligned, more force is required to turn one gear, thus leading to increased friction and wear and tear. In extreme cases, misalignment can result in mechanical failure where the equipment needs to be shut down to conduct repair work. Therefore, proper alignment goes a long way in enhancing efficiency and long-term durability.
The working environment and conditions also contribute to efficiency. These include temperature, humidity, presence of contaminants, or even extreme operating conditions. High or low temperatures cause oil and grease to either thin or overheat, making them less effective in reducing the friction. A 2 1 reduction gearbox operating in a highly polluted or humid environment is at a greater risk of contaminants finding their way into it, affecting its efficiency and internal components. Therefore, maintaining optimal operating conditions is highly essential to maintain efficiency.
Selecting the right 2 1 reduction gearbox involves considering various factors to ensure the gearbox meets the application's requirements. Below is a detailed guide on the key factors to consider.
The amount of load that a gearbox is to handle is a very necessary factor to consider. It is so because it defines the material and construction strength. For example, high torque applications may call for a stronger gearbox made of spiral bevel gears like a 2 1 hydraulic reduction gearbox, while in applications where the load is less, lighter gearboxes can do the job. Also, consider variable and maximum load conditions to determine the gearbox's required capacity.
Users should also be keen on how much power the system needs so as to avoid overburdening and under powering the gearbox. It is important to note that the gearbox should be able to handle the input power that the source machine or motor generates. A mismatch between power and input may result in inefficient operation or even failure, where the gearbox is overloaded from too much power, or poor performance from too little power.
Environmental factors like temperature, humidity, and the presence of contaminants also affect gearbox selection. Extreme temperatures or polluted environments can degrade the gearbox and affect its operational efficiency. In such cases, the 2 1 reduction gearbox must be enclosed and constructed from materials that can withstand extreme environmental conditions. Alternatively, using contamination-resistant lubricants can enhance the durability of gearboxes in such scenarios.
It is necessary that the output speed requirement of the application being used should be met by the 2 1 reduction gearbox. It has to be so because a reduction gearbox decreases the input speed and increases the output torque. Therefore, the output speed has to align with application needs. If not, manufacturers have to select a different type of gearbox or use an alternative solution to rectify the problem.
The space available for installing a gearbox also contributes greatly to its selection. Modular reduction gearboxes are great for space-constrained areas, while standard-size gearboxes are suitable for areas with less constraint on size. Only the modular or standard planetary gear reduction box, for instance, is space-efficient and suitable for space-constrained installations, while the standard helical or spur gear reduction gearbox is suitable where space is not a constraint.
A1: A 2 1 reduction gearbox takes the high-speed low-torque energy produced by a source, like an electric motor, and through its gears transforms it into low-speed, high-torque energy for use in various devices and machines.
A2: The output of a reduction gearbox is the transformed mechanical energy, i.e., reduced-speed multiplied by torque, where a motor produces higher speed with a lower torque. Thus, the resulting output effect is lower speed, higher torque. In this case, the output effect will be torque and speed ( = input speed × engagement ratio).
A3: Gearbox efficiency is defined as the ratio between the output and input power. For the most part, it is expressed in a percentage. The percentage is simply the power output divided by the power input and then multiplied by 100%. It, therefore, means that efficiency helps indicate how well the gearbox can accomplish power transmission whereby loss in friction and heat does occur at the time of process transmission.
