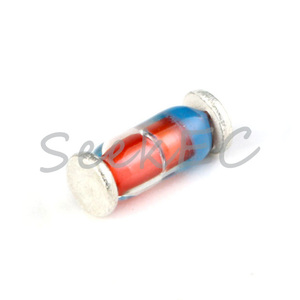

Various types of diodes serve different functions in electronics, from controlling current to rectifying voltage. The ZMM diode, a variant of the Zener diode, is designed primarily for voltage regulation. Understanding the diverse types of diodes allows businesses to stock and sell these essential electronic components based on customers’ needs and application requirements.
The Zener diode is designed to allow reverse current once a specific voltage, the Zener voltage, is reached. This quality makes it excellent for voltage regulation. Unlike other diodes, which block reverse current, the Zener diode is designed to conduct it safely. This unique function allows for stable voltage output in power supply circuits.
A silicon diode is the most common type of diode, made from silicon. It allows current to flow in one direction while blocking it in the opposite direction. Silicon diodes are used in various applications, such as rectification in power supplies, where they convert AC to DC.
Standard rectifier diodes are designed to handle the current and voltage required for basic rectification. These diodes are suitable for low-frequency applications such as power supplies and battery chargers, where efficient current flow in one direction is more critical than resistance to reverse voltage.
The ZMM diod combines Zener and silicon diode features. It can function as a rectifier and voltage regulator simultaneously. This versatility makes the ZMM diode valuable for circuits requiring both steady voltage output and current regulation. In such systems, the ZMM diode supports optimal performance by ensuring reliability and reducing component count.
Schottky diodes are designed with a metal-semiconductor junction rather than a semiconductor-semiconductor junction. This design allows them to conduct current more quickly, reducing the voltage drop. Schottky diodes are excellent for high-frequency applications in power supply circuits, RF systems, and charging circuits, where minimal power loss is essential.
Diodes are electronic components with diverse applications and inherent voltage blocking capabilities. As a result, their construction comprises materials other than silicon to cater to different needs. The materials used in constructing ZMM diodes are chosen for their ability to maintain ZMM diodes’ unique voltage regulation and rectification functions.
Silicon is the most common semiconductor material used in ZMM diodes, such as ZMM diod 1N. While silicon diodes are primarily rectified, ZMM diodes in the silicon family are built with additional layers to incorporate voltage regulation properties. Silicon is chosen due to its availability and ability to form a reliable junction.
While sapphire is not a common material for ZMM diodes, it can be used in specific applications. For example, the sapphire layer in a ZMM diode thin film can enhance thermal stability and increase the voltage regulation range. Sapphire is known for its hardness and durability, making it an attractive option for these ZMM diodes.
This compound is made from silicon and carbon. While primarily used in applications requiring high temperatures, SiC can be utilized in ZMM diodes to improve efficiency and stability. The compound’s wide bandgap helps reduce leakage current while improving the ZMM diode’s performance, especially in RF amplification systems.
Like silicon carbide, gallium nitride is excellent for high-power applications. ZMM diodes constructed with GaN are even more efficient than standard silicon ZMM diodes. GaN’s wide bandgap allows the gmm d to operate at higher voltages and frequencies with reduced power loss.
These days, ZMM diodes are primarily used in voltage regulation, circuit protection, and signal processing. Their ability to control voltage and prevent damage from excessive current makes them essential in electronics. As a result, understanding their commercial applications enables businesses to offer these diodes to cater to various customers' electronic component needs.
The most common use of ZMM diodes is to regulate voltage in power supplies. Electric and hybrid vehicles use diodes to ensure the end devices and circuit components receive the correct voltage. ZMM diodes maintain a steady voltage by clamping or reducing voltage to the desired level, ensuring that power fluctuations do not damage sensitive equipment.
In electronic systems, protecting components from excess current and voltage is vital. ZMM diodes can be used to safeguard circuits from transient voltages or current spikes. Any excess voltage is redirected through the ZMM diode, which protects the load or sensitive components. This protective change is critical in industrial equipment and consumer electronics.
ZMM diodes are used in communication circuits for signal clamping and level shifting. For example, in RF applications, ZMM diodes clamp the signal voltage to prevent saturation while avoiding distortion. This function ensures the received signal remains within operational levels, thus preventing damage to downstream components. These diodes also shift signal levels to match varying system requirements.
ZMM diodes can always provide a stable voltage reference in many applications. For example, in analog-to-digital converters (ADCs) and operational amplifiers, a stable voltage reference is needed to achieve accurate results. The ZMM diode provides the constant voltage required to eliminate fluctuations and thus ensure the stability required for high-precision measurements.
It is important to consider factors like desired voltage regulation, maximum reverse voltage, and diode current rating. Understanding these parameters helps select the right ZMM diode for voltage regulation and circuit protection. In addition, their features and commercial applications will be enhanced, ensuring that business buyers stock suitable diodes.
Choose ZMM diodes with maximum reverse voltage capacity to withstand clients' operational needs. Going for higher voltage diodes ensures they can handle the required voltage without breaking down. A diode operating beyond its reverse voltage rating may fail catastrophically. Therefore, assessing the voltage conditions in which customers will use the diodes is critical to ensuring reliable diode performance.
Since these diodes are primarily used for voltage regulation, it is important to consider regulation accuracy when selecting ZMM diodes. Some ZMM diodes are designed to maintain tighter voltage tolerances for high-precision applications. For example, in power supplies for communication equipment, small voltage variations can cause performance issues. In such situations, high-accuracy regulation is inevitable.
ZMM diodes can generate significant heat, especially in high-voltage or current applications. Therefore, it is best to consider the diodes’ heat dissipation mechanism to ensure reliable operation. Heat sinks or other cooling mechanisms are needed to keep the diode within the safe operating temperature range. In this case, ensure low-temperature coefficient diodes are selected.
The current rating of ZMM diodes must match the operational requirements of the systems where they will be employed. High current rating diodes are required for power applications. However, low-power systems only need diodes with low current ratings. Operating at the rated current will reduce diode stress and help increase system reliability. Always check the customer’s systems requirements to make informed selections.
A1: A ZMM diode has additional layers that enhance its features, thus making it a hybrid of Zener and silicon diodes. It can rectify and regulate voltage in a single package.
A2: A ZMM diod regulates voltage by allowing reverse breakdown at a specified voltage. Any voltage above this level will be clamped, thus providing a steady output voltage.
A3: Since ZMM diodes are supposed to be used mainly in low-power applications, those with gallium nitride or silicon carbide will help in high-power applications.
A4: Yes. In power applications, they are often coupled with heat sinks to ensure they operate under the maximum temperature range and, therefore, increase their lifespan.
A5: Operating beyond the voltage limit of ZMM diodes can cause breakdown like inregular diodes. However, the reverse recovery time will also increase, which may damage the diode over time.
