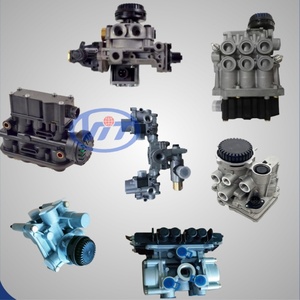

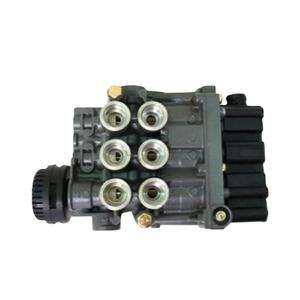

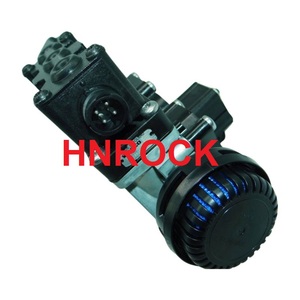

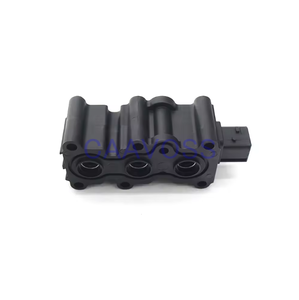

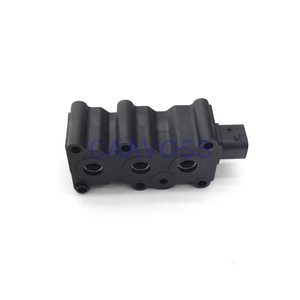

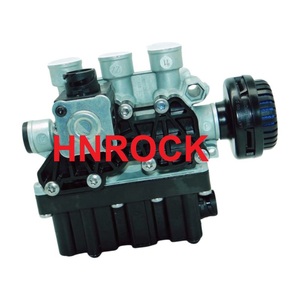

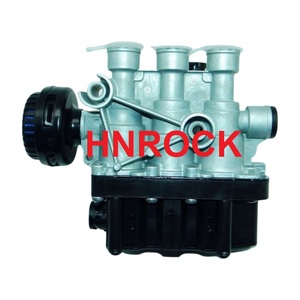

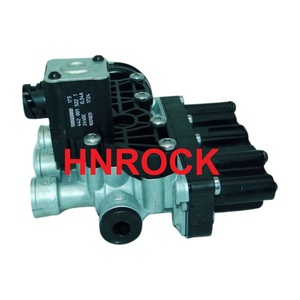

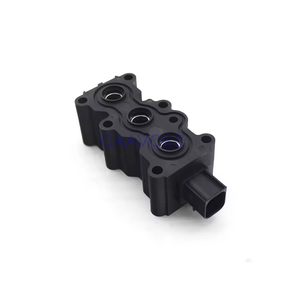

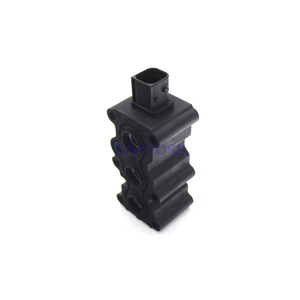

Types of WABCO ECAS Solenoid Valves
A WABCO ECAS solenoid valve is a critical component in the Electronic Controlled Air Suspension (ECAS) system of commercial and heavy-duty vehicles. These solenoid valves regulate compressed air flow within the suspension system to ensure optimal ride height, load distribution, and driving stability. Choosing the right type of WABCO ECAS solenoid valve is essential for maintaining vehicle performance, safety, and driver comfort.

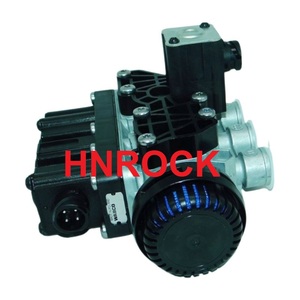

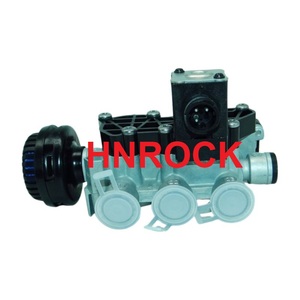

WABCO ECAS 4-Channel Valves
These advanced solenoid valves control the air flow independently at all four corners of the vehicle’s suspension system. This allows for precise leveling and height adjustments, which is especially crucial when dealing with varying cargo loads or uneven terrain.
Advantages
- Precise height adjustment at each wheel
- Enhanced stability on uneven surfaces
- Better weight distribution
- Improved handling and safety
Limitations
- More complex installation process
- Higher cost compared to simpler models
- Requires regular maintenance
Best for: Heavy trucks, buses, and vehicles requiring dynamic leveling capabilities
WABCO ECAS 2-Channel Valves
The 2-channel solenoid valves manage air flow to the front and rear axles, offering basic yet effective height control and leveling features. They are ideal for vehicles that do not require individual corner adjustments but still benefit from automatic suspension management.
Advantages
- Simpler design and operation
- Easier installation and maintenance
- Cost-effective solution
- Reliable performance under standard conditions
Limitations
- Limited adjustability compared to 4-channel models
- Less responsive to uneven loading
- Not suitable for high-performance applications
Best for: Medium-duty trucks, delivery vans, and standard commercial vehicles
WABCO ECAS 6-Function Valves
These multi-functional solenoid valves integrate several control features into one unit, including height regulation, emergency air supply, diagnostic functions, and more. They provide comprehensive control over the suspension system while also supporting real-time diagnostics for improved serviceability.
Advantages
- Integrated system with multiple functions
- Supports advanced diagnostics
- Emergency backup functionality
- Highly adaptable to different driving conditions
Limitations
- Higher initial investment
- More complex troubleshooting required
- May require specialized tools for diagnostics
Best for: High-end commercial vehicles, luxury coaches, and fleet vehicles requiring maximum suspension control
WABCO ECAS Upgrade Kits
Designed for retrofitting older air suspension systems, these upgrade kits include new solenoid valves, sensors, and control modules. They offer a practical way to modernize aging ECAS systems without replacing the entire suspension setup.
Advantages
- Cost-effective alternative to full replacement
- Improves performance of legacy systems
- Easy integration with existing components
- Extends vehicle service life
Limitations
- Compatibility may vary depending on model year
- Older chassis may limit overall performance gains
- Installation requires technical expertise
Best for: Fleet operators, owners of older commercial vehicles, and budget-conscious upgrades
WABCO ECAS Smart Valves
Smart solenoid valves feature built-in sensors and communication modules that allow real-time data exchange with the vehicle’s onboard systems. These valves adapt dynamically to changing road conditions, vehicle speed, and load distribution for an optimized ride experience.
Advantages
- Real-time adaptive suspension control
- Integration with telematics and diagnostics
- Improved fuel efficiency through optimized suspension
- Enhanced driver comfort and safety
Limitations
- Most expensive option
- Requires software updates and monitoring
- Dependent on vehicle’s electrical system reliability
Best for: Modern commercial vehicles, autonomous or semi-autonomous platforms, and high-tech fleets
| Type | Adjustment Precision | Functionality | Complexity | Best Application |
|---|---|---|---|---|
| 4-Channel Valves | Excellent | High | High | Heavy trucks, buses, dynamic leveling |
| 2-Channel Valves | Good | Moderate | Low | Delivery vans, medium-duty vehicles |
| 6-Function Valves | Very Good | Very High | Very High | Luxury coaches, premium commercial vehicles |
| Upgrade Kits | Varies | High | Moderate | Fleet retrofits, older vehicles |
| Smart Valves | Excellent | Exceptional | Very High | Modern, tech-integrated commercial vehicles |
Expert Tip: When installing or upgrading WABCO ECAS solenoid valves, always check compatibility with your vehicle’s ECU and ensure proper calibration to avoid false error codes and improper suspension behavior.
Types of Three-Phase Electric Motor Clutches
A three-phase electric motor clutch is a vital mechanical component that controls the transmission of rotational power between the motor and the driven machinery. These clutches enable seamless engagement and disengagement of power transfer, making them essential in industrial systems such as conveyors, hoists, machine tools, and automated production lines.
Designed to withstand high torque loads and provide precise control, three-phase motor clutches come in various configurations tailored to specific operational needs. Understanding the different types allows for better selection based on application requirements, load capacity, and system efficiency goals.
Electromagnetic Clutches
These are the most widely used clutches in three-phase motor applications. They operate using electromagnetic principles where energizing the coil creates a magnetic field that pulls the friction plates together, engaging the clutch. When power is cut off, springs push the plates apart, disengaging the clutch.
Advantages
- Fast response time for engagement/disengagement
- Smooth operation with minimal wear
- Easy integration with electrical control systems
- Low maintenance due to non-contact activation
Limitations
- Not suitable for high-torque or heavy-duty cycles
- Heat buildup during continuous use
- Sensitive to voltage fluctuations
Best for: Applications requiring frequent starts/stops like packaging machines, printing presses, and conveyor belts
Pneumatic & Hydraulic Clutches
These clutches rely on pressurized air (pneumatic) or hydraulic fluid (hydraulic) to engage or disengage. Pneumatic versions are common in lighter industrial uses, while hydraulic clutches excel in transmitting high torque levels with consistent performance.
Advantages
- Excellent torque handling capabilities
- Consistent engagement under variable loads
- High durability in harsh environments
- Can be integrated into existing fluid power systems
Limitations
- Requires auxiliary compressors/pumps
- More complex installation and maintenance
- Higher initial setup cost
Best for: Heavy machinery, cranes, construction equipment, and metalworking tools
Torque Converter Clutches
Commonly found in automatic transmissions but also applicable in certain motor-driven systems, these clutches use hydraulic pressure from transmission fluid to lock or unlock the connection between the engine and the load. This enables smooth power delivery and slip-free operation at higher speeds.
Advantages
- Provides smooth acceleration and deceleration
- Reduces shock loading on connected components
- Improves energy efficiency by minimizing slippage
- Self-regulating through fluid dynamics
Limitations
- Less efficient at low speeds
- Complex design increases repair costs
- Fluid temperature management required
Best for: Vehicle drivetrains, large pumps, and marine propulsion systems
Centrifugal Clutches
These mechanical clutches automatically engage or disengage based on the rotational speed of the motor shaft. At low RPMs, internal weights retract, disengaging the clutch. As RPM increases, centrifugal force pushes the weights outward, locking the clutch plates together.
Advantages
- No external control needed
- Simple, rugged design with few moving parts
- Automatic operation saves manual intervention
- Cost-effective for small-scale applications
Limitations
- Limited torque capacity
- Engagement can be jerky if not properly tuned
- Wear-prone at high speeds
Best for: Small engines, go-karts, lawnmowers, and agricultural equipment
Single & Multi-Plate Clutches
Single-plate clutches use one friction disc to transmit torque, while multi-plate clutches stack multiple discs to increase surface area and torque capacity. The latter is especially effective in compact designs where high power density is required.
Advantages
- Multi-plate offers higher torque in same footprint
- Improved heat dissipation through multiple surfaces
- Customizable for different load profiles
- Available in dry and wet (oil-cooled) variants
Limitations
- Multi-plate units are heavier and more expensive
- More complex assembly and alignment
- Requires regular inspection and adjustment
Best for: Industrial motors, robotics, and precision machinery requiring high torque density
| Type | Primary Use Case | Torque Capacity | Control Method | Maintenance Level |
|---|---|---|---|---|
| Electromagnetic | Conveyors, packaging machines | Medium | Electrical | Low |
| Pneumatic/Hydraulic | Heavy machinery, cranes | High | Fluid pressure | Moderate |
| Torque Converter | Vehicles, marine drives | Very High | Hydraulic | Moderate |
| Centrifugal | Small engines, agriculture | Low to Medium | Speed-dependent | Low |
| Single/Multi-Plate | Industrial motors, robotics | Medium to Very High | Mechanical/Electromagnetic | Moderate to High |
Expert Tip: Always match the clutch type to the motor’s operating conditions—consider factors like speed variation, load inertia, duty cycle, and environmental exposure to ensure long service life and optimal performance.
How to Choose WABCO ECAS Solenoid Valves
Selecting the correct WABCO ECAS (Electronic Controlled Air Suspension) solenoid valve is essential for maintaining optimal vehicle performance, ride comfort, and system longevity. The process involves more than just matching part numbers — it requires a thorough understanding of your air suspension system and operational needs.
Understand the System Functionality
Familiarizing yourself with how the ECAS system operates in your specific vehicle is crucial. This includes knowing how the system maintains vehicle height, responds to load changes, and integrates with other chassis systems like ABS or stability control.
- Learn how the ECAS adjusts ride height based on speed and load
- Understand the role of solenoid valves in controlling air flow to suspension bellows
- Recognize warning signs of ECAS system faults that may point to solenoid issues
Pro tip: Review technical documentation from WABCO or consult factory service manuals for system diagrams
Identify Suspension System Type
Commercial vehicles use various air suspension configurations, including front-only, rear-only, or full air suspension setups. Each configuration has different requirements for solenoid valve functionality and capacity.
- Front suspension systems often prioritize ride comfort over load capacity
- Rear systems typically handle heavier loads and require robust valve performance
- All-wheel air suspension systems need synchronized valve operation across multiple axles
Critical check: Verify whether your system uses single-acting or double-acting solenoid valves
ECAS Model Identification
Accurate model identification ensures compatibility between the solenoid valve and the specific ECAS generation installed on your vehicle. Different ECAS generations (e.g., ECAS1, ECAS2, ECAS3) have varying electrical interfaces, communication protocols, and valve actuation patterns.
- Locate the model number on the ECAS control unit housing
- Cross-reference with WABCO's official part catalog
- Check for any software version updates that might affect valve compatibility
Note: Some newer ECAS models integrate diagnostic functions directly into the solenoid valve assembly
Diagnose Existing Issues
Before replacing a solenoid valve, proper diagnosis helps determine if the issue is indeed caused by the valve itself rather than related components like height sensors or air springs.
- Look for uneven vehicle height when stationary or during motion
- Listen for unusual hissing sounds indicating air leaks
- Check for error codes using appropriate diagnostic tools
- Test valve response through manual activation if possible
Common symptoms: Vehicle leaning to one side, erratic height adjustments, constant compressor cycling
Selection Advice: When replacing ECAS solenoid valves, always consider purchasing genuine WABCO parts or certified equivalents from reputable suppliers. While aftermarket options may be cheaper initially, they can lead to reduced system performance, increased maintenance costs, and potential voiding of warranty coverage on related components.
Consult Technical Documentation
The manufacturer's user manual and technical guides contain vital information about the ECAS system specifications, recommended maintenance intervals, and troubleshooting procedures.
- Find detailed schematics showing valve placement and connections
- Review recommended torque values for installation hardware
- Check for specific programming steps required after replacement
- Follow proper bleeding procedures for hydraulic systems where applicable
Important: Some ECAS systems require recalibration after component replacement
Professional Assistance and Budget Considerations
While some experienced technicians may install solenoid valves independently, consulting professionals ensures proper installation and system integration. Budget considerations should balance upfront costs with long-term reliability and performance.
- Factor in labor costs when comparing DIY vs professional installation
- Consider bulk pricing for fleet operators or frequent replacements
- Explore extended warranty options for premium valve models
- Evaluate cost-per-mile metrics rather than initial purchase price alone
Value insight: High-quality solenoid valves can last up to 50% longer than budget alternatives under similar operating conditions
| Vehicle Type | Typical Valve Configuration | Recommended Features | Budget Range (USD) |
|---|---|---|---|
| Light commercial truck | Single/dual solenoid setup | Standard duty cycle, basic diagnostics | $150 - $300 |
| Heavy-duty tractor-trailer | Multiplexed valve network | High-flow design, wear monitoring | $400 - $700 |
| Bus/coach | Synchronized multi-axle system | Redundant circuits, advanced diagnostics | $600 - $1,000 |
| Fleet operations | Modular replacement units | Quick-connect fittings, standardized mounting | $200 - $500 (bulk pricing available) |
How to DIY and Replace WABCO ECAS Solenoid
Replacing a WABCO ECAS (Electronic Controlled Air Suspension) solenoid is a crucial maintenance task for commercial vehicles using air suspension systems. When the ECAS system fails, it can lead to uneven vehicle height, poor ride quality, or even safety issues. The good news is that with proper tools, basic mechanical knowledge, and this detailed guide, you can replace the solenoid yourself without needing professional assistance.
Before starting, ensure your replacement kit includes all necessary components — most importantly, the WABCO ECAS solenoid valve itself. Additional parts like mounting brackets, O-rings, washers, and gaskets may also be included depending on the model. Always refer to your vehicle’s service manual for specific part numbers and installation instructions.
Safety Warning: Always work in a well-lit, ventilated area and wear protective gloves and eyewear. Make sure the vehicle is securely parked on level ground and the air system is fully depressurized before beginning any work.
Step-by-Step Replacement Guide
- Preparation
- Park the vehicle on a flat, stable surface and engage the parking brake to prevent accidental movement.
- Turn off the engine and disconnect the battery to avoid electrical hazards during the procedure.
- Gather essential tools such as socket set, wrenches, screwdrivers, zip ties, and soapy water for leak testing.
- Ensure the air suspension system is completely depressurized by turning off the ignition and releasing residual pressure through the system if applicable.
- Identify and Remove the Old Solenoid
- Locate the ECAS solenoid valve — typically mounted on the chassis near the front or rear axle assembly where the air suspension lines converge.
- Inspect the surrounding area for obstructions or dirt buildup. Clean the area to avoid contamination when handling air lines.
- Using the appropriate socket or wrench, carefully remove the bolts or nuts securing the old solenoid valve to its bracket or mount.
- Before disconnecting the air lines and wiring harness, take clear photos or make a simple diagram of their routing and connections for reference during reinstallation.
- Gently disconnect the air lines from the solenoid ports and secure them with caps or zip ties to prevent dust ingress.
- Unplug the electrical connector from the solenoid. If there's resistance, press the locking tab before pulling it free.

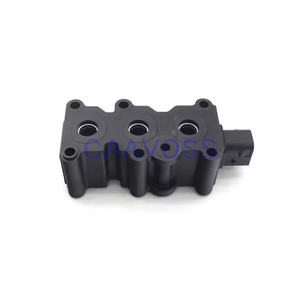

- Install the New Solenoid Valve
- Take the new WABCO ECAS solenoid valve and compare it with the old one to confirm compatibility and correct orientation.
- Position the new solenoid into place, aligning it with the existing mounting holes. Use the original bolts or new ones if specified in the kit.
- Tighten the mounting hardware to the manufacturer’s recommended torque specifications to avoid over-tightening and potential damage.
- Reconnect the air lines following your earlier diagram or photo, ensuring each hose is seated properly onto the corresponding port and secured with clamps if needed.
- Plug the electrical connector back into the solenoid, making sure it clicks into place and is fully seated.
- Final Steps and Testing
- Reconnect the vehicle battery, ensuring the terminals are clean and free from corrosion. Apply dielectric grease if available to protect against moisture.
- Start the engine and allow the air system to build up pressure. Observe the ECAS system to see if the suspension levels correctly.
- Use a mixture of soapy water to spray around the air line connections and check for bubbles indicating leaks. Repair any leaking connections immediately.
- Verify that the ECAS system functions properly by checking the vehicle’s leveling behavior on different surfaces and inclines.
- Take the vehicle for a short test drive at low speed to ensure everything is working smoothly and the suspension responds appropriately.
| Stage | Key Tasks | Common Mistakes | Recommended Tools |
|---|---|---|---|
| Preparation | Depressurizing system, gathering tools, disconnecting battery | Rushing into work without proper preparation or missing tools | Socket set, wrenches, screwdrivers, multimeter |
| Disassembly | Documenting connections, removing old solenoid | Mixing up air line routing or damaging connectors | Camera/phone, zip ties, cleaning cloth |
| Installation | Aligning and securing new solenoid, reconnecting hoses and wires | Improper torque, incorrect connections | Torque wrench, pliers, air line clamps |
| Testing | Checking for leaks, verifying ECAS operation | Skipping leak test or driving without verification | Soapy water, flashlight, helper |
DIY Tip: Label each air line and electrical connection before removal. This will save time and reduce errors during reinstallation. Consider using colored zip ties or numbered tags for easy identification.
Additional Tips for Long-Term Performance
- Regularly inspect the ECAS system for signs of wear or leakage, especially after long trips or rough road conditions.
- Keep a spare ECAS solenoid valve on hand for emergency replacements, particularly if you operate in remote areas.
- Follow the manufacturer’s maintenance schedule for the entire air suspension system to prolong component life.
- Use high-quality air filters and desiccants in the air dryer to prevent moisture-related failures in the solenoid and other components.
WABCO ECAS Solenoid Valve FAQ: Troubleshooting and Maintenance Guide
The WABCO ECAS (Electronic Controlled Air Suspension) solenoid valves play a crucial role in maintaining proper vehicle ride height and stability. Common issues include:
- No response from the solenoid valve: This could stem from electrical failures such as blown fuses, broken wiring, or faulty control modules. Check for continuity in the wiring harness and ensure that the ECU is sending the correct signals.
- Slow operation: Often caused by partial blockages in the air passages or weakened magnetic coils within the solenoid. Clean the internal channels and verify the voltage supply to the solenoid meets specifications.
- Air leaks: Leaks typically occur at connection points or due to worn diaphragms inside the valve. Inspect all fittings and O-rings, and replace any damaged components.
To resolve these issues, follow this systematic approach:
- Inspect and clean all electrical connections for corrosion or damage.
- Test the solenoid valve using a multimeter to confirm it’s receiving power and functioning correctly.
- Disassemble the valve if necessary (if repairable), clean internal parts, and replace seals.
- Ensure all pneumatic connections are properly tightened and sealed.
While some WABCO ECAS solenoid valves may have serviceable components like coil assemblies or plunger kits, most modern units are designed as sealed systems for reliability and contamination prevention. Repairs are technically possible in controlled environments but generally not recommended for several reasons:
- Contamination risk: Once disassembled, microscopic dust or moisture can enter the valve, leading to future malfunctions.
- Lack of precision: Reassembly requires specialized tools and calibration to restore original performance.
- Cost vs benefit: Labor costs for repairs often exceed the price of a new OEM replacement, especially when considering downtime and reliability concerns.
Therefore, in commercial or fleet applications where uptime and safety are critical, it's best practice to replace faulty solenoid valves rather than attempt repairs. Always use genuine WABCO parts to ensure compatibility and system integrity.
Proper maintenance of WABCO ECAS solenoid valves extends their operational life and prevents costly breakdowns. Here's a recommended maintenance schedule:
| Maintenance Task | Frequency | Description |
|---|---|---|
| Visual inspection | Monthly | Check for signs of wear, leakage, or corrosion on the valve body and connections. |
| Electrical connection check | Every 3 months | Verify wiring and connectors are secure and free from dirt or oxidation. |
| Air filter inspection/cleaning | Every 6 months | Ensure the compressed air supply is clean and dry to prevent particulate buildup in the valve. |
| Functional test | Annually | Use diagnostic software or manual testing methods to verify proper valve operation and response times. |
In addition to these checks, always keep the surrounding area clean and ensure the vehicle’s air dryer and filtration systems are functioning properly to protect the entire ECAS system from contaminants.
If the ECAS solenoid valve activates (you may hear a click or see indicator lights) but there is no change in the suspension height or pressure, consider the following potential causes:
- Blockage in the air lines: Debris or condensation may restrict airflow. Disconnect and inspect the lines for kinks or obstructions.
- Leak in the suspension chamber: Faulty bellows, shock absorbers, or leaking joints can prevent pressure buildup. Conduct a visual leak test using soapy water to identify escaping air bubbles.
- Failed compressor or pressure sensor: If the compressor isn’t delivering enough pressure or the sensor is malfunctioning, the system won’t adjust properly. Use diagnostic tools to monitor real-time pressure readings.
- ECU error or misconfiguration: Software glitches or incorrect ride height settings can prevent proper operation. Reset the system or recalibrate using WABCO diagnostic software.
Begin troubleshooting by isolating each component in the ECAS chain—starting with the solenoid valve itself, then moving to the air lines, actuators, and finally the ECU. For complex diagnostics, consult the manufacturer’s technical documentation or contact a certified technician for professional assistance.
