Volume air flow sensor

Types of volume air flow sensors

A volume air flow sensor detects the quantity of air flowing in and out of a space. There are several types of volume air flow sensors, including;

• Mass airflow sensor

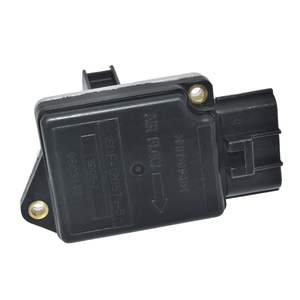

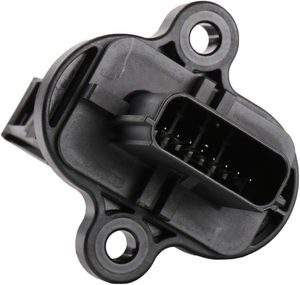

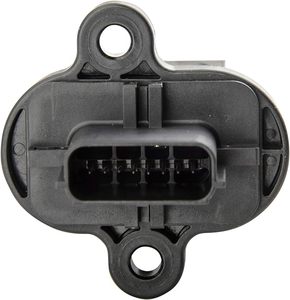

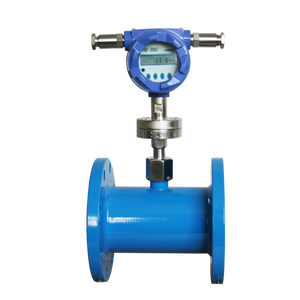

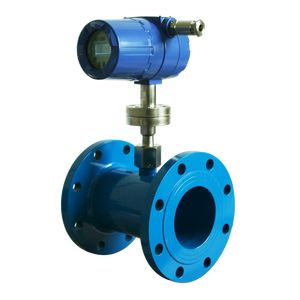

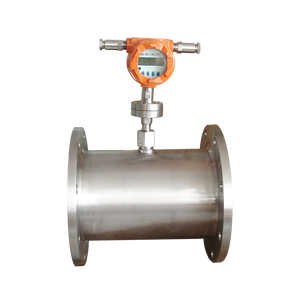

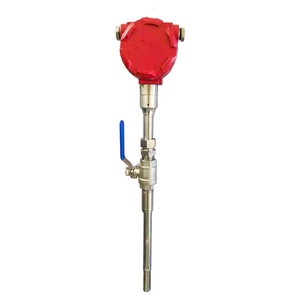

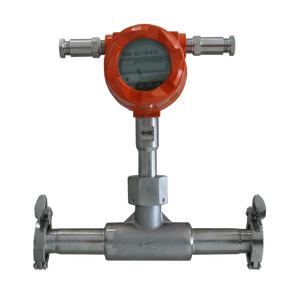

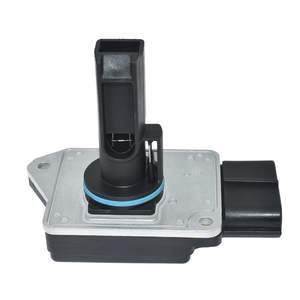

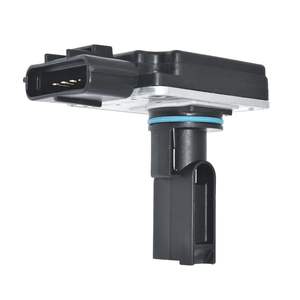

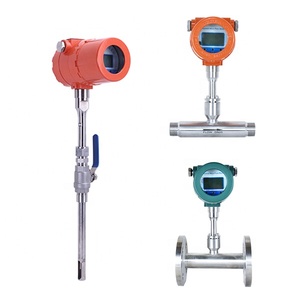

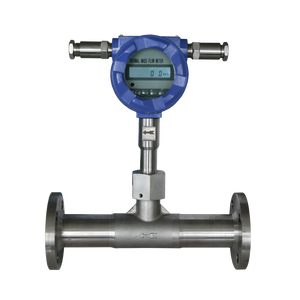

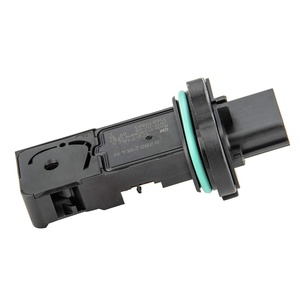

  A mass air flow sensor measures the mass of air flowing into the engine. The information it provides is used by the engine control unit to determine how much fuel to inject into the cylinders. A mass airflow sensor has two plates that heat up. One plate stays warm and acts as a reference point. The other plate is warmer because of the air that flows by it. The difference in temperature between the two plates tells the sensor how much air is flowing. There are two types of mass airflow sensors:

  - Hot wire MAF sensor: This sensor has a heated wire in the airflow. The more air that passes by, the cooler the wire gets. The change in temperature is measured.

  - Film MAF sensor: Instead of a wire, this sensor has a chip with heating elements. It works like the hot wire sensor but uses printed circuits instead of a wire.

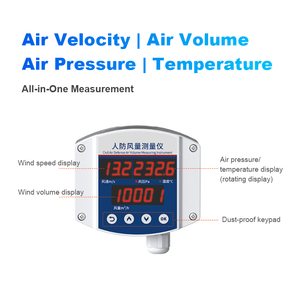

• Volume airflow sensor

  Volume airflow sensors measure the total volume of air moving through a duct or space. They are used for ventilation control and monitoring air quality. There are two main types:

  - Positive displacement sensors: They trap a known volume of air and then count how many times it fills up and empties. This gives the total airflow.

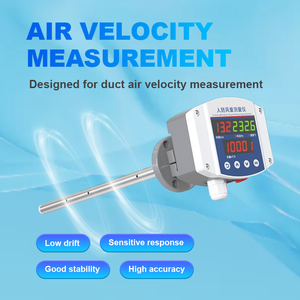

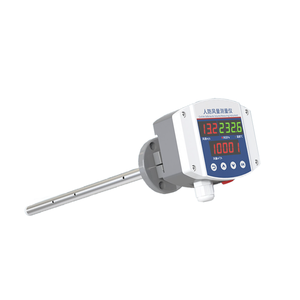

  - Velocity sensors: They measure how fast the air is moving by feeling the wind. Then, they multiply that speed by the duct's size to get the volume. These sensors use different methods to detect velocity, like using pressure differences or moving parts that feel the wind.

• Digital airflow sensor

  These sensors convert the airflow signal into a digital reading that a computer can easily understand and display. Digital sensors often use mass or volume sensing techniques combined with digital processing to provide precise and real-time airflow data. They can also interface with other electronic systems for monitoring and control.

There are specialized airflow sensors for various applications, including automotive, HVAC systems, cleanrooms, data centers, and industrial processes. While automotive sensors focus on optimizing engine performance and emissions, airflow sensors in HVAC systems ensure indoor air quality and comfort and monitor airflow in cleanrooms and data centers to maintain critical environmental conditions. Industrial and medical applications require customized sensors tailored to specific airflow requirements and measurement ranges.

Specification & Maintenance of Volume Air Flow Sensors

There are several specifications to consider when choosing a volume air flow sensor for a specific application. These include:

• Accuracy

  Volume air flow sensors have different levels of accuracy based on the technology used. For instance, mass flow sensors have a higher level of accuracy compared to other types of airflow sensors. A higher degree of precision is desirable in applications that have critical air volume control.

• Flow Range

  Different sensors have flow ranges that are suitable for specific applications. Choosing a volume airflow sensor with a flow range that matches the application is important. For instance, a sensor with a low flow range is ideal for applications with low airflow, such as cleanrooms, while sensors with high flow ranges are suitable for industrial processes with high air volume.

• Response Time

  Volume airflow sensors have different response times based on their specifications. A sensor with a faster response time is ideal for applications that require real-time air volume monitoring. Such sensors are used in HVAC systems and industrial processes where air volume changes affect the process. Sensors with a slower response time are suitable for applications where real-time monitoring is not critical.

• Temperature and Pressure Compensation

  In some applications, the temperature and pressure may affect the air density and flow. Therefore, airflow sensors with temperature and pressure compensation are ideal as they provide accurate flow measurements regardless of the environmental conditions. Such sensors are used in applications where temperature and pressure vary and affect the air volume flow.

• Material Compatibility

  The materials used to make a volume airflow sensor should be compatible with the application. For instance, sensors made with corrosion-resistant materials are suitable for applications with corrosive gases, such as the chemical industry where sensors measure the flow of chemical vapors.

• Power Supply

  Different airflow sensors have varying power supply requirements. While some use a standard voltage power supply, others may require a battery or a backup power supply. Therefore, it is important to choose volume airflow sensors that have power supply requirements that are available in the specific application.

Regular maintenance is essential to keep the volume air flow sensors working properly and to extend their lifespan. The following are some of the maintenance requirements for volume air flow sensors:

• Cleaning: The sensor elements are prone to dirt and dust accumulation, which can affect their performance. As such, the sensors should be cleaned regularly using a soft brush or cloth. In addition, the manufacturer's guidelines for cleaning the specific sensor type should be followed.
• Calibration: Airflow sensors should be calibrated regularly to ensure accuracy. This is important because factors such as temperature and pressure can affect their performance. The manufacturer's guidelines for calibration of the specific sensor type should be followed using a certified airflow calibrator.
• Visual Inspection: Volume air flow sensors should be visually inspected regularly for signs of damage such as cracks or corrosion. Damaged sensors should be replaced immediately to avoid inaccurate airflow measurements that can affect the process.
• Electrical Connections: The electrical connections of the volume air flow sensors should be checked regularly to ensure they are tight. Loose connections can lead to inaccurate airflow measurements and should be fixed immediately.
• Environmental Conditions: Airflow sensors should be protected from harsh environmental conditions such as extreme temperatures, humidity, and corrosive gases. This is because such conditions can affect their performance and lead to inaccurate airflow measurements.

Following the above maintenance requirements ensures the volume air flow sensors are maintained in good condition. This leads to accurate airflow measurements and improves their lifespan.

How to choose volume air flow sensors

There are countless options for mass air flow sensors for both buyers and car owners in the market today. With so many choices out there, what should be considered when choosing a volume air flow sensor? Here are a few things that should be taken into consideration before making the choice:

• One of the most important things to consider is the specification of the car. The sensor should match the requirements of the vehicle's make and model. This includes the voltage and the pin configuration. Mass air flow sensors work with a specific range of airflow and sensitivity. It is important to choose a sensor designed to accurately measure the expected airflow through the vehicle's intake system.
• Cost is another important factor. However, it is important to be careful not to compromise on quality for a low price. While the initial cost of a quality mass air flow sensor may be higher than that of a generic one, it will pay off in the long run by extending the life of the engine and improving fuel efficiency. This is because quality sensors offer better performance and reliability than generic ones.
• Quality is not the only thing that should be considered. The brand name of the volume air flow sensors also matters. It is advisable to go for reputable brands. This is because reputable brands use quality materials in manufacturing their products, which ensures durability and reliability.
• Another important factor to consider is the warranty. A good mass air flow sensor should have a minimum of 2 years warranty, with some going up to 5 years. This gives the buyer peace of mind knowing they are covered in case of product failure.

With these considerations in mind, choosing the right volume airflow sensor shouldn't be a difficult task.

How to DIY and Replace of Volume Air Flow Sensors

A bad mass air flow sensor can be replaced with the right tools and a basic understanding of the vehicle's air intake system. Here's a step-by-step guide on how to replace a mass air flow sensor:

Tools Needed:

• New mass air flow sensor (compatible with the vehicle's make and model)
• Torx or Phillips screwdriver (depending on the sensor's screws)
• 10mm socket or wrench
• Electrical cleaner or contact cleaner
• Lint-free cloth
• Gloves (optional)

Step-by-Step Guide:

• 1. Turn off the engine and ensure the key is removed from the ignition.
• 2. Locate the mass air flow sensor. It is typically found between the air filter housing and the throttle body.
• 3. Disconnect the electrical connector from the sensor. Depending on the connector type, this may require pressing a tab or using a small screwdriver.
• 4. Use a screwdriver or socket/wrench to remove the screws or bolts securing the sensor to the air intake duct.
• 5. Gently pull the old sensor out of the air intake duct. Be cautious not to drop any screws or debris into the engine.
• 6. If the new sensor comes with a sealing gasket, install it on the sensor.
• 7. Insert the new mass air flow sensor into the air intake duct, ensuring it is oriented in the same direction as the old sensor.
• 8. Reinstall the screws or bolts to secure the sensor in place.
• 9. Reconnect the electrical connector to the sensor, ensuring it is seated firmly.
• 10. Start the engine and allow it to idle for a minute. Check for any unusual sounds or warning lights on the dashboard.

Old sensors are often cleaned and reused. However, it is recommended to replace a bad mass air flow sensor rather than attempt to clean it. This is because cleaning may not always restore the sensor's original functionality, especially if it is severely degraded or damaged.

Always refer to the vehicle's service manual for specific instructions and torque specifications. If unsure or uncomfortable performing the replacement, it's best to have a professional mechanic handle the job.

Q and A

Q1: What is a mass air flow sensor?

A1: This sensor is used to measure the amount of air flowing into the engine. It helps the engine control unit (ecu) determine the right amount of fuel to inject, ensuring optimal combustion and performance.

Q2: Where is the mass air flow sensor located?

A2: It is located in the air intake system, usually between the air filter and the throttle body. Its position allows it to accurately measure the air entering the engine.

Q3: Can a car run without a mass air flow sensor?

A3: Technically, a vehicle can operate without a mass air flow sensor, but it will not perform efficiently. The absence of a functioning sensor will lead to incorrect air-fuel mixtures, potentially causing rough idling, misfires, or decreased engine performance. In modern cars, other systems like the ECU rely on input from the MAF sensor to optimize performance and emissions.

Q4: What are the signs of a faulty mass air flow sensor?

A4: Common symptoms of a failing MAF sensor include poor engine performance (especially during acceleration), increased fuel consumption, rough idling, check engine light activation, and in some cases, emissions issues. As the sensor measures the amount of air entering the engine, inaccurate readings can disrupt the air-fuel mixture, affecting overall performance and efficiency.

Q5: How long does a mass air flow sensor last?

A5: While mass air flow sensors are built to last, their lifespan can range from 50,000 to 80,000 miles or more with good maintenance and care. However, factors like exposure to oil, dirt, and debris can shorten their lifespan. Regular checks and cleaning can help maintain their condition and performance.
