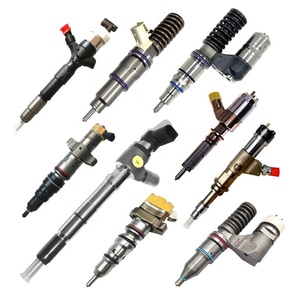

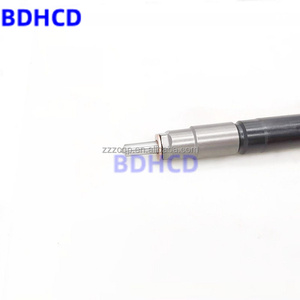

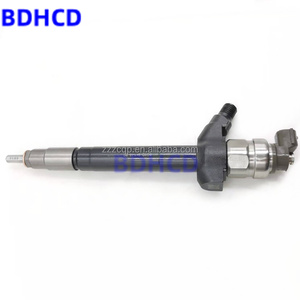

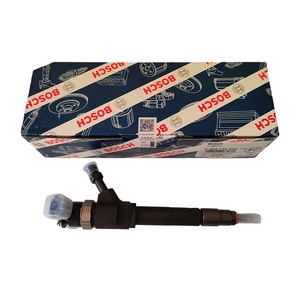

Types of TDCI Injectors

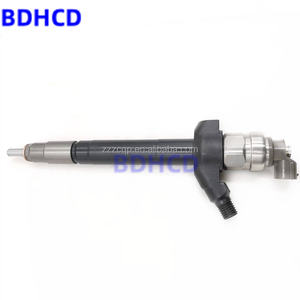

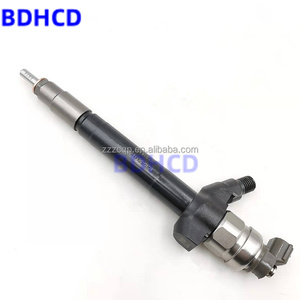

A TDCI (Turbocharged Direct Fuel Injection) system is a cornerstone technology in modern diesel engines, designed to optimize combustion efficiency, reduce emissions, and enhance fuel economy. At the heart of this advanced system lies the TDCI injector — a precision-engineered component responsible for controlling the timing, pressure, and volume of fuel injected directly into the engine's combustion chamber.
The performance of a diesel engine heavily depends on how effectively the injectors atomize and distribute fuel within the combustion chamber. Different types of TDCI injectors have been developed to meet specific performance requirements across various vehicle applications, including passenger cars, commercial trucks, and high-performance machinery.

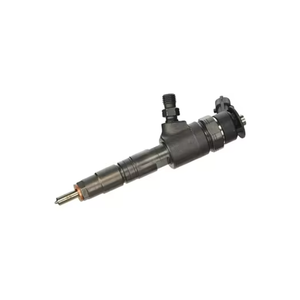

Piezoelectric Injectors
Piezoelectric injectors utilize piezoelectric crystals that rapidly expand or contract when subjected to an electric voltage. This unique property allows for extremely precise control over the injection process, enabling multiple injection events per combustion cycle. The ability to fine-tune fuel delivery enhances engine smoothness, power output, and emission control.
Advantages
- Ultra-fast response time for precise fuel metering
- Supports multiple injections per cycle
- Improves emissions and fuel efficiency
- Enhances throttle response and engine refinement
Limitations
- More complex design increases manufacturing cost
- Higher maintenance costs if damaged
- Requires advanced ECU calibration
Best for: High-end passenger vehicles, luxury sedans, and engines requiring superior fuel efficiency and quiet operation

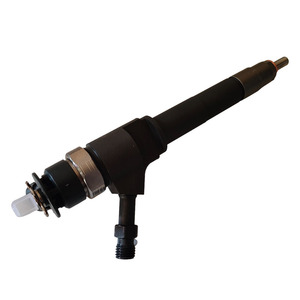

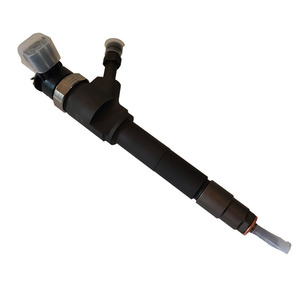

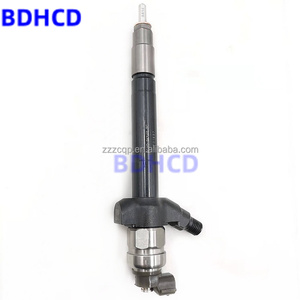

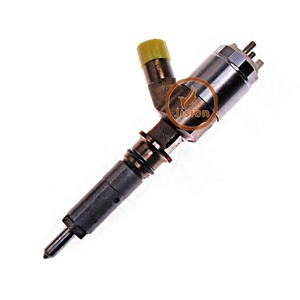

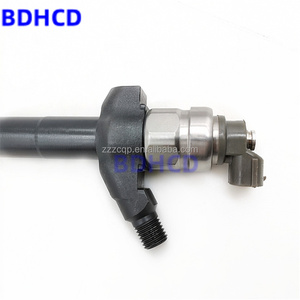

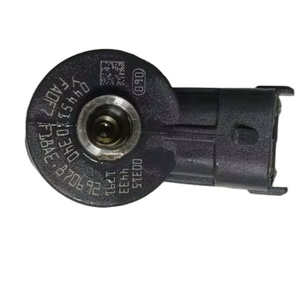

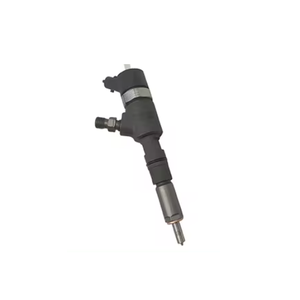

Solenoid Injectors
Solenoid TDCI injectors use electromagnetic solenoids to actuate the nozzle needle, allowing fuel to be injected under high pressure. These injectors are known for their robust construction and reliable operation, making them ideal for demanding environments where durability is crucial.
Advantages
- Proven reliability and long service life
- Cost-effective compared to piezoelectric types
- Easier diagnostics and replacement
- Excellent performance in heavy-duty applications
Limitations
- Limited injection precision compared to piezo systems
- Slower response time
- Less efficient at ultra-low emissions standards
Best for: Commercial trucks, industrial equipment, and older generation diesel vehicles

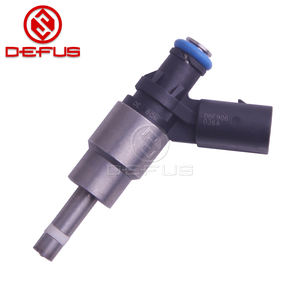

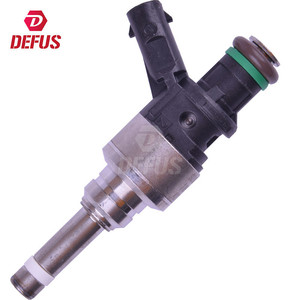

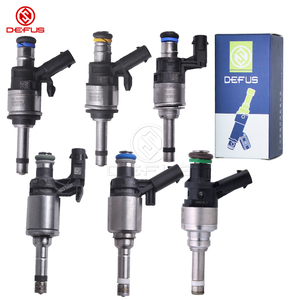

Swirl Port Fuel Injectors
Designed specifically to enhance air-fuel mixing, swirl port fuel injectors feature nozzles that create a rotational motion as fuel enters the combustion chamber. This swirling effect promotes better vaporization and more complete combustion, particularly beneficial in gasoline engines where mixture quality is critical for performance and emissions.
Advantages
- Improved air-fuel mixing
- Better combustion stability
- Reduces unburned hydrocarbons
- Effective at low RPM and idle conditions
Limitations
- Not ideal for high-pressure diesel applications
- May restrict flow at high RPM
- Less common in modern direct-injection diesels
Best for: Gasoline engines, especially in compact and economy vehicles

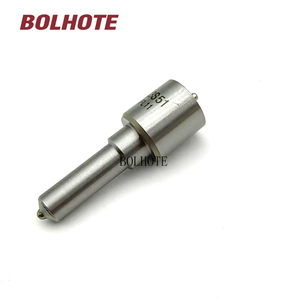

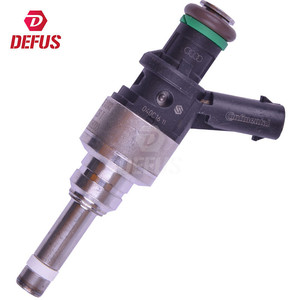

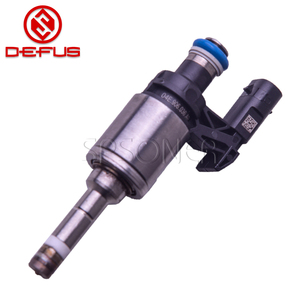

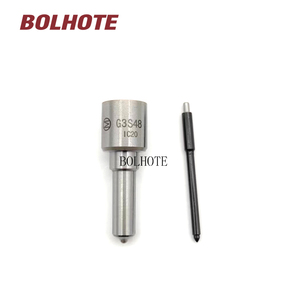

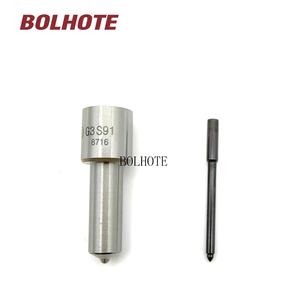

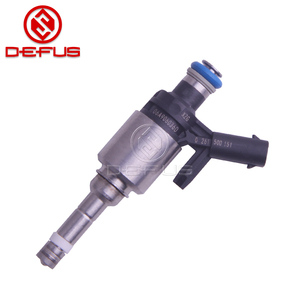

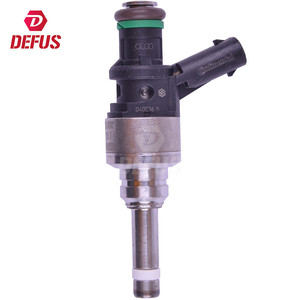

Multi-Hole Fuel Injectors
Multi-hole injectors feature several precisely drilled orifices that spray fuel from multiple angles into the combustion chamber. This design ensures even distribution and optimal atomization of fuel, leading to improved combustion efficiency, smoother engine operation, and reduced particulate emissions.
Advantages
- Superior fuel atomization
- Even spray pattern improves combustion
- Lower emissions and improved fuel economy
- Compatible with both diesel and gasoline engines
Limitations
- Holes can become clogged with debris or carbon deposits
- Requires clean fuel and regular maintenance
- Higher production tolerances increase cost
Best for: Modern passenger cars, light commercial vehicles, and eco-friendly engine platforms
| Type | Injection Precision | Durability | Emissions Performance | Typical Use Case |
|---|---|---|---|---|
| Piezoelectric | Excellent | Good | Excellent | Luxury vehicles, high-tech engines |
| Solenoid | Good | Excellent | Good | Commercial trucks, heavy machinery |
| Swirl Port | Fair | Good | Good | Gasoline engines, entry-level models |
| Multi-Hole | Very Good | Very Good | Excellent | Passenger cars, hybrid applications |
Expert Tip: Regular maintenance of your TDCI injectors is essential to maintain engine performance. Consider using high-quality diesel fuel with detergents and scheduling periodic injector cleaning every 30,000 to 50,000 km to prevent clogging and ensure consistent fuel delivery.
Specifications and Maintenance of TDCI Injectors
Common Rail High-Pressure Fuel Injection Systems (CRIPFIS) are the cornerstone of modern diesel engine technology, delivering precise control over fuel delivery to optimize performance, efficiency, and emissions. At the heart of these systems lie the TDCI (Turbocharged Direct Injection) injectors, which play a critical role in ensuring optimal combustion by metering, pressurizing, and atomizing the fuel before it enters the combustion chamber.
Technical Specifications of TDCI Injectors
TDCI injectors are engineered with high precision to meet the exacting demands of advanced diesel engines. Their specifications vary based on the vehicle model, engine design, and performance requirements. However, several key metrics define their operational capabilities:

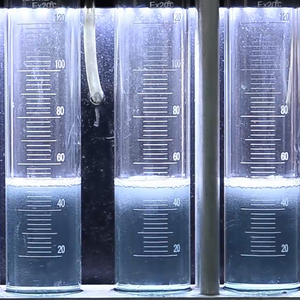

Precision and Flow Control
The precision of TDCI injectors is crucial for consistent engine performance and emissions compliance. This is measured by the standard deviation of the flow rate difference across injection cycles, which typically remains below 5% to ensure uniformity.
High-flow injectors can deliver fuel at rates exceeding 1000 μg/ps, allowing sufficient fuel supply even under high-load conditions while maintaining fine atomization for efficient combustion.
Operating Pressure Range
One of the most defining characteristics of TDCI injectors is their ability to operate under extreme pressures, ranging from 300 to as much as 2000 bars. This ultra-high pressure ensures that fuel is atomized into extremely fine droplets, promoting complete combustion and reducing particulate emissions.
Modern common rail systems maintain this pressure independently of engine speed, allowing for multiple injection events per cycle — including pre-injection, main injection, and post-injection phases — enhancing both power output and emission control.
| Specification | Typical Value | Performance Impact |
|---|---|---|
| Flow Rate Accuracy | <5% deviation | Ensures smooth idle, low noise, and reduced emissions |
| Injection Pressure | 300–2000 bar | Improves fuel atomization and combustion efficiency |
| Fuel Delivery Rate | ≥1000 μg/ps | Supports higher engine loads and improved throttle response |
| Duty Cycle | Varies by application | Controls frequency and duration of injection pulses for optimal performance |
Maintenance Best Practices for TDCI Injectors
Proper maintenance of TDCI injectors is essential to preserve engine performance, fuel economy, and longevity. Diesel fuel quality, driving habits, and adherence to service schedules all influence injector lifespan and functionality.
- Regular Inspection: Routinely check fuel lines and injectors for leaks or signs of wear. Examine nozzle tips for carbon buildup or deformation that could disrupt spray patterns.
- Replace Fuel Filters: Follow the manufacturer's recommended intervals for replacing fuel filters. Clogged or old filters allow contaminants to reach the injectors, leading to clogging and premature failure.
- Use High-Quality Fuel: Always refuel at reputable stations. Low-quality or contaminated diesel can lead to deposit formation, corrosion, and poor injector performance.
- Perform Engine Tune-Ups: Regular tune-ups help maintain proper air-to-fuel ratios, ignition timing, and overall engine health, reducing stress on injectors and improving efficiency.
- Monitor Engine Performance: Be attentive to symptoms such as rough idling, loss of power, increased smoke, or higher fuel consumption. These may indicate faulty injectors requiring inspection or cleaning.
- Clean Injectors: Use professional-grade cleaning services or OEM-approved fuel additives designed to dissolve deposits and restore optimal spray patterns without damaging components.
- Avoid Short Trips: Frequent short trips prevent the engine from reaching full operating temperature, allowing condensation and carbon buildup on injectors. Extended drives help burn off residues naturally.
- Follow Maintenance Schedule: Adhere strictly to your vehicle’s service schedule, including oil changes, glow plug checks, and EGR system maintenance, which all impact injector health indirectly.
- Use Additives with Caution: Only use fuel additives recommended by the manufacturer or advised by a qualified mechanic. Improper or excessive use can damage injectors or other fuel system components.
- Replace Injectors When Necessary: If diagnostics reveal failing injectors—such as uneven fuel delivery, leakage, or electrical faults—replace them promptly to avoid further engine damage or costly repairs.
Important: When replacing one TDCI injector, consider replacing all injectors simultaneously to ensure balanced performance across cylinders. Mixing new and worn injectors can cause uneven combustion, vibration, and additional strain on newer components.
How to Choose TDCi Injectors
Selecting the right TDCi (Turbocharged Direct Injection) fuel injectors is a critical decision that directly affects engine performance, fuel efficiency, and long-term reliability. Whether you're replacing worn components or upgrading for enhanced power output, understanding the key selection criteria ensures optimal results.
Vehicle Compatibility
Ensuring proper compatibility between the TDCi injector and your vehicle’s make, model, and engine specifications is essential for seamless installation and functionality. Mismatched injectors can lead to improper fuel delivery, misfires, and potential engine damage.
- Cross-reference part numbers with your vehicle's service manual
- Verify fitment with online databases or manufacturer catalogs
- Consult with automotive professionals or specialized suppliers if unsure
Expert Tip: Always check the ECU calibration requirements when switching injector types or brands.
Quality and Reliability
The quality of TDCi injectors significantly impacts engine longevity and performance consistency. Investing in high-quality parts from reputable manufacturers helps avoid premature failures and costly repairs.
- Prioritize OEM (Original Equipment Manufacturer) or OE-equivalent aftermarket brands
- Look for certifications like ISO 9001 or IATF 16949 as indicators of manufacturing standards
- Consider multi-layer electroplating and precision machining for corrosion resistance and durability
Key Insight: High-quality injectors maintain consistent spray patterns and pressure over time.
Flow Rate and Specifications
Fuel injectors must deliver the precise amount of fuel at the correct pressure to match the engine’s demands. The flow rate—typically measured in cc/min or lb/hr—is one of the most important specifications to consider.
- Stock engines require factory-specified flow rates for optimal performance
- Modified or turbocharged engines may need higher-flow injectors to support increased power
- Ensure compatibility with fuel type (diesel vs. biodiesel blends)
Critical Note: Incorrect flow rates can cause lean or rich conditions, leading to engine knocking or excessive emissions.
Injector Condition Options
Depending on your budget and performance goals, you have several options regarding the condition of the injectors:
- New Injectors: Offer maximum reliability and performance but at a higher cost
- Remanufactured Injectors: Cost-effective with tested components; often come with warranties
- Used Injectors: Least recommended due to potential hidden wear and inconsistent performance
Recommendation: For daily drivers and performance vehicles, always choose new or certified remanufactured units.
Warranty and Support
A solid warranty reflects confidence in product quality and offers protection against defects or early failures. When purchasing TDCi injectors, review the terms of coverage carefully.
- Extended warranties (1–3 years) are common among reputable brands
- Some suppliers offer exchange programs or technical support
- Money-back guarantees provide added assurance for first-time buyers
Important: Register your purchase to ensure full warranty eligibility where applicable.
Performance Considerations
If you're modifying your engine for more power, selecting injectors that support higher horsepower levels becomes crucial. Upgraded injectors should be matched with supporting modifications such as ECU tuning and exhaust upgrades.
- High-performance injectors feature improved atomization for better combustion
- Stainless steel internals increase resistance to wear and fuel contaminants
- Dyno-tested flow consistency ensures reliable fuel delivery under load
Upgrade Tip: Pair larger injectors with a custom tune for optimal results.
Selection Advice: If you're uncertain about which TDCi injectors to choose, start by consulting your vehicle’s service history and any existing engine modifications. New injectors are ideal for peace of mind, while remanufactured options can offer great value if sourced from trusted providers. Always verify flow rate, compatibility, and warranty before making a final purchase.
| Condition Type | Lifespan | Cost Range | Best For |
|---|---|---|---|
| New | 80,000 - 120,000 miles | $150 - $300 per unit | Daily drivers, performance builds |
| Remanufactured | 50,000 - 80,000 miles | $90 - $180 per unit | Budget-conscious replacements |
| Used | Varies widely | $40 - $100 per unit | Short-term fixes only |
How to DIY and Replace TDCI Injectors
Replacing TDCI (Turbocharged Direct Injection) fuel injectors is a moderately advanced DIY task that can significantly improve your engine's performance, fuel economy, and emissions if done correctly. This comprehensive guide will walk you through the entire process with added detail, safety considerations, and professional tips to help ensure a successful replacement.
Safety Warning: Fuel system work involves high-pressure components and flammable materials. Always disconnect the battery before beginning work, relieve fuel pressure properly, and work in a well-ventilated area away from open flames or sparks.
Essential Tools and Materials
Before starting the replacement process, make sure you have all necessary tools and materials ready. Having everything prepared will streamline the process and reduce the risk of leaving the engine partially disassembled:
- Socket set with various metric sizes
- Torque wrench (for precise fastener tightening)
- New OEM or high-quality aftermarket TDCI injectors
- Injector seat cleaning tool (specifically designed for this application)
- Clean engine oil (for lubricating O-rings during installation)
- New fuel injector O-rings (if not included with new injectors)
- Fuel-safe gloves and eye protection
- Shop towels or clean rags
- Drip pan for residual fuel collection
- Electrical contact cleaner (for connector maintenance)
Step-by-Step Replacement Procedure
- Remove the Engine Cover
Begin by removing the engine cover to access the fuel injectors. The cover is typically secured with plastic clips or bolts. Use a socket wrench for bolted covers and gently pry off any plastic clips using a trim removal tool or flathead screwdriver. Set aside all fasteners in a safe place to avoid losing them during the process.
- Disconnect Electrical Connections

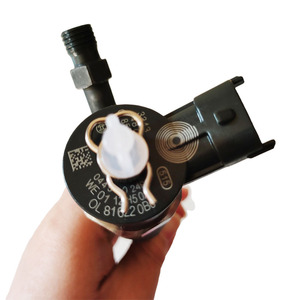

Locate each injector's electrical connector on top of the injector body. These connectors transmit critical signals from the ECU to control injection timing and duration. Gently press the release tab and pull straight up to disconnect each connector. Avoid twisting or pulling on the wiring harness itself. Label each connector with its cylinder number if they're not already labeled to simplify reconnection later.
- Relieve and Remove Fuel Lines
Before working on the fuel system, it's crucial to relieve the fuel pressure. Turn off the ignition, remove the fuel pump fuse, and start the engine to run out the remaining fuel pressure. Once pressure is relieved, locate the fuel lines connected to each injector. These lines are often secured with banjo bolts or compression fittings. Loosen these connections carefully and be prepared to catch any residual fuel with a drip pan. Keep the work area clean to avoid introducing contaminants into the fuel system.
- Remove the TDCI Injectors
With all connections disconnected, locate the mounting hardware securing each injector to the cylinder head. Using the appropriate socket or wrench, carefully loosen and remove these fasteners. Then, gently wiggle and pull the injectors straight up and out of their bores. If injectors are stuck due to carbon buildup, use a gentle prying motion with a soft-faced mallet or plastic tool to free them without damaging surrounding components.
- Clean the Injector Seats
After removal, inspect the injector seats in the cylinder head for carbon deposits, dirt, or corrosion. Use an injector seat cleaner tool or a suitable alternative like a soft brass brush and carburetor cleaner to thoroughly clean each seat. A clean surface ensures proper sealing with the new injectors and prevents potential fuel leaks or combustion issues.
- Prepare and Install New Injectors
Before installing the new TDCI injectors, apply a small amount of clean engine oil to the O-rings to facilitate smooth installation and prevent pinching or tearing. Align each new injector carefully with its bore and gently push it into place until fully seated. Secure with the mounting hardware and torque to the manufacturer's specifications using a torque wrench to ensure proper clamping force without over-tightening.
- Reconnect Fuel Lines and Electrical Connectors
Reattach the fuel lines to each injector using new washers if required. Tighten fittings to specification while ensuring no cross-threading occurs. Reconnect the previously labeled electrical connectors, making sure each one clicks securely into place. Double-check all connections for tightness and proper alignment.
- Replace the Engine Cover
Once all injectors are installed and connections secured, reinstall the engine cover. Ensure all plastic clips snap into place or bolts are tightened appropriately. A properly installed cover protects internal components and helps maintain engine bay cleanliness.
- Start the Engine and Check for Leaks
Reconnect the battery and turn the key to the "ON" position to allow the fuel pump to prime the system. Listen for normal operation and check for any obvious fuel leaks. Start the engine and let it idle while observing the injector area for signs of fuel seepage. Wipe down any wet areas and recheck after a few minutes. If everything looks good, take the vehicle for a short test drive to verify proper performance and responsiveness.
| Phase | Key Actions | Common Pitfalls | Recommended Tools |
|---|---|---|---|
| Preparation | Verify part compatibility, gather tools, relieve fuel pressure | Mismatched injectors, forgetting to relieve pressure | Socket set, fuel pressure gauge |
| Disassembly | Label connectors, clean workspace | Misplacing fasteners, damaging wiring | Trim removal tool, labeling tape |
| Removal | Gentle extraction, inspection of seats | Forcing stuck injectors, skipping cleaning | Pick tool, seat cleaner |
| Installation | Lubrication, correct torque | Damaged O-rings, incorrect torque values | Torque wrench, clean oil |
| Testing | Leak checks, idle observation | Rushing diagnostics, ignoring minor leaks | Clean rags, flashlight |
Professional Tip: Consider replacing the fuel filter at the same time as injector replacement, especially if the old injectors failed due to contamination. Also, perform a full scan of engine codes afterward to ensure no fault codes were triggered during the process. Clear any temporary codes and monitor performance over the next few driving cycles.
By following this detailed guide, you'll be able to successfully replace your TDCI injectors and restore optimal engine performance. Remember to always follow proper safety procedures and consult your vehicle's service manual for specific torque values and procedural details unique to your model.
TDCI Injector Maintenance & Replacement Guide
A1: There is no fixed schedule for replacing TDCI (Turbocharged Direct Injection) fuel injectors, as their lifespan largely depends on driving conditions and maintenance practices. On average, well-maintained TDCI injectors can last between 80,000 to 100,000 miles (128,000 to 160,000 km). However, premature failure can occur due to:
- Contaminated or low-quality diesel fuel
- Excessive carbon buildup from incomplete combustion
- Improper tuning or overboosting
- Wear of internal components like solenoids and pintle valves
Signs that your TDCI injector may need replacement include rough idling, loss of power, increased emissions, excessive smoke from the exhaust, and poor fuel economy. Regular diagnostic checks using professional OBD-II tools can help detect early signs of injector wear or malfunction.
A2: Several factors can contribute to TDCI injector issues, with the most common being:
- Fuel Contamination: Particles, water, or microbial growth in diesel fuel can clog injectors or damage precision components.
- Poor Maintenance: Skipping regular fuel filter changes or using incorrect oil types can introduce contaminants into the system.
- Carbon Buildup: Over time, carbon deposits accumulate on the injector nozzle, disrupting spray patterns and affecting combustion efficiency.
- Electrical Failures: Faulty wiring, corrosion at connectors, or worn-out solenoids can prevent proper injector operation.
- Overheating: Excessive engine heat without adequate cooling can warp or degrade injector parts.
To minimize these risks, always use high-quality diesel fuel, change filters according to manufacturer recommendations, and consider using fuel additives designed to clean injectors and lubricate the fuel system.
A3: While it is technically possible to repair some TDCI injectors, especially in commercial diesel shops equipped with specialized cleaning and testing equipment, it's generally not recommended for several reasons:
- Complexity: TDCI injectors are highly engineered components with tight tolerances, making them difficult to service without factory-level equipment.
- Cost-Effectiveness: The cost of diagnosis, disassembly, and rebuilding an injector often approaches or exceeds the price of a new or remanufactured unit.
- Reliability: Repaired injectors may not perform to original specifications, leading to inconsistent fuel delivery and potential engine performance issues.
- Warranty: Most manufacturers and aftermarket suppliers offer better warranties on new or tested replacements than on repaired units.
If you're experiencing symptoms of a faulty injector, it's usually best to replace the affected unit with a quality OEM or high-grade aftermarket injector. Always replace injectors in sets if multiple units show signs of wear to maintain balanced engine performance across all cylinders.
