Types of Single DIN Floating Screens
A single DIN floating screen is a modern automotive infotainment system designed to fit into standard-sized dashboard slots while offering a customizable and adjustable interface. Unlike traditional fixed-size units, these screens can be tailored to match the contours and dimensions of various car dashboards, providing a seamless integration with the vehicle’s interior design.
Single DIN floating screens have become increasingly popular due to their versatility, enhanced functionality, and ability to provide a factory-fitted appearance even in aftermarket installations. These systems not only control audio but also support navigation, smartphone integration, media playback, and more — making them central to the modern driving experience.

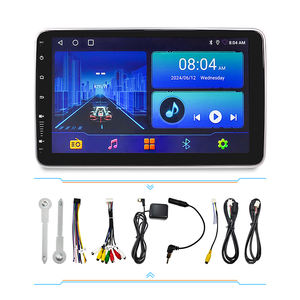

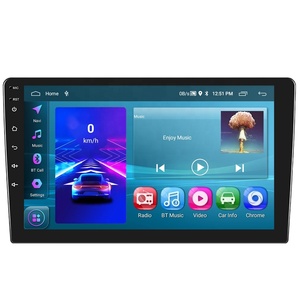

Android Car Stereo
An Android-based car stereo transforms your dashboard into a smart entertainment hub by mirroring many features found on smartphones. These units typically run on the Android operating system, allowing users to install and access apps directly from the touchscreen interface.
Advantages
- Access to Google Play Store for app downloads
- Supports GPS navigation with real-time traffic updates
- Bluetooth connectivity for hands-free calling and music streaming
- Built-in amplifiers for improved sound quality
- HD video playback capability
Limitations
- May require firmware updates for compatibility
- Larger storage footprint compared to basic units
- Potential performance lag depending on hardware specs
Best for: Tech-savvy drivers, multimedia enthusiasts, and those who want full smartphone-like functionality in their car.
Bluetooth Car Stereo
Bluetooth-enabled car stereos focus on wireless connectivity and audio streaming capabilities, making them ideal for hands-free communication and high-quality music playback without the need for physical cables.
Advantages
- Wireless pairing with smartphones and other devices

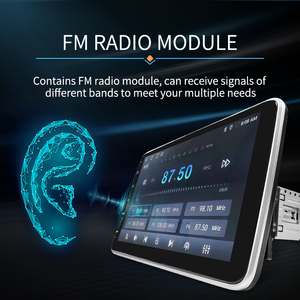

- FM radio tuners with station presets
- USB and auxiliary input options
- Integrated amplifier for superior audio output
- Easy installation and user-friendly interface
Limitations
- Limited app support compared to Android systems
- No built-in GPS or navigation features (unless specified)
- Less customization for UI/UX preferences
Best for: Drivers who prioritize phone connectivity, audio quality, and simplicity over advanced features.
Touchscreen Car Radio
Touchscreen car radios combine intuitive touch controls with high-resolution displays to offer a premium infotainment experience. These systems often come equipped with a range of connectivity options and built-in features that enhance both convenience and safety.
Advantages
- High-definition touchscreens for crisp visuals
- Responsive multi-touch gestures for easy navigation
- Customizable themes and layouts
- Integrated GPS with voice-guided navigation
- Bluetooth and Wi-Fi connectivity options
Limitations
- Higher cost than non-touch units
- May require learning curve for new users
- Glare issues under direct sunlight
Best for: Drivers seeking a visually appealing and feature-rich dashboard interface.

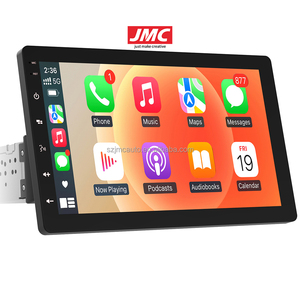

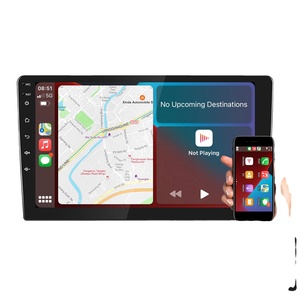

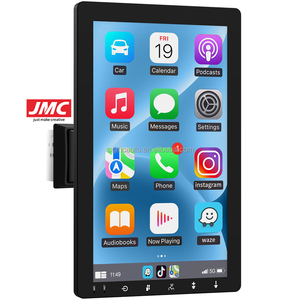

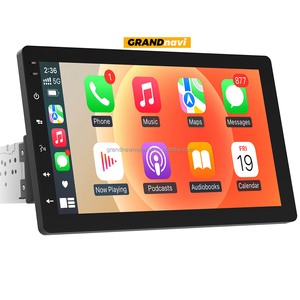

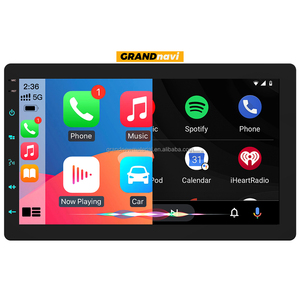

Apple CarPlay Stereo
Apple CarPlay stereos are specifically designed for iPhone users, offering seamless integration between the car's infotainment system and iOS devices. This allows drivers to use their favorite iPhone apps safely and efficiently while on the road.
Advantages
- Seamless integration with iPhone via USB or wireless connection
- Access to Apple Maps, Music, Messages, Podcasts, and more
- Voice control through Siri for hands-free operation
- Real-time traffic updates and route optimization
- Consistent and familiar iOS-style interface
Limitations
- Only compatible with iPhones
- Some features may require an active data plan
- More expensive than generic Android or Bluetooth units
Best for: iPhone users who value ecosystem integration and ease of use while driving.
| Type | Primary Feature | Connectivity Options | Navigation Support | Best For |
|---|---|---|---|---|
| Android Car Stereo | Smartphone-like OS with app support | Bluetooth, USB, Wi-Fi | Yes (GPS & Real-Time Traffic) | Multimedia lovers, tech-oriented users |
| Bluetooth Car Stereo | Hands-free calling & wireless audio | Bluetooth, USB, Aux | Limited (Optional GPS Add-On) | Simple connectivity, budget-conscious buyers |
| Touchscreen Car Radio | Interactive HD display with UI customization | Bluetooth, USB, Wi-Fi | Yes (Built-in GPS) | Drivers wanting visual appeal and modern interface |
| Apple CarPlay Stereo | iOS device integration | Lightning cable or wireless CarPlay | Yes (Apple Maps with live traffic) | iPhone users prioritizing familiarity and usability |
Expert Tip: When selecting a single DIN floating screen, consider your daily usage needs—whether it's for navigation, music, video playback, or smartphone integration. Ensure compatibility with your existing car electronics and verify installation requirements to avoid costly modifications.
Specifications and Maintenance of Single DIN Floating Screens
Understanding Key Specifications
When selecting a Single DIN floating screen for your vehicle, it's crucial to consider several technical specifications that influence performance, usability, and longevity. Below are the most important factors to evaluate:
Display Resolution
The resolution defines how sharp and detailed the visuals appear on the screen. Higher pixel density ensures clarity, especially when viewing maps or media.
Common resolutions include HD (1280 x 720 pixels) for standard clarity and 4K Ultra HD (3840 x 2160 pixels) for crystal-clear visuals. The latter is ideal for multimedia consumption and high-definition navigation displays.
Display Size
Floating screens vary in size, typically ranging from 7 inches up to 15 inches diagonally. Larger screens offer more immersive experiences and better multitasking capabilities, while smaller sizes suit compact dashboards.
Consider both dashboard space and user interface ergonomics when choosing the optimal screen size for your vehicle.
Brightness (Nits)
Measured in nits, brightness determines visibility under different lighting conditions. A higher nit value ensures readability even in direct sunlight.
Look for screens with at least 800-1000 nits for outdoor use or vehicles frequently exposed to bright light. Lower brightness levels may suffice for nighttime or shaded environments.
Operating System
Most floating screens operate on either Android or Linux-based systems. Android provides access to a wide range of apps via Google Play Store, including music, video, and productivity tools.
Linux-based systems are often chosen for their stability, security, and customization options, particularly in specialized automotive applications where minimal resource usage is preferred.
| Specification | Importance | Selection Tips |
|---|---|---|
| Processing Power (CPU Cores) | High | Opt for quad-core or octa-core processors for smoother multitasking and faster app response times, especially if using GPS, streaming, and camera feeds simultaneously. |
| Connectivity Options | High | Ensure support for Bluetooth, Wi-Fi, USB, and HDMI. Some advanced models also support LTE for real-time internet access without relying on phone tethering. |
| Audio Control & Quality | Medium | Check for built-in amplifiers, support for high-resolution audio formats (e.g., FLAC), and customizable equalizers for personalized sound output. |
| Navigation & GPS Features | High | Pre-installed GPS modules with voice guidance, offline maps, and live traffic updates enhance driving convenience and route efficiency. |

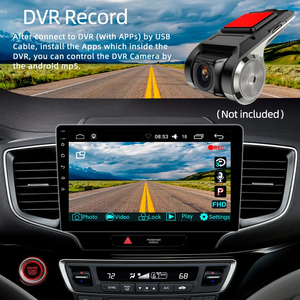

| Camera Integration | High | Look for compatibility with rear-view, blind-spot, and 360-degree surround view cameras to improve safety and parking assistance. |
Maintenance Best Practices
To ensure long-term performance and visual clarity of your Single DIN floating screen, follow these essential maintenance tips:
Important: Always power off the device before performing any maintenance or cleaning tasks. This helps prevent electrical shorts and protects sensitive components from potential damage caused by moisture or static discharge.
How to Choose a Single-DIN Floating Screen
Selecting the right single-DIN floating screen for your retail inventory requires careful evaluation of several key factors. With the wide variety of options available in today’s market, it's essential to focus on compatibility, functionality, and value to ensure you offer products that meet customer expectations and provide long-term satisfaction.
Vehicle Compatibility
One of the most important considerations is ensuring the floating screens are compatible with a broad range of vehicle makes and models. Not all cars have dash openings that can accommodate floating screens without modification, so retailers should prioritize units designed for universal fitment or those that come with comprehensive installation kits.
- Screens with adjustable mounting brackets offer greater flexibility
- Look for screens that include model-specific dash kits for popular vehicles
- Verify if the unit supports common wiring harnesses for easy integration
Key consideration: Check online forums or manufacturer specs for known compatibility issues
Core Features and Connectivity
Modern car buyers expect more than just basic media playback. A competitive floating screen should offer advanced features that enhance both functionality and convenience. These technologies not only improve user experience but also increase product appeal.
- Integrated GPS navigation with up-to-date maps
- Bluetooth connectivity for hands-free calling and music streaming
- Voice control support (Google Assistant or Siri)
- Compatibility with Android Auto and Apple CarPlay for smartphone mirroring
- USB ports and wireless charging capabilities
Tech tip: Consider dual-band Wi-Fi and LTE connectivity for better streaming performance
Display Quality and Visibility
The visual performance of a floating screen significantly impacts user satisfaction. High-quality displays provide clearer visuals, easier readability under different lighting conditions, and a more premium look and feel.
- Resolution of at least 1024x600 pixels for crisp images
- Brightness levels above 800 nits for visibility in direct sunlight
- IPS panels for wider viewing angles and color accuracy
- Glossy or anti-glare screen finish options based on use case
- Touchscreen responsiveness with multi-touch capability
Performance metric: Look for screens with OLED or AMOLED technology for superior contrast
User Interface and Usability
An intuitive interface and ease of installation are crucial for both end users and installers. Retailers should select units that balance feature-rich software with straightforward navigation and hassle-free setup.
- Customizable home screens and app layouts
- Simple menu structures with logical organization
- Remote control included for added convenience
- Pre-installed apps for common functions like radio, media, and settings
- Plug-and-play installation design where possible
Installation note: Units with modular wiring harnesses reduce installation time and errors
Audio Performance and Integration
While the display gets much attention, audio quality remains a critical factor in customer satisfaction. A good floating screen should deliver clear sound and integrate well with existing vehicle audio systems.
- Support for high-resolution audio formats (FLAC, WAV, ALAC)
- Integrated amplifiers with RMS power output above 45W
- Multiple equalizer presets and customizable tuning options
- Support for external subwoofers and amplifiers via RCA outputs
- Noise reduction circuitry for cleaner audio playback
Sound advice: Look for screens with built-in DSP (Digital Signal Processing) for enhanced acoustics
Pricing Strategy and Value Proposition
Retailers must carefully balance cost against quality when selecting floating screens for their inventory. While lower-priced units may seem attractive initially, they often come with compromises in durability, performance, and customer satisfaction.
- Economy models: $100–$200 with basic features and standard build
- Mid-range units: $200–$400 offering good performance and reliability
- Premium models: $400+ with advanced tech and superior materials
- Consider warranty length and brand reputation alongside price
Smart buying tip: Focus on total cost of ownership including returns and support needs
Buying Recommendation: When evaluating potential products, consider ordering sample units before placing bulk orders. This allows for firsthand testing of real-world performance, build quality, and user experience. Pay particular attention to heat dissipation, touchscreen lag, and software stability during extended use.
| Feature Tier | Basic Model | Mid-Range Model | Premium Model |
|---|---|---|---|
| Screen Resolution | 800x480 | 1024x600 | 1920x720+ |
| Connectivity Options | Bluetooth, USB | Android Auto, Apple CarPlay, Bluetooth | Wireless CarPlay, LTE, Dual-band Wi-Fi |
| Audio Output | 20W x 4 | 45W x 4 with EQ | 50W x 4 with DSP and RCA outs |
| Additional Features | FM/AM Radio | Navigation, Voice Control | Wireless Charging, OTA Updates, Custom UI |
| Average Price Range | $100–$150 | $200–$350 | $400–$700 |
DIY Installation Guide for a Single DIN Floating Screen
Installing a single DIN floating screen can significantly enhance your vehicle's infotainment experience while modernizing the interior look. This comprehensive guide walks you through each step of the installation process, ensuring a safe and successful upgrade to your car’s audio-visual system.
Safety Warning: Always disconnect the battery before beginning any electrical work in your vehicle. Ensure tools are properly insulated and avoid working in damp conditions to prevent shocks or damage to sensitive electronics.
Step-by-Step Installation Process
- Preparation and Safety Measures
- Turn off the vehicle’s ignition and remove the key from the ignition switch.
- Gather all necessary tools such as screwdrivers (flathead and Phillips), trim removal tools, wiring harness adapters, mounting brackets, and zip ties.
- Disconnect the negative terminal of the vehicle’s battery to eliminate the risk of short circuits during installation.
- Organize your workspace to ensure good lighting and easy access to tools and components.
- Review the user manual of both your vehicle and the new floating screen for compatibility notes and specific instructions.
- Removing the Existing Head Unit
- Carefully use trim removal tools to gently pry out dashboard panels surrounding the current head unit. Avoid using excessive force to prevent cracking plastic clips or damaging the dash.
- Locate and unscrew the bolts or screws that secure the factory-installed head unit into place.
- Gently pull the old head unit forward just enough to access the rear connections without straining cables.
- Unplug all wiring harnesses, antenna cables, and speaker wires connected to the back of the unit. Consider labeling them with masking tape and a marker for easier reconnection later.
- Completely remove the old head unit from the dashboard and set it aside in a safe place if you plan to keep or resell it.

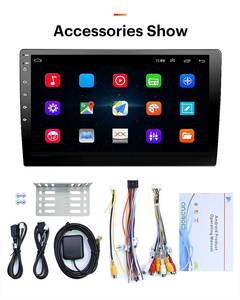

- Preparing the Mounting Kit
- Retrieve the mounting kit that came with your floating screen or purchase one compatible with your vehicle model and screen size.
- Assemble the bracket according to the manufacturer’s instructions, which may involve attaching side rails, spacers, or tilt mechanisms to fit your dashboard opening.
- Test-fit the bracket in the dashboard cavity to ensure proper alignment and adjustability before installing the actual screen.
- If needed, modify or trim parts of the bracket slightly using a Dremel tool or file, but do so carefully to maintain structural integrity.
- Wiring Connections and Harness Setup
- Plug the aftermarket wiring harness adapter into the original vehicle wiring harness to simplify the connection process and avoid cutting factory wires unless absolutely necessary.
- Match the wires on the floating screen's harness to those in the vehicle harness by color and function (e.g., power, ground, speaker outputs, accessory wire).
- Use crimp connectors or soldered joints with heat shrink tubing to ensure durable and secure connections. Avoid twisting wires together and taping them, as this is not reliable long-term.
- Connect the AM/FM antenna cable to the corresponding port on the floating screen. If your vehicle uses a different type of antenna connector, an adapter may be required.
- Secure loose wires with zip ties to prevent them from interfering with moving dashboard components or becoming pinched when reinstalling trim pieces.
- Installing the Floating Screen
- Slide the prepared floating screen into the dashboard opening with its attached mounting bracket. Make sure the screen sits flush and level within the dashboard.
- Adjust the bracket arms or locking tabs to hold the screen securely in place without applying too much pressure that could crack the housing.
- Verify that all cables remain connected and have enough slack to allow for screen movement if the mount allows tilting or sliding adjustments.
- Reinstall any dashboard trim pieces you removed earlier, making sure they click securely into place without gaps or misalignment.
- Final Testing and Configuration
- Reconnect the vehicle’s battery negative terminal and turn on the ignition to test the floating screen.
- Ensure the screen powers on correctly and displays all menus, touch functions, and media playback features as expected.
- Check audio output through all speakers, including bass, treble, balance, and fade settings, to confirm proper wiring connections.
- Calibrate the touchscreen if prompted during first boot-up, following on-screen instructions carefully.
- Customize settings like screen brightness, volume levels, EQ presets, and input sources to match your preferences.
| Installation Phase | Key Tasks | Potential Issues | Recommended Tools |
|---|---|---|---|
| Preparation | Battery disconnection, gathering tools, reviewing documentation | Misplacing small screws, missing special tools | Trim removal tools, screwdrivers, multimeter |
| Old Unit Removal | Dashboard trim removal, unplugging connections, label organization | Damaged trim clips, forgotten wire labels | Panel removal tools, zip ties, marker |
| Mounting Setup | Bracket assembly, fit testing, minor modifications | Improper fit, over-tightening | Drill, Dremel tool, measuring tape |
| Wiring Connection | Harness matching, secure splicing, antenna setup | Incorrect wire pairing, loose connections | Wire stripper, crimpers, heat gun |
| Screen Installation | Proper positioning, securing, trim reinstallation | Uneven screen, damaged casing | Zip ties, Allen wrench, rubber gloves |
| Testing & Calibration | Power check, functionality verification, setting customization | No power, incorrect audio channels | Voltage tester, music files, owner's manual |
DIY Tip: Before finalizing the installation, take time to route all wires neatly and out of sight. Use existing grommets and channels in the dashboard whenever possible to maintain a clean, professional appearance and reduce interference with other controls.
Frequently Asked Questions About Single DIN Floating Screens
A Single DIN floating screen refers to a type of car entertainment system that adheres to the "DIN" standard size for automotive audio and multimedia units. The term "Single DIN" denotes the physical dimensions—approximately 7 inches wide by 2 inches tall (180mm x 50mm)—used as a universal fitment specification in the automotive industry.
Unlike traditional headunits that sit flush with the dashboard, a floating screen design creates an illusion where the touchscreen appears to hover above the dashboard. This is achieved through a combination of bezel design, mounting brackets, and sometimes LED lighting effects that enhance depth perception.
The floating screen concept is popular among modern car stereos due to its sleek aesthetics and integration capabilities with advanced features like Android Auto, Apple CarPlay, GPS navigation, and voice command systems.
There are several advantages to choosing a Single DIN floating screen over conventional car audio systems:
- Modern Aesthetic Appeal: The floating effect enhances the interior's look, giving it a high-tech and customized appearance.
- Improved Visibility: Since the screen is elevated slightly from the dashboard, it's often easier to view while driving, reducing eye movement away from the road.
- Easier Integration: These screens are designed to work seamlessly with factory wiring harnesses, steering wheel controls, backup cameras, and other vehicle-specific features.
- Cost-Effective Upgrade: Compared to Double DIN systems, Single DIN floating screens are often more affordable and easier to install without major dashboard modifications.
- Versatility: Many models support wireless connectivity options like Bluetooth, Wi-Fi, and even LTE for real-time updates and streaming.
While Single DIN floating screens offer flexibility, they are not universally compatible with every vehicle. Compatibility depends on two primary factors:
- Dash Opening Size: Your car must have a dashboard opening that matches the Single DIN dimensions (typically 7" x 2"). Older vehicles often come with this configuration, making them ideal candidates for installation.
- Mounting Space: Even if your dash has a Single DIN cutout, there should be sufficient space behind the dashboard to accommodate the unit’s depth and any necessary wiring or adapters.
If your vehicle doesn't have a compatible dash opening, you can use a DIN conversion kit, which allows installation in various dash sizes. These kits usually include a fascia panel that blends the screen with the dashboard and may provide additional mounting support.
Absolutely. One of the most significant advantages of modern Single DIN floating screens is their ability to connect with smartphones. Here are the common connection methods:
- Bluetooth Connectivity: Allows wireless pairing for hands-free calling, music streaming, and contact syncing.
- USB Ports: Used for both charging your device and connecting via USB cable for media playback or app mirroring.
- Android Auto & Apple CarPlay: Most units support wired or wireless versions of these systems, enabling full smartphone integration for maps, messages, calls, and music.
- HDMI Input: Some higher-end models feature HDMI ports for connecting external devices such as gaming consoles or HD cameras.
This level of integration makes the floating screen a central hub for infotainment, navigation, and communication while on the move.
The main differences between Single DIN and Double DIN floating screens lie in their physical size and functionality:
| Feature | Single DIN Floating Screen | Double DIN Floating Screen |
|---|---|---|
| Size | Approximately 7" x 2" | Approximately 7" x 4" |
| Screen Real Estate | Smaller screen; suitable for basic functions | Larger screen; better for video, split-screen apps |
| Installation Complexity | Usually simpler; fits most older cars | More complex; requires larger dash opening |
| Price Range | Generally more affordable | Typically more expensive |
| Features | Basic to mid-level features | Advanced features including built-in amplifiers, DSP, and multi-zone control |
In summary, choose a Single DIN if you want a cost-effective upgrade with essential smart features, or opt for a Double DIN if you prioritize screen size, advanced multimedia capabilities, and a more integrated dashboard layout.
