Single coil spring lock washers

Types of single coil spring lock washers

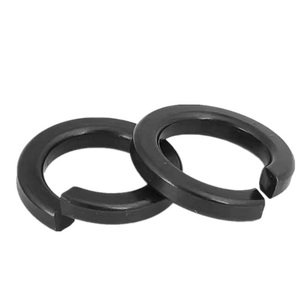

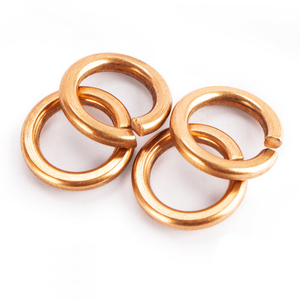

Single coil spring lock washers are used for locking bolts and nuts into place so that it can avoid loosening due to vibration. It has a single, offset split band that provides a spring effect for tensioning against the fastener and the assembly. There are certain types of these lock washers, which include the following:

• Internal tooth single coil spring lock washers

  This kind of lock washer has teeth bent or shaped towards the inside diameter, and they mesh with the screw or bolt heads and provide locking capability by biting into the fastener and preventing loosening. They are used for smaller-sized bolts, and this is because internal teeth provide a smaller locking surface.

• External tooth single coil spring lock washers

  These have their teeth shaped or bent outwards from the coiled washer's inner circle. Their function is to provide a larger bearing surface than the internal type, which distributes the load better. The external tooth washers are mainly used with low-strength materials that can easily pull through or crush, like aluminum or plastic. The teeth help prevent indentations in the materials while providing a locking effect.

• Single coil spring lock washer with raised edge

  This coil washer has a raised edging or rim along the circumference on one side of the coil. The purpose of the raised edge coil washer is to provide extra precise radial and axial movement control. The washer is suitable for applications where higher turning tolerance is required or where there is a need to prevent unfitting or backward movement. Common used in such areas as precision machinery, electronics, and aerospace, where parts require tighter fitting to function correctly.

Industrial applications of single coil spring lock washers

Some of the industrial applications include:

• Automotive industry

  Single-coil spring lock washers are used to secure critical engine components, suspension systems, transmissions, and other truck and car parts. They ensure that fasteners in high-vibration areas do not loosen during operation.

• Aerospace industry

  Single coil spring washers are utilized in aircraft and spacecraft components undergoing extreme temperature, pressure, and flight changes. They help maintain fastener integrity in critical systems like engines, landing gear, and avionics, ensuring safety and reliability.

• Heavy machinery and equipment

  Again, in this situation, single coil spring lock washers resist loosening from heavy loads and vibrations during operation. They stabilize fasteners used in crucial areas of excavation, lifting, and earth-moving equipment, ensuring long-term reliability in harsh operating conditions.

• Electronics industry

  In this condition, due to the miniaturization of components and the need for greater precision, single coil spring washers secure fasteners holding together circuit boards, connectors, and other critical parts. Their resistance to vibrations and mechanical stresses helps ensure electronic gadget functionality while preventing component interferences or malfunctioning.

• Renewable energy

  Single coil spring lock washers are applied to wind turbines and solar panels that are exposed to changing weather and environmental conditions. They ensure the fasteners on rotating components, turbine blades, and mounting systems secured in place while under pressure from natural elements such as the wind, thus contributing to the overall system reliability and durability.

How to choose single coil spring lock washers

Certain factors should be considered when choosing the right single-coil spring lock washer:

• Material and environment

  The coil spring washer comes in different materials such as stainless steel, carbon steel, and alloy steel. In cases where there is exposure to moisture, chemicals, or extreme temperatures, one should get a stainless-steel washer as it will provide higher resistance to corrosion. For high-stress or high-temperature environments, as in the aerospace or automotive industries, one will need a washer made from high-alloy steel for better fatigue resistance.

• Load and application requirements

  The choice of washer will depend on the axial load and torque requirements of the application. If low-load applications like electronic components, one should use thin single coil washers. For high-load industrial applications, go for thicker, bigger ones that provide greater endurance under stress. Also, consider the type of application. External tooth washers are suitable for low-precision industrial applications. Internal ones are ideal for high-precision and low-space applications like electronic equipment.

• Compatibility with fasteners

  Ensure that the coil washer's inner and outer diameters are compatible with the bolt or nut needs. The washer should fit snugly to prevent it from moving within the fastener. While selecting, one should avoid using the same type of washer with different-sized fasteners, as doing so may result in washer failure and that the application will not be secure.

• Assembly and installation considerations

  This is because some washers, like external tooth washers, are easier to install in confined spaces. Others have a split design that makes assembling easier with pre-tensioned components. Other designs may require special tools or additional steps for proper installation; hence, one must consider the ease of installation regarding the application.

DIY & Maintenance Tips for single coil spring lock washers

Here are some tips for the DIY and maintenance of these coil washers:

• Regular inspection

  One should start giving the washer a general visual check for signs of loosening, corrosion, wear, or fatigue. One should check for deformation, cracks, or material breakdown. Regular maintenance helps detect problems early, preventing issues before affecting the operations.

• Proper cleaning

  Due to the fact that contaminants like dirt, oil, and grime can impact the coil wash springs' effectiveness, proper cleaning is a must. Use a soft brush or cloth to clean around the washer area. Harsh chemicals should not be used on stainless washer coils, as they will tamper with the surface and may cause even more wear. One should use chemicals friendly to stainless steel.

• Monitor re-torque needs

  In any situation where lock washers are used, one is required to monitor fasteners' torque over time, especially in vibration-prone areas. In this case, automotive or industrial applications should check regularly for re-torque. It is reversible that, over time, the combination of load fluctuations and elastic recovery causes the fastener to rotate out of position; hence, re-torque will be needed. Again, refer to the manufacturer's guidelines concerning the specific requirements of the application and indications of when one should do re-torquing.

• Replacement of worn parts

  It is known that once the single coil spring lock washer is worn out or damaged, the only solution is to replace it. Repeated bending will make the washer coils not to return to its original shape, thus affecting its locking ability. Failure to do so will cause fastener loosening, which will impact negatively on the equipment or machinery. One needs to replace signs of wear, such as deformation or signs of corrosion, so as to ensure optimum performance always.

Q & A

Q. What is the function of a single coil spring lock washer?

The basic function of this kind of washer is to prevent the fastener from loosening due to vibration and mechanical stress. The coiled design allows the washer to exert consistent pressure against the fastener and provide a locking effect that ensures the easy rotation of the screw or bolt. In addition, because of the design, the washer can absorb some level of shock and changes in dynamic loads, which helps maintain the integrity of the assembly over time.

Q. Are lock washers, including coil ones, good or bad?

Because there are many applications where coil spring lock washers provide good support stability, they are good. For example, in the automotive and heavy machinery industries, they play a vital role in keeping fasteners in place under conditions of high vibrations. However, in precision applications, their use can entail some negative aspects: they will scratch or indent, and their elasticity may lead to an insecure lock in non-vibrating conditions. In such cases, one can use other alternatives, such as thread locks or adhesives.

Q. How many different types of washer springs are there?

There are a total of three types of spring washer coils: the circular helical, the cone-shaped and the Bellow-shaped.

Q. What is the benefit of using a coil spring over a regular spring?

Apart from the ability to handle more load due to its helical shape, it can also work within a space, as it can be made to occupy space smaller than that of a normal spring. Again, they can withstand shear and torsion force well. In applications that require a relatively smaller space and where the force exerted is quite high, a coil spring will do better than a normal spring.
