Power line insulators

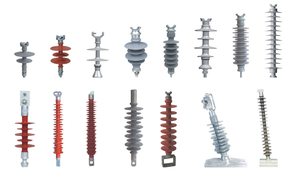

Types of Power Line Insulators

Power line insulators come in various types to meet different voltage levels and environmental conditions.

• Ceramic Insulators

  Ceramic insulators, with porcelain as their main material, are widely used due to their excellent dielectric properties and mechanical strength. This combination of traits makes them highly resistant to extreme weather conditions. Also, their moisture and pollution tolerance further enhances their suitability for high-voltage power lines.

• Glass Insulators

  Another prominent option is glass insulators. These insulators offer visibility and are easily inspected in the field. Their resistant nature comes as a result of reduced tracking and RTV silicone application. Glass material also provides good insulation, making it viable for various applications.

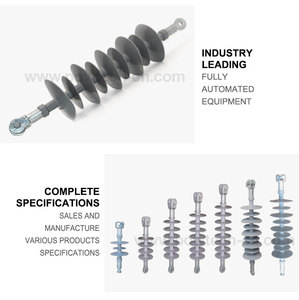

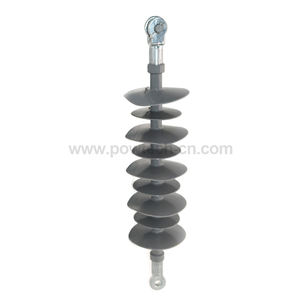

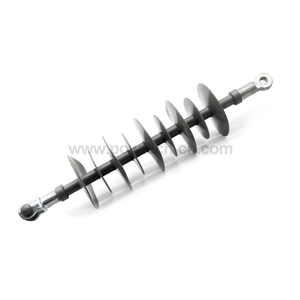

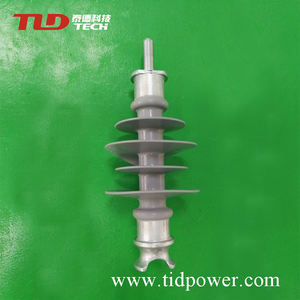

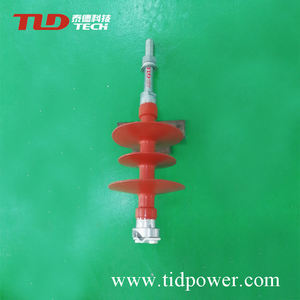

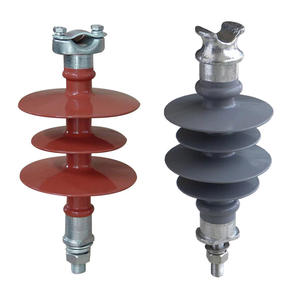

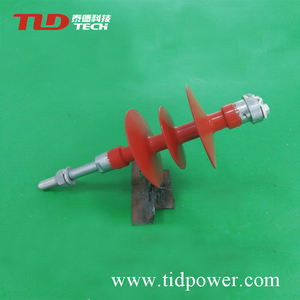

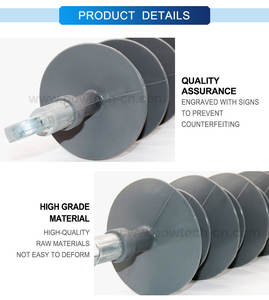

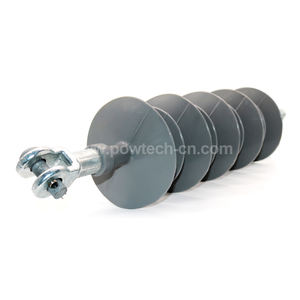

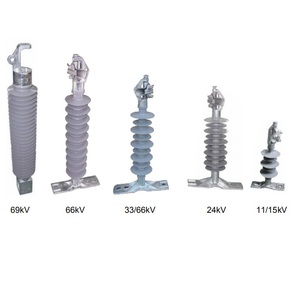

• Polymer (Rubber) Insulators

  Polymer insulators feature a metal core, which is covered by a silicone rubber or polymer layer. This makes them lightweight and easy to install. They possess superior pollution resistance compared to material types that are not polymer. Also, they can be used in high-seismic areas due to their flexibility and lightweight.

• Suspension Insulators

  In the case of power lines with longer spans, suspension insulators are the go-to choice. These insulators comprise multiple porcelain or glass discs stacked together. They allow the wire to sway and distribute the tension along the line. High-voltage transmission lines almost always make use of these types of insulators.

• Troughed or Sheds Insulators

  This is a type of suspension insulator, where the discs have a concave shape. This allows them to hold more water without affecting the electrical field. Ceramics and polymers are the types of materials that can be used for trough insulators. Heavy rain and moist environments benefit from these insulators primarily.

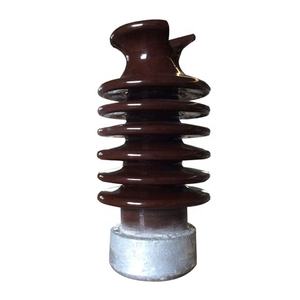

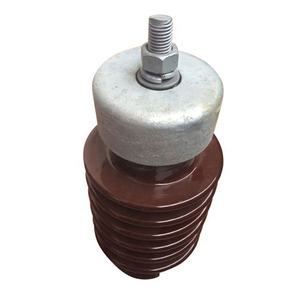

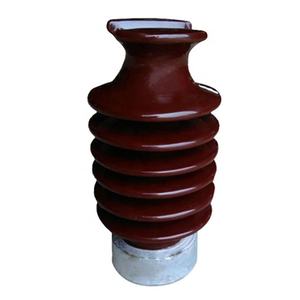

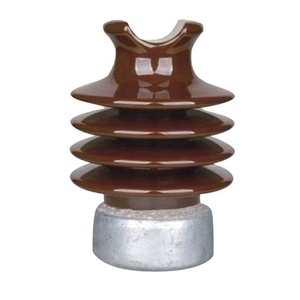

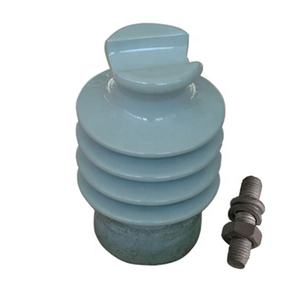

• Pin Insulators

  Pin insulators are usually employed in distribution lines at low and medium voltage levels. Their construction features a single-piece design that is mounted on a cross-arm. High-voltage lines, however, cannot use these insulators, as they must be more complex than a single design.

Features of Power Line Insulators

Insulation features are key factors that affect the choice and performance of power line insulators.

• Dielectric Strength

  This strength allows materials to act as effective barriers to electrical currents. The result is materials that can withstand high voltages without allowing the electric charge to 'leak' through. This property is vital for preventing short circuits and power outages. Insulators with high dielectric strength are important for maintaining reliable power transmission in a commercial setting.

• Mechanical Strength and Durability

  Insulators must have sufficient mechanical strength to endure not only the tension in the power lines but also extreme weather conditions, such as high winds, ice accumulation, and seismic activity. Glass, ceramics, and certain polymers boast impressive durability. This makes them resistant to wear, environmental degradation, and mechanical stress. This directly increases the lifespan of power systems.

• Pollution and Moisture Resistance

  Power line insulators are located in various environments. As such, they must be able to resist pollution, moisture, and extreme weather. Polymer insulators, for instance, excel in resisting electrical tracking caused by contaminants like dust, salt, and industrial soot. Trough, ceramic, and shed insulators deal with wet conditions by incorporating designs that prevent water bridges from forming across the surface.

• Flexibility and Lightweight Features

  Polymer insulators are considerably lighter than ceramics and glass. This makes power lines easier to erect in difficult terrains or areas where the structures supporting the wires have to be lighter. The lower weight of the insulator puts less tension on the power lines and the supporting structures. This not only enhances durability but also reduces construction costs.

• Thermal Conductivity and Expansion

  Insulators must perform consistently across a broad range of temperatures, from scorching to freezing. Different materials react to temperature fluctuations in differing ways. Some expand or contract, and some do not. Ideally, power line insulators have low thermal conductivity, which means they do not absorb much heat from their environment. High thermal conductivity would affect their insulating capability.

Uses of Power Line Insulators

Power line insulators have a wide range of applications, largely in the electrical power infrastructure domain.

• Transmission Lines

  Power line insulators in vehicles support high-voltage power transmission lines. They play a crucial role in preventing the electrical current from 'leaking' to the ground or other nearby conductive materials. These high-voltage transmission lines cover long distances usually spanning hundreds of kilometers. Insulators secure the lines to transmission towers or poles.

• Distribution Lines

  Insulators offer devices performing voltage levels much lower than in transmission lines. But still, the voltage is high enough to require significant insulation. Power line insulators mounted on poles support these distribution lines in delivering electricity to homes, businesses, and industries. Pin insulators are most commonly used in these applications.

• Wind Farms

  Insulators in wind farms are placed on the generation side to ensure the fan blades and generator produce electricity. They are also placed on the infrastructure side, just like in most other power sources. Insulators in wind farms must withstand extreme environmental conditions. Some of these factors include mechanical stress from wind and storms and salinity from marine environments.

• Bridge and Building Structures

  Power line insulators must be integrated into buildings and bridges where power lines run. This maintains electrical isolation and prevents the power lines from contacting metallic structural elements. Insulators mounted on the deck of a bridge or incorporated into the design of steel frames help power line suspension over vast spans.

• Railway Electrification Systems

  Insulators 'suspend' and support the overhead contact wires used in electrified railway systems. The wires deliver electricity to trains, allowing them to function without needing fossil fuels. They keep the wire from touching the track, metal signs and supports, and other conductive objects. Power line insulators used in railway systems must withstand constant mechanical vibration.

How to Choose Power Line Insulators

Several key factors directly affect the performance of insulators and the overall reliability and safety of electrical systems.

• Operating Voltage

  Insulators for power lines are available in various voltage levels. Users, therefore, have to select the one that matches the voltage of the power line systems. For instance, high-voltage transmission lines require more complex insulators, such as suspension or strain types. In contrast, distribution lines at lower voltages can get away with simply pin insulators.

• Environmental Conditions

  Insulators are subjected to various environmental factors. These include pollution, humidity, temperature extremes, and severe weather conditions. Polymer insulators are especially suitable in areas with high pollution or salt spray, thanks to their superior pollution resistance. In regions with high humidity, choose insulators that have designs that prevent water pooling or bridging.

• Material

  Power line insulator materials greatly impact their performance and durability. Glass and ceramic insulators have superior electrical insulating efficiency and are highly durable. Silicone rubber or polymer insulators are lighter and easier to install. They are also much more effective at resisting tracking caused by pollution or other contaminants.

• Mechanical Strength and Design

  The mechanical strength of the insulator is critical in power line applications. This is because the insulators have to support the weight of the conductors and resist wind, ice, and other mechanical forces. Buyers have to ensure that the insulator designs have enough strength and survival capability in adverse conditions. Also, selecting designs that effectively eliminate mechanical stress is vital.

• Maintenance and Inspection Requirements

  Maintenance and inspection requirements affect operational efficiency. Insulators that necessitate frequent maintenance, like cleaning or replacement, may have a negative impact. Users should opt for low-maintenance materials, like polymer and silicone rubber, that are easier to maintain. Also, go for designs that can accommodate easy inspections.
