Pogo pins are spring-loaded pins used widely in electronics to create temporary, stable contacts in devices. The addition of threading allows for various installation methods, enhancing flexibility in applications. Here are some common types of threaded pogo pins:

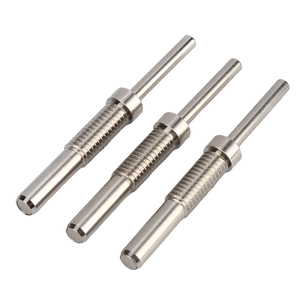

Straight pogo pin with thread has a simple design— a straight pin that conducts electricity. It often has a helical thread that allows it to be screwed into a fixture or chassis. The straightforward design is excellent for basic applications where a simple electrical connection suffices.
Insulated pogo pins with thread have a non-conductive coating around part of the pin. Insulated pogo pins are helpful in multi-pin setups to prevent electrical shorting between adjacent pins. Insulated pogo pins are designed for environments where multiple contacts are close together, as their insulating sleeves reduce the risk of electrical cross-talk or short circuits between neighboring pins.
Pogo pins are particularly suited for high-frequency applications. Coaxial pogo pins feature a central conductor surrounded by an insulating and outer conductive sleeve. The threaded design option allows for precise length adjustments. Coaxial pogo pins transmit high-frequency signals while maintaining a compact form. Automatic test equipment for RF devices often uses them, where stable and low-latency connections are essential.
These allow adjustment in tight spaces. Bending pogo pins have a bent or angled tip, permitting access where straight pogo pins require. The bended portion carries the electrical current the same way a straight pin does. The threaded base lets the bent pin be easily screwed into place despite its unique form. In situations where space is restricted, or components must align at an angle, bending pogo pins are a great alternative.
Zero clearance pogo pins maintain an extremely narrow contact gap between the components. Zero clearance pogo pins are designed for applications where space is extremely tight, and every millimeter counts. Like other pogo pins, these have threads to facilitate precise adjustments in assembly.
The pogo pin's unique ability to create a secure, spring-loaded electrical connection allows it to be utilized across many industries. Here are five common applications for pogo pins:
Pogo pins are found in many devices, such as smartphones, tablets, and wearables. In charging docks, pogo pins ensure a stable connection for power and data transfer. Their durability and ability to accommodate minor misalignments make them ideal for this application. Many electro-mechanical devices require connections that can tolerate movement and imperfect alignment. Pogo pins provide a reliable solution in consumer electronics.
Medical devices demand high reliability and cleanliness. Pogo pins are used in diagnostic equipment, medical sensors, and implants where stable connections are critical. Medical instruments require electrical components that can withstand sterilization processes without degradation. Pogo pins, often thread-mounted for secure assembly, provide the reliability and durability medical clients require.
The aerospace and defense industries demand high performance and reliability. Pogo pins are used in missile guidance systems, satellite electronics, and military communication devices. Conducting electrical signals in extreme environments requires insulated and robust pogo pins. Threaded pogo pins play a pivotal role in stabilizing these systems. The aerospace industry also requires components that can function in zero gravity or extreme environmental conditions. Coaxial and other specially designed pogo pins are often employed in satellites and space exploration devices.
With the technologies in vehicles, the automotive industry extensively applies pogo pins. They are used in charging docks for electric vehicles and wireless key entry systems. The automotive sector requires components like pogo pins, which endure vibration, temperature changes, and moisture. Insulated pogo pins are particularly valuable in electric vehicle charging systems, ensuring stable connections in high-voltage environments.
The world of industrial automation requires electrical contacts to be stable. Pogo pins are used in robotics, sensors, and automatic machinery. These pins help transmit signals in testing apparatus, frequently found on assembly lines. Pogo pins are frequently requested to handle heavy loads and stay durable under strenuous work. They conduct current and hold up against pressure, making them perfect for industrial applications.
The design of pogo pins is vital to their functioning since they need to establish tight connections while tolerating mechanical stress. The following aspects are crucial in determining a pogo pin's performance and application:
Pogo pins are manufactured using different materials to provide conductivity and durability. Pins for heavy-duty applications typically use brass or copper alloys for their conductivity and strength. Pins requiring greater wear resistance are fashioned from stainless steel. Niobium alloys are used in devices that need to be exposed to sterilization to hold up against high heat. The tip design for sealing or insulation also depends on the application requirements.
The tip design of a pogo pin is key to how it performs and how well it works in specific industries. The three common types of tip shapes are the ball, dome, and needle. A ball tip offers a more even pressure distribution for smoother operations that are less likely to wear down over time in frequent use. The dome tip is slightly larger and provides a wider contact area for lower impedance electrical currents. This is ideal for applications that need more robust power transfer. Needle tips deliver precision and support tighter spaces, suitable for low-power signals.
The choice of spring material determines the pin's resilience, contact force, and elasticity. High-carbon steel is commonly used due to its excellent tensile strength and resistance to deformation. Stainless steel springs provide corrosion resistance for environments exposed to moisture or chemicals. The load rating is critical in determining how much force the pin can exert upon contact, impacting the electrical connection's stability. Lower load ratings are sufficient for delicate devices. Conversely, higher ratings are need for industrial machinery carrying heavy components.
Depending on how much current and voltage the pin needs, its diameter and length will differentiate. Bigger pins deliver larger currents, while smaller pins fit tighter spaces. The configurations, like the spacing between pins, are customizable for each device's needs.
The threaded base of a pogo pin is integral to securely mounting it in various environments. The thread pitch and length are customizable based on the installation requirements. The outer diameter of the thread often features a hexagonal section compatible with standard wrenches or power tools for installation. Such designs help in quick assembly or replacement in the field, reducing downtime.
Selecting the appropriate pogo pin requires careful consideration of several key factors. The following are critical aspects to consider:
The load rating of a pogo pin is vital to its use as it determines the extent of force exerted during pin-to-contact. This rating must match or exceed the requirements of the target application. Pins with lower load ratings for delicate jobs reduce the chances of putting pressure on sensitive components. In industrial places where heavy devices is the norm, pins with high load ratings are favored since they effectively support this equipment.
Pogo pins come in sizes that affect their handling and the device's overall functionality. The size of the pin must align with the spatial requirements of the equipment being used. Here, the length should ensure it reaches and securely connects all necessary components. As for the diameter, it must be thick enough to endure the electrical loads but small enough to fit without overpowering the assembly. This balance allows smooth operations within design constraints.
Material choice for pogo pins impacts mechanical and electrical resilience and what environments the pins can tolerate. Brass and bronze conduct electricity efficiently, ideal for power transmission systems. Pins made of stainless steel resist oxidization in corrosive settings. If the application demands extraordinary durability, niobium alloys can withstand sterilizing temperatures. The material of the pins must meet the needs of the application while considering cost-effectiveness and longevity.
The environment where the pogo pins will operate guides picking a suitable type. High temperatures, humidity levels, and chemical exposure are factors that put pressure on electrical contacts. In medical machinery, for instance, the jumping pins must survive sterilising that subject them to extreme heat and chemicals. In outdoor telecommunications cabinets, moisture and dust create hostile conditions.
The spring is at the heart of pogo pins, playing a crucial role in contact stability and durability. High-quality stainless steel springs provide maximum elasticity without deformation over time. Pins frequently cycle through load changes require springs that offer consistent tension.
A. Threaded pogo pins are viable for outdoor applications, albeit with the correct material composition and surface treatment. Exposure to weather elements like rain, snow, and extreme temperatures can decrease the sturdiness of any electrical component. Therefore, it is better to opt for pogo pins made of weather-resistant materials like stainless steel or other alloys that are corrosion-resistant. Further protection can be afforded through sealing or coating against moisture and dust. Properly selected and fitted pogo pins enjoy longevity even in harsh environments.
A. Pogo pins require periodic checks and cleaning to prolong their use in settings of intense activity. One commonly employed cleaning technique strips any debris or residue that may have accumulated between the pins and contacts. This ensures unimpeded electrical activity. Periods of heavy use subjecting the pins to greater heat may require lubrication with appropriate substances to maintain the springs' functionality. Corresponding inspections pin down any signs of wear or damage. In settings that go through cycles of extreme change in load, monitoring the tension in spring components becomes essential.
A. Some pogo pins withstand high temperatures, but this requires specific materials and designs. High-temperature applications typically use pogo pins from niobium alloys or other metal alloys. Pins melded using resistance welding as a joining method further enhance this durability. In environments involving extreme heat, such as aerospace or furnace controls, screening pins that can sustain temperature range without degradation becomes critical.
A. The pressure exerted by the pin's spring ensures a tight connection with the contact surface, providing a pathway for current. This design allows the pin to tolerate misalignment and wear while maintaining contact. The spring compresses on the device's pin, creating pressure to keep the electrical connection. Thus, continuous current flows with minimal resistance.
A. Pogo pins create stable connections for power transfer between the charging base and the device. Their spring-loaded design accommodates misalignment while maintaining contact. This system offers reliable electrical current flow despite slight variations in distance or angle between components, which is crucial in handheld electronics and electric vehicles.
Thanks to their versatility where stable electrical contact is necessary, pogo pins with threads have varied industrial usage. Their designs incorporate several parameters that determine their functionality, such as materials, sizes, and tip shapes concerning the specific demands of applications. In high-temperature scenarios, medical gear, and aerospace or defense sectors, selecting high-quality materials for pogo pins is essential. Long-term performance relies on this selection. One must consider the operating conditions and application requirements when choosing pogo pins. This guarantees seamless electrical conductivity for current and signal transmission across devices in various industries.
