The following are the types of non-destructive concrete tests.

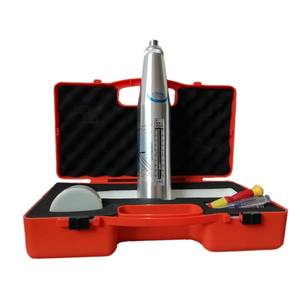

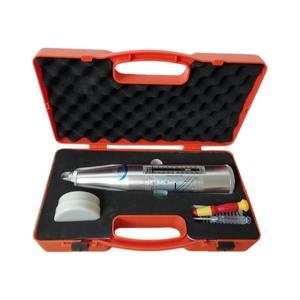

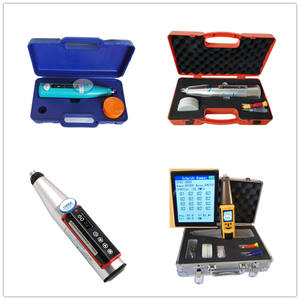

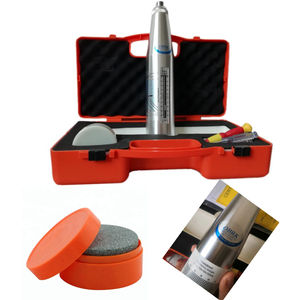

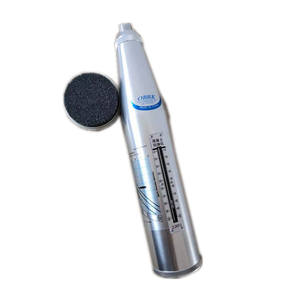

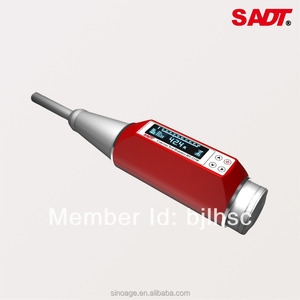

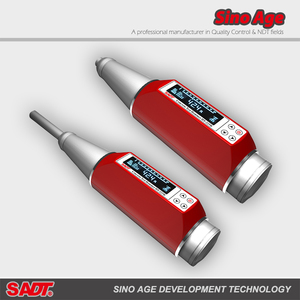

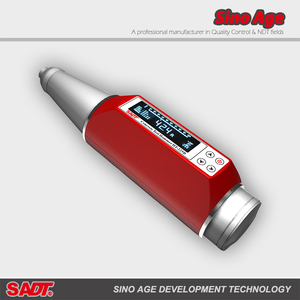

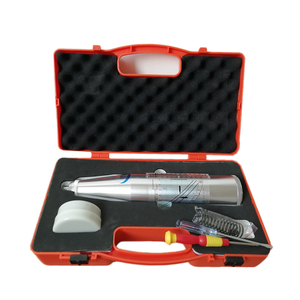

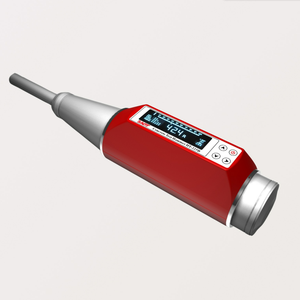

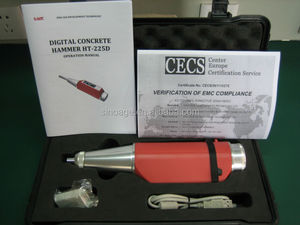

The rebound hammer test measures the surface hardness of concrete, which is then correlated to its compressive strength. A concrete test tool, the rebound hammer, provides quick and easy assessment by analyzing the rebound value after it's been released against the concrete surface. While this method cannot provide full internal strength data, it is frequently used for comparative strength analysis in various sections of a concrete structure. This test is ideal for assessing surface conditions in large areas and provides immediate, on-site results, especially in regions hard to reach physically or where core sampling isn't feasible.

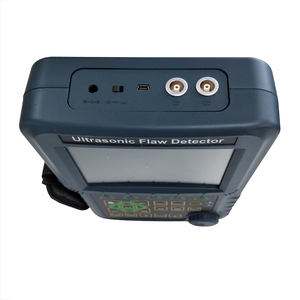

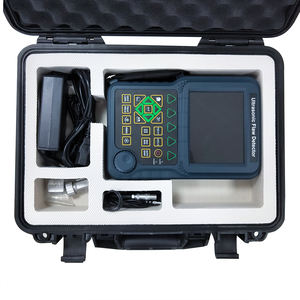

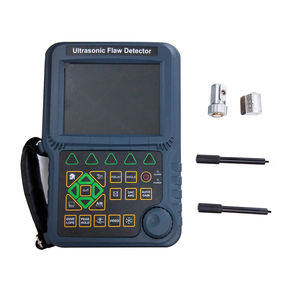

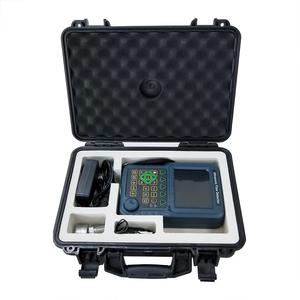

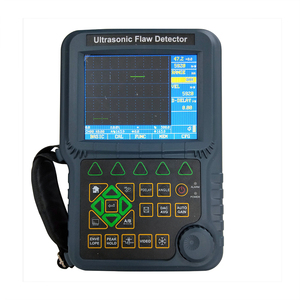

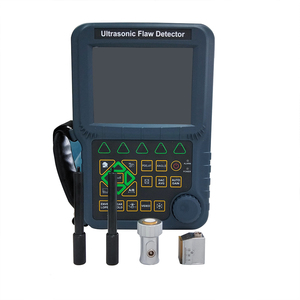

The ultrasonic pulse velocity test employs ultrasonic waves to assess concrete's uniformity, density, and overall quality. An ultrasonic tester concrete tool measures the time it takes for these waves to travel through the concrete. Slower rates indicate areas of weakness, such as cracks or voids. This method gives an in-depth look into the concrete's internal structure compared to the rebound hammer's surface analysis. It is mainly applied in quality control for existing structures and is perfect for assessing large areas quickly. It also identifies internal flaws invisible on the concrete's surface.
The Schmidt hammer test evaluates concrete's strength by measuring its elastic modulus. It is a lightweight and simple instrument that works well for large projects since it is portable and easy to use. It doesn't provide direct strength values, but the rebound index helps correlate empirical data on compressive strength. It's best for quick assessments and routine checks on concrete structures without requiring heavy, expensive laboratory equipment. This process saves time and labor costs, particularly in remote areas where other testing methods may not be feasible.
The radiography test uses X-rays or gamma rays to inspect concrete, revealing internal voids, cracks, or foreign matter. It provides a highly detailed view of concrete's internal makeup. While offering substantial information about potential weaknesses, radiography requires specialized equipment and safety precautions. It's mainly applied in critical infrastructure, like bridges or dams, where safety is paramount. This gives detailed imagery, unlike other methods, which only give surface-level insights. It's valuable when other testing methods fail to detect issues.

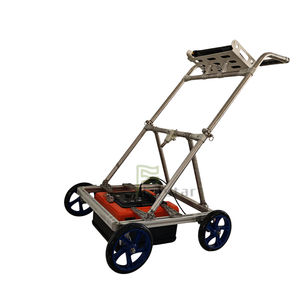

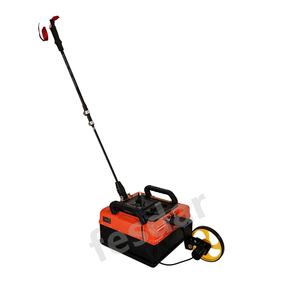

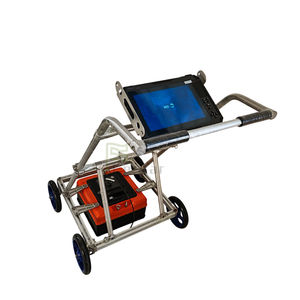

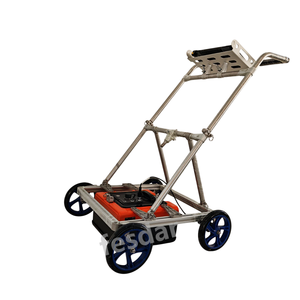

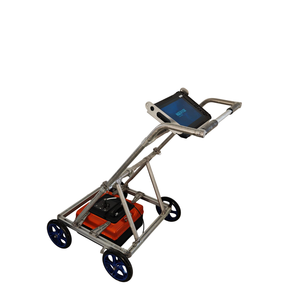

Ground penetrating radar (GPR) is a concrete non-destructive testing method that employs radar pulses to image the subsurface, helping locate rebar, voids, or cracks. It generates real-time, 3D images allowing immediate assessment of concrete structures. GPR is a good fit for evaluating large areas or mapping complex geometries and is especially useful in infrastructure renovation projects where knowing the internal layout is key for optimal planning. While it requires specialized equipment and trained personnel, it delivers detailed subsurface data that beats most other visual and physical inspection techniques.
Here are some materials and durability considerations for non-destructive concrete tests.
The surface hardness in a rebound hammer test is crucial since the rebound values are affected by this property. The rebound hammer is concrete and steel with a spring mechanism, a plunger, and a built-in integer. However, the concrete test requires a smooth, cleaned surface to eliminate any irregularities that may skew the results. Proper surface preparation ensures more accurate rebound readings, which correlate directly with the concrete's compressive strength. Well-cured, dense concrete provides consistent rebound values essential for reliable strength assessment in non-destructive testing.
Ultrasonic pulse velocity (UPV) uses an ultrasonic transmitter and receiver to assess concrete. The transmitter sends ultrasonic waves through the concrete, and the receiver picks them up for time-of-flight analysis. These instruments are typically backed by sturdy metal casings and electronics embedded in concrete test equipment to help with accurate readings in rough environmental settings. The concrete's durability affects wave transmission, where cracks, voids, or inconsistent density slow down the waves. Fixing these issues first leads to improved ultrasonic test results.
The non-destructive concrete test apparatus consists of a rebound hammer, ultrasonic pulse velocity device, and ground-penetrating radar equipment made of durable metals like aluminum and steel, alongside high-impact plastic housings. These materials are meant to withstand tough job locations and ensure accurate testing by resisting wear and sustaining calibration. The rebound hammer's mechanism functions well with high-strength concrete, while ultrasonic devices perform consistently across various temperatures. The GPR antennae are designed for concrete penetration and maintain their shape and effectiveness over prolonged use.
Non-destructive concrete testing equipment requires integrity and weather resistance to perform effectively in different environments. Devices must seal against dust, moisture, and extreme temperatures, which ensures readings stay consistent in outdoor settings or when humidity is high. For integrity, key components like ultrasound transducers and rebound hammer springs use premium-quality materials to sustain wear and tear from frequent use. Weatherproof casings, typically modeled in stainless steel or sealed plastics, guard internal components, making it possible to get accurate, dependable test results regardless of changing environmental conditions.
The following are some scenarios for using non-destructive concrete tests.
That is often the case in old buildings where the concrete's compressive strength needs to be established for safety evaluations or renovation projects. NDT methods enable determining the in-place strength without needing core samples. The rebound hammer measures surface hardness, while UPV assesses internal quality. These assessments guide developers in determining the remaining lifespan of structures and in making repair or reinforcement decisions.
Concrete testing equipment for construction sites helps with this directly. Contractors use non-destructive tests like rebound hammers and ultrasonic devices to check the strength and uniformity of poured concrete. This ensures it reaches required specifications without destructive methods like coring. With immediate results available, developers address concrete issues right away, thus saving time and preventing costly future repairs by catching problems early.

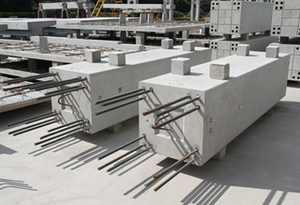

Rebound hammers and UPV are essential in this case, checking for voids, cracks, or inconsistent density within the concrete castings. Developers do this to make sure the final product meets quality standards before shipping or installation. Non-destructive tests help identify these issues early so that costly rework or replacement later on down the line isn't needed. This method safeguards the integrity of construction projects and allows precasters to maintain their reputation for delivering reliable products.
This method evaluates how well the concrete resurfacing or patching has done over time. Non-destructive tests like rebound hammers measure the strength of new material bonds with the existing substrate. Similarly, UPV checks for internal defects. This method helps maintenance teams determine whether repairs have successfully restored structural integrity and if further intervention is required.
This technique is especially applied in large-scale public works projects such as bridges and tunnels. Non-destructive tests help corroborate that concrete attained the desired strength over time without inflicting damage. It also helps identify potential weaknesses within the structure. This approach helps public safety and reduces the need for costly, disruptive repairs while enabling infrastructure to be monitored effectively over its lifespan.
Here are some things buyers should consider when choosing non-destructive concrete tests.
Both the type of concrete testing method and its non-destructive nature depend on the needs of the specific assignment. For instance, surface strength measurement works well when surface-level strength assessment is required, but volumetric evaluation may need ground-penetrating radar or radiography. Furthermore, the concrete test tools for construction sites also consider the size and type of concrete structure, as well as its accessibility and the degree of assessment required. Thoroughly understanding the project requirements is critical for selecting the appropriate non-destructive testing method for success.
This applies to the types of equipment in the non-destructive concrete tests; various methods involve different tools with varying compositions. Devices like rebound hammers are relatively simple, often built from robust metals like steel or aluminum. UPV devices include transmitters and receivers built with sensitive sensors, often encased in protective housings. Ground-penetrating radar employs radar antennas, while radiography uses X-rays or gamma rays, requiring heavy shielding. The complexity of these instruments typically matches the depth and precision of the assessment needed. In turn, knowing the construction methods helps choose the most appropriate test.
This is because various non-destructive concrete test methods have different costs. For example, rebound hammers are relatively cheap, but how much ultrasonic concrete testing equipment costs depends on the complexity of the tool. Methods like radiography or GPR are more expensive because they require specialized training, equipment, and safety precautions. Buyers can make an informed decision about the concrete test methods by considering the available budget and weighing the expenses against the advantages of each approach.
This affects a project's approach because it determines access to concrete structures and the environment in which testing is done. Portable equipment like rebound hammers is optimal for hard-to-reach locations. Meanwhile, lab-based methods like radiography demand controlled environments. The surrounding environment also affects the test method; weather can impact tools exposed outdoors, while hazardous conditions may call for methods that require less on-site exposure.
Generally, the accuracy of the assessed value ranges from rebound hammer tests, which provide indirect values, to ground-penetrating radar, which gives detailed internal images. Ultrasonic pulse velocity devices accurately gauge internal flaws. While concrete test equipment assesses surface hardness only, the results can be compared to later assess internal strength. Conversely, GPR and UPV provide comprehensive data, making them the best choice for accurate assessments. Weighing accuracy against project requirements helps select the concrete test method.
A1: Yes, the non-destructive concrete tests can be conducted in the outdoors. However, some of the tests are better suited for indoor conditions, while others, like the rebound hammer and ultrasonic tests, can be applied in outdoor conditions. However, factors like weather, lighting, and environmental conditions can influence the equipment and results.
A2: The frequency is often influenced by the specific needs of a project, the status of the concrete structure, and industry requirements. On construction sites, it is done frequently during the curing period. Existing buildings should be evaluated continuously as part of preventive maintenance.
A3: Temperature can affect the equipment and the concrete's properties. Extreme temperatures may influence the rebound hammer's mechanism or ultrasonic device's sensors. Also, thermal expansion or contraction may affect the concrete's surface or internal structure. It's advisable to consider these factors, especially in rigorous weather conditions when conducting tests.
A4: The non-destructive concrete test equipment can be used to assess different buildings from historical to modern and residential to commercial. These tests help evaluate the concrete quality and identify potential issues in the commonly found structures.
A5: Ground Penetrating Radar and Ultrasonic Pulse Velocity tests are the most precise. They provide detailed internal images and measurements, offering comprehensive data about the concrete structure's density, composition, and presence of voids or cracks.
