Types of JCB Brake Plates
A JCB brake plate is a critical component within the braking system of JCB construction and industrial vehicles. These plates are responsible for generating the friction needed to slow or stop the vehicle safely and effectively. As heavy-duty machines, JCB equipment demands robust braking systems that can handle high loads, frequent stops, and harsh working conditions. Understanding the different types of JCB brake plates available helps in selecting the right components for optimal performance and safety.
Disc Brake Plates
Disc brake plates, commonly known as brake rotors, are widely used in modern JCB vehicles due to their superior heat dissipation and consistent performance under demanding conditions.
Advantages
- Excellent heat dissipation prevents overheating during continuous use
- Consistent braking performance even after prolonged operation
- Easier maintenance and replacement compared to drum systems
- Effective in wet and muddy conditions
Limitations
- More exposed to dirt and debris in off-road environments
- May require more frequent cleaning in dusty applications
Best for: Front axles, high-speed operations, JCB models requiring frequent stopping

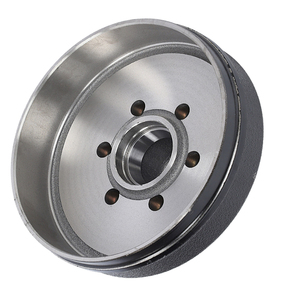

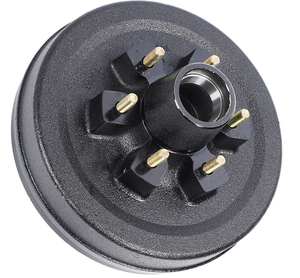

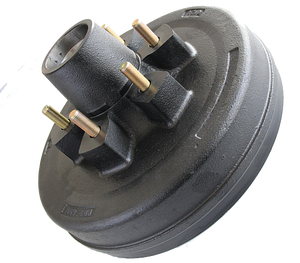

Drum Brake Plates
Drum brake plates are typically found on older JCB models or used in specific applications where maximum stopping power is required despite slower heat dissipation.
Advantages
- Provides greater mechanical advantage for heavy-load braking
- Self-energizing design improves efficiency
- Cost-effective for low-speed applications
- Durable under constant load scenarios
Limitations
- Poorer heat dissipation leads to quicker wear under frequent use
- More complex maintenance procedures
- Prone to water retention and rusting
Best for: Rear axles, heavy machinery, construction and mining applications
Composite Brake Plates
Composite brake plates represent an innovative solution combining advanced materials such as ceramics and reinforced metals to deliver superior performance and longevity in challenging environments.
Advantages
- Lightweight yet highly durable under extreme stress
- Improved thermal resistance reduces warping and fading
- Longer service life with less frequent replacement
- Enhanced braking response and modulation
Limitations
- Higher initial cost compared to traditional materials
- Less common in standard JCB models
Best for: High-performance JCB vehicles, mining, and specialized agricultural tasks
Metallic Brake Plates
Metallic brake plates are engineered for durability and reliability in the most demanding JCB applications, offering exceptional strength and resistance to wear under heavy usage.
Advantages
- High resistance to abrasion and mechanical stress
- Consistent performance in extreme temperatures
- Excellent for high-torque braking situations
- Robust construction ensures long-term reliability
Limitations
- Heavier than composite alternatives
- Can produce more noise during operation
Best for: Mining vehicles, heavy haulage, and rugged terrain applications
| Type | Heat Resistance | Wear Life | Braking Power | Best Application |
|---|---|---|---|---|
| Disc Brake Plate | Excellent | Good | Good | Front axles, high-speed operations |
| Drum Brake Plate | Fair | Very Good | Excellent | Heavy machinery, rear axles |
| Composite Brake Plate | Excellent | Excellent | Excellent | Specialized agriculture, mining |
| Metallic Brake Plate | Very Good | Excellent | Excellent | Extreme duty cycles, mining transport |
Expert Tip: For optimal performance and longevity, always inspect JCB brake plates for signs of warping, scoring, or excessive wear during routine maintenance. Replace them in pairs to ensure balanced braking force and avoid uneven wear patterns.
Specifications & Maintenance of JCB Brake Plates
Key Specifications to Consider
JCB brake plates are engineered for durability and performance in demanding construction environments. While many models share similar specifications, it's crucial to verify compatibility with your specific machine. Understanding the key technical aspects will help ensure you select the right components for optimal braking efficiency and safety.
Size Variations
JCB brake plates typically range from 8 to 10 inches in diameter, designed to match various brake systems across different machinery models. The physical dimensions directly impact braking power and heat dissipation capabilities.
Larger diameter plates provide enhanced stopping power by increasing the leverage point where friction is applied. This is particularly beneficial for heavy-duty machines operating under high-load conditions or on inclines.
Thickness Characteristics
The standard thickness for JCB brake plates falls between 2 to 3 inches. This dimension significantly affects both longevity and response time of the braking system.
Thicker plates offer extended service life due to greater material volume before reaching wear limits. However, they may slightly reduce initial brake responsiveness compared to thinner alternatives that allow quicker engagement but require more frequent replacement.
Material Composition
JCB brake plates are manufactured using three primary materials: cast iron, steel, and composite blends. Each offers distinct advantages depending on usage requirements:
- Cast Iron: Known for exceptional wear resistance and thermal stability, making them ideal for applications requiring frequent heavy braking.
- Steel: Offers good strength but tends to wear faster than cast iron. Commonly used in lighter duty applications where weight reduction is beneficial.
- Composite Materials: Provide a balanced solution combining moderate wear resistance with improved heat management properties.
Mounting Configurations
JCB brake plates utilize either bolted or stud-mounted designs, with variations in fastener count and spacing based on the specific brake system architecture.
Proper mounting ensures secure attachment to brake drums or discs. The bolt pattern must precisely match the corresponding component to maintain alignment and prevent uneven wear patterns that could compromise braking performance.
| Friction Material Type | Performance Characteristics | Recommended Usage |
|---|---|---|
| Organic Compounds | Moderate friction with reduced noise; gradual wear profile | Ideal for general-purpose operation under normal working conditions |
| Metallic Compounds | High friction coefficient with rapid wear characteristics | Suitable for intense braking demands despite shorter lifespan |
| Ceramic Composites | Excellent friction control with minimal wear and heat buildup | Premium option for operators prioritizing longevity and consistent performance |
Essential Maintenance Practices
Regular maintenance of JCB brake plates is critical not only for extending component life but also for ensuring operator safety and equipment reliability. Proper care helps maintain consistent braking performance while identifying potential issues before they escalate into costly failures.
Important: When replacing any brake plate component, always assess the entire brake system's condition. Replacing only individual parts without addressing related wear items can create imbalances, leading to uneven loading and accelerated deterioration of newly installed components.
How to Choose JCB Brake Plates
Selecting the correct JCB brake plates for your specific machine is essential for ensuring safe and efficient operation. With a variety of factors to consider—from compatibility to material quality—this guide will help you make an informed decision that meets your operational needs.
Compatibility with Machine Model
Brake plate compatibility is critical. Each JCB model has unique specifications, so it's vital to match the brake plates precisely to your machine’s make, model, and year. Using incompatible parts can lead to poor braking performance or even mechanical failure.
- Always verify part numbers against JCB OEM (Original Equipment Manufacturer) specifications
- Consult technical manuals or service centers for exact fitment details
- Aftermarket parts should be certified for use with your specific JCB equipment
Pro Tip: Cross-reference online using JCB part number lookup tools before purchasing.
Quality and Reliability Standards
The longevity and effectiveness of JCB brake plates are directly tied to their build quality. Genuine JCB parts are engineered to meet rigorous standards, but reputable aftermarket brands can also offer excellent alternatives when sourced carefully.
- Genuine JCB parts ensure factory-level durability and precision engineering
- High-quality aftermarket options may provide cost savings without compromising safety
- Look for certifications such as ISO 9001 or SAE J2995 for industrial brake components
Insight: Always check customer reviews and professional mechanic recommendations.
Operating Conditions and Environment
The environment in which the JCB machinery operates plays a significant role in determining the type of brake plate needed. Extreme temperatures, dust, moisture, and heavy loads all influence wear and performance requirements.
- High-temperature environments require heat-resistant materials like ceramic composites or high-carbon steel
- Dusty conditions call for sealed or coated brake plates to reduce abrasive wear
- Cold climates benefit from materials resistant to thermal shock and corrosion
Note: Off-road machines often require reinforced plates designed for rugged terrain.
Performance and Usage Demands
Depending on whether your JCB is used for light-duty operations or heavy industrial work, the brake plate must match the expected workload. High-performance applications demand materials that resist warping and maintain consistent friction under pressure.
- Heavy construction equipment benefits from thicker, high-density plates
- Frequent stop-start cycles require superior thermal dissipation properties
- High-speed operations need balanced, vibration-resistant designs
Expert advice: For demanding applications, consider dual-layer or ventilated brake plates.
Dimensions and Fitment Precision
Correct sizing ensures proper installation and optimal function. Even slight deviations in thickness or diameter can compromise braking efficiency and potentially damage other system components.
- Measure existing brake plates for accurate comparison

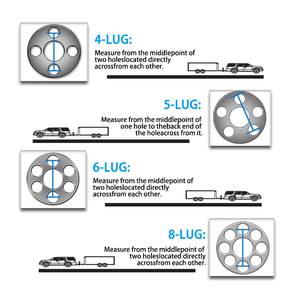

- Check bolt hole spacing and diameter alignment
- Ensure caliper clearance by verifying outer diameter specifications
Warning: Incorrect dimensions can cause uneven wear, noise, and reduced stopping power.
Material Composition and Benefits
JCB brake plates come in various materials, each offering different advantages in terms of weight, wear resistance, and heat management.
- Cast Iron: Excellent heat retention, ideal for moderate usage
- Steel Alloys: Superior strength and wear resistance for heavy-duty machines
- Composite Materials: Lightweight and corrosion-resistant, suitable for general-purpose use
- Ceramic Composites: High heat tolerance and minimal dust production
Technical Insight: Material choice affects both performance and long-term maintenance costs.
Budgeting Strategy: While budget is important, prioritize value over price alone. A higher initial investment in premium brake plates often results in longer lifespan, better performance, and reduced downtime for replacements or repairs. Look for bulk discounts if maintaining a fleet of JCB machines.
| Usage Type | Recommended Material | Expected Lifespan | Key Features |
|---|---|---|---|
| Light-Duty (Landscaping) | Composite or Cast Iron | 6–12 months | Cost-effective, easy replacement |
| Moderate Use (Construction) | Steel Alloy | 12–24 months | Good balance of durability and cost |
| Heavy Industrial | High-Carbon Steel or Ceramic Composite | 24–36+ months | Heat resistant, long-lasting |
| Extreme Conditions (Mining/Offshore) | Ventilated or Dual-Layer Ceramics | Varies | Superior thermal management, corrosion resistance |
Warranty and Support: Always purchase JCB brake plates from suppliers offering clear warranty terms. A standard warranty of 6–12 months provides assurance against manufacturing defects and premature wear. Some premium brands offer extended warranties for commercial users.
Professional Feedback: Before making a final selection, consult with experienced technicians or operators who have worked with similar JCB models. Their firsthand experience can highlight potential issues and recommend reliable brands based on real-world performance.
DIY Guide to Replacing JCB Brake Plates
Brake plates play a vital role in the functionality of a JCB machine’s braking system. These components are responsible for transferring force from the brake actuation system to the brake pads, ensuring that the machine can stop safely and efficiently. Over time, brake plates may wear down due to repeated friction, heat exposure, or mechanical stress. When this occurs, it's essential to replace them promptly to prevent further damage to the brake system, which could lead to costly repairs or even safety hazards.
Replacing a JCB brake plate is a manageable task for those with basic mechanical knowledge and the right tools. This guide will walk you through the complete process, offering tips and best practices to ensure a safe and effective replacement. Whether you're maintaining a JCB excavator, loader, or backhoe, following these steps will help preserve your equipment's performance and longevity.
Safety Warning: Always work on a stable, level surface with the engine off and the parking brake engaged. Wear protective gloves and eyewear to avoid injury. Ensure proper ventilation when working near hydraulic systems and brake fluids.
Preparation and Tools Required
Before starting the replacement process, it's important to gather all necessary tools and materials. Having everything ready will streamline the procedure and reduce the risk of mistakes. Below is a list of recommended items:
- Jack and jack stands (rated for the machine's weight)
- Wrench set and socket set
- Torque wrench (for accurate bolt tightening)
- Clean container for collecting brake fluid
- New JCB-compatible brake plate(s)
- Replacement brake pads and hardware (if needed)
- Brake cleaner spray
- Lubricant for moving parts
- Gloves and safety goggles
Also, refer to your JCB operator manual for model-specific instructions and torque specifications. This document is invaluable for understanding the unique requirements of your machine's brake system.
Step-by-Step Replacement Procedure
- Secure the Machine
Park the JCB on a flat, stable surface. Engage the parking brake and turn off the engine. Allow the machine to cool down completely before proceeding to avoid burns from hot components.
- Lift and Support the Machine
Loosen the wheel lugs slightly using a wrench or impact tool. Then raise the machine with a suitable jack and secure it on jack stands. Once properly supported, remove the wheels to gain access to the brake assembly.
- Access the Brake Plate
Depending on the JCB model, the brake plate may be located on the axle or integrated into the wheel hub. Remove any shields, calipers, or brake pads obstructing access to the brake plate. Label and organize all removed components for easy reassembly.
- Disconnect Brake Lines and Remove Old Plate
Before removing the old brake plate, disconnect the brake lines carefully. Collect the brake fluid in a clean container and dispose of it according to local environmental regulations. Use the appropriate tools to remove the mounting bolts securing the brake plate, then gently slide or lift it out.
Inspect the surrounding area for signs of excessive wear, corrosion, or damage. Clean the mounting surface thoroughly and check other components such as caliper brackets and rotors for wear or warping.
- Install the New Brake Plate
Position the new brake plate onto the mounting surface. Ensure it aligns correctly with the brake system components. Install the mounting bolts and tighten them gradually in a crisscross pattern to distribute pressure evenly. Use a torque wrench to achieve the manufacturer's recommended torque specifications.
Reconnect the brake lines securely and double-check for leaks. Reinstall any brake pads, calipers, or shields that were removed earlier.
- Reassemble and Lower the Machine
Reinstall the wheels and hand-tighten the lug nuts. Carefully lower the JCB machine from the jack stands using the jack, then fully tighten the wheel lugs to the specified torque value. This ensures the wheels are securely fastened and balanced.
- Test the Brakes
Start the engine and pump the brake pedal several times to build up pressure in the brake system. Check for any unusual noises, vibrations, or leaks. Perform a low-speed test in a controlled environment to confirm the brakes respond effectively before returning the machine to regular operation.
| Phase | Key Actions | Common Pitfalls | Essential Tools |
|---|---|---|---|
| Preparation | Verify correct part number, review manual, gather tools | Using incorrect replacement parts, skipping the manual | JCB service manual, torque specs chart |
| Dismantling | Proper lifting, labeling connections, fluid containment | Rushing disassembly, mislabeling components | Socket set, marker, drain pan |
| Installation | Correct alignment, proper torque, leak checks | Over-tightening bolts, improper alignment | Torque wrench, alignment gauge |
| Testing | Leak inspection, brake pressure buildup, operational test | Skipping test procedures, ignoring warning signs | Pressure tester, visual inspection kit |
Mechanic's Tip: After installation, always bleed the brake system if there's any sign of air in the lines or spongy pedal feel. This ensures optimal brake performance and safety.
Post-Replacement Maintenance Tips
To extend the life of your newly installed brake plate and maintain optimal braking performance, consider the following maintenance recommendations:
- Regularly inspect brake components for wear during routine maintenance
- Keep brake lines and fittings free from dirt and debris
- Check brake fluid levels and condition periodically
- Avoid aggressive braking whenever possible to reduce component stress
- Follow the JCB maintenance schedule for brake system servicing
By following this comprehensive guide, you'll not only save money by performing the replacement yourself but also gain valuable insight into your JCB machine's braking system. Proper maintenance ensures both safety and efficiency on the job site.
Frequently Asked Questions about JCB Brake Plates
A JCB brake plate, commonly referred to as a brake disc or rotor, is an essential component of the braking system in JCB construction and earthmoving machinery. It is a circular metal disc mounted on the wheel hub that rotates along with the wheels. When the operator applies the brakes, hydraulic pressure forces the brake pads against the surface of the brake plate, creating friction that slows down or stops the machine.
This critical safety component must be manufactured from high-strength materials capable of withstanding extreme temperatures and wear over time. In heavy-duty equipment like JCB machines, brake plates are typically made from cast iron or composite alloys for enhanced durability under demanding conditions.
There are primarily two types of JCB brake plates used in modern machinery:
- Ventilated Brake Plates: These feature internal cooling fins or channels that allow air to circulate between the disc surfaces. This design helps dissipate heat more efficiently during heavy braking, reducing the risk of warping or brake fade—particularly important in high-load applications such as excavators and loaders.
- Non-Ventilated (Solid) Brake Plates: These are solid discs without internal cooling channels. They are simpler in design and often used in smaller machines or lighter-duty applications where heat buildup is less of a concern.
In addition to these structural types, JCB brake plates may also come in various finishes such as drilled, slotted, or plain surfaces, each offering specific performance characteristics related to heat dissipation, water dispersion, and pad bite.
The thickness of a JCB brake plate varies depending on the model, size, and intended use of the machine. Typically, brake plates used in larger JCB equipment like backhoe loaders or skid steer loaders range from 20 mm to 40 mm in thickness. The exact measurement depends on several factors including:
- Type of braking system (disc vs. drum)
- Machine weight and load capacity
- Operating environment (construction sites, quarrying, etc.)
- Manufacturer specifications
It's crucial to follow the minimum thickness guidelines provided by JCB in the service manual for each particular model. Operating with excessively worn brake plates can compromise stopping power and increase the risk of mechanical failure. Always measure the brake plate using a micrometer or caliper to ensure it meets the manufacturer’s recommended standards before reuse or replacement.
The frequency of brake plate replacement depends on multiple variables, including:
- Machinery type: Larger JCB machines like telehandlers and excavators may experience different wear rates compared to compact models.
- Usage intensity: Machines operating in stop-start environments or carrying heavy loads will require more frequent inspections and replacements.
- Environmental conditions: Dusty, muddy, or wet working conditions can accelerate wear and corrosion on brake components.
- Brake plate quality: Genuine JCB parts typically last longer than aftermarket alternatives due to superior materials and engineering.
As a general rule, JCB recommends regular visual inspections during scheduled maintenance intervals (every 250–500 hours of operation). Signs that a brake plate needs replacing include:
- Excessive wear below the minimum thickness
- Cracks, warping, or scoring on the surface
- Unusual noises during braking (squealing, grinding)
- Pedal pulsation felt through the brake lever or pedal
If any of these symptoms are present, replace the brake plate immediately to maintain optimal safety and performance.
Resurfacing, also known as machining or turning, involves removing a thin layer of material from the brake plate’s surface to restore flatness and parallelism. While this process can extend the life of a brake plate in some cases, it is not always advisable or feasible for JCB equipment. Whether resurfacing is appropriate depends on several key considerations:
- Minimum Thickness: Resurfacing reduces the overall thickness of the brake plate. If the remaining thickness would fall below the manufacturer’s specified minimum, resurfacing is unsafe and should not be performed.
- Material Composition: Some brake plates are made from materials that do not respond well to machining, especially those with special coatings or treatments designed to enhance performance or longevity.
- Condition of the Plate: Severely warped, cracked, or scored brake plates cannot be safely restored through resurfacing and must be replaced.
Before attempting to resurface a JCB brake plate, always refer to the official JCB service manual or consult with a certified technician. Many professionals recommend replacing brake plates rather than resurfacing them in commercial or industrial applications, where reliability and safety are paramount.
