About h2s scrubber

Types of H2S scrubber

The purpose of an H2S scrubber is to eliminate the hydrogen sulfide gas from the air stream. These scrubbers can be divided into four main categories: chemical, biological, air, and wet scrubbers.

  • Chemical H2S scrubber

    Chemical scrubbers use a liquid solution of chemicals to react with and neutralize the hydrogen sulfide gas. The solutions are made of amines, sodium hydroxide and iron oxide. The chemical reactions that take place in these scrubbers remove H2S from gas streams. They are often used in industries where large amounts of hydrogen sulfide are produced. They can be used to purify biogas, clean natural gas and treat wastewater. Chemical H2S scrubbers are reliable and efficient at removing hydrogen sulfide, even at low concentrations.

  • Biological H2S scrubber

    These scrubbers use living organisms to remove H2S from the air. Special bacteria that consume hydrogen sulfide are used in these scrubbers. These bacteria grow in a bioreactor and digest the H2S gas, thus cleaning the air. Biological scrubbers are environmentally friendly because they use natural processes to clean the air. They are also cost effective since the bacteria can be recycled. However, these scrubbers require regular maintenance to keep the bacteria healthy and ensure they work well. Biological H2S scrubbers are suitable for applications with low to moderate H2S concentrations, such as waste treatment plants and livestock facilities.

  • Air H2S scrubber

    These scrubbers use a special liquid that absorbs H2S from the air. The air with H2S passes through the liquid, and the gas is absorbed. These scrubbers are useful in places where H2S is present in low concentrations. They are compact and need less space, making them suitable for small-scale applications like natural gas processing and laboratory fume hoods. However, air scrubbers may need to be replaced more often than larger systems and have a lower capacity.

  • Wet H2S scrubber

    Wet scrubbers remove H2S by using a liquid to wash the gas. The H2S gas passes through the liquid, which captures and removes the gas. These scrubbers are good at removing H2S and can handle large volumes of gas. Wet scrubbers are durable and can work in different temperatures and pressures. They are commonly used in industries like oil and gas, mining and wastewater treatment. Wet scrubbers are effective at removing H2S from gas streams, even at high concentrations. They also remove other pollutants and can handle corrosive gases.

Design of H2S scrubber

  • Vessel Design

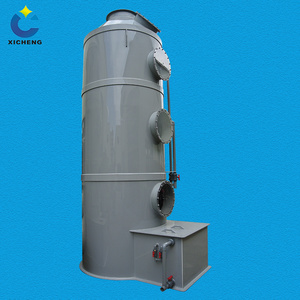

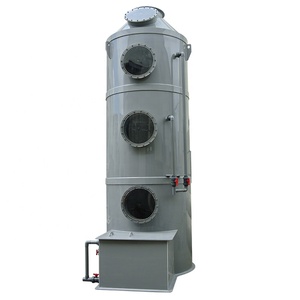

    The scrubber vessels are typically cylindrical in shape and made from robust materials such as steel or fiber-reinforced plastic (FRP) to withstand corrosive conditions. The top of the vessel often features a conical design to facilitate the collection of scrubbed waste at the bottom. The diameter of the vessel gradually increases from top to bottom, ensuring structural integrity and optimizing gas-liquid interaction.

  • Stage Design

    There are three main stages in a typical H2S scrubber design: the contact stage, the separation stage, and the polishing stage. During the contact stage, the gas is introduced to the liquid via counter-current flow in packed bed scrubbers. The separation stage then removes any solid or liquid contaminants using filters or centrifuges. Finally, during the polishing stage, any remaining traces of hydrogen sulfide are eliminated through catalytic converters or absorbent beds.

  • Material Selection

    Materials such as activated carbon, iron oxide, or alkaline solutions are commonly used for removing H2S gas from the air. Some scrubbers employ a two-step process where sodium hydroxide solution reacts with hydrogen sulfide to form sodium sulfide, while others utilize solid sorbents like zinc oxide that can be regenerated after bonding with H2S.

  • Liquid Distribution

    In a wet scrubber, proper liquid distribution is necessary to ensure uniform removal of H2S gas. This is usually brought about by using spray nozzles or perforated pipes that allow the scrubbing liquid to be distributed evenly across the gas stream. Proper liquid distribution guarantees that all gas bubbles come into contact with the scrubbing liquid, thus optimizing gas removal efficiency.

  • Flow Rate Consideration

    For any H2S scrubber design to be successful, the flow rates of both gas and liquid must be considered so as to achieve equilibrium between them. If the flow rate of the gas is too high for what the scrubber can handle, then it will lead to inefficient removal of H2S; on the other hand, if that of the liquid is low enough, it will cause flooding within the system. Therefore, designers must strike a balance between these two variables during construction.

  • Temperature Control

    The reaction rates of many chemical processes are temperature-dependent; hence, maintaining constant temperatures within an H2S scrubber system is vital. Either cooling coils or heating elements can be incorporated into such systems so that temperatures do not fluctuate beyond desired limits. This ensures that all reactions proceed smoothly without any interruptions due to changes in temperature.

Usage scenarios of H2S scrubber

Here are some common applications of H2S scrubbers:

  • Wastewater treatment: In cities and industrial areas, H2S can form in sewage treatment plants and in the wastewater of food processing, pulp and paper, and oil refinery industries. H2S scrubbers are needed to treat this gas before it escapes into the atmosphere or contaminates water bodies.
  • Oil and gas industry: Natural gas contains H2S, which is toxic and corrosive. Oil and gas companies use scrubbers to remove H2S from natural gas and crude oil in refining processes. This protects equipment from corrosion and ensures safety for workers and the environment.
  • Mining industry: Minerals containing pyrite can produce H2S gas through reactions with bacteria in water and air. Underground and open-pit mines, as well as mineral processing plants, may need scrubbers to eliminate H2S, protecting workers from danger and preventing damage to nearby ecosystems.
  • Pulp and paper industry: Kraft pulping uses sodium sulfide, which creates H2S during the decomposition of organic matter. Pulp mills need scrubbers to control H2S emissions and comply with environmental regulations while preventing odor complaints.
  • Geothermal power plants: Geothermal fluids often contain H2S gas, which can harm the environment if released. These plants use scrubbers to remove H2S from the steam or brine fluids before they are discharged into the atmosphere or injected back into the ground.
  • Chemical manufacturing: Some chemicals are produced using processes that involve H2S as a reactant or byproduct. Chemical plants use scrubbers to capture and remove H2S to ensure process efficiency and safeguard workers and the environment.
  • Laboratories and research facilities: In labs where hydrogen sulfide is studied or used for various experiments, fume hoods equipped with H2S scrubbers are necessary. This ensures a safe working environment for researchers handling potentially hazardous materials.
  • Biogas plants: In anaerobic digestion systems, organic waste produces biogas containing methane and H2S. Scrubbers are used to clean the biogas before it is used as fuel for engines or turbines, ensuring clean energy production without corrosive damage.

How to choose h2s scrubber

Wholesale buyers should know about these points when picking an H2S scrubber. They relate to product quality and business factors.

  • Efficiency in Removing H2S:

    Check the product specs to ensure the scrubber can eliminate H2S gas efficiently. Look for details like the absorption rate and capacity. These show how well the scrubber works. Choose a model that meets or exceeds industry standards for H2S removal.

  • Technology Type:

    Decide which kind of scrubber is suitable for the target customers. Compare the advantages of each technology. The ones using zinc, iron, and biological methods have their pros and cons. Consider factors like maintenance, ease of use, and environmental impact. Choose a kind that balances performance and practicality for the intended users.

  • Material Quality and Durability:

    Ensure the scrubber can withstand harsh environments. Check the materials used in making the scrubber. It should have corrosion-resistant materials for long-lasting performance. Look for features like robust construction and protection against wear and tear.

  • Size and Portability:

    Consider the target users' space limitations when choosing a scrubber. Ensure it has a compact design and is portable for easy transport. Some users may need a stationary model. Others may want a movable one. The design should match the user's operational needs and installation constraints.

  • Compliance with Environmental Regulations:

    Find out about the environmental laws in the target market. Ensure that the scrubber complies with these rules. Choose products that meet the local emission standards. This reduces the possibility of legal issues and boosts customer trust.

  • Supplier Reputation and Support:

    Choose a reliable supplier with a good history. They should provide high-quality H2S scrubbers. Also, consider the support that comes with the product. Check if the supplier offers technical support, warranties, and after-sales service. Such support is vital for maintaining customer satisfaction and reducing product downtime.

  • Cost and Profitability:

    Analyze the cost of each scrubber and their potential profit margins. Balance the cost and quality. Avoid choosing a product just because it is cheap. Ensure it has enough quality to satisfy users and keep the business profitable.

Q&A

Q1. What is the role of the H2S scrubber in the oil and gas industry?

A1. It removes hydrogen sulfide gas from the oil and gas streams to protect the environment and ensure the safety of workers and equipment.

Q2. How does a biogas scrubber work?

A2. A biogas scrubber uses biological processes involving specific bacteria to convert harmful gases into less toxic substances.

Q3. What are the benefits of using an alkaline scrubbing solution?

A3. Alkaline solutions neutralize acidic gases like H2S, producing harmless salts that can be easily disposed of.

Q4. What is a vacuum pressure swing adsorption (VPSA) system?

A4. The VPSA system is a gas treatment process that uses vacuum pressure swings to selectively adsorb H2S from gas mixtures.

Q5. What is a regenerative scrubbing system?

A5. It is a system that allows for the recovery and reuse of absorbents, thus reducing waste and lowering operational costs.
