Types of Ford Focus Clutch Actuator
A clutch actuator plays a crucial role in the manual transmission system of a vehicle by facilitating smooth and efficient gear shifts. In the Ford Focus, this component ensures that the driver can engage and disengage the clutch with minimal effort while maintaining mechanical efficiency and responsiveness. A properly functioning clutch actuator prevents gear grinding and enhances driving comfort, especially during stop-and-go traffic or spirited driving.
The Ford Focus, known for its compact design and sporty handling, utilizes different types of clutch actuators depending on the model year, trim level, and engine configuration. Understanding these variations can help owners make informed decisions regarding maintenance, upgrades, or replacements. Below is an in-depth look at the most common types of clutch actuators found in Ford Focus models:
Hydraulic Clutch Actuator
This type of actuator uses hydraulic pressure to engage and disengage the clutch mechanism. When the driver presses the clutch pedal, hydraulic fluid flows into a master cylinder, which then applies force to a slave cylinder connected to the clutch fork. This action disengages the clutch from the flywheel, allowing for seamless gear changes.
Advantages
- Smooth and consistent operation
- Less physical effort required
- Improved modulation for better control
- Self-adjusting capabilities
Limitations
- Requires regular fluid checks and bleeding
- Potential for leaks over time
- More complex system with more components to fail
Best for: Daily drivers, automatic/manual hybrid systems, models requiring smoother engagement
Pull-Type Clutch Actuator
This mechanical system relies on a cable linkage that pulls the clutch fork when the pedal is pressed. The pull-type actuator is one of the oldest and simplest designs, often used in earlier generations of the Ford Focus. It operates through direct mechanical force rather than hydraulic pressure.
Advantages
- Simple, straightforward design
- Easier to replace or adjust manually
- Cost-effective solution
- Fewer components involved
Limitations
- Less precise control compared to hydraulic systems
- Cable stretch may require frequent adjustments
- Increased pedal effort over time
Best for: Older Ford Focus models, budget-conscious owners, basic transportation needs
Piston-Type Clutch Actuator
Similar in principle to the hydraulic actuator, the piston-type clutch actuator uses either air or hydraulic pressure to move a piston within a cylinder. This motion activates the clutch fork and disengages the clutch. It's commonly found in performance-oriented versions of the Ford Focus where responsiveness and durability are key.
Advantages
- Highly responsive and direct feel
- Durable under high-stress conditions
- Better suited for heavy-duty or track use
- Consistent performance across temperatures
Limitations
- More expensive than standard systems
- Requires periodic maintenance and inspection
- Complex setup may need professional servicing
Best for: Performance-focused Ford Focus ST/RS models, track enthusiasts, aggressive driving scenarios
Electric Clutch Actuator
This modern type of actuator replaces traditional mechanical or hydraulic systems with an electric motor controlled by the vehicle’s ECU (Electronic Control Unit). Sensors detect pedal input and various driving conditions to optimize clutch engagement timing and smoothness automatically.
Advantages
- Automated, precision-based operation
- Enhanced fuel efficiency and smoother shifts
- Integration with advanced driving modes
- Low maintenance once installed correctly
Limitations
- Higher initial cost
- Relies heavily on electronics and sensors
- Complex diagnostics if failure occurs
Best for: Hybrid or electric Ford models, semi-automatic transmissions, tech-savvy drivers
| Type | Mechanism | Effort Required | Maintenance Level | Ideal For |
|---|---|---|---|---|
| Hydraulic | Fluid pressure system | Low | Moderate | Daily commuting, smooth shifting |
| Pull-Type | Cable linkage | Moderate | High | Vintage models, budget fixes |
| Piston-Type | Pneumatic/hydraulic piston | Medium | Moderate | Sportier models, performance driving |
| Electric | ECU-controlled motor | Very Low | Low | Modern tech integrations, hybrids |
Expert Tip: If you're experiencing difficulty shifting gears or notice a spongy pedal feel, it may be time to inspect your clutch actuator. Hydraulic systems should be checked for fluid leaks or air bubbles, while pull-type cables might need adjustment or replacement. Upgrading to a high-performance piston-type actuator could significantly improve shift quality in modified or track-prepped Ford Focus vehicles.
Specification & Maintenance of Ford Focus Clutch Actuator
The clutch actuator in a Ford Focus plays a critical role in the operation of the vehicle's manual transmission system. It ensures smooth and efficient engagement and disengagement of the clutch by translating pedal movement into mechanical action. Proper specification and regular maintenance are essential to avoid performance issues and costly repairs.
Maintenance Best Practices for Optimal Performance
Regular maintenance of the clutch actuator is key to ensuring the longevity and reliability of your Ford Focus’s transmission system. Below are detailed guidelines for each essential maintenance task:
Regular Inspection
Periodic visual inspection of the clutch actuator is crucial to detect early signs of wear or damage. Pay attention to the housing for cracks, leaks, or physical deformation. Check hydraulic lines and connections for any wet spots, discoloration, or corrosion that could indicate fluid leakage.
It's recommended to perform this check every 15,000 miles or during routine oil changes to ensure early detection of potential problems before they escalate.
Fluid Quality and Level
The hydraulic fluid level should be checked regularly to ensure it remains within the recommended range. Use only the manufacturer-specified hydraulic fluid as outlined in your owner’s manual, as using incorrect fluids can lead to internal damage or reduced performance.
Inspect the fluid's condition—clear or slightly colored fluid is normal. If it appears dark, cloudy, or contaminated with debris, a complete flush and replacement should be performed following the service intervals specified by Ford (typically every 30,000–50,000 miles).
Bleeding Air from the System
Air trapped in the hydraulic clutch system can cause spongy pedal feel, inconsistent engagement, or even failure to fully disengage the clutch. This commonly occurs after fluid top-offs, leaks, or component replacements.
Follow the bleeding procedure outlined in your service manual, which typically involves manually depressing the clutch while releasing air through a bleed valve. Ensure the reservoir remains filled during the process to prevent further air introduction.
Lubrication of Moving Parts
External moving components of the clutch actuator, such as pivot points or linkage joints, should be lightly lubricated with a high-quality, non-petroleum-based lubricant to prevent binding or erratic motion.
Apply sparingly to avoid attracting dirt and debris. Lubrication should be part of your semi-annual maintenance routine or more frequently if you drive in dusty or wet conditions.
| Maintenance Task | Frequency | Recommended Tools/Products |
|---|---|---|
| Visual Inspection | Every 15,000 miles or oil change | Flashlight, gloves, clean cloth |
| Fluid Level Check | Monthly or before long trips | Owner’s manual, correct hydraulic fluid |
| Hydraulic Fluid Flush | Every 30,000–50,000 miles | Clutch fluid, wrench set, clear hose |
| System Bleeding | After fluid top-off or leak repair | Bleed kit, assistant, safety goggles |
Operational Monitoring and Replacement Indicators
In addition to scheduled maintenance, monitoring how the clutch feels and performs during daily driving is vital. Unusual symptoms often point to underlying issues that need immediate attention.
Important: Always inspect and maintain the entire clutch system when addressing actuator issues. Neglecting other components—such as the master cylinder, clutch cable, or release bearing—can lead to recurring problems even after replacing the actuator.
How to Choose a Clutch Actuator for Ford Focus Models
Selecting the correct clutch actuator for Ford Focus vehicles is essential for maintaining optimal clutch performance and ensuring customer satisfaction in both retail and wholesale environments. A well-informed selection process can significantly impact sales, reduce returns, and enhance brand reputation.
Understanding Market Demand
The first step in choosing clutch actuators for Ford Focus models involves analyzing local and regional market demand. The Ford Focus has been a popular compact car across various markets, especially among drivers who prefer manual transmissions or require reliable replacement parts.
- Check local vehicle registration data for Focus model prevalence
- Analyze repair shop requests and online search trends for Focus clutch components
- Consider seasonal variations that might affect part demand
Pro Tip: Focus on high-selling trim levels like SE, SEL, ST, and RS models which may have different clutch system designs.
Versatility and Compatibility
Clutch actuators are not universal components. They vary by year, engine type, and transmission configuration. For the Ford Focus, it's crucial to distinguish between:
- Mark I (1998–2004), Mark II (2004–2008), and Mark III (2008–2018) generations
- Different engine displacements (e.g., 2.0L Duratec vs. 1.5L EcoBoost)
- Hydraulic vs. electronic clutch systems in newer models
Critical Check: Always cross-reference OEM part numbers with your supplier database before placing bulk orders.
Lubricants and Maintenance Accessories
In addition to the actuator itself, offering compatible maintenance products can increase basket size and customer satisfaction. Proper lubrication plays a key role in extending the life of hydraulic clutch systems.
- Use brake fluids compliant with DOT 3 or DOT 4 specifications
- Offer silicone-based lubricants for seals and moving parts
- Provide cleaning solutions specifically formulated for hydraulic systems
Customer Benefit: Bundling actuators with maintenance kits offers value and convenience.
OEM vs Aftermarket Preferences
Consumer preferences regarding OEM (Original Equipment Manufacturer) versus aftermarket parts vary depending on factors such as budget, performance expectations, and brand loyalty.
- OEM parts guarantee perfect fit and function but come at a premium price
- Aftermarket brands offer cost-effective alternatives with varying quality levels
- Some customers prioritize warranty coverage and resale value considerations
Market Insight: Offer both options and clearly communicate differences in durability, warranty, and compatibility.
Expert Advice: When uncertain about which clutch actuator variant to stock, start with the most common configurations found in your region. Use point-of-sale data and online inquiries to identify trending models and adjust inventory accordingly. Providing technical support resources alongside your products can also help differentiate your offerings from competitors.
| Ford Focus Generation | Recommended Clutch Actuator Type | Common Part Numbers | Key Considerations |
|---|---|---|---|
| Mark I (1998–2004) | Hydraulic master/slave cylinder combo | MEUSA-8200, FTEC-F2700 | Ensure compatibility with older fluid reservoir setups |
| Mark II (2004–2008) | Integrated hydraulic actuator | Bosal-34015, Textar-334015 | Check for ABS module clearance |
| Mark III (2008–2018) | Electronic/hydraulic hybrid | Mando-MC1175, ACDelco-18D1175 | Verify ECU communication post-installation |
| Focus ST/RS (2012–2018) | Performance-rated hydraulic | ATE-24.3101-7113.1, Febi-37850 | Look for reinforced seals and higher flow ratings |

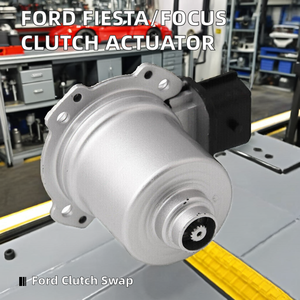

How to DIY and Replace Ford Focus Clutch Actuator
Replacing the clutch actuator on a Ford Focus is a moderately technical task that requires careful attention to detail, especially since it plays a critical role in engaging and disengaging your vehicle's clutch system. While this job can be challenging for beginners, with the right tools and proper guidance, it’s entirely feasible to complete at home.
This guide provides a comprehensive walkthrough of how to replace the clutch actuator on a Ford Focus, including necessary tools, step-by-step instructions, and expert tips to ensure a successful repair without damaging other components.
Safety Warning: Always disconnect the battery before working on electrical systems and ensure the car is securely lifted using jack stands. Wear protective gloves and eyewear when handling brake or clutch fluid, as it can be harmful if it contacts skin or eyes.
Understanding the Clutch Actuator

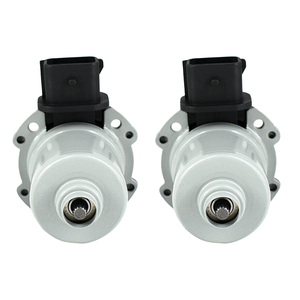

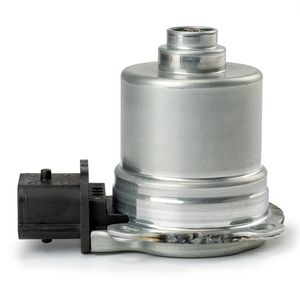

The clutch actuator in a Ford Focus is typically an electrically controlled hydraulic unit responsible for applying pressure to the clutch release bearing. It eliminates the need for a traditional mechanical linkage and allows for smoother operation. Over time, actuators can fail due to internal leaks, sensor issues, or motor failure, leading to symptoms like difficulty shifting gears or a spongy clutch pedal.
Tools and Materials Needed
- Socket set: A variety of metric sockets are essential for removing bolts securing the actuator and surrounding components.
- Torque wrench: Ensures all bolts are tightened to the manufacturer’s specifications, preventing over-tightening or under-tightening.
- New clutch actuator: Make sure you purchase the correct part number compatible with your specific Ford Focus model year (e.g., 2012–2018 models often use different configurations).
- Clutch fluid: DOT 4 brake fluid is commonly used for Ford Focus clutch systems. Refer to your owner’s manual for confirmation.
- Bleeding kit: Helps efficiently remove air bubbles from the hydraulic system after installation, ensuring proper clutch function.
- Ratchet and extensions: Useful for accessing bolts in tight spaces.
- Jack and jack stands: Required to safely lift the vehicle for access to the underside.
- Gloves and safety glasses: For protection against fluid exposure and debris.
Step-by-Step Replacement Instructions
- Turn off the engine and put the car in gear. This prevents the vehicle from rolling while it's elevated.
- Use a jack to lift the car and secure it with jack stands. Ensure the vehicle is stable before proceeding.
- Remove the battery. This helps prevent any short circuits during the procedure. Start with the negative terminal first.
- Remove the clutch fluid reservoir and set it aside. Detach the hose if necessary to prevent spillage and avoid obstructing your workspace.
- Disconnect the electrical connections to the actuator. Use care not to damage the wiring harness. Take note of connector orientation for reinstallation.
- Drain the clutch fluid from the system. Place a container beneath the bleed valve to catch the old fluid, and open the valve slightly to drain.
- Remove the bolts holding the actuator in place. There are usually two to four bolts depending on the model. Keep them organized for easy reassembly.
- Pull out the old actuator and insert the new one. Be gentle with the alignment to avoid damaging the mounting points or hydraulic lines.
- Tighten the bolts to secure the actuator. Use a torque wrench to tighten each bolt to the recommended specification—typically between 8–12 Nm unless specified otherwise in your service manual.
- Reconnect the electrical connections. Double-check that they’re fully seated and secured to avoid intermittent issues later.
- Reconnect the clutch fluid reservoir. Ensure all hoses are properly attached and sealed to prevent leaks.
- Fill the system with new clutch fluid. Use clean, fresh fluid to maintain optimal performance and longevity of the hydraulic components.
- Use a bleeding kit to remove air from the system. Follow the bleeding process carefully until no air bubbles appear in the fluid stream.
- Replace the battery. Reconnect the positive terminal first, then the negative, ensuring both are tightly secured.
- Lower the car and remove the jack stands. Make sure the vehicle is completely lowered and stable before starting the engine.
- Start the engine and test the clutch. Press the clutch pedal several times to build pressure, then shift through the gears to confirm smooth engagement and release.
| Phase | Key Actions | Common Mistakes | Recommended Tools |
|---|---|---|---|
| Preparation | Verify part compatibility, gather tools, park on level ground | Mismatched parts, missing tools, inadequate workspace | Owner's manual, socket set, jack |
| Disassembly | Removing battery, reservoir, and electrical connectors | Spilling fluid, losing small parts, improper labeling | Ratchet, labels, fluid catch pan |
| Installation | Fitting new actuator, torquing bolts correctly | Over-torquing, misalignment, damaged seals | Torque wrench, alignment tools |
| Refill & Bleed | Refilling clutch fluid and bleeding air | Incomplete bleeding, incorrect fluid type | DOT 4 fluid, bleeding kit |
| Testing | Reconnecting battery, testing clutch function | Skipping bleed check, driving too soon | Test drive checklist, multimeter (optional) |
DIY Tip: Before installing the new actuator, inspect the hydraulic lines and master cylinder for signs of wear or leakage. Addressing these issues now can prevent future repairs and improve overall clutch performance.
Troubleshooting After Installation
If the clutch still feels stiff or doesn’t engage properly after installation:
- Double-check the bleeding process to ensure all air has been removed.
- Confirm that the electrical connection is fully engaged and there are no error codes.
- Check the fluid level in the reservoir—it should be within the “MIN” and “MAX” marks.
- Scan for fault codes using an OBD-II scanner if available.
By following this detailed guide, you’ll be able to confidently replace your Ford Focus’s clutch actuator at home, saving money on labor costs and gaining valuable hands-on experience with your vehicle’s transmission system.
Frequently Asked Questions About Clutch Actuators
A failing clutch actuator can cause several noticeable issues when operating a manual transmission vehicle. The most common signs include:
- Difficulty shifting gears: You may feel resistance or hear grinding sounds when trying to change gears.
- Gear slippage: The car may unexpectedly slip out of gear while driving, which can be dangerous.
- Stuck gear stick: The shift lever might become stuck in a particular gear, making it hard to move between gears.
- Loose or unresponsive clutch pedal: The clutch pedal may feel spongy, loose, or fail to return to its original position after being pressed.
- Unusual noises: Clicking, grinding, or rattling sounds when pressing the clutch pedal could indicate internal damage or wear.
- Dash warning lights: Some vehicles have sensors that will illuminate a warning light if there's an issue with the clutch system.
- Fluid leaks: A visible leak near the clutch pedal or under the vehicle could signal a problem with the hydraulic components connected to the actuator.
If you experience any of these symptoms regularly, it’s important to have your clutch system inspected by a qualified mechanic as soon as possible to avoid further damage or potential breakdowns.
While it may be technically possible to drive with a faulty clutch actuator for a short distance, it is strongly discouraged. Driving with a malfunctioning clutch actuator poses several risks:
- Potential for complete failure: Continued use can lead to total clutch system failure, leaving you stranded.
- Increased risk of accidents: Difficulty changing gears or sudden gear slippage can compromise your ability to control the vehicle safely, especially in heavy traffic or at high speeds.
- Damage to other components: A failing actuator can put additional strain on related parts such as the transmission, flywheel, and clutch master cylinder, leading to more costly repairs.
For safety and cost-effectiveness, it’s best to address the issue immediately rather than risk further complications.
The time required to replace a clutch actuator varies depending on several factors, including:
- Vehicle model and design: Some cars provide easier access to the clutch components, while others require significant disassembly.
- Severity of the issue: If the actuator has caused damage to surrounding parts, repair times will increase accordingly.
- Mechanic's experience: An experienced technician will typically work faster and more efficiently than someone less familiar with the process.
On average, replacing a clutch actuator takes anywhere from 1 to 3 hours. In some cases, especially with modern vehicles featuring complex drivetrains or integrated systems, the job may take longer. Labor costs often reflect this time range, so it's wise to get multiple quotes before proceeding with repairs.
Yes, replacing a clutch actuator is a task that many DIY mechanics can handle successfully, provided they have the right tools and knowledge. Here's what you need to consider before attempting the job yourself:
- Mechanical understanding: A basic grasp of how the clutch system works and familiarity with automotive tools is essential.
- Access to repair manuals: Vehicle-specific service manuals or online guides can help you identify the correct procedure and locate the actuator accurately.
- Proper tools: You'll likely need socket sets, wrenches, screwdrivers, and possibly a jack and stands to access the component.
- Safety precautions: Always disconnect the battery and ensure the vehicle is securely supported before working underneath it.
However, if you're unsure about any part of the process or lack confidence in your mechanical abilities, it's safer and often more efficient to seek assistance from a professional mechanic to avoid mistakes or safety hazards.

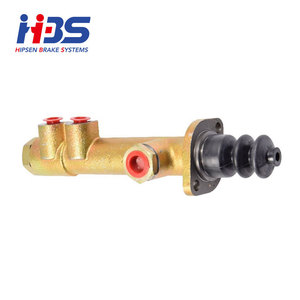

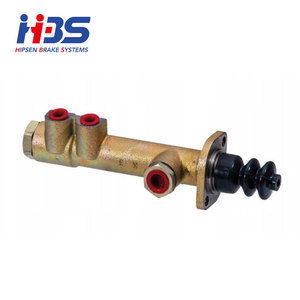

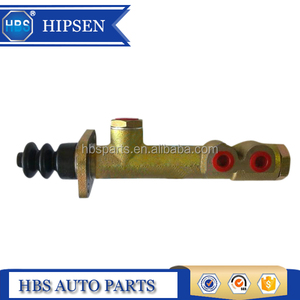

While both the clutch master cylinder and the clutch actuator are critical components of the clutch system in a Ford Focus, they serve distinctly different roles:
| Component | Function | Key Characteristics |
|---|---|---|
| Clutch Master Cylinder | Generates hydraulic pressure when the driver presses the clutch pedal, transferring force through fluid lines to engage or disengage the clutch mechanism. | Located under the dashboard or on the firewall; contains a piston and reservoir for brake/clutch fluid. |
| Clutch Actuator | Physically engages or disengages the clutch disc using either hydraulic pressure (in hydraulic actuators) or direct mechanical linkage (in cable-operated models). | Mounted near the transmission bellhousing; connects to the clutch fork or release bearing. |
In summary, the master cylinder initiates the action by creating pressure, while the actuator executes the physical movement needed to operate the clutch. Both must function properly for smooth gear changes and reliable performance in your Ford Focus.
