Types of Electronic Control Modules
An Electronic Control Module (ECM) is a specialized computerized unit that serves as the brain behind automated systems across various industries such as automotive, aviation, industrial machinery, and robotics. These modules are designed to process inputs from sensors, execute programmed logic, and deliver outputs to control actuators or other devices. Their integration into modern systems significantly enhances operational efficiency, precision, and reliability.
By acting as centralized processors, electronic control modules enable seamless communication between components within complex systems. In vehicles alone, these modules ensure optimal performance by continuously adjusting parameters based on real-time data. Understanding their different types helps users appreciate how they contribute to system functionality and automation in diverse applications.

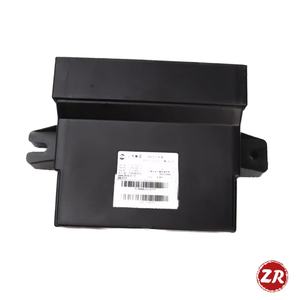

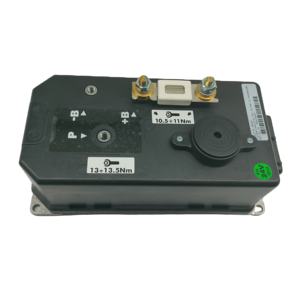

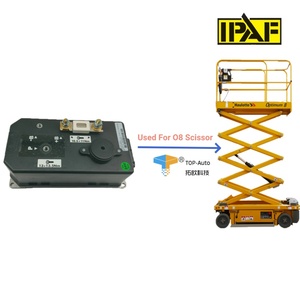

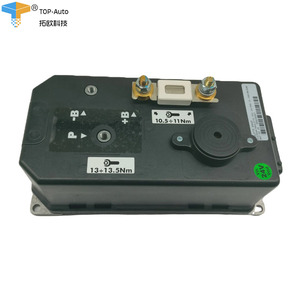

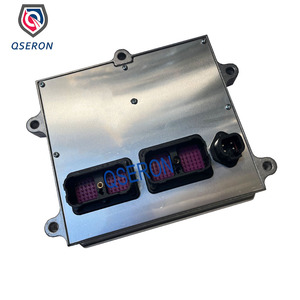

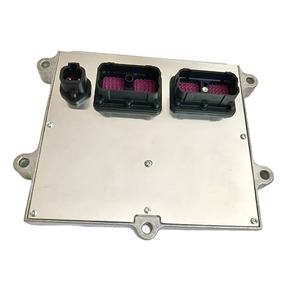

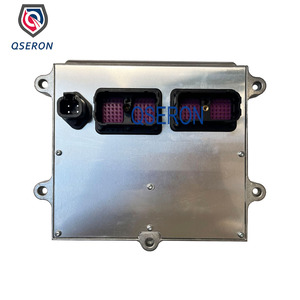

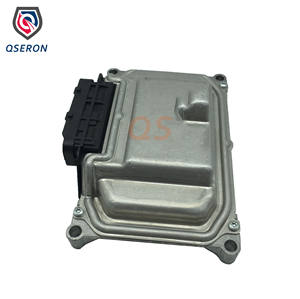

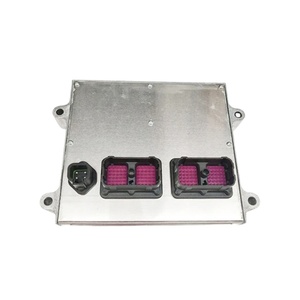

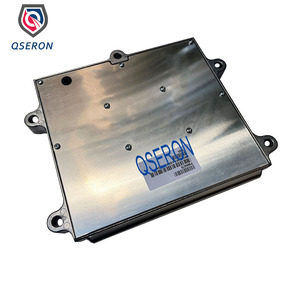

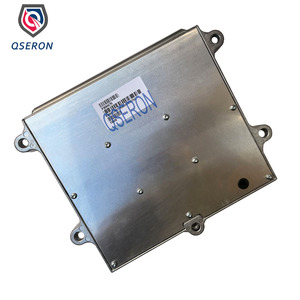

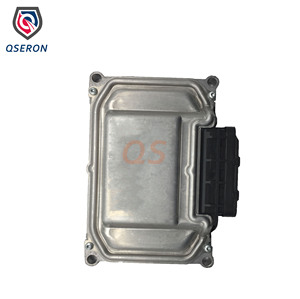

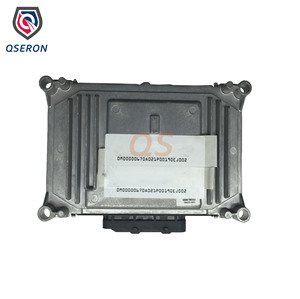

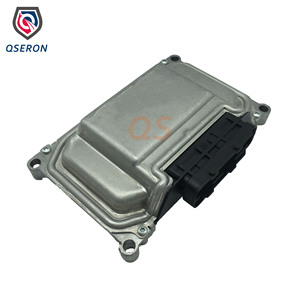

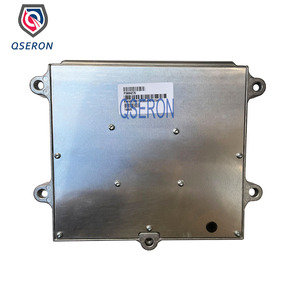

Engine Control Module (ECM)
The Engine Control Module manages all aspects of engine performance, including fuel injection, ignition timing, and emissions regulation. It processes data from sensors like oxygen sensors, throttle position sensors, and crankshaft position sensors to optimize engine output for power, fuel economy, and environmental compliance.
Advantages
- Maximizes fuel efficiency
- Reduces harmful emissions
- Improves engine responsiveness
- Adapts to driving conditions
Limitations
- Complex diagnostics required
- Sensitive to sensor failures
- High replacement cost
Best for: Vehicle engines, emission-controlled systems, high-performance tuning
Transmission Control Module (TCM)
The Transmission Control Module oversees automatic transmission operations, including gear shifts, torque converter lockup, and clutch engagement. It works closely with the ECM to ensure smooth transitions between gears, optimizing vehicle performance and drivability under varying conditions.
Advantages
- Enhances shift quality and timing
- Improves fuel economy through optimized shifting
- Coordinates with other modules for better integration
- Supports adaptive learning features
Limitations
- Expensive to replace or reprogram
- Requires regular software updates
- Failure can disable vehicle movement
Best for: Automatic transmissions, hybrid vehicles, towing applications

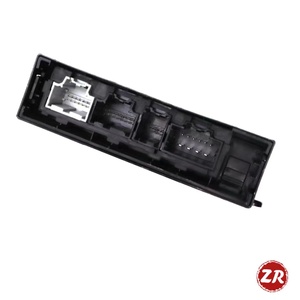

Body Control Module (BCM)
The Body Control Module manages non-engine-related electrical systems such as lighting, door locks, windows, and alarm systems. It acts as a central hub for body electronics, coordinating functions to enhance convenience, security, and overall user experience in modern vehicles.
Advantages
- Centralizes control of body electronics
- Enables smart entry and exit features
- Manages interior climate and comfort settings
- Improves energy efficiency through intelligent control
Limitations
- Vulnerable to electrical surges
- Software issues can affect multiple systems
- Higher complexity increases repair difficulty
Best for: Smart key systems, ambient lighting control, electric window/door management
Powertrain Control Module (PCM)
The Powertrain Control Module integrates both the Engine Control Module and Transmission Control Module into one unified system. This advanced module ensures synchronized operation between engine and transmission for maximum efficiency, smoother shifts, and enhanced driving dynamics.
Advantages
- Optimizes engine-transmission coordination
- Reduces mechanical wear through precise control
- Supports advanced driving modes (sport, eco, etc.)
- Provides comprehensive diagnostic capabilities
Limitations
- Very costly to replace
- Requires professional programming tools
- Single point of failure for major systems
Best for: Modern vehicles, hybrid systems, performance-oriented applications
Chassis Control Module (CCM)
The Chassis Control Module monitors and controls critical safety systems such as Anti-lock Braking System (ABS), Traction Control, and Electronic Stability Program (ESP). It uses input from wheel speed sensors, steering angle sensors, and gyroscopes to maintain vehicle stability and prevent skidding or loss of control.
Advantages
- Enhances vehicle safety and handling
- Works seamlessly with other driver assistance systems
- Improves braking efficiency during emergencies
- Reduces accident risk through proactive intervention
Limitations
- Dependent on accurate sensor data
- Calibration issues can cause false alerts
- High cost of integrated repairs
Best for: High-speed driving, adverse weather conditions, safety-focused vehicles
Climate Control Module (CCM)
The Climate Control Module regulates heating, ventilation, and air conditioning (HVAC) systems inside vehicles. It maintains cabin temperature according to user preferences while managing airflow distribution, defrosting, and humidity levels for passenger comfort and visibility.
Advantages
- Maintains consistent cabin comfort
- Automates temperature adjustments
- Improves air quality through filtration
- Integrates with infotainment systems for remote control
Limitations
- Airflow issues may develop over time
- Control panel malfunctions are common
- Repair costs can be high due to integration
Best for: Luxury vehicles, long-distance travel, extreme climates
| Type | Primary Function | Key Systems Managed | Industry Use | Benefits |
|---|---|---|---|---|
| ECM | Engine Performance Optimization | Fuel Injection, Ignition Timing, Emissions | Automotive | Improved fuel economy, reduced emissions, better engine response |
| TCM | Transmission Operation Control | Gear Shifting, Torque Converter, Clutch Engagement | Automotive | Smooth shifting, enhanced drivability, improved fuel efficiency |
| BCM | Body Electronics Management | Lighting, Locks, Windows, Alarms | Automotive | Convenience, security, energy-efficient control |
| PCM | Integrated Powertrain Control | Engine & Transmission Coordination | Automotive | Seamless engine-transmission interaction, driving mode support |
| CCM (Chassis) | Vehicle Stability & Safety | ABS, ESP, Traction Control | Automotive | Accident prevention, dynamic stability, emergency braking support |
| CCM (Climate) | Cabin Climate Regulation | HVAC, Air Quality, Defrosting | Automotive | Passenger comfort, visibility, air purification |
Expert Tip: When replacing any electronic control module, especially in modern vehicles, always ensure compatibility with your vehicle's make, model, and year. Many modules require reprogramming or calibration to match the vehicle’s unique configuration and sensor setup.
Specifications and Maintenance of Electronic Control Modules (ECMs)
Key Specifications to Consider
Electronic control modules (ECMs) are critical components in modern vehicles and industrial systems, responsible for managing various functions through precise electronic control. Understanding their specifications is essential for proper selection, integration, and performance optimization:
Processing Power
ECMs utilize microprocessors or microcontrollers tailored to the complexity of the tasks they manage. Processing power determines how quickly a module can interpret sensor data, execute control algorithms, and respond to changing conditions.
High-performance modules used in engine management or advanced driver-assistance systems (ADAS) require faster processors with multi-core capabilities, while simpler modules like body control units may operate efficiently on lower-power chips.
Input/Output Interfaces
Control modules interface with sensors, actuators, and other systems via a variety of ports including digital inputs/outputs, analog signals, PWM outputs, and communication protocols such as CAN, LIN, and UART.
The number and type of interfaces determine the module's compatibility with different subsystems. Industrial automation systems often rely on standardized I/O configurations, whereas automotive ECUs must conform to vehicle-specific pinouts and signal types.
Memory Capacity
ECMs include both volatile memory (RAM) for temporary data processing and non-volatile memory (ROM, Flash) for storing firmware, calibration tables, and configuration settings.
Modules handling complex control strategies—such as engine control units—require larger memory footprints to accommodate extensive lookup tables, real-time diagnostics, and adaptive learning features.
Power Supply Requirements
Stable power delivery is crucial for reliable ECM operation. These modules are typically designed to function within a voltage range of 9–16V in automotive applications, with built-in protections against overvoltage, under-voltage, and transient spikes.
Robust power conditioning circuitry ensures that fluctuations in the vehicle’s electrical system don't disrupt internal operations or corrupt stored data.
Software and Firmware
Each ECM runs embedded software or firmware programmed to perform specific control logic, diagnostic routines, and communication protocols. This code is usually proprietary and calibrated by the manufacturer for optimal system behavior.
Firmware updates are periodically released to improve functionality, fix bugs, enhance security, and support new features or regulatory compliance.
Environmental Tolerance
ECMs are engineered to withstand harsh operating environments, including temperature extremes (-40°C to +125°C), humidity, vibration, and electromagnetic interference (EMI).
Housings are typically sealed to protect against moisture and dust ingress, with IP ratings varying based on the module's location and exposure risks.
| Specification | Typical Value / Range | Critical Considerations |
|---|---|---|
| Microcontroller Architecture | 8-bit, 16-bit, 32-bit, or RISC-based | Higher bit architectures offer better performance for complex control systems |
| Operating Voltage | 9V - 16V (automotive), 5V - 24V (industrial) | Must be compatible with system power supply and include transient protection |
| Temperature Range | -40°C to +125°C | Depends on installation location; engine bay modules need higher thermal tolerance |
| Communication Protocols | CAN FD, LIN, Ethernet, UART, SPI | Determines compatibility with other modules and network speed requirements |
Essential Maintenance Practices
To ensure long-term reliability and optimal performance of electronic control modules, regular maintenance and monitoring are necessary:
Important: Always use OEM-approved diagnostic tools when accessing or reprogramming control modules. Unauthorized or incompatible tools can cause irreversible damage or void warranties. Additionally, avoid exposing modules to electrostatic discharge (ESD) during handling or replacement procedures.
How to Choose Electronic Control Modules
Selecting the right electronic control modules (ECMs) is a critical decision for automotive retailers and distributors. With modern vehicles relying heavily on electronic systems for performance, safety, and efficiency, choosing high-quality, compatible ECMs ensures customer satisfaction and long-term business success.
The complexity of modern vehicle electronics demands careful consideration when selecting ECMs for inventory or installation. These components serve as the brain of various vehicle subsystems and must be chosen with precision to ensure proper operation, compatibility, and future adaptability.
Vehicle Compatibility Matrix
Ensuring complete compatibility between the ECM and the target vehicle is paramount. Modern vehicles use complex communication protocols that must match precisely with the module's specifications.
- Verify make, model, year, and trim level compatibility
- Check engine type and displacement requirements
- Confirm transmission type compatibility (manual/automatic)
- Match software version with existing vehicle systems
Expert tip: Use manufacturer part numbers rather than generic descriptions
Brand Evaluation Criteria
Established brands often provide superior quality assurance, technical support, and warranty protection. Consider both OEM (Original Equipment Manufacturer) and reputable aftermarket brands in your selection process.
- Research brand history and market reputation
- Review return rates and failure statistics
- Evaluate available technical documentation
- Consider availability of software updates
Quality indicator: Look for ISO 9001 or IATF 16949 certifications
Performance and Feature Comparison
Modern ECMs offer varying levels of functionality and performance capabilities. Understanding these differences helps match the right module to specific customer needs.
- Determine required processing power and memory capacity
- Identify necessary input/output channel counts
- Compare supported communication protocols (CAN, LIN, etc.)
- Assess integration capabilities with other vehicle systems
Key feature: Support for over-the-air (OTA) updates enhances long-term value
Security and Compliance Standards
With increasing cybersecurity threats targeting connected vehicles, ensuring robust security features in ECMs has become essential for protecting both vehicle functionality and driver data.
- Look for modules supporting secure boot processes
- Verify encryption standards (AES-256 recommended)
- Check compliance with automotive cybersecurity regulations (e.g., UN R155)
- Ensure proper authentication mechanisms
Compliance note: Confirm adherence to ISO 26262 functional safety standards
Purchasing Advice: When ordering in bulk, consider maintaining a balanced inventory that includes both premium OEM modules for critical applications and cost-effective aftermarket options for common replacement scenarios. This approach caters to different customer segments while optimizing profit margins.
| Requirement Category | Minimum Standard | Recommended Best Practice | Critical Applications |
|---|---|---|---|
| Compatibility Verification | Basic VIN decoding | Full OBD-II protocol analysis | Factory-level system matching |
| Warranty Coverage | 1-year limited | 2-year extended | 3-year transferable |
| Software Support | Initial programming only | Annual update cycle | Lifetime OTA capability |
| Environmental Protection | IP65 rating | IP67 rating | IP69K rating |
| Diagnostic Capability | Error code storage | Real-time monitoring | Predictive maintenance |
Additional Selection Considerations
- Scalability: Choose modules with expandable architectures that can accommodate future vehicle technology advancements. Look for modular designs that allow component upgrades without full replacements.
- Support Infrastructure: Evaluate the manufacturer's technical support resources including documentation availability, troubleshooting guides, and direct engineer support channels.
- Budget Optimization: Implement tiered purchasing strategies that balance premium modules for high-end applications with value-priced options for common replacement scenarios, ensuring competitive pricing across customer segments.
- Inventory Management: Prioritize modules with broad application coverage to reduce stockkeeping unit (SKU) proliferation while maintaining adequate supply for high-demand models.
Technical Tip: Always verify whether the ECM requires vehicle-specific calibration after installation. Some modules come pre-calibrated for certain applications, while others require specialized equipment for final configuration.
DIY Replacement Guide for Electronic Control Modules (ECMs)
Replacing an electronic control module (ECM), also known as the engine control unit (ECU), is a manageable task for DIY enthusiasts with basic mechanical and electrical skills. This guide will walk you through the essential steps to safely replace your vehicle's ECM while minimizing the risk of damage to sensitive components.
Safety Warning: Always disconnect the battery before working on the ECM to avoid short circuits or damage from static discharge. Ensure the work area is dry and free from flammable materials, especially when handling electrical systems.
Step-by-Step Replacement Process
- Identify the Problem
- Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs) that may indicate issues with the ECM.
- Look for common symptoms such as erratic engine behavior, difficulty starting, poor fuel economy, or illuminated warning lights.
- Verify whether the issue stems from the ECM itself or related sensors, wiring, or other modules before proceeding with replacement.
- Locate the Module
- Consult your vehicle’s service manual to locate the ECM. It's typically found under the hood near the firewall, in the passenger compartment (often beneath the dashboard), or in the trunk area for some models.
- Check for environmental factors like moisture or heat exposure that could affect performance.
- Disconnect the Battery
- Turn off the ignition and remove the key or disable the start system if it's a push-button start.
- Using a wrench, disconnect the negative terminal first to prevent accidental shorting.
- Allow the vehicle's computer systems to fully power down (wait at least 5–10 minutes) before proceeding.
- Remove the Old Module
- Access the ECM by removing any panels, covers, or brackets securing it in place.
- Take photos of the wiring harness connections for reference during reinstallation.
- Press the locking tab and gently pull the wiring harness away from the ECM connector.
- Unbolt the mounting screws or brackets and carefully remove the module from its housing.
- Prepare the New Module
- Purchase a compatible ECM for your vehicle make, model, and year. Some modules require VIN programming or calibration matching.
- If not pre-programmed, take the new module to a dealership or authorized repair shop for coding and immobilizer pairing.
- Ensure all connectors match those on the original module and that no pins are bent or missing.
- Install the New Module
- Secure the new ECM in the mounting bracket or location using the original hardware.
- Reconnect the wiring harness firmly until you hear a click indicating proper engagement.
- Double-check that all connections are secure and that no wires are pinched or loose.
- Reconnect the Battery
- Reattach the negative battery cable last to minimize the chance of sparks.
- Tighten both terminals securely and apply a thin layer of dielectric grease to prevent corrosion.
- Test the System
- Start the vehicle and observe the instrument cluster for any warning lights.
- Use the OBD-II scanner to clear any residual codes and monitor live data streams.
- Take the vehicle for a test drive to ensure smooth operation and responsiveness.
- Watch for signs of improper communication, such as hesitation, stalling, or error messages.
| Phase | Critical Tasks | Common Mistakes | Tools Required |
|---|---|---|---|
| Diagnosis | Scan for DTCs, confirm ECM failure | Misdiagnosing sensor or wiring issues as ECM failure | OBD-II scanner, service manual |
| Removal | Disconnect battery, document wiring layout | Forgetting to label connections or mishandling connectors | Socket set, screwdrivers, camera |
| Installation | Secure mounting, correct wiring connection | Improper seating of connectors, cross-threaded bolts | Wire brush, torque tools |
| Testing | Clear codes, road test, verify function | Rushing the process without thorough testing | Multimeter, test drive checklist |
DIY Tip: If your vehicle has an immobilizer system or anti-theft feature, the ECM must be programmed to communicate with the key or security module. Some newer vehicles require dealer-level software tools for this step, so factor this into your planning.
Electronic Control Module FAQ
Electronic Control Modules (ECMs), also known as Engine Control Units (ECUs), are designed to be highly durable and typically last the entire lifespan of the vehicle under normal operating conditions. Most manufacturers design ECMs to function reliably for 10 years or more, often exceeding 150,000 miles.
However, their longevity can be affected by several external and internal factors:
- Environmental Exposure: Prolonged exposure to extreme heat, moisture, or vibration can degrade circuitry over time.
- Electrical Issues: Voltage spikes from a faulty alternator or improper jump-starting can damage sensitive components.
- Manufacturing Defects: In rare cases, factory defects may cause premature failure.
- Corrosion: Moisture ingress into the module housing can lead to corrosion of internal boards and connections.
If properly maintained and protected from harsh conditions, an ECM should continue functioning optimally throughout the life of the vehicle.
Yes, Electronic Control Modules require periodic software updates—commonly referred to as firmware upgrades—to maintain optimal performance and compatibility. These updates serve several critical purposes:
- Performance Enhancements: Manufacturers often release updates to improve throttle response, fuel efficiency, and emissions control.
- Diagnostic Improvements: Newer software versions can enhance the module's ability to detect and report issues accurately.
- Compatibility Fixes: As vehicles age and parts are replaced, updates ensure the ECM works seamlessly with new components.
- Security Enhancements: Modern vehicles increasingly rely on secure communication between modules, making software patches essential.
These updates are usually performed at dealerships or qualified repair shops using specialized diagnostic tools. Some newer vehicles support over-the-air (OTA) updates similar to smartphones and other connected devices.
While both relays and electronic control modules play roles in managing electrical systems, they differ significantly in complexity, functionality, and application:

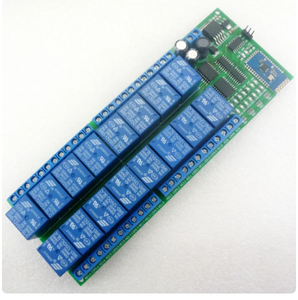

Relay Overview
- An electromechanical switch used to control high-current circuits with a low-current signal
- Typically has no processing capability
- Used for simple on/off switching of components like headlights, fans, or fuel pumps
- Consists of a coil, contacts, and spring mechanism

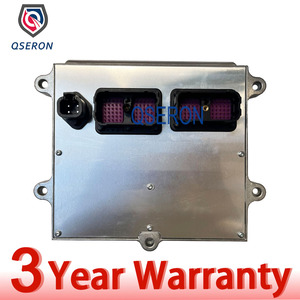

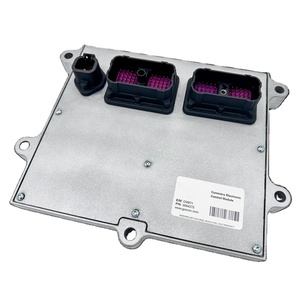

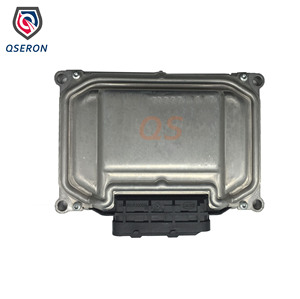

Electronic Control Module (ECM) Overview
- A microprocessor-based computer that processes input signals and controls various systems
- Capable of complex decision-making based on sensor data
- Manages engine timing, fuel injection, ignition, emissions, and diagnostics
- Communicates with other modules via CAN bus or other protocols
| Feature | Relay | Electronic Control Module |
|---|---|---|
| Function | Simple switching device | Advanced control processor |
| Complexity | Low | High |
| Intelligence | None | Full processing capabilities |
| Use Case | Controlling power flow to components | Managing system operations and diagnostics |
| Failure Impact | Limited to specific component | Potentially affects overall system operation |
In many systems, the ECM will use relays as part of its control strategy. For example, the ECM might trigger the fuel pump relay to turn the pump on or off based on engine conditions. However, the ECM itself is far more sophisticated than any individual relay it controls.
