About different parts of syringe

Types of Syringe Parts

The syringe parts include the following:

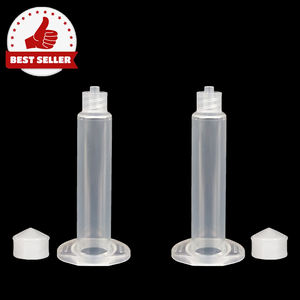

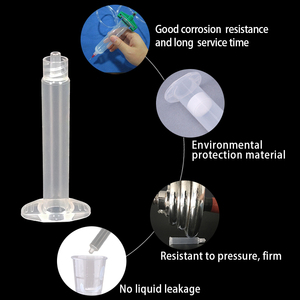

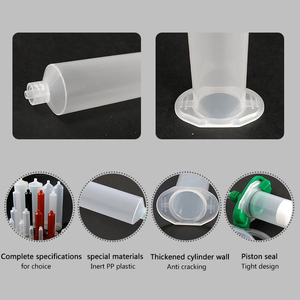

  • Cylinders

    The main body of a syringe, the cylinder, the medication or fluid is held in the injection apparatus's reservoir, usually made from clear medical plastic, to provide internal pressure against the plunger to force the fluid into the barrel. The volume markings of a cylinder are commonly at the 0.1 ml or 1 cc increments. These measurements of fluid allow practitioners to draw precise quantities of fluids.

  • Plunger

    The plunger is a movable component in the syringe that seals the rear part of the barrel. Hence, its controlled and even expulsion of the fluid takes place, often made of rubber or silicone, to withstand the long-term wear and tear of frequent use. A tightly fitting plunger compacts the fluids in the syringe cylinder and expels air bubbles, if any, during injection procedures.

  • Needles

    Some syringes have removable needles, while others do not. Needles are the syringe components that deliver medication into body tissues or blood veins; usually, needle size is expressed in terms of gauge and length. Smaller gauge numbers signify wider bore needles and greater fluid passage capacity through the needle, whereas larger gauge numbers signify narrower bore needles for less fluid to pass through, meant for precision tasks, like blood draws.

  • Tip

    The tip is the part of the syringe that connects to the needle; it can take different shapes, depending on the needles' connection method. Luer lock and Luer slip are common forms of syringe tips; the former involves twisting and locking the needle into place for a secure fit, while the latter simply involves inserting the needle into the tip without twisting. The different syringe tip types cater to varying medical and healthcare needs and requirements.

  • Cylinder Lock

    The cylinder lock is a unique cylindrical thread form that interlocks two thread filaments for mutual support and is firmly locked by them so as to prevent the bearing of that filament which is under tension from yielding. In a syringe, it is a stirrup attachment on luer lock syringes that provides a firm grasp for the needle by twisting and locking it in place. This ensures a secure and leak-free connection between the syringe and needle for safe fluid passage.

  • Rubber Seal

    A rubber seal located at the end of the plunger serves as a forward motion solenoid device that compresses in response to a pressure wave to drive the fluid contained through the port or out of the device. Attempts to deform the elastic material in the seal pull it away from the cylinder wall where it contacts the plunger and fluid is entrained within the seal. In syringes, the plunger seal ensures a tight closure between the plunger and cylinder, preventing fluid leakage during injection.

Industrial Applications of Parts of Syringe

Syringe parts have the following industrial applications:

  • Pharmaceutical

    Syringe parts are widely used in the pharmaceutical industry, particularly during drug manufacturing processes where both the accuracy and sterility of drug delivery are critical. Syringes are used to measure and dispense drugs, ensuring that each amount is precise. This is crucial in pharmaceuticals, where even small variances in drug quantity can lead to significant consequences.

  • Medical Practice

    In the medical sector, syringe components are vital for diagnostic and treatment processes. Parts are applied to inject vaccines, anaesthetics, and other medications directly into tissues or blood. Blood withdrawal for tests is also common using syringes. Furthermore, disposable syringes have contributed greatly to hygiene practices in healthcare, with sterility at the core of every medical procedure involving injections.

  • Diagnostic Laboratories

    Needle syringes are indispensable in diagnostic laboratories for fluid sample extraction. They are applied to withdraw fluids for testing and use them in procedures such as cultures or biopsies. Precision and sterility are equally as important in laboratory diagnostics, particularly when working with patient samples or reagents, which is why syringe parts come into play during such procedures.

  • Biotechnology

    Syringe parts also serve numerous purposes in the rapidly advancing biotech industry; they're predominantly used in gene therapy, vaccine production, and biological drug delivery systems. For instance, in drug delivery systems, programmable or smart syringes are developed to release medications in a controlled manner over time.

  • Veterinary Medicine

    Just like any other aspect of healthcare, syringe parts are equally employed in veterinary medicine. They're used for drug injections, blood collection, and in the fluid sample extraction processes for animals. Often, syringe components are specifically designed and made for different species, ensuring that veterinarians give the right medical care to animals of all shapes and sizes.

Possible Features of Different Parts of Syringe

  • Cylinders

    The cylinder is the main body of a syringe where fluid is stored; ideally, it is made of transparent material such as plastic or glass to enable easy reading of measurement marks and fluid level, hence precision in medication dosage. Measurement markings are generally in millilitres (ml) or cubic centimetres (cc), and the common sizes among syringes are 1 ml, 3 ml, 5 ml, 10 ml, 20 ml, 35 ml, and 60 ml). These increments allow the user to draw or expel fluids with accuracy and ease, and the smooth inner surface of the cylinder minimises friction so that the plunger moves freely.

  • Needles

    Syringe needles are elongated, thin metal tubes with sharpened ends for smoothly penetrating the skin or blood vessel and delivering medication. The gauge syringe indicates the needle bore size; the commonly used are 18, 21, 23, and 25. Their length usually ranges from 0.5 inches to 2 inches. Needles with smaller gauge numbers are suitable for thicker fluids requiring wider bore in fluid passage, such as blood or intravenous medication, while narrow-gauge needles are for precise injections, like vaccines.

  • Plunger

    The plunger is a critical syringe component; it's a rod attached to a rubber or plastic tip that fits tightly against the inner walls of the cylinder. The tip creates a seal that separates the fluid from the air; it helps move the fluid through the needle when the handle is pushed down. Seal tightness makes for proper fluid flow from the syringe and ensures no fluid leaks during injection. This device further helps eliminate air bubbles trapped in the syringe, which could then lead to inaccurate drug delivery.

  • Luer Lock

    Luer locks are mechanical device units on syringes that securely hold the needle in place by twisting and locking it. This thread forms a stable and leakproof connection between the syringe and needle, ensuring no fluid escapes during use. The Design of Luer locks reduces the chance of needle disengagement or wobble mid-use, which could cause slow or no injection and thus mismanagement in medical emergencies.

  • Tip

    The syringe tip's main function is to attach the needle; it comes in two primary forms: luer lock and luer slip, as stated before. While luer lock requires the needle to be twisted and locked into place by a locking mechanism for a secure connection, luer slip simply involves the insertion of the needle into the tip, which is more exclusive for the syringe varieties meant for one-time use. Regardless of the type, the tip plays a vital role in ensuring that the needle is properly affixed before fluid expulsion.

  • Rubber Seal

    The rubber seal is located at the end of the plunger; it plays a vital role in maintaining the integrity of the fluid within the syringe. It ensures the isolation between the fluid and air, thus preventing fluid contamination and air entrance that results in inaccurate dosage. The seal further helps maintain pressure within the barrel, allowing for smooth plunger movement when fluid is needed to be expelled.

How to Choose Parts of Syringe

  • Quality Materials

    The syringe parts must be manufactured with material quality on point, sterile and safe, to give enhanced performance. The most common materials for syringe cylinders are medical-grade plastics or glass, as they enable easy visualisation of fluid level with no contamination. Rubber or silicone make up a durable plunger that provides a tight seal. Needles should be stainless steel for sharpness, strength, and corrosion resistance.

  • Fluid Compatibility

    Syringe parts should be compatible with the intended fluids, whether biological or chemical; this is to avoid interactions that might contaminate the fluid or damage the syringe components. Medical professionals who deal with corrosive or viscous liquids should select parts that are resistant to wear and tear. For example, certain seal materials are more resistant to harsh chemicals than others.

  • Ease of Assembly

    Simplicity in the assembly process is key when selecting syringe parts. Certain Syringes comprise Luer lock fittings that provide a more secure and simpler attachment for needles. This feature is quite important, especially in high-demand settings such as emergencies, where speed and safety are of the essence. Further, having parts that interchange easily with other equipment in the healthcare facility helps offer seamless operations.

  • Regulatory Compliance

    Ensure that all parts of the syringes meet regional healthcare regulations and quality standards. Medical-grade syringe materials are required and manufactured under strictly controlled processes to ensure safety. Certification may vary from one country to another but generally includes ISO and CE marks. Using compliant syringe parts not only helps guarantee patient safety but also sates legal requirements in healthcare facilities.

  • Durability

    Syringes in various settings, including hospitals and laboratories, need to be long-lasting and durable, especially where plungers are concerned. Durable seals and plungers ensure that the parts endure repetitive use without wear, thus maintaining efficiency. Additionally, corrosion-resistant needles and other components will help maintain the integrity of the syringes to extend usage.

Q and A

Q1. What are the common applications for luer slip syringes?

A1: Luer slip syringes are common in situations requiring medical professionals to attach needles, tubing, or other devices swiftly and without extra steps. These are often used in settings where ease of use and quick assembly are critical, such as in general medication administration, samples collection, and use with infrequent variable fluids. Luer slip syringes are especially advantageous where cost-effective options are needed, given their simpler connection design.

Q2. What is the difference between disposable and reusable syringe parts?

A2: Disposable syringe parts are intended for single use, often in situations where sterility is required, such as vaccinations or blood draws. These parts are usually made of lightweight, cost-effective plastics that cannot be effectively sterilised after the first use. In contrast, reusable syringe parts are realized from durable materials like stainless steel or high-quality plastics, which can be thoroughly cleaned and sterilised for multiple uses. Reusable parts are more cost-effective in the long run but require strict adherence to sterilisation protocols to avoid contamination.

Q3. Why is it important for syringe parts to be resistant to corrosion?

A3: Corrosion resistance is a key feature syringes should have, especially when the parts come in contact with biological fluids, chemicals, or medical substances. Since many medications and fluids have corrosive properties, it is paramount that the syringe materials, especially metals used for needles, are resistant to such fluid-induced wear. Corrosion not only degrades the syringe components, but it also poses serious fluid contamination risks. Moreover, syringe components losing integrity pose the risk of device failure and serious complications in healthcare settings.

Q4. How do the gauge and length of a syringe needle affect its performance?

A4: Needles are a vital component of syringes, with both length and gauge vital parameters affecting performance. The gauge number indicates needle bore size, with lower numbers signifying wider and higher fluid passage easier. This is especially important for thicker fluids, like some medical preparations, or for drawing blood. Conversely, higher gauge numbers indicate narrower needles, which are ideal for precisely injecting medications, like in cosmetic applications, where the injection site requires minimal tissue damage. Needle length, too, plays a vital role; longer needles penetrate deeper, making them ideal for intramuscular injections, while shorter needles are suitable for subcutaneous injections or blood collection.

Q5. Can luer lock syringes be used with luer slip needles?

A5: Yes, Luer lock syringes can be used with luer slip needles through an adapter that connects the locking mechanism on the syringe to the slipping needle. Nevertheless, it's always advisable to use compatible syringe and needle types to ensure a secure and leakproof connection. In situations involving high-risk medical procedures, sticking to proper equipment types is essential for patient safety and injection efficacy.
