Types of Diesel Fuel Filter Caps
A diesel fuel filter cap is a vital component in the fuel system of diesel engines, serving as a protective seal for the diesel fuel filter. Its primary function is to ensure that no contaminants such as dirt, rust, or water enter the sensitive engine components through the fuel line. A properly functioning diesel fuel filter cap helps maintain optimal engine performance, fuel efficiency, and longevity by keeping the fuel clean and free from harmful particles.
Different types of diesel fuel filter caps are designed to meet varying needs — whether it's ease of use, enhanced security, or additional filtration benefits. Understanding these differences can help vehicle owners choose the most suitable option based on their driving conditions, maintenance habits, and fuel system requirements.

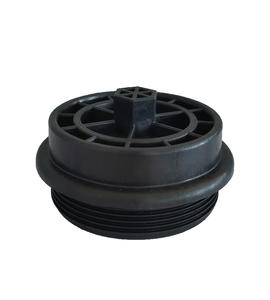

Standard Diesel Fuel Filter Cap
This is the most common type of diesel fuel filter cap, engineered for universal compatibility across a wide range of diesel vehicles. It provides a reliable, leak-proof seal while being simple to install and remove for regular filter replacements.
Advantages
- Universal fit for most diesel applications
- Cost-effective replacement option
- Easy to install and service
- Effective sealing under normal operating conditions
Limitations
- Limited security features
- No additional filtration capabilities
- May loosen over time due to vibration
Best for: Everyday drivers, standard maintenance schedules, general-purpose diesel vehicles
Magnetic Diesel Fuel Filter Cap
This innovative design incorporates powerful magnets that allow the cap to securely attach to metal surfaces during maintenance. Beyond convenience, magnetic caps offer an added layer of protection by capturing small metallic debris before they reach the engine.
Advantages
- Prevents accidental loss during servicing
- Captures metallic particulates in fuel
- Stronger seal against leaks
- Reduces risk of contamination from metal shavings
Limitations
- Only adheres to ferrous metal surfaces
- Slightly higher cost than standard caps
- Magnet strength may degrade over time
Best for: Workshops, frequent maintenance environments, industrial diesel equipment

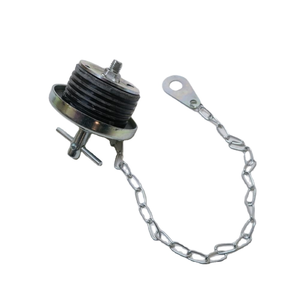

Locking Diesel Fuel Filter Cap
The locking diesel fuel filter cap includes a mechanical locking mechanism that prevents unauthorized access to the fuel system. This feature makes it ideal for commercial fleets and vehicles parked in high-theft areas.
Advantages
- Enhanced security against fuel theft
- Ensures tamper resistance
- Robust construction for long life
- Provides peace of mind in vulnerable locations
Limitations
- Requires key or special tool for removal
- More complex installation process
- Higher initial investment
Best for: Commercial trucks, fleet vehicles, rural or remote parking locations
Tool-less Diesel Fuel Filter Cap
Designed for quick and easy access without requiring tools, this cap uses ergonomic hand-tightening mechanisms or push-and-turn systems for fast filter changes. It's particularly useful for DIYers and professionals who perform frequent maintenance.
Advantages
- Quick and easy installation/removal
- Eliminates need for wrenches or sockets
- Reduces risk of overtightening damage
- Time-saving for routine maintenance
Limitations
- Potentially less secure than threaded caps
- May require periodic inspection for tightness
- Not always compatible with all filter models
Best for: DIY mechanics, frequent filter changers, mobile repair services
| Type | Security | Ease of Use | Fuel Protection | Best Application |
|---|---|---|---|---|
| Standard | Fair | Good | Basic | General use, daily drivers |
| Magnetic | Good | Excellent | Good | Workshop use, industrial settings |
| Locking | Excellent | Fair | Good | Commercial vehicles, anti-theft needs |
| Tool-less | Fair | Excellent | Basic | DIY maintenance, frequent service |
Expert Tip: Always check the manufacturer’s specifications when replacing a diesel fuel filter cap to ensure proper thread size, sealing surface, and pressure rating. Using an incompatible cap can lead to fuel leaks, air ingress, or reduced engine performance.
Specifications and Maintenance of Diesel Fuel Filter Cap
The diesel fuel filter cap, also known as the diesel fuel filter housing cap, plays a crucial role in protecting the integrity of your vehicle's fuel system. This small but essential component seals the top of the diesel fuel filter to ensure contaminants are effectively blocked from reaching sensitive engine parts such as fuel injectors.
While often overlooked due to its size, the performance of the diesel fuel filter cap is directly tied to several critical specifications that affect both fuel efficiency and engine longevity. Understanding these features can help you select the right cap for your vehicle and maintain it properly over time.
Key Specifications to Consider
Compatibility and Fitment
The diesel fuel filter cap must be precisely compatible with your specific fuel filter model. Dimensions like diameter and threading need to align perfectly to create a secure, leak-proof seal.
Common sizes include 1 inch, 8 inches, and 3 inches, though exact dimensions may vary by manufacturer and application. A mismatched cap can lead to fuel leaks, reduced pressure regulation, or contamination ingress.
Material Composition
Diesel fuel filter caps are typically made from aluminum, stainless steel, or high-grade plastic. Each material has unique advantages:
- Aluminum: Lightweight, corrosion-resistant, and durable under moderate pressure and temperature conditions.
- Stainless Steel: Offers superior strength and heat resistance, ideal for heavy-duty or commercial applications.
- Plastic: Cost-effective and resistant to chemical degradation, though less durable under extreme temperatures or pressures.
Pressure and Temperature Ratings
Fuel systems operate under varying levels of pressure and temperature. The cap must withstand these conditions without warping, cracking, or leaking.
Typical pressure ratings range from 10 to 75 psi depending on the vehicle type, while operating temperatures usually fall between -40°C to 120°C. Always check manufacturer recommendations to ensure compatibility.
Additional Features
Some advanced diesel fuel filter caps come equipped with integrated features designed to enhance performance:
- Pressure Relief Valve: Prevents excessive pressure buildup inside the filter housing.
- Venting System: Helps regulate airflow and prevents vacuum lock during fuel flow.
- Drain Plug Option: Allows for easy removal of water or sediment accumulation in the filter bowl.
| Feature | Recommended Specification | Why It Matters |
|---|---|---|
| Sealing Surface Design | O-ring or gasket-based | Ensures tight seal to prevent fuel leakage and contamination entry |
| Thread Pitch & Type | Metric or standard (vehicle-specific) | Matches the filter housing for proper installation and retention |
| Corrosion Resistance | High for metal caps; moderate for plastic | Prevents premature failure due to exposure to fuel, moisture, and road elements |
| Operating Temperature Range | -40°C to 120°C | Maintains structural integrity across various climates and engine conditions |
Essential Maintenance Practices
Proper maintenance of the diesel fuel filter cap contributes significantly to the overall health of your fuel system and engine. Here are key practices to follow:
Important: Never ignore a damaged or improperly sealed diesel fuel filter cap. Doing so can allow unfiltered fuel into the system, leading to costly injector damage, poor engine performance, or even engine failure.
How to Choose Diesel Fuel Filter Caps
Selecting the appropriate diesel fuel filter cap is crucial for maintaining engine performance and longevity. A high-quality, well-matched filter cap ensures proper fuel filtration, prevents contaminants from entering the fuel system, and helps maintain consistent fuel flow.
Compatibility with Vehicle Specifications
The diesel fuel filter cap must match your vehicle’s make, model, and engine type. This compatibility ensures a secure fit and proper function within the fuel system. Mismatched caps can lead to leaks, reduced filtration efficiency, or even damage to sensitive engine components.
- Check your vehicle's owner manual for OEM specifications
- Match thread pitch, diameter, and sealing surface dimensions
- Verify compatibility with both fuel filter model and engine design
Expert tip: Some vehicles may require specialized caps with pressure relief valves or anti-drainback features.
Material Quality and Durability
Diesel fuel filter caps are exposed to harsh conditions including extreme temperatures, fuel exposure, and vibration. High-quality materials like reinforced thermoplastics or corrosion-resistant metals ensure long-term reliability and prevent premature failure.
- Thermoplastic caps offer excellent chemical resistance and lightweight durability
- Metal caps provide superior heat resistance but may be prone to corrosion over time
- Look for caps with integrated seals made from nitrile rubber or fluoroelastomers
Note: Seals should be pliable yet resistant to hardening or cracking under temperature extremes.
Installation Ease and Accessibility
Choosing a diesel fuel filter cap that aligns with your mechanical skill level and tools available is important. While some caps feature simple twist-on/twist-off designs, others may require special tools or professional installation techniques.
- DIY-friendly models often have ergonomic grips or wrench flats for easy removal
- Some advanced systems use quick-release mechanisms for tool-free changes
- Consider accessibility of the filter location when selecting installation complexity
Helpful hint: Look for caps with clear installation markings or torque indicators.
Budget Considerations and Value Analysis
While price is an important factor, it should not be the sole determinant. The best value comes from balancing upfront cost with long-term benefits such as durability, ease of replacement, and protection against engine wear.
- Entry-level options may save money initially but could require more frequent replacements
- Premium brands often include warranties and engineered performance enhancements
- Factor in labor costs if professional installation is required
Cost-saving insight: Reusable metal caps with replaceable seals can offer long-term savings.
Selection Advice: When replacing a diesel fuel filter cap, always inspect the condition of the mating surfaces, O-ring, and fuel filter housing for signs of wear or contamination. A small investment in inspection tools and cleaning supplies can help avoid costly repairs later.
| Cap Type | Material | Typical Price Range | Lifespan | Best For |
|---|---|---|---|---|
| Standard Plastic Cap | High-impact thermoplastic | $8–$15 | 15,000–30,000 miles | Light-duty trucks and older diesel engines |
| Reinforced Thermoplastic Cap | Chemically resistant polymer blend | $15–$25 | 30,000–50,000 miles | Modern diesel engines and moderate towing applications |
| Metal Cap (Aluminum/Steel) | Anodized aluminum or powder-coated steel | $25–$45 | 50,000–100,000 miles | Heavy-duty use, high-performance diesels, and off-road vehicles |
| Quick-Release Cap | Composite with locking mechanism | $30–$50 | 40,000–70,000 miles | Frequent DIY maintenance and commercial fleets |
How to DIY and Replace Diesel Fuel Filter Cap
Replacing a diesel fuel filter cap is an essential maintenance task that helps ensure your vehicle's fuel system runs efficiently and prevents contaminants from entering the engine. This guide provides a detailed, step-by-step approach for safely and effectively replacing the diesel fuel filter cap using basic tools and mechanical skills.
Safety Warning: Always work in a well-ventilated area away from open flames or sparks. Diesel fuel is flammable, so have a fire extinguisher nearby and wear protective gloves and eyewear during the process.
Step-by-Step Replacement Process
- Gather the Necessary Tools and Materials
- New diesel fuel filter cap compatible with your vehicle make and model
- Basic hand tools (screwdrivers, wrenches, pliers)
- Torque wrench (if specified by manufacturer)
- Clean rags or paper towels
- Drip pan or absorbent material to catch any spilled fuel
- Gasket sealant or new gaskets if not included with the replacement cap
Ensure all tools are clean and organized before starting. Using the correct replacement part is crucial for maintaining proper fuel flow and preventing leaks.
- Prepare the Vehicle
- Park on a flat, level surface and engage the parking brake
- Turn off the engine and allow it to cool down completely
- If possible, disconnect the negative battery terminal to reduce the risk of electrical shorts
Working with a cold engine minimizes the risk of burns and ensures safer handling of fuel components.
- Locate the Fuel Filter
The diesel fuel filter is typically mounted near the engine, either inline along the fuel lines or attached directly to the engine block. Consult your vehicle’s service manual for the exact location. Look for a cylindrical component connected by fuel lines and secured with a bolted or screw-on cap.
- Depressurize the Fuel System
- Find the fuel pressure relief valve or Schrader valve on the fuel rail or filter housing
- Use a small tool or screwdriver to press the valve while covering it with a rag to catch any residual fuel spray
This step is critical to prevent fuel from spraying when removing the cap. Never skip this step, even if the engine has been off for hours.
- Remove the Old Cap
- Loosen the bolts or screws securing the old cap using the appropriate tool
- Once loose, carefully lift the cap straight up to avoid damaging the filter element or housing
- Inspect the filter housing for signs of dirt, rust, or damage
Take note of how the old cap was installed, especially the position of any gaskets or seals.
- Clean the Filter Body
- Wipe the filter body and sealing surface with a clean, dry cloth
- Ensure no debris enters the open filter housing
A clean sealing surface ensures a proper fit and prevents future leaks or contamination.
- Prepare the New Cap
- Check if the new cap comes with a pre-installed gasket or O-ring
- If not, apply a thin layer of high-quality gasket sealant to the mating surface or install a new gasket as specified
Do not over-tighten or apply excessive sealant, as this can cause improper seating or damage to the cap.
- Install the New Cap
- Align the new cap carefully over the filter body
- Ensure the gasket makes full contact with the sealing surface
Proper alignment prevents cross-threading and ensures a secure, leak-free connection.
- Secure the Cap
- Tighten the screws or bolts evenly and gradually in a crisscross pattern
- If torque specifications are provided, use a torque wrench to achieve the correct tightness
Over-tightening can strip threads or warp the cap, leading to leaks or failure.
- Repressurize the Fuel System
- Reconnect the fuel pressure release point securely
- Turn the ignition key to the "On" position (without starting the engine) to allow the fuel pump to prime the system
You may hear the fuel pump running briefly—this is normal and indicates the system is repressurizing.
- Check for Leaks
- Start the engine and let it idle
- Visually inspect the new cap and surrounding area for any signs of fuel leakage
- If you notice a leak, turn off the engine and retighten the cap or check the gasket placement
Even a small leak can become dangerous under pressure, so address any issues immediately.
- Wrap Up the Job
- Reinstall any covers or shields removed during the process
- Dispose of the old cap and any contaminated materials according to local environmental regulations
- Wipe down any spilled fuel and store tools properly
Keep a record of the date and mileage for future reference, helping you track maintenance intervals.
| Phase | Key Actions | Common Mistakes | Essential Tools |
|---|---|---|---|
| Preparation | Verify replacement compatibility, gather tools, depressurize system | Mismatched cap size, skipping depressurization | Socket set, screwdrivers, drip pan |
| Removal | Loosen and remove old cap, clean filter body | Spilling fuel, damaging filter element | Rag, gloves, eye protection |
| Installation | Install new gasket, align and tighten cap evenly | Over-tightening, misalignment | Gasket sealant, torque wrench (optional) |
| Testing | Repressurize system, start engine, check for leaks | Ignoring small leaks, improper priming | Flashlight, safety glasses |
DIY Tip: If your vehicle has a multi-stage fuel filtration system, double-check whether additional filters need servicing at the same time. Also, consider replacing the entire fuel filter assembly every few years or as recommended by the manufacturer for optimal performance.
Post-Replacement Maintenance Tips
- Monitor engine performance for the next few days to ensure smooth operation
- Listen for unusual noises like sputtering or hesitation, which could indicate air in the fuel line
- Check the filter cap periodically during routine maintenance for tightness or wear
- Keep a log of all fuel filter replacements to help maintain a consistent maintenance schedule
Diesel Fuel Filter Cap FAQ
The diesel fuel filter cap serves multiple essential roles in maintaining fuel system integrity. Primarily, it acts as a protective cover for the fuel filter element, sealing the assembly to maintain proper fuel pressure and prevent contaminants from entering the sensitive engine components. Additionally, the cap often contains a gasket or O-ring that ensures a tight seal, preventing fuel leaks and vapor loss.
Modern diesel fuel systems operate under high pressure and require strict contamination control. The cap helps maintain these conditions by:
- Preventing dirt and moisture ingress
- Maintaining proper fuel system pressure
- Securing the filter element in place during vehicle operation
- Providing a sealed connection point for fuel lines
While both components work together to protect the engine, they serve distinct functions within the fuel system:
| Component | Primary Function | Design Characteristics |
|---|---|---|
| Fuel Filter Cap | Acts as a protective housing and sealing component | Metal or plastic enclosure with sealing mechanism (gasket/O-ring) |
| Fuel Filter | Filters out particulates, water, and impurities from the fuel | Pleated paper or synthetic media housed inside the cap assembly |
The relationship between these components is critical - the filter performs the actual cleaning function, while the cap ensures this process occurs in a controlled environment. Some advanced caps also incorporate drain valves or water separators in modern diesel systems.
Driving with a compromised fuel filter cap is strongly discouraged due to several potential consequences:
- Contamination Risk: Damaged seals allow dirt, dust, and moisture to enter the fuel system, potentially clogging injectors and damaging engine components.
- Pressure Loss: A faulty cap disrupts proper fuel pressure regulation, leading to inconsistent fuel delivery and engine performance issues.
- Leak Hazard: Cracked housings or failed seals can cause fuel leakage, creating fire risks and environmental hazards.
- System Failures: Modern common rail diesel systems are particularly sensitive to fuel contamination, which can lead to expensive repairs.
Even minor damage like hairline cracks or worn gaskets should be addressed immediately. Temporary fixes are not recommended - replacement with an OEM-spec component is always the safest option.
While service intervals vary by manufacturer, general guidelines suggest:
- Replace the fuel filter cap every 15,000 to 30,000 miles (24,000 to 48,000 km), typically coinciding with fuel filter replacements
- Inspect the cap at every maintenance interval for signs of wear, corrosion, or damage
- Replace immediately if any of the following conditions are present:
- Cracks or deformation in the housing
- Worn or hardened sealing surfaces
- Difficulty achieving proper torque when tightening
- Visible fuel stains or wetness around the cap
Many mechanics recommend replacing the cap with each filter change to ensure optimal sealing performance, even if no visible damage exists. This preventive measure costs little compared to potential repair expenses from fuel system contamination.
While the cap itself may not show obvious signs of failure, associated engine problems often indicate cap-related issues:
- Starting Difficulties: Hard starting or prolonged cranking due to fuel flow restrictions or air in the system
- Engine Performance Issues: Rough idling, hesitation under acceleration, or power loss caused by inconsistent fuel delivery
- Check Engine Light: Modern vehicles may trigger diagnostic trouble codes related to fuel pressure irregularities
- Fuel Odor: Noticeable diesel smell from improperly sealed connections
- Increased Emissions: Black smoke from the exhaust due to improper combustion from contaminated fuel
- Fuel Leaks: Visible fuel seepage around the filter housing area
Diagnostic procedures should include inspection of the cap's sealing surfaces, checking for proper installation torque, and testing for vacuum leaks in the fuel system. In some cases, temporarily replacing the cap can help identify whether it's the source of the problem.
