Types of Crankshafts for BMW M47 Engines
The crankshaft for BMW M47 is a critical engine component responsible for converting the linear motion of the pistons into rotational motion that ultimately drives the vehicle. In the context of the BMW M47 diesel engine series—used in various compact and midsize models—the crankshaft must endure significant mechanical stress while maintaining precise alignment and balance. Over time, different designs and configurations have emerged to meet varying performance, durability, and manufacturing standards.
Bearing Cap Assembly
The bearing cap assembly is an essential structural component of the crankshaft system. It secures the crankshaft within the engine block by housing the main bearings that support its rotation. The design of this assembly has evolved over the production life of the BMW M47 engine, resulting in two primary configurations:
- 4-Bearing Cap Assembly: Features a single integrated bearing cap with four main bearings mounted together. This unit is bolted to the engine block using four bolts. While simpler in construction and easier to maintain, it offers less rigidity compared to the five-bearing variant.
- 5-Bearing Cap Assembly: Comprises five separate bearing caps, each with its own set of main bearings and fastening bolts. This configuration provides superior structural integrity and load distribution, making it ideal for engines operating under higher stress conditions or modified for increased output.
Tech Tip: When rebuilding or replacing components on a BMW M47 engine, always inspect the bearing cap alignment and surface condition. Misalignment or wear can lead to premature crankshaft failure or oil pressure issues.
Crankshaft Hub
The crankshaft hub serves as a multifunctional interface between the crankshaft and several key engine systems. Located at the front or rear of the crankshaft (depending on the model), this precision-machined component includes splines, grooves, and mounting flanges to connect with:
- Timing System Components: Connects to the timing gear or pulley, ensuring accurate synchronization of camshafts and valve operation relative to piston movement.
- Oil Pump Drive: Transfers rotational force from the crankshaft to the oil pump via a drive shaft, ensuring consistent lubrication across engine components.
- Balance Shafts (if equipped): Helps reduce vibration in certain M47 variants by connecting to auxiliary balancing mechanisms.
This component must be manufactured to exact tolerances to ensure proper engagement and prevent drivetrain harmonics or misalignment. Failure of the crankshaft hub can result in catastrophic engine damage due to loss of timing or lubrication.

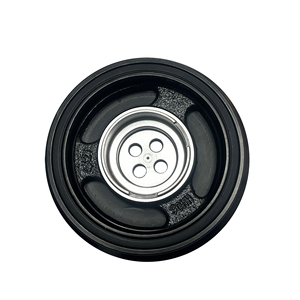

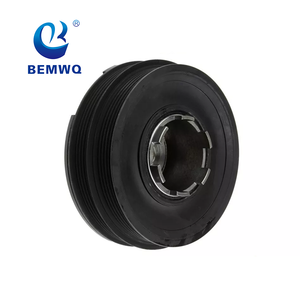

Crankshaft Pulley
The crankshaft pulley, also known as the harmonic balancer or crank pulley, is mounted at the front of the crankshaft and plays a dual role in engine functionality:
- Drive Function: Equipped with multiple grooves around its circumference, it engages serpentine or V-belts that power accessories such as the alternator, water pump, air conditioning compressor, and power steering pump.
- Vibration Damping: Designed with internal rubber dampers or fluid-filled chambers to absorb torsional vibrations generated during combustion cycles, protecting both the crankshaft and connected components from fatigue.
In BMW M47 engines, the crankshaft pulley must not only withstand high torque loads but also maintain belt tensioning accuracy. A worn or damaged pulley can cause belt slippage, overheating, electrical issues, or even engine seizure if the water pump stops functioning.
Caution: Always replace the crankshaft pulley if signs of rubber separation, wobbling, or belt misalignment are present. These symptoms indicate potential failure that could leave you stranded or cause extensive engine damage.
| Component | Function | Design Considerations | Common Issues | Recommended Maintenance Interval |
|---|---|---|---|---|
| Bearing Cap Assembly | Secures crankshaft in engine block | Differentiated by number of caps and bolts | Wear, misalignment, bolt fatigue | Inspect during major service or rebuild |
| Crankshaft Hub | Connects to timing, oil pump, and other systems | Precision-machined splines and mounting points | Cracks, spline wear, connection failure | Replace if damaged or during timing component replacement |
| Crankshaft Pulley | Drives accessories and damps vibrations | Rubber damping layer, belt grooves | Rubber degradation, wobbling, belt noise | Replace every 120,000 km or when signs of wear appear |
Expert Insight: When working on the crankshaft components of a BMW M47 engine, always use genuine or OEM-quality replacements. Aftermarket parts may not match the exact tolerances required for smooth operation and long-term reliability, especially in the case of the crankshaft pulley’s vibration-damping function.
Specifications and Maintenance of BMW M47 Crankshaft
The BMW M47 is a four-cylinder diesel engine developed by the German automaker for a wide range of vehicles during its production years from 1998 to 2007. As a successor to the M41 engine, the M47 brought enhanced performance, fuel efficiency, and durability to BMW's lineup. At the heart of this engine lies the crankshaft—a critical component responsible for converting the pistons' linear motion into rotational energy that powers the vehicle.
Understanding the specifications and maintenance practices of the M47 crankshaft is essential for ensuring long-term reliability, optimal engine function, and smooth driving performance. Below, we delve into the technical details and best practices for maintaining this vital part.
Technical Specifications of the BMW M47 Crankshaft
The design and engineering of the M47 crankshaft reflect BMW’s commitment to producing high-quality, durable components that can withstand the rigors of daily driving and performance demands. Each specification contributes to the overall efficiency, power delivery, and longevity of the engine.
Cylinder Configuration
- In-Line Four-Cylinder Layout: The M47 engine features an in-line four-cylinder configuration, which simplifies the crankshaft design while allowing for efficient manufacturing and balanced operation.
- Compact Design: This layout contributes to a more compact engine package, ideal for front-engine applications across various BMW models including the E46 3 Series and E39 5 Series.
Bearing Structure
- Main Bearings: The crankshaft is supported by multiple main bearings within the engine block, ensuring stable rotation and reducing vibration.
- Connecting Rod Bearings: These bearings connect the crankshaft to the con rods, translating piston motion into rotational force with minimal friction loss.
Material and Construction
- Forged Steel Construction: The M47 crankshaft is forged from high-strength steel, providing excellent resistance to fatigue and torsional stress under continuous operation.
- Durability: Forged steel also enhances wear resistance, making it suitable for high-mileage engines typical of diesel applications.
Dynamic Balance and Counterweights
- Static & Dynamic Balancing: Precision balancing ensures smooth engine operation at all RPMs, minimizing vibrations that could affect drivetrain components or passenger comfort.
- Strategic Counterweight Placement: Counterweights are integrated into the crankshaft to offset reciprocating mass and maintain stability even under heavy load conditions.
| Specification | Details | Performance Impact |
|---|---|---|
| Torque Output Range | 310–400 Nm (varies by model) | Higher torque output improves acceleration and towing capability without sacrificing engine responsiveness. |
| Stroke Length | 83–85 mm | Longer stroke increases low-end torque, enhancing drivability in urban and highway conditions. |
| Engine Displacement | 1,800–2,000 cc | Increased displacement allows for greater airflow and combustion efficiency, improving both power and fuel economy. |
| Timing System Integration | Synchronized with timing chain/gear system | Precise valve timing coordination ensures maximum performance and emissions compliance. |
Maintenance Practices for Longevity and Performance
Proper maintenance of the M47 crankshaft is crucial not only for engine longevity but also for preserving the integrity of related components such as bearings, connecting rods, and the oiling system. Regular care and adherence to manufacturer guidelines help prevent premature wear and costly repairs.
Important: A worn or damaged crankshaft can cause catastrophic engine failure if not addressed promptly. If you notice unusual noises, vibrations, or loss of power, have your engine inspected by a qualified technician immediately. Ignoring early warning signs can result in expensive repairs or complete engine replacement.
How to Choose a Crankshaft for BMW M47 Engine
Selecting the right crankshaft for your BMW M47 engine is crucial for ensuring optimal performance, longevity, and compatibility with your vehicle's intended use. The M47 is a popular inline-six diesel engine used in various BMW models from the early 2000s, known for its reliability and potential for tuning. Choosing the correct crankshaft involves evaluating several technical and practical factors that directly impact engine function.
Understand the BMW M47 Engine Specifications
The BMW M47 engine comes in multiple variants (M47D20, M47TU, etc.) with varying power outputs and torque figures. Understanding your specific engine variant helps ensure you select a compatible crankshaft that can handle the expected load.
- Stock output ranges from approximately 115 to 190 horsepower depending on turbocharging and tuning
- Torque figures typically range between 214 lb-ft and 400 lb-ft
- Engine displacement varies between 2.0L and 3.0L across different versions
Key tip: Always verify your exact M47 model before purchasing parts
Determine Performance Requirements
Identify whether the crankshaft will be used for stock daily driving, moderate upgrades, or high-performance applications such as racing or heavy towing.
- Stock replacements are ideal for standard usage and OEM-level reliability
- Forged steel crankshafts are recommended for modified engines producing over 300hp
- Racing applications may require lightened, balanced, and dynamically tested crankshafts
Consider: Future modifications like increased boost pressure or nitrous oxide systems
Material Selection and Strength Characteristics
Crankshafts are available in three primary materials, each offering distinct advantages based on strength, durability, and cost considerations.
- Cast iron: Common in stock applications, good wear resistance but less fatigue strength
- Ductile iron: Better tensile strength than cast iron, often used in mild performance builds
- Forged steel: Highest strength-to-weight ratio, ideal for high-horsepower or endurance applications
Durability note: Forged steel crankshafts can withstand significantly more stress and abuse
Dimensional Accuracy and Compatibility
Proper fitment depends on precise measurements of key dimensional parameters that must align with your engine block and connecting rods.
- Stroke length affects engine displacement and piston travel
- Main journal size determines bearing fitment and oil clearance
- Rod journal size must match connecting rod big end bore diameter
- Counterweight design impacts balance and internal clearance
Measurement advice: Use micrometers and dial bore gauges for precision checks
Selection Insight: If planning significant engine modifications, consider upgrading to a forged steel crankshaft even if it costs more initially. This investment can prevent costly failures down the road when pushing higher horsepower levels. Always have the crankshaft checked for straightness and journal condition during installation.
| Material Type | Typical Applications | Tensile Strength | Cost Range |
|---|---|---|---|
| Cast Iron | Stock replacements, low-stress environments | ~60,000 psi | $300–$600 |
| Ductile Iron | Mild performance upgrades, towing | ~90,000 psi | $600–$1,200 |
| Forged Steel | Race engines, high-horsepower builds | ~120,000+ psi | $1,200–$3,000+ |
Brand Reputation and Supplier Reliability
Purchasing from reputable manufacturers and suppliers ensures quality control, proper documentation, and access to technical support when needed.
- Established brands include Mahle, Bosch, Meyle, and aftermarket specialists like Manley or Crower
- Look for ISO certifications and quality assurance processes
- Check online forums and mechanic recommendations for brand experiences
Quality indicator: Detailed specifications and measurement tolerances provided by manufacturer
Balance and Precision Engineering
A properly balanced crankshaft minimizes vibration, reduces bearing wear, and enhances overall engine smoothness and longevity.
- Factory crankshafts come internally balanced
- Aftermarket units may require dynamic balancing
- High-performance builds benefit from bobweight matching
- Bearing clearances should be verified during installation
Technical consideration: Balance factor should match flywheel and clutch assembly weight
Budget Planning Tip: While budget constraints are real, remember that a crankshaft is a foundational component of the engine. Investing in a high-quality unit upfront can save thousands in repair costs later. Consider allocating 15-20% of your total engine build budget toward this critical component.
Warranty Coverage and Technical Support
Choosing a crankshaft with solid warranty protection and accessible technical support provides peace of mind and assistance during installation or operation issues.
- Look for warranties covering material defects and workmanship
- Technical support availability indicates better customer service
- Some manufacturers offer exchange programs for damaged parts
Warranty tip: Extended coverage options may be available through authorized dealers
Installation and Compatibility Checks
Ensure that the selected crankshaft works seamlessly with your existing components including bearings, main caps, and rotating assembly.
- Verify thrust bearing alignment and clearance
- Check for proper oil gallery alignment
- Confirm harmonic balancer and flywheel compatibility
- Inspect main cap bolt thread pattern and depth
Professional advice: Have a qualified engine builder inspect fitment before final assembly
By carefully considering these technical and practical aspects, you can confidently choose a crankshaft that meets the demands of your BMW M47 engine while supporting your performance goals. It’s highly recommended to consult with experienced diesel engine builders or BMW specialists who understand the nuances of the M47 platform. Proper selection combined with professional installation ensures long-term reliability and satisfaction from your engine rebuild or upgrade project.
DIY Replacement Guide for Crankshaft on BMW M47 Engines
Replacing the crankshaft on a BMW M47 engine is an advanced mechanical procedure that should not be undertaken lightly. Due to the complexity of the task, it's strongly advised to seek professional assistance. However, if you're experienced and decide to proceed with a DIY replacement, this guide will provide detailed steps to help ensure success while minimizing the risk of damage.
Critical Warning: Crankshaft replacement involves disassembling major engine components. Improper installation can lead to catastrophic engine failure. Only attempt this job if you have extensive mechanical experience, access to specialized tools, and a full service manual.
Understanding the BMW M47 Engine
The BMW M47 is a family of inline-four diesel engines known for their reliability and performance. These engines are commonly found in various BMW models from the late 1990s through the mid-2000s. Replacing the crankshaft typically becomes necessary due to bearing failure, oil starvation, or internal engine damage. The process requires precision and attention to detail.
Essential Tools and Materials
- Socket set (standard and deep sockets)
- High-quality torque wrench
- Crankshaft pulley puller
- Timing alignment tool kit specific to BMW M47
- Main bearing cap alignment tools
- Oil seal removal and installation tools
- Engine hoist or support bar
- Feeler gauges and micrometers
- New crankshaft, main bearings, thrust washer, and seals
- Fresh engine oil and coolant
- Service manual for your specific M47 variant
Step-by-Step Replacement Process
- Battery Disconnection and Fluid Drainage
- Disconnect the negative battery terminal to prevent electrical shorts.
- Drain the engine oil completely using the drain plug under the oil pan.
- Drain the coolant by opening the radiator drain valve or removing the lower radiator hose.
- Accessing the Crankshaft
- Remove any plastic covers, belts, or accessories blocking access to the front of the engine.
- Use a breaker bar to loosen the crankshaft pulley bolt before fully removing it.
- Mark the timing belt or chain position relative to the camshaft sprocket to maintain correct timing during reassembly.
- Remove the timing cover and inspect the timing components for wear or damage.
- Removing the Crankshaft Pulley and Timing Components
- Secure the crankshaft pulley in a vise and use a puller to remove it carefully.
- Remove the timing belt or chain tensioner and then the timing belt or chain itself.
- Label and organize all removed components for easy reassembly.
- Main Bearing Cap Removal
- Loosen each main bearing cap bolt gradually, working in a crisscross pattern to avoid warping the engine block.
- Keep track of which bearing cap goes where, as they are often numbered and should not be interchanged.
- Gently lift out the old crankshaft once all caps are removed.
- Preparation and Installation
- Thoroughly clean the engine block and bearing cap mating surfaces with solvent and a lint-free cloth.
- Inspect the cylinder walls and main bearing bores for scoring or damage.
- Install new main bearings into the block and caps, ensuring proper orientation.
- Place the new crankshaft into the block, aligning it carefully with the bearing saddles.
- Torquing Main Bearing Caps
- Reinstall the main bearing caps in their original positions, following the correct sequence.
- Tighten the bolts gradually in multiple passes using the specified torque values from the service manual.
- Check crankshaft rotation after each tightening stage to ensure smooth operation without binding.
- Reassembly of Front Components
- Reinstall the timing chain or belt according to the manufacturer’s specifications and timing marks.
- Replace the crankshaft pulley and torque the bolt to specification.
- Refit the timing cover using a new gasket to prevent leaks.
- Final Steps and Testing
- Refill the engine with the recommended type and amount of oil.
- Top off the cooling system and bleed air from the system if necessary.
- Reconnect the battery and start the engine, listening for unusual noises or vibrations.
- Monitor oil pressure and temperature closely during the initial run.
- Perform a thorough leak inspection and address any issues immediately.
| Phase | Key Tasks | Common Pitfalls | Specialized Tools |
|---|---|---|---|
| Disassembly | Timing mark verification, fluid drainage, component labeling | Misaligned timing marks, unmarked parts | Timing alignment kit, label tags |
| Crankshaft Removal | Pulley removal, main bearing cap loosening | Damaged threads, incorrect removal sequence | Crankshaft puller, breaker bar |
| Installation | Bearing fit check, crankshaft alignment | Improper bearing seating, misalignment | Micrometer, feeler gauge |
| Torquing | Progressive tightening, torque specs | Over-tightening, cross-threading | Torque wrench, thread lubricant |
| Reassembly | Timing setup, leak prevention | Incorrect timing, gasket leaks | Timing pin, RTV sealant |
Expert Tip: Always replace the main bearings, thrust washer, and oil seals when installing a new crankshaft. Never reuse these components as they are critical to proper engine function and longevity.
Post-Replacement Considerations
After completing the crankshaft replacement, it's essential to follow the break-in procedures outlined in your service manual. Avoid high RPM operation and heavy loads for the first few hundred miles to allow everything to seat properly. Schedule a follow-up oil change after the initial break-in period to flush out any metal particles that may have been introduced during installation.
Final Recommendation: While this guide provides comprehensive steps for replacing a crankshaft on a BMW M47 engine, it's important to understand that this is a highly technical repair. If at any point you're unsure about a step or lack the proper tools, stop and consult a certified mechanic. A poorly executed crankshaft replacement can lead to expensive repairs down the line or even total engine failure.
Understanding Crankshaft Maintenance and Replacement
The warranty duration for crankshafts can vary significantly depending on the brand, supplier, and retailer policies. Typically, most reputable manufacturers or sellers offer a standard warranty of at least one year from the date of purchase. Some premium suppliers may extend this to two or more years, especially for OEM (Original Equipment Manufacturer) parts.
It’s crucial for buyers to:
- Review the specific warranty terms provided in the product description
- Contact customer support or the seller directly for clarification
- Maintain proof of purchase and installation records
Keep in mind that warranties often exclude damage caused by improper installation, misuse, or lack of regular maintenance. Always ensure you understand what is covered—whether it's just material defects or also labor costs related to replacement.
Yes, crankshafts can often be repaired rather than replaced outright, provided the damage isn't too severe. The repair process typically involves several specialized steps performed by experienced engine machinists:
- Inspection: The crankshaft is thoroughly checked for cracks, wear, and alignment issues using magnetic particle inspection or other non-destructive testing methods.
- Grinding: Worn journals and crankpins are ground down to restore proper dimensions and surface finish.
- Polishing: After grinding, surfaces are polished to reduce friction and improve durability.
- Balancing: Dynamic balancing ensures smooth operation and prevents vibrations after reinstallation.
However, in certain cases—such as when replacing the crankshaft for high-performance engines like the BMW M47—it may not be advisable to reuse a previously damaged unit. These engines demand precise tolerances and reliability, so even a professionally repaired crankshaft might not meet the performance and safety standards required for continued use.
A deteriorating crankshaft can lead to significant engine problems. Recognizing early warning signs can help prevent costly repairs or engine failure. Common symptoms include:
- Excessive Engine Vibration: A worn or unbalanced crankshaft causes unusual shaking felt through the steering wheel, floorboard, or seat.
- Difficulty Starting the Engine: If the crankshaft position sensor is malfunctioning due to crankshaft issues, the engine may struggle to start or not start at all.
- Knocking or Rattling Noises: A distinct metallic knocking sound coming from the engine block usually indicates internal damage or misalignment.
- Engine Performance Issues: Reduced power, poor acceleration, and irregular idling are often linked to crankshaft-related timing or mechanical faults.
- Check Engine Light Activation: Diagnostic trouble codes (DTCs) related to crankshaft position sensors or misfires may appear on the dashboard.
- Visible Damage: In some cases, a broken or severely bent crankshaft can be observed during disassembly, particularly if there has been an oil starvation incident or mechanical interference.
If any of these symptoms persist, immediate inspection by a qualified mechanic is recommended to avoid catastrophic engine failure.
Replacing a crankshaft, especially in modern vehicles like those equipped with the BMW M47 diesel engine, is a complex and technically demanding procedure. It is generally not recommended for novice mechanics or DIY enthusiasts without prior experience in engine rebuilds.
The installation process typically includes:
- Complete engine removal or partial disassembly
- Removal of the oil pan, connecting rods, main bearings, and flywheel
- Proper use of specialty tools such as torque wrenches, crankshaft holders, and micrometers
- Precise reassembly with new bearings, gaskets, and seals
- Accurate torque specifications and alignment checks
Without the correct tools, technical knowledge, and understanding of engine dynamics, attempting this task could result in serious damage to the engine or personal injury. Additionally, incorrect installation can lead to premature failure, oil leaks, or misalignment issues.
For most users, it is strongly advised to have the crankshaft installed by a certified technician or at a reputable automotive workshop with experience handling similar engine models.
