Commutators for dc motors are divided into several types according to their structure and application. Each type uses different materials and configurations to suit particular operational demands. Here are the common types.

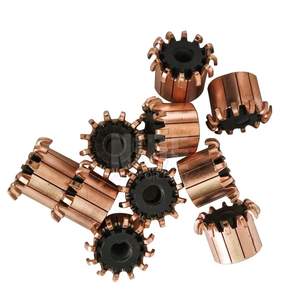

This commutator is a simple, cylindrical version constructed from metal segments insulated from each other, usually mica. It is mainly used in low to medium power dc motors.
The segmented & cylindrical commutators differ only slightly, as the former has segments shaped like radial strips instead of cylindrical surfaces. It is preferred in applications with more rigorous electrical load requirements.
The slotted commutator incorporates grooves or slots on the surface. This modification allows an increase in the number of brushes in contact with it. Therefore, it is advantageous in applications requiring more precision in torque control.
Dc motor commutators are very popular and used in numerous applications. Some of them include the following.
Dc motors are used in control surfaces, actuation systems, and more on aircraft. Hence, they prefer commutator motors for their reliability and efficiency in these critical applications.
Robots use dc commutator motors for mobility and precision tasks. For instance, robotic arms or grippers in manufacturing need precise control done by commutators.
Although modern evs predominantly use brushless motors, some older models or specific applications still employ dc commutators, particularly for smaller evs or hybrid vehicles.
As said before, commutators also offer reliability and efficient torque and speed control in fans, pumps, and other industrial equipment. These help enhance the overall efficiency of the equipment and extend its lifespan.
Understanding a dc motor's key features helps business owners understand what their customers may want. Therefore, here are some of those key features to consider.
Most dc motor commutators are manufactured from premium-grade graphite, copper or bronze alloys. These materials enhance durability and minimize wear, which is critical in industrial settings where motor longevity is required. Furthermore, copper has a lower resistivity than other metals, ensuring optimal electrical transfer.
Insulated commutator segments shield users from overheating, short circuits, and component failure. The mica insulation layers efficiently dissipate heat, enabling the motors to operate at peak performance levels even in demanding industrial situations. It, therefore, helps in improving safety and reliability.
These commutators are precisely designed to ensure smooth brush contact for efficient current transfer. This guarantees that the power is uniformly distributed across the motor. The better the commutator design, the least energy loss occurs during switching, which improves the motor's overall efficiency.
The number of segments a commutator has depends on its application. For example, slotted or segmented commutators, which feature several copper segments, are ideal for complex tasks requiring precise control. Conversely, cylindrical or simple segmented commutators are suited only for basic tasks and low-torque applications.
Even though buyers have various products, business owners must have specific suitable commutators to increase profitability. Here are some strategies to consider.
Ensure the commutator matches the motor specifications. For instance, ensure the color, size and material match the motor. Using compatible products helps enhance the motor efficiency by providing a better connection.
There are several varieties of commutators suitable for various applications. For instance, simple segmented commutators work well for general purposes. At the same time, slotted commutators are perfect for tasks that require precision and efficiency. Therefore, business owners should source various products suitable for different customers' needs.
Quality should never be compromised because it directly affects durability, reliability and performance. Therefore, business owners should invest in only high-quality products. This will help minimize replacement costs, which can be very expensive, especially in industrial settings. Also, quality directly affects operational efficiency. For this reason, select high-quality commutators and ensure they support stakeholders' long-term profitability.
Initially, understand the local market and the commonly used dc motors to avoid purchasing niche products that offer little to no profit. Then, stock the suitable commutators for the local market. This offers convenience to customers who need instant replacements.
A1.Commutators facilitate smooth transitions between conductive segments, thus minimizing energy loss. The quality of commutators determines efficiency level; therefore, high-quality commutators ensure motors run smoothly even under high loads.
A2.Like any other product, commutators require some maintenance to increase their durability. Some of the basic maintainings include regular inspections, cleaning to remove debris and dust, and checking brush wear to ensure optimal commutator performance.
A3.Yes, there are commutators that can withstand high temperatures. They are insulated with high-grade mica that dissipates heat efficiently. This makes them compatible with various environments, including those of heavy industries.
A4.Most segments increase the commutator's precision and smoothness. This, in turn, minimizes power losses, increasing operational efficiency. The reduction in power loss is critical in industrial settings, especially where high power is consumed. Therefore, a large number of segments means high precision.
