Types of Speedometers
A speedometer is a critical instrument in any vehicle that measures and displays the current speed at which the vehicle is traveling. Accurate speed monitoring not only enhances driver awareness but also contributes to road safety and compliance with traffic regulations. Modern vehicles utilize various types of speedometers, each offering unique advantages and suited for specific applications.
Electric Speedometer
An electric speedometer receives data from the vehicle's electronic speed sensor, typically located on the transmission or output shaft. As the vehicle moves, the sensor generates electrical pulses proportional to the rotational speed, which are interpreted by the speedometer to display accurate speed readings.
Advantages
- High accuracy and consistent performance
- Less susceptible to mechanical wear
- Easier integration with digital dashboards
- Low maintenance requirements
Limitations
- Dependent on electronic systems
- More expensive to replace
- Potential for signal interference
Best for: Modern cars, hybrid and electric vehicles, digital dashboard setups
Mechanical Speedometer
One of the earliest forms of speed measurement, the mechanical speedometer uses a flexible cable connected to the transmission. The spinning cable turns a magnet inside the speedometer, creating eddy currents that move the needle across the dial to indicate speed.
Advantages
- Simple and durable design
- No electronics required
- Easy to repair with basic tools
Limitations
- Prone to wear over time
- Less accurate than modern alternatives
- Limited compatibility with newer vehicles
Best for: Classic cars, vintage vehicles, mechanically inclined drivers

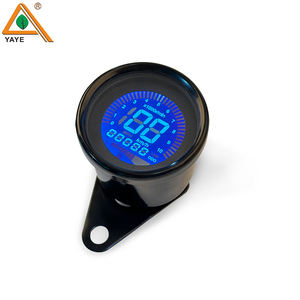

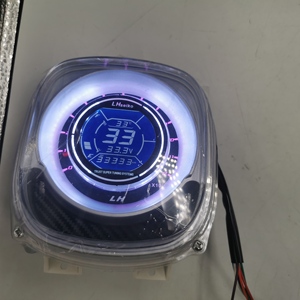

Digital Speedometer
Digital speedometers use electronic signals processed by the vehicle's computer system to display speed numerically on an LCD or LED screen. They often provide additional information such as trip distance, average speed, and fuel efficiency metrics.
Advantages
- Clear, easy-to-read display
- Can show multiple vehicle parameters
- Highly accurate and customizable
- Integrates well with smart vehicle systems
Limitations
- Glare issues in bright sunlight
- More complex diagnostics if faulty
- Higher cost of replacement
Best for: High-tech vehicles, luxury models, tech-savvy drivers
GPS Speedometer
A GPS-based speedometer calculates vehicle speed using satellite positioning technology. By measuring the rate of change in geographical coordinates over time, it provides real-time speed readings independent of wheel rotation or mechanical linkages.
Advantages
- Extremely accurate regardless of tire size
- Works in all driving conditions
- Not affected by mechanical failures
- Useful for off-road and rally driving
Limitations
- Requires clear satellite signal
- Slower response time in rapid acceleration
- Typically requires separate installation
Best for: Off-road vehicles, rally cars, motorhomes, and trailers
| Type | Accuracy | Readability | Reliability | Best For |
|---|---|---|---|---|
| Electric | High | Good | Very Good | Modern vehicles, digital dashboards |
| Mechanical | Fair | Good | Medium | Vintage cars, classic restoration |
| Digital | Excellent | Excellent | High | Luxury vehicles, tech-integrated cars |
| GPS | Excellent | Good | Medium | Off-road, rally, trailer use |
Expert Tip: If you're upgrading from a mechanical to an electric or digital speedometer, ensure compatibility with your vehicle's ECU (Electronic Control Unit) to avoid errors or malfunction indicators on the dashboard.
Specifications and Maintenance of Speedometers
Key Specifications for Understanding Speedometer Components
To effectively work with or replace a speedometer system, especially the speedometer cable, it's crucial to understand its core components and how they function together:
Speed Sensor
The speed sensor is a critical component that detects rotational movement from either the transmission output shaft (in mechanical systems) or via wheel sensors in modern electronic vehicles.
In older vehicles, it typically generates pulses based on rotation speed, while newer models use Hall-effect sensors that send digital signals to the vehicle’s ECU for processing before displaying speed information.
Speedometer Drive Gear
This gear is located inside the transmission and connects directly to the speedometer cable in traditional setups. It translates the rotation of the transmission gears into mechanical motion that drives the speedometer needle.
It's important to match the number of teeth on this gear when replacing parts to maintain accurate speed readings. Mismatched gears can lead to incorrect speed displays by altering the rotational ratio.
Electronic Control Unit (ECU)
In modern vehicles, the ECU plays a central role in interpreting data from various sensors—including the vehicle speed sensor—and processes this information to provide precise speed readings displayed on the dashboard.
Additionally, the ECU may integrate speed data with other systems such as cruise control, ABS, and traction control, making it essential for overall vehicle performance and safety.
Calibration Mechanism
Calibration ensures that the speedometer accurately reflects the actual speed of the vehicle, compensating for variables like tire size changes, gear ratios, and sensor tolerances.
Many modern vehicles allow for recalibration through the ECU using specialized tools or software, while older analog speedometers might require physical adjustments to the internal mechanism or replacement of specific drive gears.
| Component | Primary Function | Common Issues |
|---|---|---|
| Speed Sensor | Detects rotational movement and sends speed data to the ECU or gauge | Faulty signal output due to wear, dirt accumulation, or electrical failure |
| Drive Gear | Transfers rotational motion to mechanical speedometer cable | Wear, tooth breakage, or improper meshing causing erratic readings |
| ECU Integration | Processes and coordinates speed data across vehicle systems | Software glitches, corrupted data, or communication errors |
| Calibration System | Maintains accuracy across different driving conditions and modifications | Improper calibration after tire/wheel changes leading to incorrect readings |
Essential Maintenance Practices for Optimal Performance
Regular maintenance of your speedometer system helps ensure accurate readings, enhances safety, and prevents costly repairs down the line:
Important: Never ignore speedometer malfunctions, especially in vehicles where speed data is integrated with other critical systems like anti-lock brakes or stability control. A faulty speedometer could mask deeper issues that compromise vehicle safety and drivability.
How to Choose Speedometers
Selecting the right speedometer for your vehicle is a critical decision that affects both safety and performance. A well-chosen speedometer ensures accurate readings, long-term reliability, and compatibility with your driving needs.
Accuracy
A speedometer must provide precise readings to help drivers maintain safe speeds and avoid legal penalties. Inaccurate measurements can lead to unintentional speeding or misjudged driving conditions.
- Digital models often offer greater precision than analog versions
- Look for units calibrated for your specific vehicle type
- Some advanced models integrate GPS for real-time accuracy
Key consideration: Ensure the unit meets ISO standards for speed measurement accuracy
Compatibility
The speedometer must be fully compatible with your vehicle's specifications to ensure proper function and integration with other systems.
- Verify fitment with your vehicle's make, model, and year
- Check compatibility with transmission type (manual or automatic)
- Ensure correct calibration for tire size and differential gear ratio
Tip: Aftermarket digital speedometers may require additional adapters for older vehicles
Durability
Speedometers must withstand various environmental stresses depending on the vehicle's usage. Choosing a durable unit extends service life and maintains functionality under challenging conditions.
- Off-road vehicles need waterproof and shock-resistant models
- Commercial vehicles benefit from dust-proof and vibration-resistant designs
- Extreme climates demand temperature-resistant materials
Special feature: Look for IP65 or higher ratings for water and dust resistance
Readability
A clear, easy-to-read display is essential for quick reference while driving. Poor visibility can distract drivers and compromise safety.
- High-contrast dials improve visibility in bright sunlight
- Backlit displays enhance readability in low-light conditions
- Large numerals and clean layouts reduce cognitive load
Design suggestion: Consider LED-backlit LCDs for optimal visibility in all lighting conditions
Features
Modern speedometers come with various additional features that can enhance your driving experience and vehicle monitoring capabilities.
- Average speed calculations for fuel-efficient driving
- Fuel consumption tracking for better trip planning
- GPS integration for route-based speed alerts and navigation
- Trip computer functions in digital models
Feature tip: Some units integrate with OBD-II for comprehensive vehicle diagnostics
Installation Requirements
Consider the complexity of installation when selecting a speedometer, as this can affect both time and cost considerations.
- Plug-and-play models simplify replacement in modern vehicles
- Older vehicles may require wiring harness modifications
- Professional installation recommended for complex digital systems
- Calibration tools may be needed for certain applications
Time estimate: Simple replacements take 1–2 hours; full digital conversions may require half a day
Selection Advice: For most daily drivers, a mid-range digital speedometer with good readability and basic features offers the best balance between functionality and cost. Enthusiasts or specialty vehicle owners should prioritize compatibility with their specific driving needs and consider high-end models with specialized features.
| Vehicle Type | Recommended Speedometer Type | Key Features | Price Range |
|---|---|---|---|
| Classic Cars | Analog mechanical | Simple design, OEM-style appearance | $50–$200 |
| Daily Commuters | Digital LCD | Backlighting, average speed, fuel economy | $150–$400 |
| Off-road Vehicles | Waterproof digital | Dust/water resistance, rugged housing | $250–$600 |
| Performance Cars | Integrated digital cluster | Customizable displays, data logging | $500–$1500+ |
| Commercial Vehicles | Durable analog/digital hybrids | Shock resistance, long-term reliability | $200–$800 |
Cost vs. Value
While budget is always a factor, it's important to consider the long-term value of your speedometer investment. Higher-quality units often provide better durability and more accurate readings over time.
- Entry-level options may require earlier replacement
- Premium models often include warranties and support
- Integrated systems can add resale value to your vehicle
Value insight: Investing in a quality speedometer can prevent costly errors and enhance overall driving safety
Warranty and Support
A solid warranty protects your investment and provides peace of mind. Always check the manufacturer's reputation for customer support and product reliability.
- Look for minimum 1-year warranty coverage
- Extended warranties available on premium models
- Reputable brands often offer technical support and repair services
Recommendation: Register your purchase to ensure full warranty benefits and recall protection
Legal Compliance
Speedometers must meet local regulations regarding accuracy and display standards. This is particularly important when modifying or replacing factory-installed units.
- Check required units of measurement (mph/km/h)
- Confirm compliance with DOT/FMVSS standards where applicable
- Some regions require periodic speedometer calibration checks
Important: Non-compliant speedometers can result in failed inspections or legal consequences
DIY Guide to Replacing a Speedometer: Cable and Digital Models
While it's always advisable to consult a professional mechanic when replacing a speedometer in your vehicle, many car owners successfully complete this task as a DIY project with the right preparation and tools. This guide provides detailed instructions for replacing both traditional cable-driven speedometers and modern digital speedometers, ensuring you complete the job safely and effectively.
Safety Warning: Always disconnect the battery before working on electrical systems. Wear protective gloves and eyewear when handling components inside the dashboard or under the vehicle.
Understanding Your Speedometer Type
Before beginning the replacement process, identify whether your vehicle uses a mechanical (cable-driven) speedometer or an electronic/digital system. The type will determine the complexity of the replacement and the tools required.
- Mechanical Speedometers: Common in older vehicles, these use a physical cable connected from the transmission to the back of the speedometer gauge.
- Digital Speedometers: Found in modern vehicles, these rely on electronic signals from the vehicle’s speed sensor and are often integrated into the instrument cluster.
Replacing a Mechanical Speedometer Cable
- Gather Tools and Materials
- New speedometer cable (ensure compatibility with your vehicle make/model)
- Ratchet set or screwdrivers
- Gloves and safety glasses
- Owner's manual or repair guide
- Lubricant (if needed for installation)
- Access the Speedometer Cable
- Park the vehicle on a level surface and engage the parking brake.
- Locate the speedometer cable behind the dashboard or under the hood near the transmission.
- You may need to remove trim panels or access covers to reach the connection points.
- Disconnect the Old Cable
- At the dashboard end, gently unplug the cable from the back of the speedometer gauge.
- At the transmission end, locate the connection point and carefully unscrew or unclip the cable.
- Take note of the routing path to ensure proper installation of the new cable.
- Install the New Cable
- Route the new cable along the same path as the old one, avoiding sharp edges or tight bends.
- Securely connect the transmission end first, ensuring a snug fit without forcing.
- Attach the dashboard end to the speedometer gauge and verify it is fully seated.
- Test and Verify
- Reinstall any removed panels or covers.
- Start the vehicle and test drive at low speeds to confirm the speedometer needle responds correctly.
- If the needle doesn’t move, double-check connections or look for kinks in the cable.
| Task | Critical Considerations | Common Mistakes | Recommended Tools |
|---|---|---|---|
| Cable Removal | Label connections and note routing | Forgetting how the old cable was routed | Screwdriver set, pliers |
| Installation | Use correct cable length and orientation | Using incompatible or incorrect cable | New speedometer cable, lubricant |
| Testing | Observe needle movement during short drive | Assuming it works without testing | Valet key, test route |
DIY Tip: If the speedometer cable feels stiff or difficult to install, apply a small amount of silicone-based lubricant to ease insertion without damaging plastic or rubber components.
Replacing a Digital Speedometer
Digital speedometers are more complex due to their integration with the vehicle’s computer system. However, they can still be replaced by a determined DIYer with attention to detail and patience.
- Review the Manufacturer Manual
- Consult your vehicle’s service or owner’s manual for specific instructions related to your model.
- Some digital instrument clusters require programming or calibration after replacement.
- Prepare the Vehicle
- Turn off the ignition and disconnect the negative terminal of the battery to prevent electrical shorts.
- Allow the vehicle’s electrical system to discharge for a few minutes before proceeding.
- Remove Interior Trim
- Use trim removal tools or a flathead screwdriver (carefully) to remove dashboard panels around the instrument cluster.
- Set aside screws and clips in a safe place to avoid losing them.
- Unplug the Old Speedometer
- Locate the wiring harness connected to the back of the instrument cluster or speedometer unit.
- Gently press the release tab and pull the connector away from the unit.
- Take photos of the wiring configuration if you're unsure about reconnection later.
- Install the New Speedometer
- Align the new speedometer or instrument cluster with the mounting holes.
- Secure it using the original screws or fasteners.
- Reconnect the wiring harness, ensuring it clicks into place securely.
- Final Steps
- Reconnect the battery’s negative terminal and turn on the ignition to check if the speedometer powers up correctly.
- Verify that all gauges and warning lights function properly.
- Take the vehicle for a test drive to ensure accurate speed readings.
- Reinstall all interior trim pieces and clean up any dust or debris created during the process.
Note on Calibration: Some digital speedometers may need recalibration or pairing with the vehicle’s ECU (Electronic Control Unit). If your speedometer isn't displaying correctly after installation, refer to your manual or seek assistance from a qualified technician.
Environmental Responsibility
Dispose of the old speedometer and any packaging materials responsibly. Many automotive parts stores accept used electronics for recycling. If the speedometer contains circuitry or batteries, follow local e-waste disposal guidelines to minimize environmental impact.
Speedometer Replacement & Modification FAQ
A: Yes, in most jurisdictions it is legal to replace a vehicle's speedometer, provided the new unit functions correctly and displays accurate information. The primary legal requirement centers around ensuring that drivers have access to reliable speed information while operating the vehicle. In many regions, this falls under broader vehicle safety regulations that mandate proper functioning of critical instrumentation.
Important considerations include:
- Maintaining calibration standards to ensure speed readings are within acceptable error margins (typically ±5-10%)
- Preserving odometer functionality, as tampering with recorded mileage is illegal in most countries
- Meeting any jurisdiction-specific requirements for digital instrument clusters or modified vehicles
A: Generally, replacing a speedometer does not require special certification when performed on stock vehicles. However, certain situations may trigger additional requirements:
- Retrofitting digital clusters: Some regions require certified installation when upgrading from analog to digital instrumentation.
- Vehicles undergoing modifications: Changes involving engine swaps, transmission modifications, or altered final drive ratios may necessitate recalibration by a licensed technician.
- Commercial vehicles: Fleet vehicles or commercial transportation equipment often face stricter documentation requirements.
We recommend consulting your local Department of Motor Vehicles (DMV) or equivalent authority before performing major instrumentation changes.
A: Yes, there are several alternative methods to determine vehicle speed:
- GPS-based measurement: Modern GPS devices calculate speed by tracking position changes over time with high accuracy (typically within ±1 mph).
- Smartphone applications: Navigation apps like Google Maps, Waze, and specialized driving apps display real-time speed data using built-in GPS modules.
- Portable radar detectors: Some advanced models include speed readouts based on Doppler radar technology.
- Aftermarket speed display units: Devices that interface with vehicle sensors or GPS systems to provide secondary speed information.
While these alternatives can be useful for monitoring speed, they should not be considered legal substitutes for factory-installed speedometers in most jurisdictions.
