Types of B16 Engines

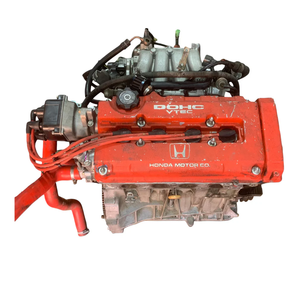

The B16 engine is a high-revving, compact, four-cylinder internal combustion engine developed by Honda. Known for its reliability and performance potential, the B16 series became iconic in the Honda tuning community. These engines were widely used across popular models like the Honda Civic, CR-X, and Integra, making them a favorite among enthusiasts looking to upgrade or modify their vehicles.
This engine family was designed with advanced engineering principles such as VTEC (Variable Valve Timing and Lift Electronic Control), which allowed it to deliver both efficiency and power depending on driving conditions. The B16 engines are especially known for their ability to rev high while maintaining mechanical integrity — a trait that has made them a staple in both street and racing applications.
Overview of B16 Engine Variants
B16A
The original member of the B-series engine family, the B16A was introduced in 1988 and marked Honda’s shift toward more efficient yet powerful naturally aspirated engines. It was primarily found in Japanese domestic market (JDM) and European Honda Civic and CR-X models. This engine laid the foundation for future high-performance B-series engines.
- Displacement: 1.6L (1595cc)
- Horsepower: ~130-160 hp depending on variant and market
- Torque: ~110 lb-ft
- Features: DOHC, 16-valve, VTEC technology
Advantages
- Excellent base for modifications
- Reliable design
- VTEC provides usable powerband
Limitations
- Lower output compared to later variants
- Limited aftermarket support due to age
Best for: Classic Honda builds, OEM replacements, budget-friendly swaps
B16A2 / B16A3
Released in the mid-'90s as successors to the B16A, the B16A2 and B16A3 were mainly used in North American and European Honda Civics. These variants offered slight improvements in emissions compliance and minor tweaks to cam profiles, resulting in small gains in fuel economy and smoothness without sacrificing performance.
- Displacement: 1.6L (1595cc)
- Horsepower: ~160 hp
- Torque: ~111 lb-ft
- Features: DOHC, 16V, VTEC, OBD1 (A2), OBD2 (A3)
Advantages
- Good availability in junkyards
- Easier emissions compliance
- Solid platform for mild performance upgrades
Limitations
- Moderate factory power output
- Older tech limits high-horsepower builds without reinforcement
Best for: Daily drivers, emissions-compliant builds, beginner projects
B16B
The B16B is arguably the most famous version of the B16 engine. Found exclusively in the Honda Civic Type R (EK chassis), this engine is revered for its near-perfect balance of lightweight design, high-revving capability, and track-ready performance. The B16B is often considered one of the best naturally aspirated engines of its era.
- Displacement: 1.6L (1595cc)
- Horsepower: 185 hp @ 8200 RPM
- Torque: 128 lb-ft @ 7000 RPM
- Features: DOHC, 16V, VTEC, redline at 8400 RPM
Advantages
- High factory horsepower
- High redline allows full use of VTEC range
- Excellent for track and spirited driving
Limitations
- Rare and expensive to source
- Less low-end torque
- Not ideal for heavy vehicles
Best for: Track builds, JDM-inspired restorations, serious performance setups
B16C
The B16C was developed with an emphasis on fuel efficiency while still retaining the sporty characteristics of the B16 family. Introduced in 1996, it was commonly used in Japan and Europe in smaller Civics and CR-X models where fuel economy was a priority without compromising driving enjoyment.
- Displacement: 1.6L (1595cc)
- Horsepower: ~125 hp
- Torque: ~112 lb-ft
- Features: DOHC, 16V, VTEC, lean-burn design
Advantages
- Fuel-efficient design
- Smooth daily driver
- Great for eco-mods and light tuners
Limitations
- Lower power output than other B16s
- Less responsive at high RPMs
Best for: Eco-conscious builds, urban commuters, fuel-sipping conversions
| Engine | Displacement | Horsepower | Torque | Redline | Key Features |
|---|---|---|---|---|---|
| B16A | 1.6L (1595cc) | 130–160 hp | 110 lb-ft | 7600 RPM | DOHC, 16V, VTEC |
| B16A2/A3 | 1.6L (1595cc) | ~160 hp | 111 lb-ft | 7600 RPM | DOHC, 16V, VTEC, OBD1/OBD2 |
| B16B | 1.6L (1595cc) | 185 hp | 128 lb-ft | 8400 RPM | DOHC, 16V, VTEC, high-lift camshaft |
| B16C | 1.6L (1595cc) | ~125 hp | 112 lb-ft | 7200 RPM | DOHC, 16V, VTEC, lean-burn tech |
Expert Tip: When sourcing a B16 engine for a swap or rebuild, always check the vehicle's ECU compatibility. Some B16 variants require specific wiring harnesses and engine management systems to operate efficiently, especially when integrating modern tuning solutions.
Why Choose a B16 Engine?
The B16 engines are highly regarded not only for their reliability and performance but also for their adaptability in various applications. Whether you're restoring a classic Civic, building a weekend track car, or modifying your daily commuter, there's a B16 variant suited to your needs. Their modular design makes them easy to work on, and the abundance of aftermarket parts ensures that nearly any performance goal can be achieved.
These engines are particularly well-suited for those who appreciate the purity of naturally aspirated power delivery and enjoy the thrill of high-RPM driving. Their proven track record in motorsports and grassroots tuning communities further cements their legacy as some of the best inline-four engines ever built by Honda.
Specifications and Maintenance of B16 Engine
Key Specifications to Consider
The Honda B16 engine is a member of the renowned B-series family, known for its reliability, performance, and modifiability. Introduced in 1986, it became a favorite among enthusiasts due to its compact design and high-revving nature. Understanding its specifications is crucial when sourcing or upgrading this iconic engine.
Engine Code & Variants
The B16 engine comes in several variants including the B16A, B16B, and B16Z. Each code represents differences in tuning, cylinder head design, and application (e.g., Civic SiR vs. Integra models). Identifying the correct engine code ensures compatibility with your vehicle platform and intended use case.
For example, the B16B was used in the Civic Type R (EK) and features a high-compression DOHC VTEC setup, while the B16A found in earlier Civics has slightly less aggressive cam profiles and lower compression ratios.
Displacement
With a displacement of 1590 cc (1.6L), the B16 strikes a balance between fuel efficiency and performance. The engine's bore and stroke dimensions are optimized for high RPM output, making it one of the most power-dense naturally aspirated engines of its era.
This displacement allows for impressive specific output—often exceeding 100 hp per liter—especially in later B16B and B16Z forms. It also makes the engine lightweight and suitable for compact chassis applications.
Power Output & Torque
Originally rated at 110–130 hp depending on the variant and model year, the B16 saw significant improvements over time. The B16B in the EK Civic Type R produced 160 hp thanks to advanced VTEC tuning, improved intake/exhaust flow, and lighter rotating components.
Torque figures typically range from 110 lb-ft to 117 lb-ft, with peak delivery occurring around 7,000 RPM. This emphasizes the engine’s high-RPM character and need for proper gearing and drivetrain matching.
Valvetrain Configuration
All B16 engines feature a DOHC (Double Overhead Camshaft) layout with four valves per cylinder, totaling 16 valves. This configuration enhances breathing efficiency and supports high-revving performance.
VTEC (Variable Valve Timing and Lift Electronic Control) technology further optimizes valve timing and lift based on engine load and speed, delivering both low-end torque and top-end horsepower efficiently.
| Specification | Description | Typical Values |
|---|---|---|
| Fuel System | Multi-point Fuel Injection (MPI) | PFI system with sequential injection |
| Ignition System | Distributorless or distributor-based | Varies by model year; modern units use COP ignition |
| Cooling System | Liquid-cooled inline-four | Thermostat-controlled radiator system |
| Lubrication | Wet sump oil system | Oil pump + full-flow filter |
| Emissions | EGR + catalytic converter | Meets US and Euro emissions standards |
| Timing Drive | Timing belt-driven DOHC | Replace every 60,000–100,000 miles |
Essential Maintenance Practices
Regular maintenance is key to preserving the longevity and performance of the B16 engine. Whether you're using it as a daily driver or track-focused build, following these best practices will ensure trouble-free operation:
Important: When performing any major service or replacement, such as timing belt changes or valve adjustments, always refer to official Honda repair manuals or consult experienced technicians. Incorrect procedures can lead to costly repairs or permanent engine damage.
How to Choose a B16 Engine
Selecting the right B16 engine for your project is crucial for achieving the desired performance, reliability, and value. Whether you're restoring a classic Honda or building a high-performance machine, careful consideration of several key factors will ensure you make an informed decision.
Establish Your Budget
Setting a clear budget is the foundation of any engine purchase. The B16 engine market offers options across various price points, from affordable used units to premium rebuilt or modified versions.
- New engines typically range from $1,500 to $3,500 depending on modifications
- Used engines can be found for $800–$2,000 based on condition and mileage
- Rebuilt engines with upgraded components may exceed $4,000
- Factor in additional costs like shipping ($200–$500), installation, and potential modifications
Smart tip: Allocate 10-15% of your total budget for unexpected expenses during installation
Determine Engine Condition
The condition of the B16 engine significantly impacts both cost and reliability. Each option has distinct advantages and considerations that should align with your usage requirements.
- New engines: Factory-fresh builds with no prior wear (rare but ideal for show cars)
- Rebuilt engines: Professionally restored with new components (often better than stock)
- Used engines: Affordable but require thorough inspection (check oil quality, compression)
- Performance builds: Modified with forged internals, ported heads, etc. (for track/race use)
Inspection advice: Always request compression test results and maintenance records
Evaluate Supplier Reputation
Your choice of supplier plays a critical role in ensuring a successful transaction and long-term satisfaction with your B16 engine purchase.
- Look for suppliers offering at least a 3-month warranty (6–12 months preferred)
- Check if they provide mounting kits, ECU, or wiring harness compatibility information
- Verify their technical support availability and responsiveness
- Read customer reviews focusing on post-sale service experiences
Red flag: Avoid sellers unwilling to provide detailed engine history or specifications
Define Your Usage Requirements
Understanding how you'll use the vehicle determines which type of B16 engine will best serve your needs, whether it's for daily commuting, weekend cruising, or competitive racing.
- Daily drivers: Stock B16A or B16B with regular maintenance history
- Street performance: Blueprinted engines with mild modifications
- Race applications: Fully built engines with forged components and head work
- Show vehicles: Numbers-matching engines for originality-focused builds
Performance note: High-compression race engines may not perform well in stop-and-go traffic
Compatibility Check: The B16 series was originally designed for compact chassis applications. Ensure proper fitment by verifying:
- Intake manifold clearance
- Transmission bellhousing pattern
- Engine mount locations
- Radiator positioning
Popular donor models include Civic Si (EG/EP), CR-X del Sol, and certain Integra models. Some swaps may require custom mounts or crossmembers.
| Application Type | Recommended B16 Variant | Horsepower Range | Ideal For |
|---|---|---|---|
| Stock restoration | B16A (OBD0/1) | 160-170 hp | Mint condition preservation builds |
| Street performance | B16B (OBD2) | 180-210 hp (stock-modified) | Enthusiast daily drivers |
| Track build | Built B16 | 220-260+ hp | Autocross/time attack machines |
| Civic EG swap | Any B16 | 160-250+ hp | Classic Civic enthusiasts |
Pro Tip: When purchasing from online marketplaces like Alibaba.com, always verify:
• Seller location and shipping options
• Detailed photos of actual inventory (not stock images)
• Communication response time before purchase
• Return policy details
• Import documentation assistance (for international buyers)
Comprehensive DIY Guide for B16 Engine Replacement
The Honda B16 engine series, particularly the B16A variant, is known for its high-revving performance and compact design. Originally found in vehicles like the Civic Si and Integra, this DOHC VTEC engine delivers impressive horsepower relative to its displacement. Due to its complexity and performance orientation, proper installation requires both mechanical knowledge and attention to detail.
Safety Warning: Working with high-performance engines like the B16 involves risks from heavy components, pressurized systems, and electrical hazards. Always ensure your workspace is well-lit and ventilated, wear protective gear, and never work under a suspended engine without proper support.
Preparation & Tool Requirements
Before starting the replacement process, gather all necessary tools and materials. This ensures a smooth workflow and minimizes the risk of leaving bolts loose or parts uninstalled due to missing equipment.
- Mechanical Tools: Socket set (standard and deep), combination wrenches, screwdrivers (flathead and Phillips), pliers, breaker bar, torque wrench
- Lifting Equipment: Engine hoist with rated capacity for B16 weight (~300 lbs), engine support bar, jack stands
- Consumables: New gaskets, OEM-grade oil filter, coolant, brake cleaner, anti-seize lubricant, thread locker
- Reference Materials: Factory service manual (Honda B16-specific), repair guide, wiring diagram
Pro Tip: Use zip ties or labeled containers to organize small parts as you remove them. Consider taking reference photos during disassembly to aid reassembly later.
Step-by-Step Replacement Process
- Initial Setup
- Disconnect the negative battery terminal to prevent short circuits
- Elevate the vehicle securely using ramps or jack stands
- Drain all fluids including engine oil, coolant, and fuel system contents
- Label all fluid lines and connectors before removal
- Component Removal
- Remove air intake system, throttle body, and associated hoses
- Disconnect exhaust manifold from the cylinder head
- Unplug all electrical connectors and label them systematically
- Detach cooling system components and secure them safely
- Engine Disconnection
- Support the engine with an appropriate hoist or stand
- Remove motor mounts and transmission mount
- Disconnect driveshaft or half-shafts from transmission
- Loosen but do not remove all engine-to-transmission bolts initially
- Lifting and Removal
- Ensure all remaining connections are disconnected
- Slowly lift the engine clear of the bay while maintaining balance
- Secure the engine on a stable workbench for inspection or rebuild
- Installation of New Engine
- Verify compatibility of new engine with your vehicle’s ECU and harness
- Install new timing belt and tensioners if required
- Align engine carefully with mounting points
- Torque all fasteners to factory specifications
- Reassembly and Reconnection
- Reconnect all wiring harnesses according to labels
- Refit intake, exhaust, and cooling system components
- Reinstall motor mounts with new bushings if needed
- Double-check all connections before proceeding
- Fluid Refill and Testing
- Fill with recommended grade of synthetic motor oil
- Refill cooling system with Honda-approved antifreeze mix
- Check for leaks after initial refill and startup
- Perform full system scan using OBD-II scanner for fault codes
| Phase | Essential Tasks | Common Pitfalls | Required Tools |
|---|---|---|---|
| Preparation | Manual review, tool gathering, labeling strategy | Missing special tools, incorrect torque specs | Service manual, camera, marker |
| Disassembly | Fluid drainage, connector labeling, component removal | Spilled fluids, lost bolts, mislabeled wires | Socket set, drain pans, zip ties |
| Engine Handling | Proper lifting, balanced load, safe positioning | Overloaded hoist, dropped engine, damaged components | Engine hoist, support chains, jack stands |
| Installation | Mounting bolt torque, alignment checks, system integrity | Cross-threaded bolts, improper seating | Torque wrench, feeler gauges |
| Final Checks | Leak testing, code scanning, fluid level monitoring | Missed connection, overheating | OBD-II scanner, pressure tester |
Expert Recommendation: For optimal performance, consider upgrading key components during replacement—such as valve springs, camshafts, or a lightweight flywheel—if you're aiming for enhanced output beyond stock levels. Always maintain a log of modifications and changes made.
Post-Replacement Best Practices
After completing the engine replacement, follow these critical steps to ensure long-term reliability and performance:
- Allow the engine to idle for 10–15 minutes to bleed air from the cooling system
- Check for vacuum leaks by listening for hissing sounds or using carburetor cleaner spray test
- Monitor oil pressure and coolant temperature closely during the first few drives
- Follow a proper break-in procedure for new or rebuilt engines (avoid high RPMs for the first 500 miles)
- Conduct a thorough inspection under the hood after each drive during the first week
Frequently Asked Questions About the Honda B16 Engine
The Honda B16 engine is a high-performance, naturally aspirated inline-four gasoline engine that was part of Honda's renowned B-series engine family. First introduced in 1988, this 1.6-liter (1595cc) powerplant became famous for its reliability, compact design, and high-revving capabilities. The engine features dual overhead camshafts (DOHC), a 16-valve configuration, and was one of the first engines to incorporate Honda’s Variable Valve Timing and Lift Electronic Control (VTEC) system.
Designed with motorsport-inspired engineering, the B16 could reliably rev up to 8,000–8,500 RPM, producing impressive horsepower figures for its displacement. It was praised for its smooth operation, fuel efficiency, and durability under demanding conditions. The B16 series includes several sub-models such as the B16A, B16B, and B16Z, each tailored for specific vehicle applications and performance levels.
The B16 engine was primarily used in Honda and Acura models known for their sporty character and lightweight chassis. Some of the most notable vehicles equipped with the B16 engine include:
- Honda Civic (EF/EK chassis) – Particularly the Civic Si and Civic VX models in North America and Europe
- Honda CR-X del Sol – A sporty hatchback version of the CR-X, available with the VTEC-equipped B16A
- Acura Integra (DA/DC chassis) – Especially the Acura Integra GS-R, which featured the powerful B16B variant
- Honda Domani / Logo – Sold in Japan and some international markets
- Honda Quint Integra / Concerto – European versions that received the B16 engine
In many of these applications, the B16 engine helped define the driving experience, offering an ideal balance between practicality and performance in compact, lightweight platforms.
No, the stock Honda B16 engine is not turbocharged. It was designed from the factory as a naturally aspirated unit, optimized for high-revving performance through advanced valvetrain technology like VTEC rather than forced induction.
However, due to its robust iron block and popularity in the tuner community, the B16 engine is a common candidate for turbocharging modifications. Enthusiasts often add turbo systems to extract significantly more horsepower—often doubling or tripling the output. When turbocharging a B16, it's essential to consider supporting modifications such as:
- Upgraded fuel injectors and fuel pump
- Aftermarket ECU tuning or standalone engine management system
- Stronger internals (forged pistons, rods, crankshaft) for higher boost levels
- Improved cooling system components
- Upgraded clutch and drivetrain components to handle increased torque
With proper tuning and modifications, a turbocharged B16 can reliably produce anywhere from 250 to over 400 horsepower, depending on the build goals and component quality.
The primary differences between the Honda B16 and B18 engines lie in their displacement, power characteristics, and intended usage. Here's a detailed comparison:
| Feature | B16 Engine | B18 Engine |
|---|---|---|
| Displacement | 1.6L (1595cc) | 1.8L (1849cc) |
| Primary Use | High-revving performance applications | Torque-focused and all-around use |
| Horsepower Output | Higher peak horsepower at high RPM | Moderate horsepower with broader powerband |
| Torque Output | Lower torque but revs higher | Higher torque across RPM range |
| Engine Variants | B16A, B16B, B16Z | B18A, B18B, B18C, B18D, B18Z |
| Applications | Civic Si, CR-X del Sol, Integra GS-R | Civic SiR, Prelude, Accord, Integra Type R (B18C) |
While the B16 excels in high-RPM situations and delivers a thrilling driving experience in lightweight cars, the B18 offers more low-end and mid-range torque, making it feel stronger in everyday driving. The B18C variant, especially the one found in the Acura Integra Type R, is highly regarded for both street and track performance.
Both engines are durable and tunable, but the choice between them depends largely on whether you prioritize high-revving horsepower (B16) or a more versatile torque curve (B18).
