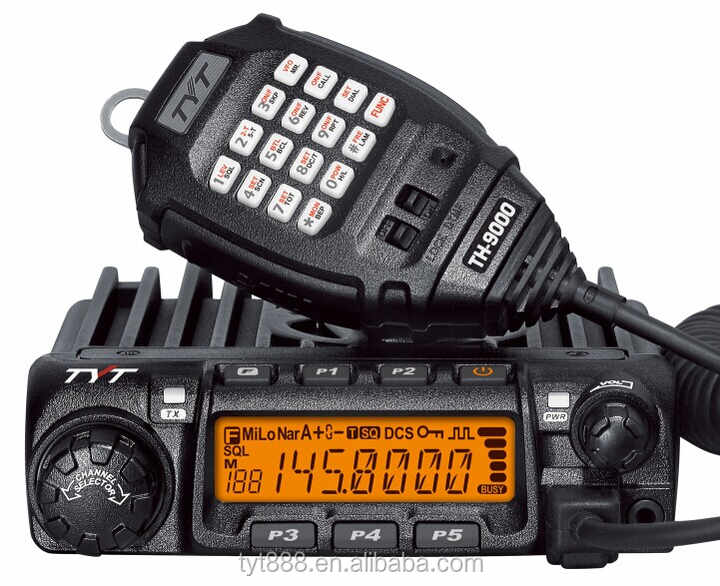

Newest!!!TH-9000d wireless fm radio torch mobile phone :
1.200 memory channels
2.FM radio
3.CTCSS/DCS
4.DTMF/2 Tone coder
Newest!!!TH-9000d Mobile radio with scrambler main function :
| Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz) UHF: 400-480MHz |
|
| Output Power: VHF: 10W/25W/60W UHF: 45W/25W/10W |
|
| 1750Hz Tone |
CTCSS/DCS setting & scanning |
| 0-9 SQL grade setting |
Frequency/Channel scanning |
| High/Mid/Low power selectable |
Voice compander |
| Repeater offset shift |
Keypad lock function |
| Contact book |
Battery voltage display |
| DTMF/2 tone/5 tone |
ANI ID |
| Remote kill/ stun/ activate/ revive |
Emergenvy alarm |
| Wide/Narrow band setting |
TX inhibit |
| Busy Channel Lock-Out |
Channel name editing |
| Reverse frequency |
Talk around |
| Scrambler |
Voice prompt |
| Time-out Timer |
Auto Power off |
| VFO step setting: 5/6.25/10/12.5/20/25/50kHz |
|
Newest!!!TH-9000d Mobile radio with scrambler specification:
| Item Number |
TH-9000 |
| General |
|
| Frequenvy Range |
136-174/245-246/400-490MHz |
| Channel Capacity |
200 |
| Channel Spacing |
5/6.25/8.33/10/12.5/15/20/25/30/50KHz |
| Freruency Stability |
2.5ppm |
| Operating Temperature |
-20°C ~ + 60°C |
| Operating Voltage |
13.8V DC ± 15% |
| Dimension(HxWxD) |
145mm x190mm x47mm |
| Weight(with bracket) |
1200g |
| Receiver |
|
| Reference Sensitivity |
0.25V / 0.35V |
| Operating Bandwidth |
60dBΦ12.5KHz /70dBΦ25KHz |
| Adjacent Channel Selectivity |
60dBΦ12.5KHz 70dBΦ25KHz |
| Inter-modulation Rejection |
≥60dB/ ≥65dB |
| Spurious Response Rejection |
≥70dB |
| Rated Audio Response |
+1-+3dB |
| Rated Audio Distortion |
<5% |
| FM Hum&Noise |
≥40dBΦ25KHz /≥45KHzΦ12.5KHz |
| Transmitter |
|
| RF Power |
45W/25W/10W(UHF)/60W/25W/10W(VHF) |
| Frequency Modulation |
11kΦF3E / 16kΦF3E |
| Modulation Distortion |
<5% |
| FM Noise |
≥36dBΦ25KHz /≥40KHz Φ12.5KHz |
| Adjacent Channel Power |
≥60dBΦ12.5KHz /≥70KHz Φ25KHz |
| Audio Response |
+1-+3dB |
| Audio Distortion |
<5% |
Packing:1pc/gift box, 20boxes /carton
Shipping:with 1-3 working days after receive the payment
1. Reply your inquiry in 24 working hours .
2. Experienced staff answer all your questions in professional and fluent English .
3. Customized design are available , OEM & ODM are welcome .
4. Exclusive and unique solution can be provided to our customer by our well-trained and
professional engineers and staff .
5. Supplies professional , superior quality walkie talkie two way radios in China .
Warranty
We provide 1 year warranty. If the item is defective, please notify us within 3days of delivery. All items must be returned in their original condition, in order to quality for a refund or exchange of goods. Items returned after 15 days of delivery are only eligible for repair. The buyer is responsible for all shipping costs incurred. When buying, it means the buyer have given tacit consent to the policy. If further details please feel free to contact us. We will work with you to reach win-win.
