Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

No reviews yet1 sold

Sumtor (wuxi) Electric Co., Ltd.

Brand holder8 yrs

CN

Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

Nema 23 Stepper Motor 30kg.cm 3a Double Shaft 24vdc 57 Stepping Motor 112mm100mm 3nm 2.5nm 4.2a

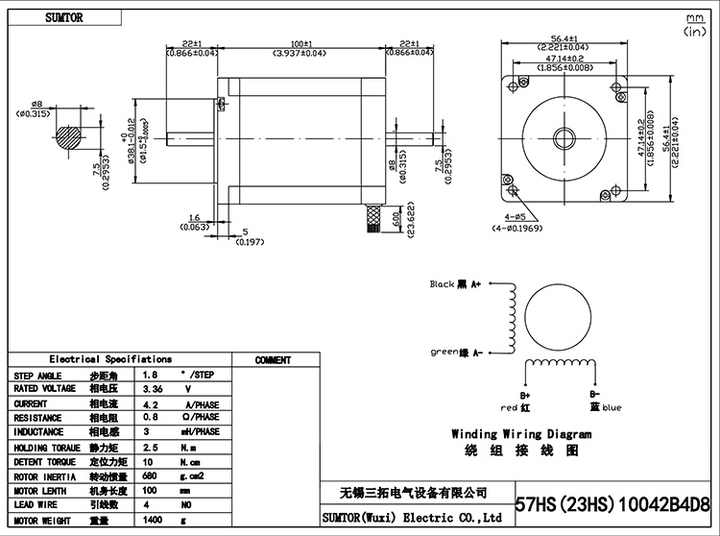

Key attributes

Industry-specific attributes

Phase

2

Type

Hybrid

Other attributes

Warranty

1year

Place of Origin

Jiangsu, China

Brand Name

sumtor

Model Number

57HS10042B4D8

Torque

2.5N.m

Shaft Diameter

8MM

Voltage

2.6v

Nema Frame Size

NEMA 23

Current / Phase

4.2A

Name

stepper motor dual shaft

Inductance

3mH

Resistance

0.8Ω

shaft diameter

8mm

Body length

100mm

Detent Torque

10N.cm

Rotor inertia

680g.cm2

Lead wire

4

Motor Weight

1400g

Product Keywords

stepper motor dual shaft,nema 23 stepper motor mount,high torque

Packaging and delivery

Selling Units:

Single item

Single package size:

20X15X15 cm

Single gross weight:

4.000 kg

Lead time

Customization options

Product descriptions from the supplier

FREE shipping capped at $20.00 on your first order

Customizable

1 - 9 pieces

$18.00

10 - 99 pieces

$17.50

>= 100 pieces

$17.00

Sample price: $17.50
