Imx6 PCBA Industrial Android Single Computer Automated Motor Control Board for media player touch screen

Name: Imx6 PCBA Industrial Android Single Computer Automated Motor Control Board for media player touch screen
Brand: Zhejiang Qiyang Intelligent Technology Co., Ltd.
SKU: 1600272950871
Price: 175 USD
Availability: InStock

No reviews yet

Zhejiang Qiyang Intelligent Technology Co., Ltd. 12 yrs

Imx6 PCBA Industrial Android Single Computer Automated Motor Control Board for media player touch screen

Key attributes

Other attributes

Model Number

IAC-IMX6S

Type

smart electronics pcba

Place of Origin

Zhejiang, China

Brand Name

qiyang

Copper Thickness

1 oz

Supplier Type

Motherboard

Products Status

Stock

Item Name

i.mx6 single board computer/SBC

CPU

Freescale i.MX6D processor,ARM Cortex-A9 core, 1.0GHz.

RAM

ddr3 sdram,4*256mb, 1GB in total

Flash

4GB EMMC

Internet

AR8035, PHY internet

Size

160*105mm

Custom service

LINUX ANDROID

Packaging and delivery

Selling Units:

Single item

Single package size:

32X25X12 cm

Single gross weight:

1.000 kg

Lead time

Quantity (pieces)	1 - 1	> 1
Lead time (days)	16	To be negotiated

Customization options

Product descriptions from the supplier

Warning/Disclaimer

California Proposition 65 Consumer WarningView more

Products Description

Imx6 Industrial Android Single Computer Automated Motor Control Board with sata, RS232, camera, display interfaces

Qiyang QY-IMX6S Single Board Computer (SBC） adopts NXP I.MX6 processor， ARM Cortex-A9 kernel， with 1.0 Ghz frequency，compatible with Solo/Dual/Quad Core； With hardware-accelerated graphics processing gunit，support 2D/3D andVG vector acceleration； support multi-format 1080P video hardware codec， support dual 720P video coding: Support several screens with asynchronous display，support different image or videos on LVDS, HDMI, VGA（TTL）:Onboard with Ethernet，UART，CAN，USB，SATA，Mini PCI-E，LCD，Touch Panel，etc. Support Linux，Android，high standard design，to meet industrial loT，Vehicle multimedia，advertisements，consumer HMl，etc.

If you have any questions, please contact us.

Product Paramenters

Hardware Resources	CPU	Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz
		RAM	DDR3 SDRAM,4*256MB, total 1GB
		Flash	4GB EMMC
		Network	AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M
		Communication	5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485
				1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface
				2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output
				1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator
		Display	18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200
				VGA, can be connected with universal display
				2-ch LVDS Interface, each channel can support resolution up to 1920*1200
				1080P display Interface, support 1080P display 1.4

		Audio	McASP audio interface; binaural output; MIC audio input
		Input Interface	4-wire resistive touch panel
				Standard I2C Capacitive panel
				CAMERA Interface, standard interface support OV5642 camera module
		Expansion Interface	MINI_PCIE 2.0
		Expansion Interface		SIM Card
		Memory Interface	1-ch SD Card interface
		Memory Interface		1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps
		Other	Reset circuit, Watch dog, RTC, Buzzer, JTAG interface
		Power Input	+12V power supply, can support +4.75V~+18V wide range voltage supply
Resource	Development Tools	Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1
				Application layer development debug tool
				Cross-compiler
				Common terminal development debugging tool
		Image File	OS image file, support multiple resolution display
		Test Program	Interface using demo test program and test program source code
		Source Code	Bootloader, kernel, system source code
		Manual	Mainboard User manual,Device Manual
		Schematic	Mainboard structure size chart
Electrical Specification	Size	160mm*105mm
		PCB	8-layer high precision immersion gold process
		Power Consumption	≤3W
		Operation Temperature	-20°C ~ +70°C
		Operation Humidity	5% ~ 95%, Non-Condensing

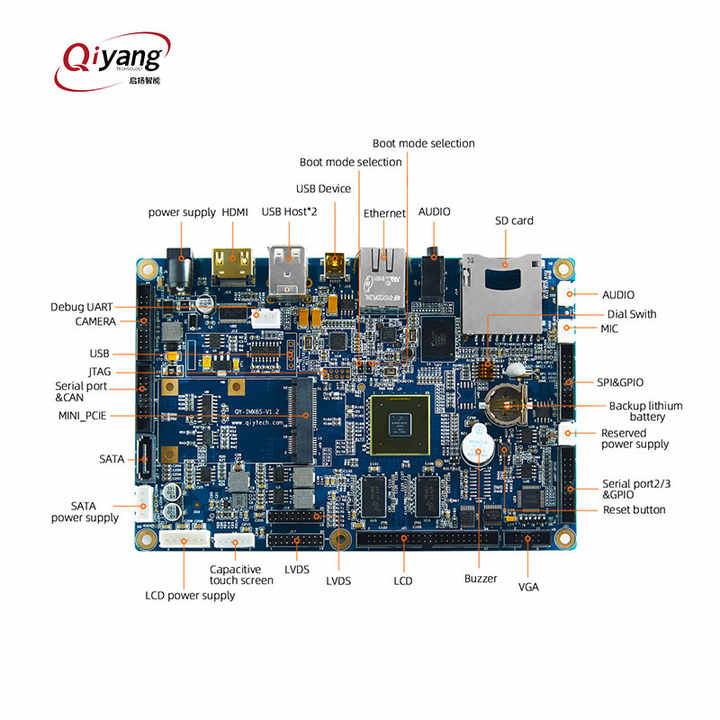

Product interface

Product Feature

Welcome OEM & ODM order; Custom Made is also Welcome.
