Hydraulic Feeding WC-8H Series Wood Chipper Parts

No reviews yet

This supplier is both a manufacturer and trader. They offer high-quality products and excellent customer satisfaction, with a positive review rate of 100.0% and 12 positive reviews.

Weifang Fistter Machinery Co., Ltd. 6 yrs

Hydraulic Feeding WC-8H Series Wood Chipper Parts

Key attributes

video outgoing-inspection

Provided

machinery test report

Provided

core components

Bearing, Pump, Rotor

warranty

1 Year

power type

Diesel

type

Wood Chipper

place of origin

Shandong, China

weight

410 KG

use

Chipping wood

brand name

Fistter

dimension(l*w*h)

26"x72"x85"

Model

WC-8H Wood Chipper spare parts

Color

red,blue,green,white,yellow,etc

Power

25 ~ 55hp

Usage

Branches Chipping

Capacity

8 x 8 inch

Package

Iron crate

Feeding system

Mechanical Feed

Knives

2pcs

Drive System

PTO Shaft

Condition

New

Packaging and delivery

Selling Units

Single item

Single package size

120X20X20 cm

Single gross weight

26.000 KG

Lead time

Quantity (sets)	1 - 2	3 - 20	21 - 40	> 40
Lead time (days)	7	25	45	To be negotiated

Customization options

Customized logo (Min. order: 50 sets)

Customized packaging (Min. order: 50 sets)

View details

Product descriptions from the supplier

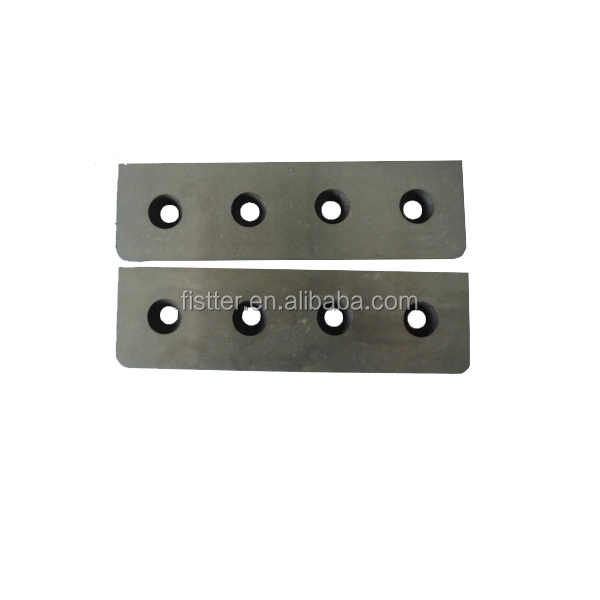

Spare Parts

Wood Chipper parts

We supply and produce many spare parts and accessories.

Products Description

Applications

Fistter WC-series wood Forest chippers are the perfect combination of size, weight, and features. Compact enough to easily move around, yet strong enough to get the tough jobs done. WC-series chippers are loaded with features typically found on much larger commercial machines that are much more expensive. The strength of our machines start with using heavy formed Q-235 structural steel plate; the strongest plate steel available. Each piece is CNC plasma cut, and meticulously welded.
Fistter WC-series chipper exclusive structural design includes a 2" diameter main shaft that passes through the flywheel housing and is supported by 3 bearings: 1 pillow block and 2 flange bearings. This feature, combined with the 2" shaft, allows the flywheel to run true and ads a great deal of strength. This design sets Fistter chippers far apart from the competition, and it is a design feature you should not overlook when shopping for chippers.

Technology

Mechanical Feed Type WC-8

- Europe, America and International Patents Pending
- Strength in design, CNC plasma cut structural plate steel
- 19 hp. min. required
- 3 pt. hitch mount- fits category 1 or category 2 (cat-1 quick hitch)
- 8" x 8" In-Feed opening
- 200 lb. 24" Diameter Flywheel (dynamically balanced)
- 2-Reversible fly wheel knives, 1 bed knife (anvil)
- 1120 RPM Flywheel speed
- Mechanical gear driven in-feed system
- In-feed rate 58 ft. /min.
- Hardened 6.25" dia. chisel type in-feed roller
- Quick hitch Compatible (category 1 quick hitch only)
- 360 Degree swivel discharge chute
- Adjustable base legs
- High flow chamber ventilation
- 2" diameter main shaft
- 3-Heavy duty cast steel main shaft bearings
- Adjustable infeed roller down pressure
- Weight 950 lbs. (shipping) Steel crate L=46" x W=36" x H=48"
- 8mm thick steel fly wheel housing
- Easy access fly wheel knife panel
- Adjustable bed knife (to achieve proper knife gap)
- 5 Heavy duty drive belts
- Safety stop bar
- Horizontal "table height" in-feed hopper for easy loading
- Baked on powder coat finish
- Clear vinyl chip baffle
- PTO shaft included (shear bolt protected) (optional Premium shaft available)
- Colors available; Red, Orange,green ,etc. Color samples available, please request if color shade is a concern
- 90% assembled upon delivery

Product Paramenters

Item	WC-8M	WC-8H
Dia. of wood	200mm	200mm
Power	25~50hp, 540/720rpm	25~50hp, 540/720rpm
Dia. of rotor	660mm	660mm
Speed of rotor	1080/1440rpm	1080/1440rpm
Feeding system	Mechanical Feed, Reduction gear,clutch	Hydraulic Feed, Adjustable Speed , stop-reverse-forward
blade	2 blades	2 blades
Leg	Iron sheet	Square tube
chips size	thickness <4mm	thickness <4mm
Discharge chute rotation	360 degree	360 degree
Weight	380 kgs	430 kgs
Working efficiency	7-9 cbm/h	8-9 cbm/h
Hydraulic oil tank	0	38L

Details Images

Mechanical feed PTO wood chipper WC-8

Power: 25~ 45hp tractor

Capacity: 8 inch

Hydraulic feed PTO Wood chipper WC-8H

Power: 25 ~ 45hp Tractor

Capacity: 8 inch

Product packaging

Certifications

FAQ

Q1: Can I put my brand name on the equipments instead of your brand name ?
A: Yes. Many dealers sell our products with their own brand name.Some have design modifications to meet their unique needs. We welcome OEM orders.

Q2: Are you factory?
A: Yes, " Fistter" is a manufacturer(factory).We have our own moulding and producing workshops, including laser cutting workshop, casting workshop, hardware workshop, robot welding workshop, shot blosting workshop and painting workshop. All things are controled by ourselves.

Q3: Do you accept sample order?
A: Yes, we accepet sample order. We understand that many clients need to get sample for quality check.

Q4: Do you have R&D departmemt?
A: Yes. We have a strong team of R&D From drawing to sample.

Q5: How long does it take for the ODM sample?
A: 7-14 days.

Q6: How long will it take for normal order?
A: 30-45 days upon down pavment.

Q7: Does your packaging pass drop test of E-commerce?
A: Yes. Our packaging passed drop test of E-commerce.

Q8: Do you have any MOQ limit?
A: Low MOQ, ONE pc for sample checking is available, and try order also is welcome.

Q9: Can I get a sole distribution right for one product in my country ?
A: It depends on actual conditiion. Please talk to our sales man for sure.

Service
