| Quantity (watts) | 1 - 10 | > 10 |
| Lead time (days) | 7 | To be negotiated |

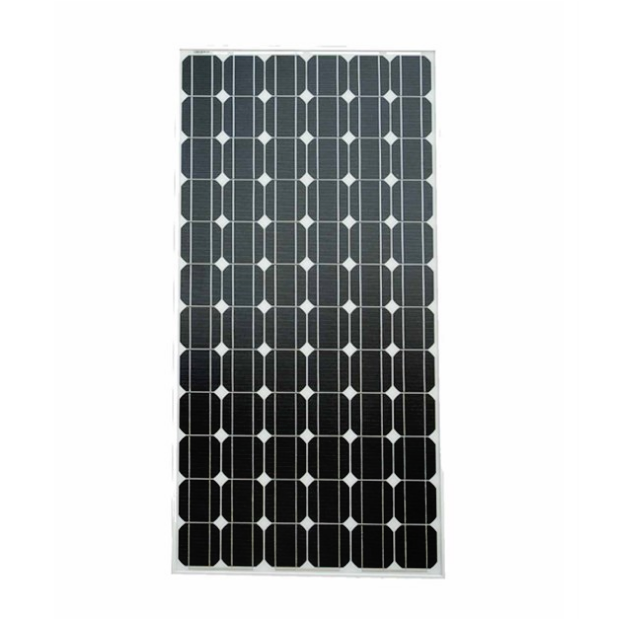

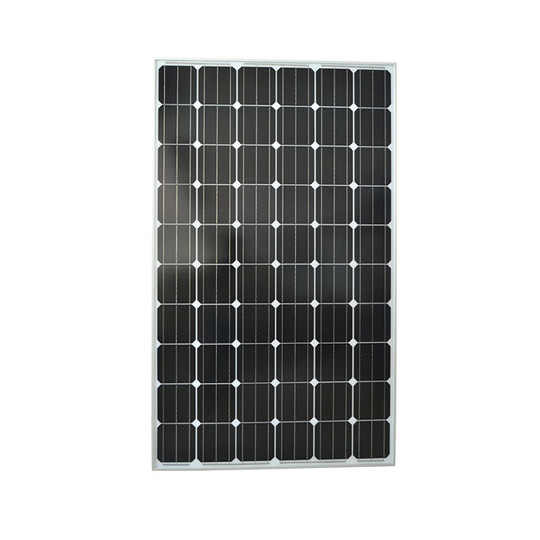

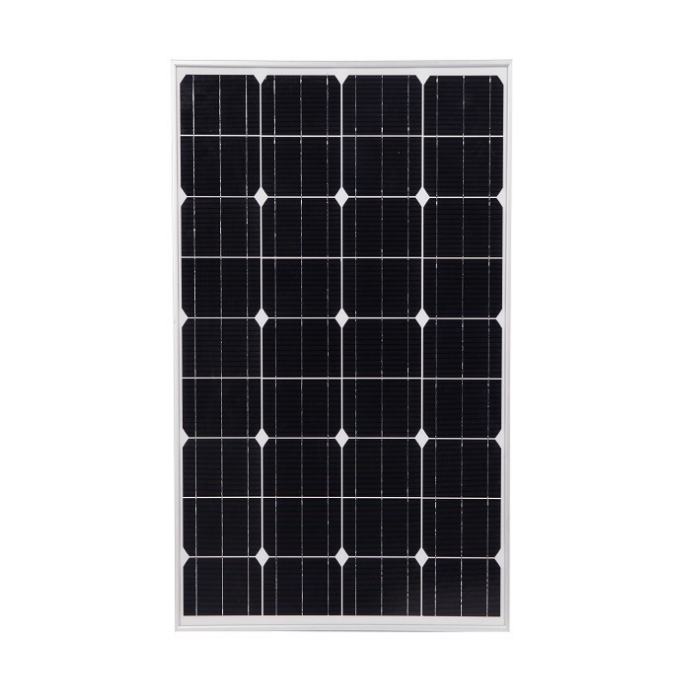

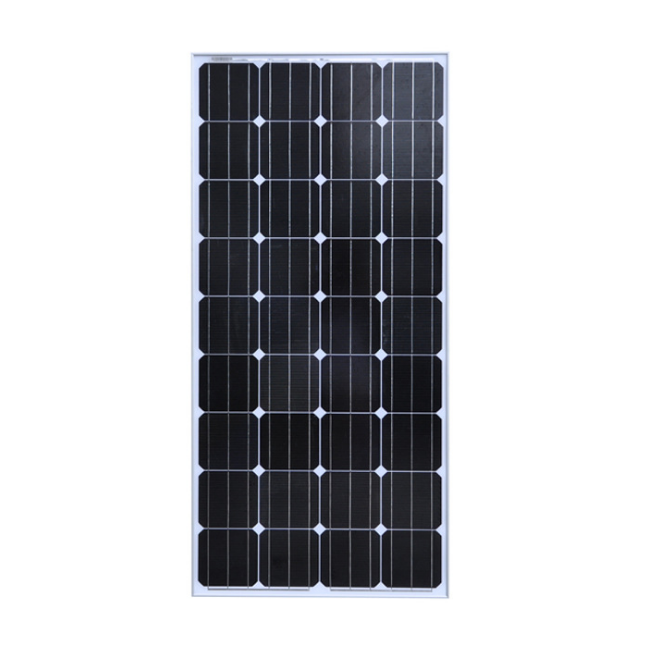

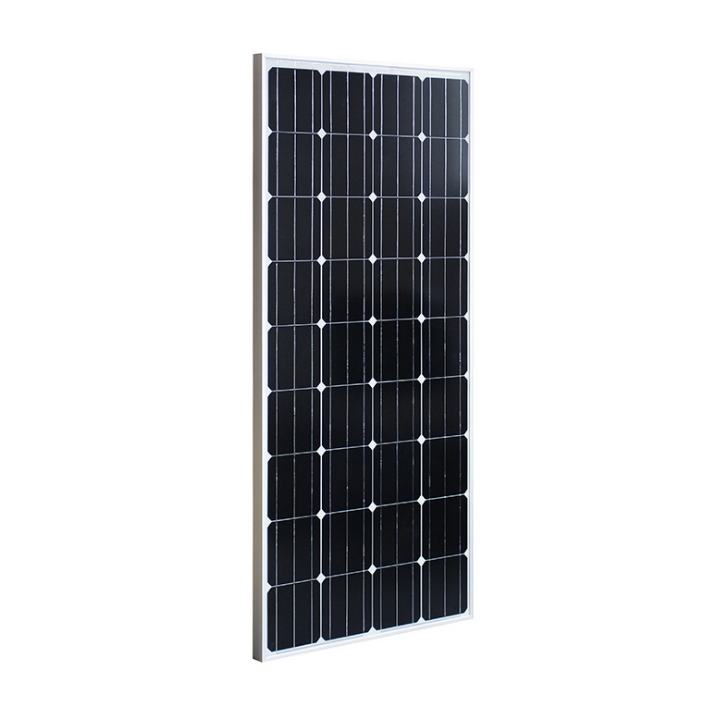

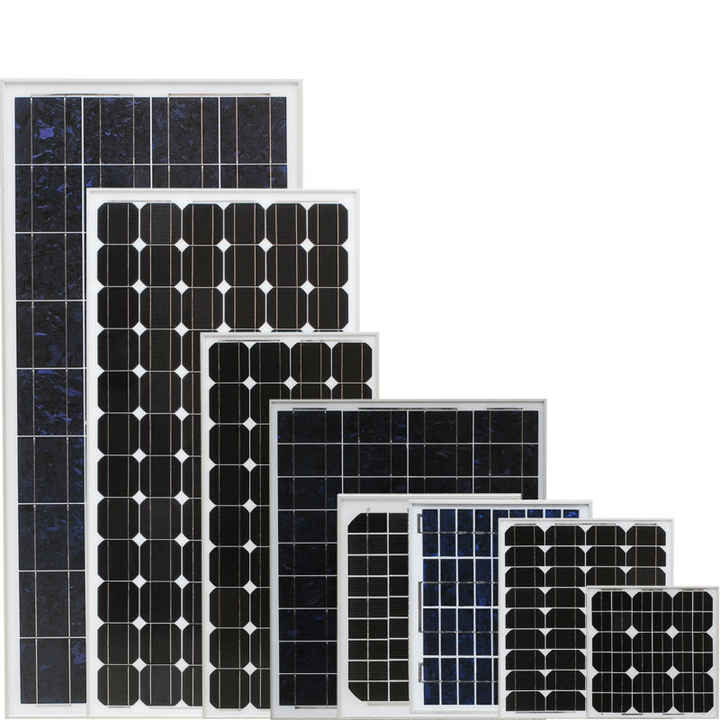

| Solar Panel Details |
Quality and Safety:
Rigorous quality control meeting the highest international standards;
High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon;
ISO 9001:2008,ISO 14001:2004 and OHSAS18001.
Features and Certification:
Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies;
High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa;
TUV, IEC61215,IEC61730,CE, PV CYCLE.
Warranties:
10 years limited product warranty,25 years for power warranty;
10 years at 90% of the minimal rated power output;
25 years at 80% of the minimal rated power output.
| Solar Panel Details |
| Technical parameter |
| Modle Name | Peak Power Pm(W) | Maximum Power Voltage Vm(V) | Maximum Power Current Im(A) | Open Circuit Voltage (Voc)V | Short Circuit Current Isc(A) | Longitudinal spacing of the mounting holesA(mm) | Lateral mounting hole spacingB(mm) |
Mounting hole dimensions N(mm) | size L*W*H(mm) |
| XD-SPP5 | 5 | 9 | 0.56 | 10.62 | 0.61 | 61.67 | 170 | 4-φ5x8 | 500*320*330 |
| XD-SPP10 | 10 | 18 | 0.34 | 21.24 | 0.36 | 116.67 | 265 | 375*360*315 | |
| XD-SPP15 | 15 | 18 | 0.84 | 21.24 | 0.91 | 140 | 325 | 445*360*380 | |
| XD-SPP20 | 20 | 18 | 1.12 | 21.24 | 1.22 | 178.33 | 325 | 560*360*380 | |
| XD-SPP25 | 25 | 18 | 1.39 | 21.24 | 1.52 | 148.33 | 490 | 4-φ9x13 | 560*360*380 |
| XD-SPP30 | 30 | 18 | 1.67 | 21.24 | 1.83 | 178.33 | 495 | 560*540*190 | |
| XD-SPP35 | 35 | 18 | 1.95 | 21.24 | 2.13 | 218.33 | 500 | 560*540*190 | |
| XD-SPP40 | 40 | 18 | 2.23 | 21.24 | 2.45 | 218.33 | 500 | 712*400*595 | |
| XD-SPP50 | 50 | 18 | 2.78 | 21.24 | 3.05 | 200 | 480 | 8-φ9x13 | 1060*360*575 |
| XD-SPP55 | 55 | 18 | 3.06 | 21.24 | 3.36 | 200 | 480 | 1060*360*575 | |
| XD-SPP60 | 60 | 18 | 3.34 | 21.24 | 3.66 | 200 | 480 | 1060*360*575 | |
| XD-SPP70 | 70 | 18 | 3.89 | 21.24 | 4.27 | 200 | 645 | 1060*360*750 | |
| XD-SPP75 | 75 | 18 | 4.17 | 21.24 | 4.58 | 200 | 645 | 1060*360*750 | |
| XD-SPP80 | 80 | 18 | 4.45 | 21.24 | 4.88 | 200 | 645 | 1060*360*750 | |
| XD-SPP85 | 85 | 18 | 4.73 | 21.24 | 5.19 | 200 | 645 | 1060*360*750 | |
| XD-SPP100 | 100 | 18 | 5.56 | 42.48 | 6.10 | 292 | 645 | 1520*720*130 | |
| XD-SPP120 | 120 | 18 | 6.67 | 42.48 | 7.33 | 292 | 645 | 1500*720*130 | |
| XD-SPP130 | 130 | 18 | 7.23 | 42.48 | 7.90 | 292 | 645 | 1500*720*130 | |
| XD-SPP150 | 150 | 36 | 4.17 | 42.48 | 4.58 | 269 | 955 | 1385*1035*150 | |
| XD-SPP160 | 160 | 36 | 4.45 | 42.48 | 4.88 | 269 | 955 | 1385*1035*150 | |
| XD-SPP165 | 165 | 36 | 4.59 | 42.48 | 5.04 | 269 | 955 | 1385*1035*150 | |
| XD-SPP170 | 170 | 36 | 4.73 | 42.48 | 5.19 | 269 | 955 | 1385*1035*150 | |
| XD-SPP175 | 175 | 36 | 4.86 | 42.48 | 5.34 | 269 | 955 | 1385*1035*150 | |
| XD-SPP180 | 180 | 36 | 5.00 | 42.48 | 5.50 | 269 | 955 | 1385*1035*150 | |
| XD-SPP190 | 190 | 36 | 5.28 | 42.48 | 5.70 | 334 | 950 | 1700*1020*130 | |
| XD-SPP200 | 200 | 36 | 5.56 | 42.48 | 6.00 | 334 | 950 | 1700*1020*130 | |
| XD-SPP210 | 210 | 36 | 5.84 | 42.48 | 6.30 | 334 | 950 | 1700*1020*130 |
| Practical Application |
| Packaging & Shipping |
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment Term |
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
| Why Choose Xindun Power? |
| About us |
| Guangdong Xindun Power Technology Co.,Ltd | |
| Factory Location |
Foshan,Guangdong,China |
| Industry Experience | 13-year manufacturer, 16-year trading, 8-year alibaba gold supplier |
| Product Range |
solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 6000 Square Meters, 60+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO9001:2015, CE, IEC, etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
| Workshop |
| Production Process |
| EXHIBITION & CUSTOMER |
| CREDIBILITY |
| FAQ |
A: Are your inverters pure sine wave output?
Q: A Yes, All are true pure sine wave.
A: What kind of output you can do?
Q: Normally we produce inverter with 110V 115V 120V 220V 230V 240V, 50/60Hz self-adaption. If you have special requirements, please tell us for engineer consulting.
A: What' s the difference between low frequency and high frequency inverter?
Q: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
A: What's the difference between pure sine wave inverter and modified sine wave inverter?
Q: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
A: What appliances your inverters can load?
Q: Our inverter can be used in household, Office, agricultural appliances and other inductive load such as refrigerator, air conditioner, water pump, etc.
A: Can you print our company logo on inverters, nameplates and packaging?
Q: Yes, we accept OEM orders.
A: How to choose a right inverter?
Q: Tell us your demand, then our sales will recommend a suitable inverter to you.
A: How to solve the technical problem?
Q: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
A: Do I Need A Power Inverter?
Q: Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 220 or 230 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.
A: What's The Difference Between 12, 24, And 48 Volt Inverters?
Q: This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.
A: What to do if the product is broken?
Q: If any product is faulty, you can send the picture or video to us, we sill study it and supply the spare parts of PCB board free for after sale service.
