Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632

No reviews yet
Taian Yuzhuo Machinery Co., Ltd. Multispecialty supplier 10 yrs CN
Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632
Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632
Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632
Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632
Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632
Cheap Small CNC Lathe Price for Sale Metal Lathe Factory in China CK0632

Service

Free replacement parts
View details

Key attributes

Industry-specific attributes

type
Horizontal
max. length of workpiece (mm)
200

Other attributes

machining capacity
Light Duty
max. weight of workpiece(kg)
400
no. of spindles
Single Phase
number of axes
2
travel (x axis)(mm)
280
travel (z axis)(mm)
200
positioning accuracy (mm)
±0.01
repeatability (x/y/z) (mm)
±0.005
voltage
380V/220V/450V/415V
tool post stations
8, 10, 6, 4, Gang type tool post
weight (kg)
800
warranty
1 Year
range of spindle speed(r.p.m)
6000 - 8000
cutting torque
80
width of bed (mm)
260 mm
place of origin
Shandong, China
dimension(l*w*h)
1600*1200*1550mm
brand name
YZ CNC
model number
CK0632
cnc control system
GSK
key selling points
Competitive Price
machinery test report
Provided
video outgoing-inspection
Provided
Name
Cheap Small CNC Lathe CK0632
Automatic Grade
Automatic
CNC or Not
CNC
Spindle bore
32mm
Spindle speed
50-2500rpm
Control system
SIEMENS GSK FANUC (optional)
Precision
High Precision
Tool holder
gang-type tool carrier
Max length of work piece
collet 200mm/chuck 120mm
Color
Customized Option

Packaging and delivery

Selling units
Single item
Single package size
160X120X155 cm
Single gross weight
800.000 kg
Show more

Lead time

Quantity (sets) 1 - 1 2 - 2 > 2
Lead time (days) 15 30 To be negotiated

Customization options

Product descriptions from the supplier

Product Description

Cheap Small CNC Lathe Price for Sale metal lathe factory in China CK0632


SPECIFICATIONS of  Cheap Small CNC Lathe CK0640
Spindle bore
Φ32mm
Max. swing over bed
Φ300mm
Max. swing over carriage
φ130mm
Max length of work piece
collet 200mm/chuck 120mm
X/Z- axis max motion traveling schedule
200mm/240mm
X-axis fast moving speed
6000mm/min
Z- axis fast moving speed
8000 mm/min
X-axis feed rates
1~2000mm/min
Z- axis feed rates
1~1800mm/min
Range of spindle speed
50~2500rpm
Thread machining scope (metric system)
0.25~12mm
Thread machining scope (British system)
28~3 1/2
Stations of tool carrier
gang-type tool carrier
Power of the main drive motor
3KW
Overall dimensions(L×W×H)
1550×920×1450
Net weight
850 kg

Standard Configuration :
1- System:GSK928TD-L, servo motor and drive.

2- Pneumatic spring collet,

3- Gang-type tool holder

4- Cooling system.

5- Lighten system.

6- Automatic lubrication system.

Optional configure:

1- CNC system: Siemens, Fanuc, KND.

2-Manual chuck/ Hydraulic chuck/Pneumatic chuck.

3-Manual tailstock/Hydraulic tailstock/Pneumatic tailstock

4-Vertical 4-station turret/Horizontal 6-station turret and 8-station turret.


Detailed Images

System:GSK928TD-L,Siemens, Fanuc,KND（optional）,servo motor and drive

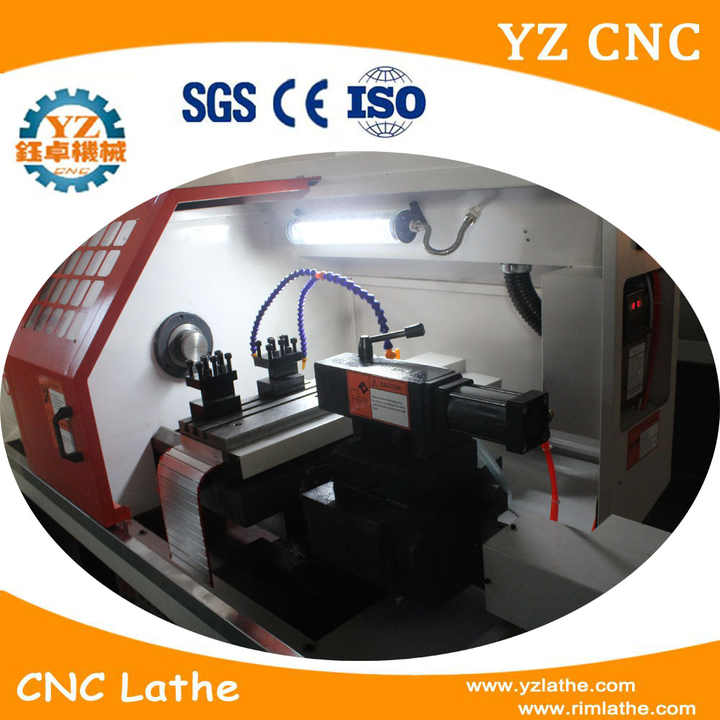

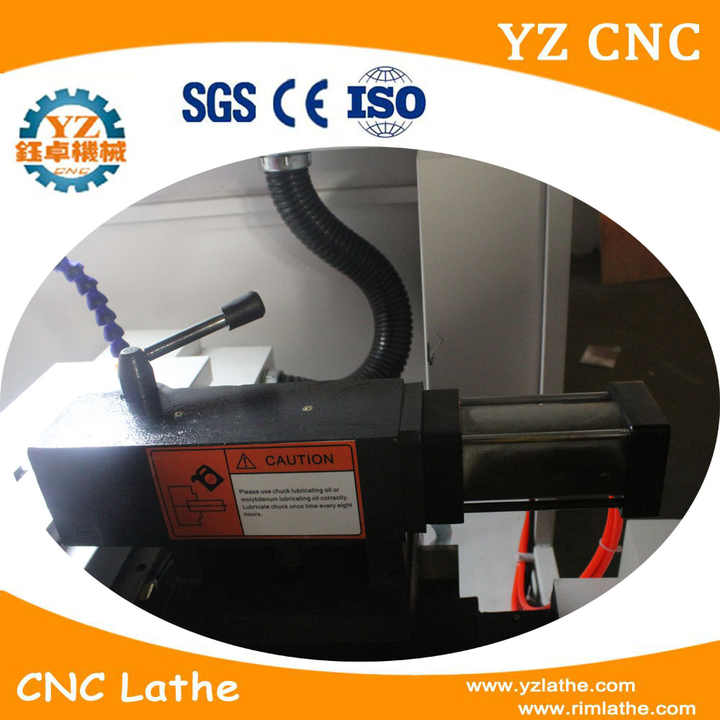

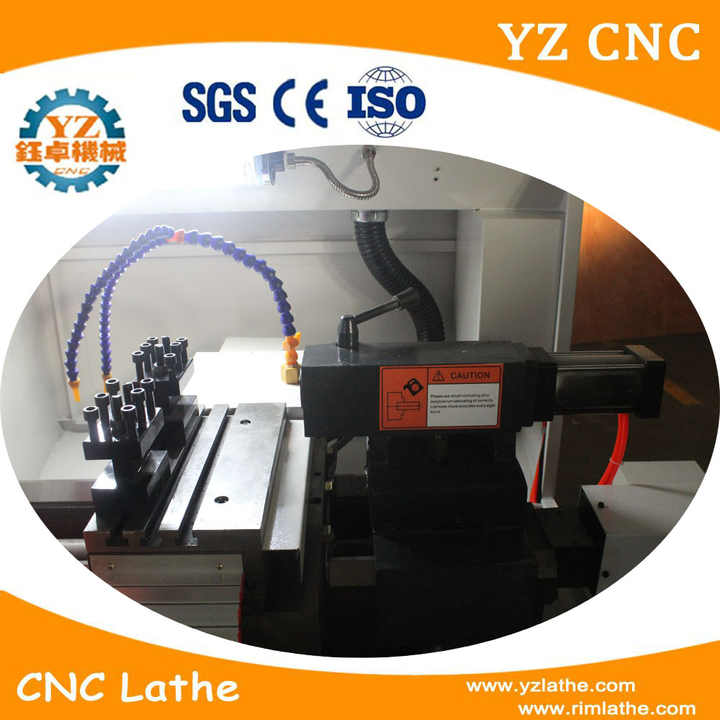

Manual tailstock,Hydraulic tailstock,Pneumatic tailstock(optional)

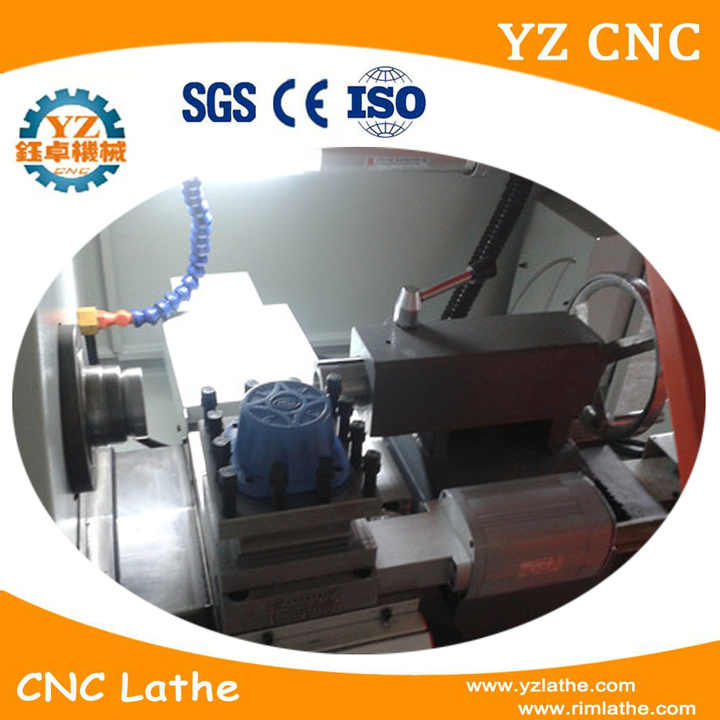

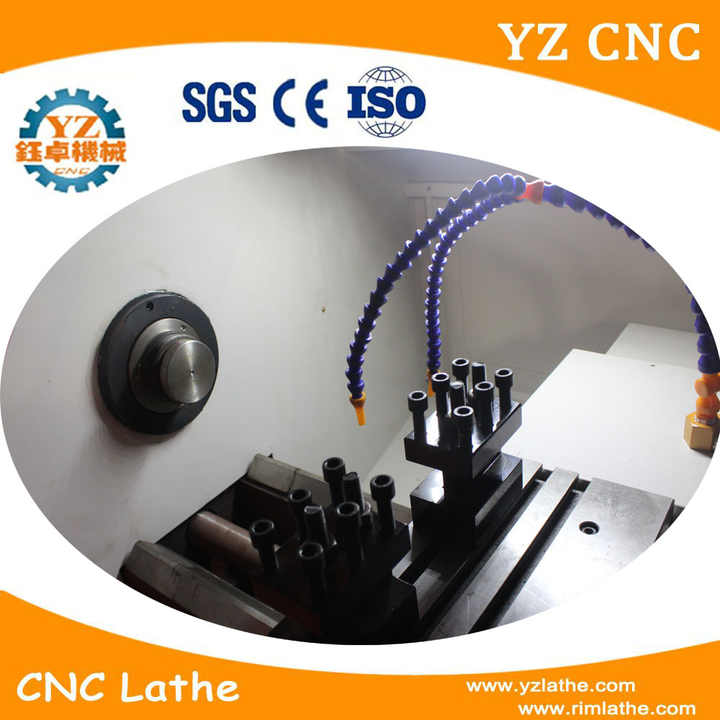

gang-type tool carrier

3-jaw chuck , Hydraulic chuck, pneumatic chuck(optional)

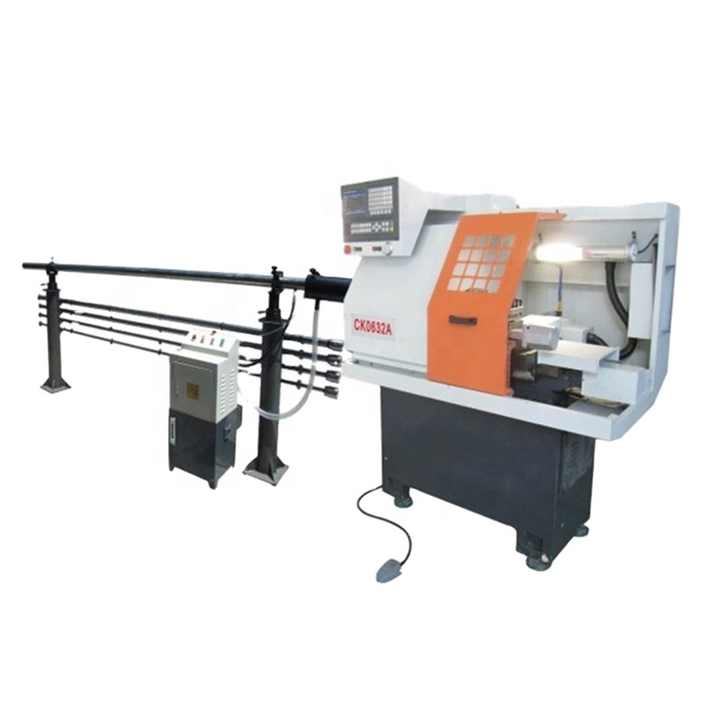

Cheap Small CNC Lathe CK0640
Packing & Delivery
Our Service

Before-sales service.

1.Help you choose the most suitable machine for you, to ensure that reduce costs and improve work efficiency.
2.If our equipment can not meet your requirements, we can according to your request to re-design,  build the final machine.



After-sales service.

1.Warranty is one year, we would offer the parts free of charge during this period, CNC system,Servo driven motor and transformer, Warranty is 3 years
2.Provide 24 hours of online technical service, you can contact us any time.
3.Provide free training, you can choose to train online or come to our factory.
4.Provide overseas services, including commissioning machines and training

Certifications
Our customers

Customers from Europe, America, Southeast Asia and other countries,more than 50 countries in Worldwide.

About us
FAQ

Q: Is your company a factory or trading company?

A: Our company is a factory, doing international business for decades of years.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Taian City, ShanDong Province, China with convenient transportation by flight, train, and bus.  All our customers, are warmly welcome to visit our company.

Q: How does your factory do on quality control?

A: Quality is our culture.We pay much attention to quality controlling from the environmental-friendly raw material,skilled workers to advanced testing equipment.

Q: How about your service?

A: we can provide 24hours online service, provide local free training. all parts free charge change in 3 years.

Customizable
1 - 1 sets
$6,400.00
>= 2 sets
$6,200.00

Variations

Select now

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
