CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

No reviews yet

ND (SHANDONG) Intelligent Equipment Co., Ltd.3 yrs

CN

CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

CNC Metal Carving and Milling Machine for Micro Foil Fluted Brass Letterpress Die in Printing

Key attributes

Industry-specific attributes

rated power

4.0 KW

engraving speed

15 m/min

Other attributes

machine type

High Precision Machine

warranty

1 Year

weight (kg)

2800

place of origin

Shandong, China

brand name

ND Group

video outgoing-inspection

Provided

machinery test report

Provided

core components

PLC, Engine, Gearbox, motor, Pump

key selling points

High-accuracy

main axle rotational speed

0-40000 rpm

feeding height

150 mm

milling cutter diameter

3.375 mm

Product name

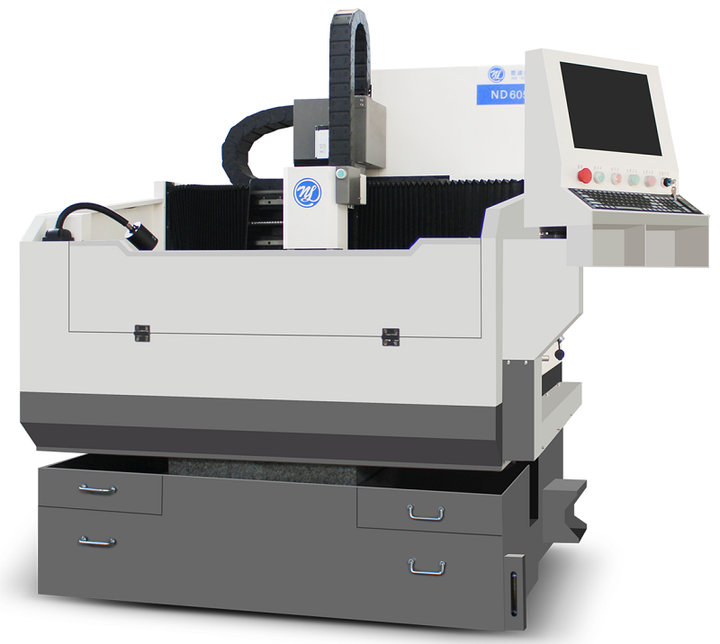

CNC Milling Machine For Micro Foil Fluted Brass Letterpress Die

Keyword

Micro Foil Fluted Brass Letterpress Die In Printing

Working Area

600x500x150 mm

Frame base & gantry

High Precision Granite

CNC Controller System

Weihong

Spindle Speed

0~40000 rpm

CNC or Not

CNC

Max. Feed Speed

15 m/min

Max. Working Speed

10 m/min

Drive motor

Servo system

Packaging and delivery

Packaging Details

Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.

Selling units

Single item

Single package size

50X60X80 cm

Single gross weight

68.000 kg

Lead time

Customization options

Product descriptions from the supplier

FREE shipping capped at $20.00 on your first order

Customizable

Minimum order quantity: 1 set

$22,390.00-31,350.00
