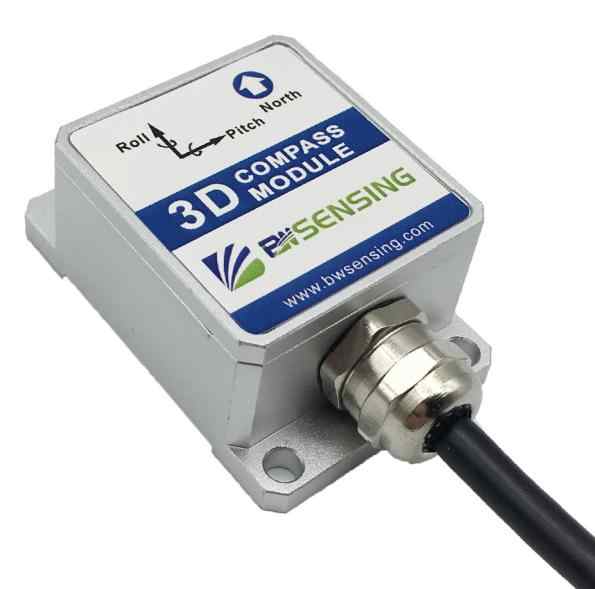

BWSENSING Digital Sensor 3-Axis Accelerometer 3-Axis Magnetometer 3-Axis Gyro AHRS SEC295 Output 485 232 TTL

Name: BWSENSING Digital Sensor 3-Axis Accelerometer 3-Axis Magnetometer 3-Axis Gyro AHRS SEC295 Output 485 232 TTL
Brand: Wuxi Bewis Sensing Technology Llc
SKU: 60590400830
Price: 70 USD
Availability: InStock

(1 review)1 sold

Wuxi Bewis Sensing Technology Llc11 yrs

BWSENSING Digital Sensor 3-Axis Accelerometer 3-Axis Magnetometer 3-Axis Gyro AHRS SEC295 Output 485 232 TTL

Key attributes

Use

Industy

Mounting Type

Vertical and horizontal installation

Description

Electronic Compass

Model Number

SEC295

Series

SEC

Manufacturing Date Code

Place of Origin

Jiangsu, China

Brand Name

BWSENSING

Theory

accelerometer magnetometer gyroscope

Output

Digital Sensor

Brand

Amplifier Type

Voltage - Supply

Output Type

Current - Supply

Operating Temperature

Resolution (Bits)

Features

Current - Supply (Max)

Packaging

Frequency

Output Configuration

Current

Voltage Rating

Operating Force

Oxygen Range

Humidity Range

Size

Size / Dimension

Measuring Range

Resolution

Interface

Technology

Sensing Range

Current - Output (Max)

Bandwidth

Function

Acceleration Range

Sensitivity (LSB/g)

Sensitivity (mV/g)

Sensitivity (LSB/(°/s))

Sensitivity (mV/°/s)

Sensing Distance

Current - Output

Power - Rated

Voltage - Output Difference (Typ) @ Distance

Voltage - Output (Typ) @ Distance

Voltage - Max

Voltage - DC Reverse (Vr) (Max)

Power - Max

Sensing Object

Sensing Light

Resistance

Resistance Tolerance

Sensing Temperature - Local

Sensing Temperature - Remote

Current Rating - AC

Current Rating - DC

Tolerance

Voltage - Rated

Flow Sensor Type

Voltage - Input

Application

Output Function

D/C

Cross Reference

Name

Full Attitude Digital Compass

Model

SEC295

Type

3 axis accelerometer+3 axis magnetometer+3 axis Gyro

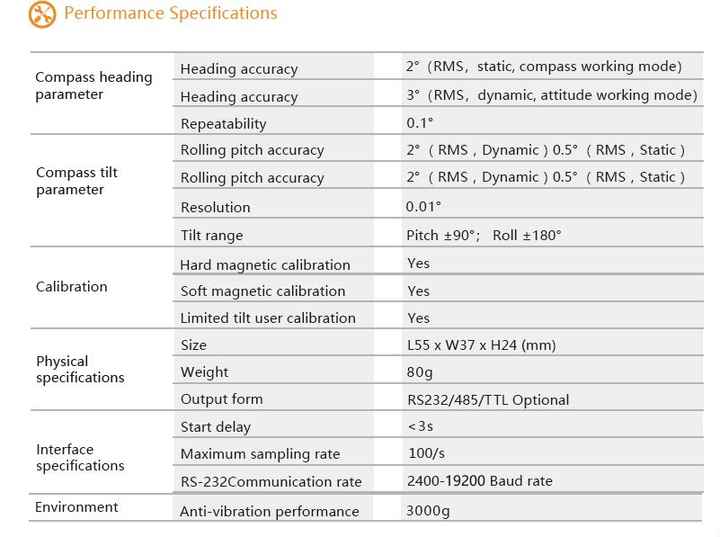

Accuracy

3°

Resolution

0.01°

Measurement range

All attitude ,inclination compensation

Wide voltage input

DC 5V

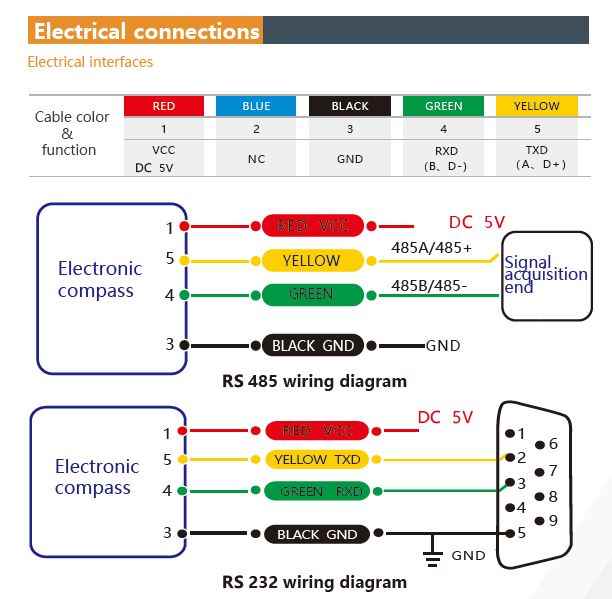

Output interface

RS232/485/TTL optional

Wide temperature

-40℃~+85℃

Small size

L55mmW37mmH24mm customizable

Packaging and delivery

Selling Units

Single item

Single package size

5.5X3.7X2.4 cm

Single gross weight

0.500 KG
