Smart TV BOX Android 6.0 +OpenWRT(NAS) Realtek RTD1295 2G/16G 802.11ac WIFI BT 1000M LAN Media Player
1,Realtek 1295 chipset, ARM CA53 x4,Mali-T820 MP3 L2 Cache 1MB. 2G RAM, 16G EMMC;
2,Powered by Android6.0;
3,Support H.265 4K*60fps;
4,HDMI in + HDMI2.0 out;
5,LAN : 10/100M/1000M Ethernet;
6,Can play original BD disk,BD ISO playback;
7,Support Frame Packaging 3D, 2D movie convert to 3D image;
8,Support VP9,4KP60 for Youtube 4K;
9,Support 802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI;
12,Miracast and Intel Wireless Display;
13,Support 7.1 pass through,
Hardware:
| Processor: | RTD1295 DD ,ARM CA53X4, Mali-T820 MP3 L2 Cache 1MB |
| Freq: | 1.5GHz |
| RAM: | 2GB DDR4 |
| Storage: | 16GB EMMC |
| Interface: | |
| Video Output: | HDMI v2.0 |
| Wireless: | 802.11 b/g/n |
| LAN: | 10/100M/1000M Ethernet |
| Composite Audio /Video: | AV output |
| Optical: | Optical output |
| HDMI INPUT: | HDMI input |
| HDMI output: | HDMI output |
| USB 3.0: | USB 3.0 host |
| USB2.0: | USB 2.0 host x 3 |
| TYPE-C:TYPE-C HOST and Slave | |
| Power: | 12V 2.5A power adaptor |
| Android system: | |
| Android Version: | Android 6.0 |
| File System: | Fat16 / Fat32 / exFAT/NTFS/HFS+/Samba/ext2/3/4 |
| Menu Language: | English/German/Spanish/French/Italian/Dutch/Polish/Russian/Korean/Japanese/Simplified Chinese/Chinese-traditional |
| System Upgrade: | OTA upgrade or USB upgrade |
| Video Streaming: | HTTP, RTSP |
| Media: | |
| Video Container: | * RM/RMVB * MPEG1/2/4 Elementary (M1V, M2V, M4V) * MPEG1/2 PS (M2P, MPG) * MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS) * VOB * AVI, ASF, WMV * Matroska (MKV) * MOV (H.264), MP4, RMP4 * IFO * DVD-ISO,BD-ISO * MINI BD,BD-9,BD25,RBD,D5,D9,DVD,CD * FLV * swf/(.swf) * * 3GP/.3gp * AVS/(.avs) * 3D Bluray(DISC/ISO) or Single-File(*.ts/*.m2ts)
|
| Video Decode: | *4KP60 10bit/HDR/HDMI 2.0 Tx& Rx/H264 encoder *VP9 4KP60 *H.265 /HEVC 4K*2K(MP*L5.0 High Tier) *MPEG1,VCD1.0/2.0,SVCD( up to1920*1080*30P/60I or 1280*720*60P) *HD MPEG2 MP/HL,ISO,IFO,VOB,TS(up to1920*1080@30P/60I or 1280*720*60P) *HD MPEG4 SP/ASP,Xvid(up to1920*1080*30P/60I or 1280*720*60P) *H.263(Profile0/3*L70 1080*60P ) *H.264 BP,MP,HP*L4.2, H.264 MVC SHP (maximum 720*30P) *WMV9,VC-1 AP*L3( up to 1920*1080*30P/60I or 1280*720*60P) *DivX3/4/5( up to1920*1080*30P/60I or 1280*720*60P) *XVID SD/HD( up to 1920*1080*30P/60I or 1280*720*60P) *RM/RMVB 8/9/10( up to 1280*720*30P) *AVS: Jizhum profile level 2.0/ 4.0/ 4.2/ 6.0/ 6.2 |
| Audio Container: | *aac,mp4,m4a *wav *wma,asf *ogg *ape *flac *amr,3ga *ra, rm, rmvb,ram
|
| Audio Decode: | *MPEGⅠLayer 1/2/3(2-CH) and MPEGⅡ1/2(Multi-Channel) *LPCM,ADPCM,FLAC,AAC,ALAC,AMR,WAV,WMA,WMA pro,OGG,AMR,APE * digital+stereo * Digital AC3 * Digital Plus * Digital TrueHD *RA-cook/RA-Lossless
|
| Picture Formats: | JPEG ,BMP, PNG, GIF, TIFF, Webp(Android) |
| Subtitle Formats: | *MicroDVD [.sub], *SubRip [.srt], *Sub Station Alpha [.ssa], *Sami [.smi] *VobSub[.idx+.sub] *Advance SubStation Alpha[.ass]
|
| Subtitle Language: | * Standard version: simplified Chinese, traditional Chinese, Turkish, Greek, Hebrew, Czech, SE European, Central European, Cyrillic, Western, UTF8 |
| Menu Language : | * Standard version: simplified Chinese, traditional Chinese, English, Russian, Spanish, Czech, Dutch, Italian, French, German, Turkish, Hebrew |
| Case: | |
| Material & Craft : | Aluminum case |
| Color: | Black |
| Unit Dimension: | 200x 143x55MM |
| Unit Weight: | 1.8kg |

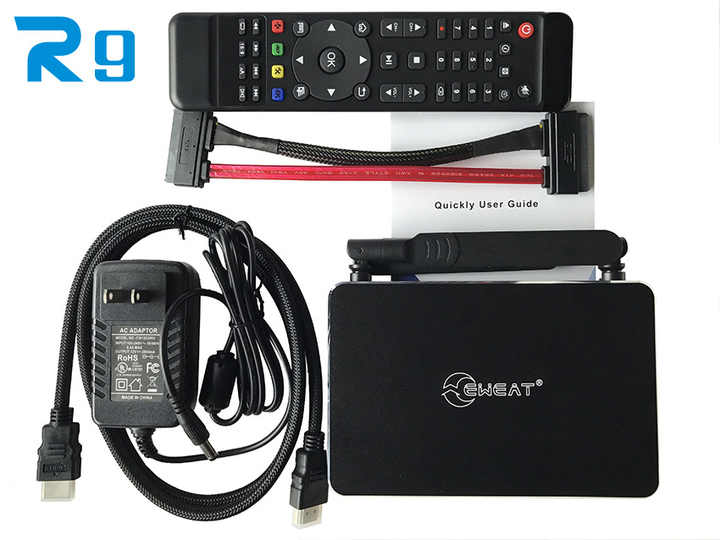

| Accessories: | |
| IR remote control: | ×1pcs(Optional: 2.4G air mouse) |
| HDMI cable: | ×1pcs |
| AV cable: | ×1pcs |
| Power adaptor: | ×1pcs |
| SATA cable: | ×1pcs |
| Warranty Card: | ×1pcs |
| Quick Install Guide: | ×1pcs |
| Others: | |
| Certification: | RoHS, CE, FCC |
| Operating Temperature: | 0~70°C |
| Storage Humidity: | 30%~70% |
| Storage Temperature: | 10~35°C |
| Overall Power Consumption: | <5W |
| Standby Power Consumption: | <0.02W |
| QTY/CTN: | 6PCS |

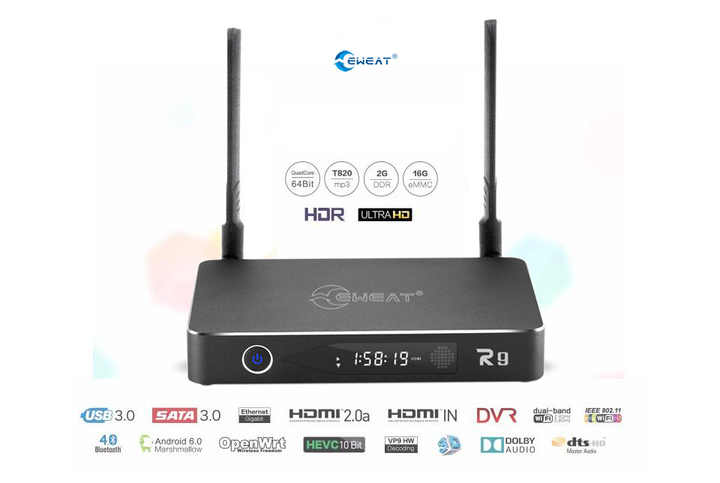

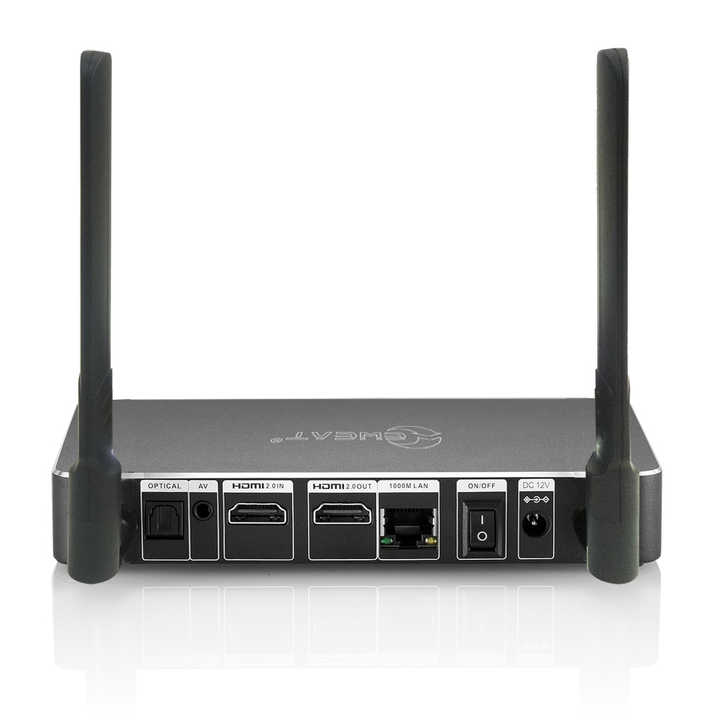

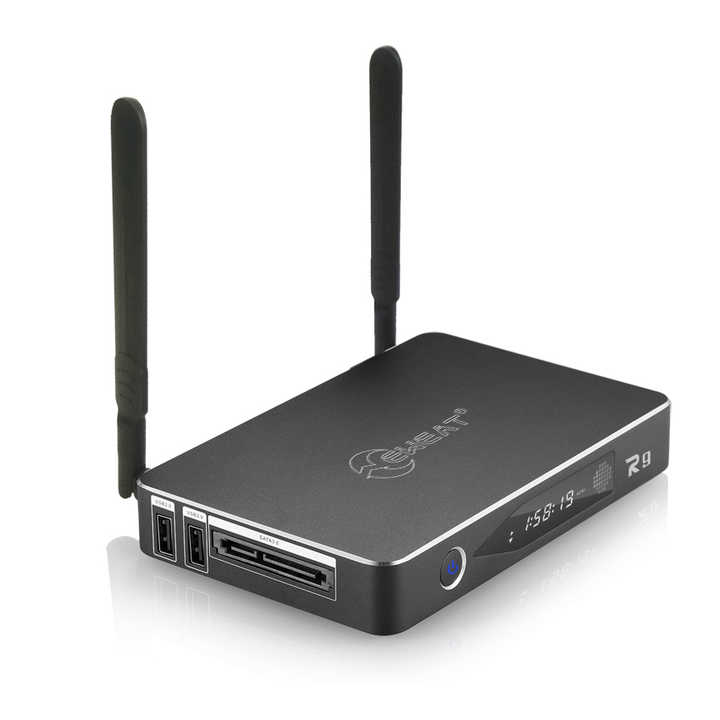

Product picture:
How to OEM&ODM:
How to order?
1. Please tell us the model, quantity and other requests.
2. Proforma Invoice confirmed, the order will be arranged upon receipt of payment.
3. Confirm and ship the goods, then tracking number will be sent by email.
4. We will help to track your goods until you receive them safely.
After-sale Service
1. Warranty: 1 year(starting from actual receival of the goods).
2. Anything damaged, pls provide pictures or video for confirmation. New ones will be offered.
3. Cooperate with the cheapest and safest shipping company.
4. Track the goods until you get the goods.
Our partner from Korean foucused on broadband tv technical. and successful in IPTV field.
1) 11 Motor rooms to get tv source, tv streaming from H264;
2) 200 servers in HK and USA to release the tv channels ;
3) 1500 tv source available;
4) Various types of packages;
5) 14 countries with agent;
6) Over 100,000 users all over the world ;
